The utility model discloses a paper delivery device of a die-cutting machine, comprising a conveying belt and a mounting plate, the mounting plate is arranged below the conveying belt, a vertical driving frame is arranged on the mounting plate, and a vertical driving frame is arranged on the vertical driving frame There is a sliding rail, a slider is arranged on the sliding rail, and the delivery rack is installed on the vertical drive frame through the slider; the delivery rack includes a push plate, a side plate and a baffle, and the side plates are arranged in parallel on both sides A push plate and a baffle are installed between the side plates, a plurality of support rods are installed on the push plate, and the other end of the support rod passes through the baffle. The utility model has the advantages of simple structure, convenient operation, reduced labor intensity and improved working efficiency.

Description

Paper collecting device of die-cutting machine

Technical Field

The utility model belongs to the technical field of the cross cutting machine, concretely relates to paper collecting device of cross cutting machine.

Background

The die cutting machine is called a beer machine, a cutting machine and a numerical control punching machine, is mainly used for die cutting (full break and half break), indentation and gold stamping operation, fitting and automatic waste discharge of corresponding nonmetal materials, non-setting adhesive, EVA, double-sided adhesive, electrons, mobile phone rubber mats and the like, and utilizes a steel knife, a hardware die and a steel wire (or a template carved by a steel plate) to apply certain pressure through an embossing plate to roll and cut a printed product or a paperboard into a certain shape, thereby being important equipment for packaging and processing forming after printing. The die cutting machine generally includes a paper feeding mechanism, a die cutting mechanism, a waste discharge mechanism, and a paper collecting mechanism.

The problems existing in the prior art are as follows: the paper collecting mechanism of the die cutting machine on the market at present usually comprises a paper aligning mechanism and a paper collecting plate, and the machine is stopped firstly to transfer paper piles manually, so that the production time is wasted, and meanwhile, the machine is easily mistakenly injured by misoperation. Therefore, a delivery device capable of automatically transferring a paper stack, saving production time and ensuring the safety of production personnel is urgently needed.

SUMMERY OF THE UTILITY MODEL

The utility model aims at providing a delivery unit of cross cutting machine, simple structure, convenient operation.

The utility model provides a following technical scheme: the utility model provides a delivery unit of cross cutting machine, includes conveyer belt and mounting panel, its characterized in that: the paper collecting device comprises a mounting plate, a paper collecting frame, a paper conveying belt and a paper conveying belt, wherein the mounting plate is arranged below the conveying belt, a vertical driving frame is arranged on the mounting plate, a sliding rail is arranged on the vertical driving frame, a sliding block is arranged on the sliding rail, and the paper collecting frame is arranged on the vertical driving frame through the sliding block; the paper collecting frame comprises a push plate, side plates and a baffle, wherein the side plates are arranged on two sides in parallel, the push plate and the baffle are installed between the side plates, a plurality of supporting rods are installed on the push plate, and the other ends of the supporting rods penetrate through the baffle.

Preferably, the highest point of the push plate of the paper collection frame is just parallel to the conveying belt when the slide rail is vertical to the highest point of the driving frame.

Preferably, the sliding block is connected with a motor, and the motor drives the sliding block to move on the sliding rail.

Preferably, the bottom of vertical drive frame is equipped with photoelectric sensor, one side of push pedal is equipped with the response module, when the delivery frame slided to the bottommost of vertical drive frame, photoelectric sensor and response module are on same water flat line.

Preferably, the baffle is provided with a sliding sleeve matched with the support rod.

Preferably, the baffle is fixedly connected with the side plate, and the push plate is connected with the side plate in a sliding manner.

Preferably, the support frames are distributed at equal intervals along the push plate.

The utility model has the advantages that: the paper pile can be automatically transferred, the paper pile can be transferred while the die-cutting machine works, the production time is saved, and the safety of production personnel is ensured.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

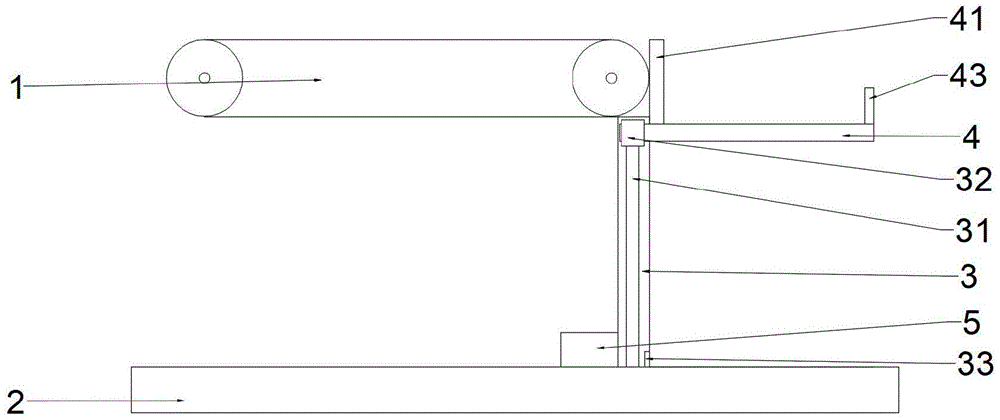

fig. 1 is a schematic structural diagram of the present invention;

fig. 2 is a schematic structural view of the delivery stand.

In the figure: the automatic paper delivery machine comprises a conveying belt 1, a mounting plate 2, a vertical driving frame 3, a sliding rail 31, a sliding block 32, a photoelectric sensor 33, a paper delivery frame 4, a push plate 41, a side plate 42, a baffle 43, a support rod 44, a sensing module 45, a sliding sleeve 46 and a motor 5.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the present application, and it is obvious that the described embodiments are only some, not all, of the embodiments of the present invention. Based on the embodiments of the present invention, other embodiments obtained by those skilled in the art without inventive achievements all belong to the protection scope of the present invention.

As shown in the figure, the utility model provides a technical scheme:

the utility model provides a paper collecting device of cross cutting machine, including conveyer belt 1 and mounting panel 2, mounting panel 2 is established in conveyer belt 1 below, be equipped with vertical drive frame 3 on the mounting panel 2, be equipped with slide rail 31 on the vertical drive frame 3, be equipped with slider 32 on the slide rail 31, paper collecting frame 4 is installed on vertical drive frame 3 through slider 32, the push pedal 41 peak of paper collecting frame 4 is just in time on a parallel with conveyer belt 1 when the peak of vertical drive frame 3 of slider 32, slider 32 is connected with motor 5, motor 5 drive slider 32 moves on slide rail 31.

The delivery frame 4 includes a push plate 41, side plates 42 and a baffle 43, the side plates 42 are arranged in parallel on two sides, the push plate 41 and the baffle 43 are installed between the side plates 42, a plurality of support rods 44 are installed on the push plate 41, the support rods 44 are distributed along the push plate 41 at equal intervals, and the other ends of the support rods 44 penetrate through the baffle 43. The bottom end of the vertical driving frame 3 is provided with a photoelectric sensor 33, one side of the push plate 41 is provided with a sensing module 45, and when the delivery frame 4 slides to the bottommost end of the vertical driving frame 3, the photoelectric sensor 33 and the sensing module 45 are on the same horizontal line. The baffle 43 is provided with a sliding sleeve 46 matched with the support rod 44, the baffle 43 is fixedly connected with the side plate 42, and the push plate 41 is slidably connected with the side plate 42.

The utility model discloses the during operation: firstly, a cut paper stack is conveyed to the paper delivery frame 4 through the conveying belt 1, when the paper stack on the paper delivery frame 4 is full, the motor 5 drives the sliding block 32 to move downwards along the sliding rail 31, the sliding block 32 drives the paper delivery frame 4 to move to the lowest end of the vertical driving frame 3, when the paper delivery frame 4 reaches the lowest end, the photoelectric sensor 33 on the vertical driving frame 3 senses the sensing module 45 on the push plate 41, and the push plate 41 pushes the paper stack out of the paper delivery frame 4 along the side plate 42 to finish paper delivery.

Although the present invention has been described in terms of the above embodiments, the inventive concepts are not limited to the embodiments, and any modifications that utilize the inventive concepts will be within the scope of the appended claims.

Claims

1. The utility model provides a delivery unit of cross cutting machine, includes conveyer belt (1) and mounting panel (2), its characterized in that: the paper delivery device is characterized in that the mounting plate (2) is arranged below the conveying belt (1), the mounting plate (2) is provided with a vertical driving frame (3), the vertical driving frame (3) is provided with a sliding rail (31), the sliding rail (31) is provided with a sliding block (32), and the paper delivery frame (4) is arranged on the vertical driving frame (3) through the sliding block (32);

the paper collecting frame (4) comprises a push plate (41), side plates (42) and a baffle (43), the side plates (42) are arranged in parallel on two sides, the push plate (41) and the baffle (43) are installed between the side plates (42), a plurality of supporting rods (44) are installed on the push plate (41), and the other ends of the supporting rods (44) penetrate through the baffle (43).

2. The delivery mechanism of a die cutting machine according to claim 1, characterized in that: when the slide block (32) is vertical to the highest point of the driving frame (3), the highest point of the push plate (41) of the paper collection frame (4) is just parallel to the conveying belt (1).

3. The delivery mechanism of a die cutting machine according to claim 1, characterized in that: the sliding block (32) is connected with the motor (5), and the motor (5) drives the sliding block (32) to move on the sliding rail (31).

4. The delivery mechanism of a die cutting machine according to claim 1, characterized in that: the bottom of vertical drive frame (3) is equipped with photoelectric sensor (33), one side of push pedal (41) is equipped with response module (45), when delivery frame (4) slided the bottommost of vertical drive frame (3), photoelectric sensor (33) and response module (45) are on same water flat line.

5. The delivery mechanism of a die cutting machine according to claim 1, characterized in that: and a sliding sleeve (46) matched with the supporting rod (44) is arranged on the baffle (43).

6. The delivery mechanism of a die cutting machine according to claim 1, characterized in that: the baffle (43) is fixedly connected with the side plate (42), and the push plate (41) is connected with the side plate (42) in a sliding mode.

7. The delivery mechanism of a die cutting machine according to claim 1, characterized in that: the supporting rods (44) are distributed along the push plate (41) at equal intervals.
