Abstract

The utility model relates to a buffer packing box, which comprises a body with a rectangular body structure, the body comprises a first box body and a second box body divided from a diagonal line, the edge of the opening of the first box body and the second box body One side edge of the opening is hinged, and the edges of the first box body and the second box body are magnetically connected at the opening. The packaging box of the present application solves the problems of poor structural novelty and poor object presentation effect.

Description

Buffering packing box

Technical Field

The utility model relates to a packing carton field especially relates to a buffering packing carton.

Background

At present, most of the packing boxes used in the market have poor structural novelty, so that the packing box with the structural novelty needs to be provided.

SUMMERY OF THE UTILITY MODEL

The utility model aims to solve the technical problem that a buffering packing carton is provided, solved the novelty of structure poor and article present the poor problem of effect.

The utility model provides an above-mentioned technical problem's technical scheme as follows: the utility model provides a buffering packing carton, includes the body of cuboid structure, the body includes first box body and the second box body of cutting apart from diagonal, and first box body opening part edge is articulated with second box body opening part one side edge, first box body and second box body opening part edge magnetism are inhaled and are connected.

Further, the bottom internal surface of first box body and second box body is fixed and is provided with first bolster, and the top internal surface of first box body and second box body is fixed and is provided with the second bolster, first thing groove of putting has been seted up on first bolster surface, the second is seted up on second bolster surface and is put the thing groove, and first thing groove of putting and the second puts thing trench position one-to-one.

Further, the first object containing groove and the second object containing groove are respectively arranged in the middle positions of the first buffer part and the second buffer part.

Furthermore, a handle is fixedly arranged at the edge of the opening at the opposite side of the hinged position of the first box body and the second box body.

Further, the packing box is made of cardboard.

The beneficial effects brought by the technical scheme at least comprise: the utility model provides a first box body and the second box body of packing carton have formed the body jointly, the body appearance is the cuboid structure, the opening part of first box body and second box body is located the diagonal position of body, the packing carton is in the articulated of first box body and second box body along its opening edge one side and turns over a book and open in the use, then place article in first box body or second box body, further turn over a book and close first box body and second box body along its open-ended one side articulated department, first box body and second box body opening part move to the direction that is close to each other this moment, finally pass through magnetism with the opening part of first box body and second box body and inhale the connection, directly turn over the articulated department between first box body and the second box body and open when needing taking out article, can take out article, the packing carton structure of this application is novel, and convenient to use.

Drawings

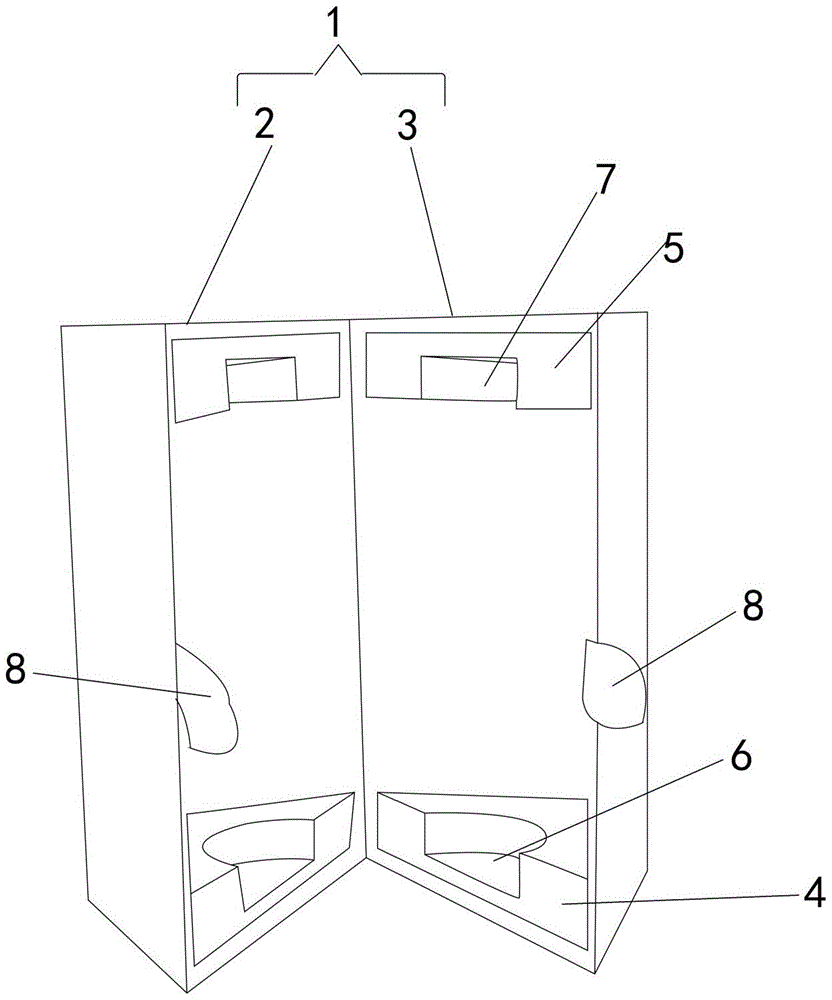

Fig. 1 is the overall structure schematic diagram of the buffer packing box of the present invention.

In the drawings, the components represented by the respective reference numerals are listed below:

1. the body, 2, first box body, 3, second box body, 4, first bolster, 5, second bolster, 6, first thing groove of putting, 7, second put the thing groove, 8, handle.

Detailed Description

The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "center", "inner", "outer", "top", "bottom", and the like, indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.

In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.

As shown in figure 1, the utility model provides a buffering packing box, which comprises a body 1 with a rectangular structure, wherein the body 1 comprises a first box body 2 and a second box body 3 which are separated from a diagonal line, the edge of the opening of the first box body 2 is hinged with the edge of one side of the opening of the second box body 3, the edge of the opening of the first box body 2 and the edge of the opening of the second box body 3 are magnetically attracted and connected, the packing box has the advantages of novel structure and convenient use, most of the packing boxes used in the market at present have poor traditional structure novelty, so that the packing box with the novel structure is needed to be provided, the first box body 2 and the second box body 3 of the packing box jointly form the body 1, the appearance of the body 1 is of the rectangular structure, the openings of the first box body 2 and the second box body 3 are positioned at the diagonal position of the body 1, the first box body 2 and the second box body 3 are hinged along one side of the opening edge of the opening in the use process of the packing box and opened by turning over, then place article in first box body 2 or second box body 3, further turn over first box body 2 and second box body 3 and turn over along the articulated department of its open-ended one side and turn over and close, first box body 2 and 3 opening parts of second box body move to the direction that is close to each other this moment, finally pass through magnetism with the opening part of first box body 2 and second box body 3 and inhale and be connected, directly turn over the articulated department between first box body 2 and the second box body 3 and turn over and open when needs take out article, can take out article, the packing carton novel structure of this application, and convenient to use.

The utility model discloses a buffering packing carton, as shown in fig. 1, can also be on the basis of the technical scheme of preceding description: the bottom inner surfaces of the first box body 2 and the second box body 3 are fixedly provided with a first buffer part 4, the top inner surfaces of the first box body 2 and the second box body 3 are fixedly provided with a second buffer part 5, the surface of the first buffer part 4 is provided with a first object containing groove 6, the surface of the second buffer part 5 is provided with a second object containing groove 7, the first object containing groove 6 and the second object containing groove 7 are in one-to-one correspondence, the first box body 2 and the second box body 3 are turned and opened along the edge of the opening in the using process of the packing box, an object is placed between the first object containing groove 6 and the second object containing groove 7 of the first box body 2 or the second box body 3, the top and the bottom outer surfaces of the object are respectively abutted against the bottom inner surfaces of the first object containing groove 6 and the second object containing groove 7, after the second box body 3 is buckled with the second box body 3, the two first object containing grooves 6 and the two second object containing grooves 7 wrap the object, thereby realize the fixed cushioning effect that realizes of article, protect article like this and avoid colliding with to because the opening part of first box body 2 and second box body 3 is the diagonal position of body 1, consequently the arbitrary position of article all does not contact with the internal surface of first box body 2 and second box body 3 when packing carton seals the box.

The utility model discloses a buffering packing carton, as shown in fig. 1, can also be on the basis of the technical scheme of preceding description: first thing groove 6 and the second of putting is seted up respectively at the intermediate position of first bolster 4 and second bolster 5 with thing groove 7, and further realization is to the better fixed cushioning effect of article.

The utility model discloses a buffering packing carton, as shown in fig. 1, can also be on the basis of the technical scheme of preceding description: the handle 8 is fixedly arranged at the edge of the opening at the opposite side of the hinged position of the first box body 2 and the second box body 3, and the handle 8 can better open the first box body 2 and the second box body 3.

The utility model discloses a buffering packing carton can also be on the basis of the technical scheme that describes in the front: the packing carton is made by the cardboard, and the cardboard includes white cardboard, grey blank, copper edition cardboard, kraft paper board, gold cardboard, silver cardboard, corrugated container board etc. has the material environmental protection, but reuse and recovery, reduce cost's beneficial effect.

The above description is only for the preferred embodiment of the present invention, and is not intended to limit the present invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included within the protection scope of the present invention.
