CN215282011U - A maintenance device for control arm of auto parts

Info

Publication number: CN215282011U
Application number: CN202023034041.2U
Authority: CN
Inventors: 李春元
Original assignee: Dalian Shengjia Machinery Equipment Co ltd
Current assignee: Dalian Shengjia Machinery Equipment Co ltd
Priority date: 2020-12-16
Filing date: 2020-12-16
Publication date: 2021-12-24
Anticipated expiration: 2030-12-16

Abstract

The utility model discloses a maintenance device for a control arm of an automobile part, comprising a bearing platform, a lifting device is slidably installed on the upper surface of the bearing platform, a support plate is fixedly installed on the upper surface of the lifting device, and a support plate is provided on the upper surface of the bearing platform. The placing groove, the lubricating and curing agent storage bucket is placed in the placing groove, the upper surface of the support plate is fixedly installed with the blocking column, the upper surface of the blocking column is fixedly installed with the baffle plate, the right surface of the baffle plate is provided with the installation groove, the installation groove There is a movable baffle installed in the inner rotation, and the upper surface of the movable baffle is provided with a post slot and an insertion block slot, and an insertion block is inserted into the insertion block slot. The left surface of the insertion block is fixedly installed with a limit ring, and the limit ring is sleeved Installed on the outer surface of the lubricating and curing agent storage bucket, the utility model can preferentially limit the lubricating and curing agent storage bucket by arranging the opening groove on the upper surface of the support plate, and arranging the insert block and the limit ring in the movable baffle. position to ensure the stability of the storage bucket of lubricant and maintenance agent.

Description

Maintenance device of automobile parts control arm

Technical Field

The utility model relates to an arm maintenance technical field specifically is a maintenance device of automobile parts control arm.

Background

The mechanical arm is a complex system with high precision, multiple inputs and multiple outputs, high nonlinearity and strong coupling. Because of its unique operating flexibility, have obtained wide application in fields such as industrial assembly, safe explosion-proof, the mechanical control arm needs regularly to lubricate the maintenance to the position of rotating, because of the higher spraying of being convenient for to lubricate the curing agent of the position of some mechanical control arms, especially provides the maintenance device of an automobile parts control arm and makes things convenient for the spraying of lubricated curing agent.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a maintenance device of automobile parts control arm to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a maintenance device of an automobile part control arm comprises a bearing table, wherein a lifting device is slidably mounted on the upper surface of the bearing table, a supporting plate is fixedly mounted on the upper surface of the lifting device, a placing groove is formed in the upper surface of the supporting plate, a lubricating curing agent storing barrel is placed in the placing groove, a hose is fixedly mounted at a liquid outlet of the lubricating curing agent storing barrel, a lubricant spray gun is fixedly mounted at the outlet end of the hose, a retaining column is fixedly mounted on the upper surface of the supporting plate, a baffle is fixedly mounted on the upper surface of the retaining column, a mounting groove is formed in the right surface of the baffle, a movable baffle is rotatably mounted in the mounting groove, an inserting column groove and an inserting block groove are formed in the upper surface of the movable baffle, an inserting column is inserted and mounted in the inserting column groove and penetrates through the upper surface of the baffle, a pull ring plate is fixedly mounted on the upper surface of the pull ring plate, and a spring is fixedly mounted between the lower surface of the pull ring plate and the upper surface of the baffle, the inserted block is installed in the inserted block groove in an inserting mode, a limiting ring is fixedly installed on the left surface of the inserted block, and the limiting ring is installed on the outer surface of the lubricating curing agent storage barrel in a sleeved mode.

Preferably, the guide rail spout has been seted up to the upper surface of plummer, elevating gear includes lower fixed block and last fixed block, front and back equal fixed mounting has connecting block, two between the fixed block down symmetrical fixed mounting has hydraulic telescoping rod between the connecting block, the equal fixed mounting of lower surface of connecting block has guide roller, guide roller slidable mounting is in the guide rail spout, down the fixed block with go up and all rotate between the fixed block and install the rotor plate, two all rotate through rotating between the rotor plate and link together, it is in the same place to go up the lower surface of fixed block fixed mounting in the backup pad.

Preferably, the inner side surface of the baffle is fixedly provided with a groove block, and the lubricant spray gun is clamped and placed in a groove of the groove block.

Preferably, a fixed rod is fixedly installed on the left surface of the movable baffle, and a circular baffle is fixedly installed on the left surface of the fixed rod.

Preferably, the lower fixed surface of backup pad installs the battery, the inboard fixed surface of baffle installs the lift control panel, battery, lift control panel and hydraulic telescoping rod are connected through concertina type wire.

Preferably, the lower surface of plummer is fixed and is installed the universal wheel, the rear surface fixed mounting of plummer has the handle.

Compared with the prior art, the beneficial effects of the utility model are that:

the utility model can raise the height of the supporting plate by arranging the lifting device between the bearing platform and the supporting plate, so that an operator can spray lubricant on the parts of the mechanical arm which are required to be lubricated and have different heights, and the lubrication work is more convenient;

the utility model discloses an offer at the upper surface of backup pad and place the groove, and set up inserted block and spacing collar in adjustable fender, can be preferred to deposit the bucket to lubricated curing agent and carry on spacingly, avoid lubricated curing agent to deposit the bucket and rock about backup pad lift in-process, guarantee lubricated curing agent and deposit the stability that the bucket was placed.

Drawings

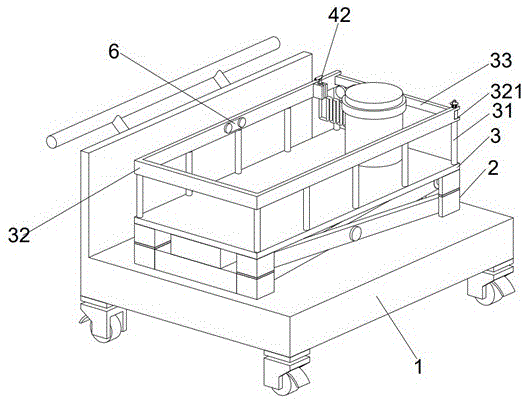

Fig. 1 is a schematic structural diagram of the present invention.

Fig. 2 is a schematic diagram of the explosion structure of the present invention.

Fig. 3 is a schematic view of the structure of the movable baffle of the present invention.

Fig. 4 is a schematic view of the structure of the spacing collar of the present invention.

Fig. 5 is a detailed view of a portion a of fig. 2.

Fig. 6 is a detailed view of fig. 2 at b.

In the figure: 1. the bearing platform, 11, the universal wheel, 12, a handle, 13, a guide rail sliding groove, 2, a lifting device, 21, a lower fixing block, 22, an upper fixing block, 23, a rotating plate, 24, a rotating part, 25, a connecting block, 251, a guide roller, 26, a hydraulic telescopic rod, 3, a supporting plate, 301, a placing groove, 31, a blocking column, 32, a baffle, 321, a mounting groove, 33, a movable baffle, 331, an inserting column groove, 332, an inserting block groove, 34, an inserting column, 341, a pulling ring plate, 342, a spring, 35, a limiting ring, 351, an inserting block, 4, a lubricating curing agent storing barrel, 41, a hose, 42, a lubricating agent spray gun, 43, a groove block, 44, a fixing rod, 45, a circular baffle, 5, a storage battery, 6 and a lifting control board.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-6, the present invention provides a technical solution: the utility model provides a maintenance device of automobile parts control arm, includes plummer 1, and the last surface slidable mounting of plummer 1 has elevating gear 2, and elevating gear 2's last fixed surface installs backup pad 3, and place groove 301 has been seted up to the upper surface of backup pad 3, has placed in placing groove 301 and has placed

4, a hose 41 is fixedly installed at a liquid outlet of the lubricating and maintaining agent storage barrel 4, a lubricant spray gun 42 is fixedly installed at an outlet end of the hose 41, a retaining post 31 is fixedly installed on the upper surface of the support plate 3, a baffle 32 is fixedly installed on the upper surface of the retaining post 31, an installation groove 321 is formed in the right surface of the baffle 32, a movable baffle 33 is rotatably installed in the installation groove 321, a post insertion groove 331 and an insert block groove 332 are formed in the upper surface of the movable baffle 33, an insert post 34 is inserted and installed in the post insertion groove 331, a pull ring plate 341 is fixedly installed on the upper surface of the baffle 32 through the post insertion 34, a spring 342 is fixedly installed between the lower surface of the pull ring plate 341 and the upper surface of the baffle 32, an insert block 351 is inserted and installed in the insert block groove 332, a limiting ring 35 is fixedly installed on the left surface of the insert block 351, the limiting ring 35 is sleeved and installed on the outer surface of the lubricating and maintaining agent storage barrel 4, the utility model discloses a placement groove is formed on the upper surface of the support plate, and set up inserted block and spacing collar in adjustable fender, can be preferred to lubricated curing agent deposit the bucket and carry on spacingly, avoid lubricated curing agent to deposit the bucket and rock about backup pad lift in-process, guarantee that lubricated curing agent deposits the stability that the bucket was placed.

Specifically, the upper surface of the bearing table 1 is provided with a guide rail chute 13, the lifting device 2 comprises a lower fixed block 21 and an upper fixed block 22, connecting blocks 25 are fixedly arranged between the front and rear lower fixed blocks 21, hydraulic telescopic rods 26 are symmetrically and fixedly arranged between the two connecting blocks 25, guide rollers 251 are fixedly arranged on the lower surface of the connecting blocks 25, the guide rollers 251 are slidably arranged in the guide rail chute 13, rotating plates 23 are rotatably arranged between the lower fixed block 21 and the upper fixed block 22, the two rotating plates 23 are rotatably connected together through a rotating part 24, the upper fixed block 22 is fixedly arranged on the lower surface of the supporting plate 3, the novel lifting control plate 6 is used for controlling the two hydraulic telescopic rods 26 to synchronously extend or contract, when extending, the hydraulic telescopic rod 26 drives the lower fixed block 21, the connecting blocks 25 and the guide rollers 251 to move outwards, so as to reduce the height of the supporting plate 3, when the support plate is contracted, the hydraulic telescopic rod 26 drives the lower fixing block 21, the connecting block 25 and the guide roller 251 to move inwards, so that the height of the support plate 3 is increased.

Specifically, a groove block 43 is fixedly mounted on the inner side surface of the baffle 32, the lubricant spray gun 42 is clamped and placed in a groove of the groove block 43, the groove block 43 is used for placing the lubricant spray gun 42, and when the lubricant spray gun 42 is not used, the lubricant spray gun is convenient to store.

Specifically, the fixed rod 44 is fixedly installed on the left surface of the movable baffle 33, the circular baffle 45 is fixedly installed on the left surface of the fixed rod 44, the fixed rod (44) is used for winding the hose (41), when the spraying distance is short, the hose (41) can be wound on the fixed rod (44) to be stored, and the hose (41) is prevented from being placed on the surface of the support plate (3) to influence the spraying work.

Specifically, the lower fixed surface of backup pad 3 installs battery 5, and the inboard fixed surface of baffle 32 installs lift control panel 6, and battery 5, lift control panel 6 and hydraulic telescoping rod 26 are connected through concertina type wire, and battery 5 supplies power to hydraulic telescoping rod 26, and lift control panel 6 is used for controlling the flexible of hydraulic telescoping rod 26.

Particularly, the lower fixed surface of plummer 1 installs universal wheel 11, and the rear fixed surface of plummer 1 installs handle 12, leads to universal wheel 11 and can make through setting up universal wheel 11 for having brake function's universal wheel the utility model discloses it is more convenient to remove.

The working principle is as follows: the novel lifting control plate 6 is used for controlling the two hydraulic telescopic rods 26 to synchronously extend or contract, when the two hydraulic telescopic rods 26 extend, the hydraulic telescopic rods 26 drive the lower fixed block 21, the connecting block 25 and the guide roller 251 to move outwards, so that the height of the supporting plate 3 is reduced, and when the two hydraulic telescopic rods 26 drive the lower fixed block 21, the connecting block 25 and the guide roller 251 to move inwards, so that the height of the supporting plate 3 is increased;

when the movable plate 33 is opened, the pull ring plate 341 is pulled upward to draw the plug post 34 out of the plug post groove 33, and the movable plate 33 is rotated outward.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A maintenance device for a control arm of an automobile part, comprising a bearing platform (1), characterized in that: a lifting device (2) is slidably installed on the upper surface of the bearing platform (1), and the lifting device (2) A support plate (3) is fixedly installed on the upper surface of the support plate (3), a placement groove (301) is opened on the upper surface of the support plate (3), and a lubricant and maintenance agent storage bucket (4) is placed in the placement groove (301). ), a hose (41) is fixedly installed at the liquid outlet of the lubricating and maintenance agent storage bucket (4), a lubricant spray gun (42) is fixedly installed at the outlet end of the hose (41), and the support plate (3 ) is fixedly installed with a blocking post (31) on the upper surface of the blocking post (31), a baffle plate (32) is fixedly installed on the upper surface of the blocking post (31), and a mounting groove (321) is provided on the right surface of the baffle plate (32), A movable baffle plate (33) is rotatably installed in the installation groove (321), and a post slot (331) and an insertion block slot (332) are formed on the upper surface of the movable baffle plate (33). (331) A pin (34) is inserted and installed inside, the pin (34) penetrates the upper surface of the baffle plate (32) and a pull ring plate (341) is fixedly installed, and the lower part of the pull ring plate (341) is fixedly installed. A spring (342) is fixedly installed between the surface and the upper surface of the baffle plate (32), an inserting block (351) is inserted and installed in the inserting block groove (332), and the left surface of the inserting block (351) is fixed A limit ring (35) is installed, and the limit ring (35) is sleeved and installed on the outer surface of the lubricating and curing agent storage bucket (4).

2 . The maintenance device for the control arm of an automobile part according to claim 1 , wherein the upper surface of the carrying platform ( 1 ) is provided with a guide rail chute ( 13 ), and the lifting device ( 2 ). 3 . ) includes a lower fixing block (21) and an upper fixing block (22), a connecting block (25) is fixedly installed between the front and rear lower fixing blocks (21), and the two connecting blocks (25) are symmetrically fixed A hydraulic telescopic rod (26) is installed, a guide roller (251) is fixedly installed on the lower surface of the connecting block (25), and the guide roller (251) is slidably installed in the guide rail chute (13), A rotating plate (23) is rotatably installed between the fixed block (21) and the upper fixed block (22), and the two rotating plates (23) are rotatably connected together by a rotating member (24), so The above fixing block (22) is fixedly installed on the lower surface of the support plate (3).

3. The maintenance device for the control arm of an automobile part according to claim 2, wherein a groove block (43) is fixedly installed on the inner surface of the baffle plate (32), and the lubricant spray gun (42) is snap-fitted and placed in the groove of the groove block (43).

4. A maintenance device for a control arm of an automobile part according to claim 3, characterized in that: a fixing rod (44) is fixedly installed on the left surface of the movable baffle (33), and the fixing rod ( A circular baffle (45) is fixedly installed on the left surface of 44).

5. A maintenance device for a control arm of an automobile part according to claim 4, characterized in that: a battery (5) is fixedly installed on the lower surface of the support plate (3), and the baffle plate (32) A lift control board (6) is fixedly installed on the inner surface of the battery (5), the lift control board (6) and the hydraulic telescopic rod (26) are connected by telescopic wires.

6 . The maintenance device for the control arm of an automobile part according to claim 5 , characterized in that: a universal wheel ( 11 ) is fixedly installed on the lower surface of the bearing platform ( 1 ), and the bearing platform ( A handle (12) is fixedly mounted on the rear surface of 1).
