Abstract
本实用新型公开了一种具有废料回收功能的金属板材冲压模具，包括工作台和支撑柱，所述支撑柱连接于所述工作台的下端面四周位置，还包括废料回收框、下冲压模、废料顶升机构、支撑架、液压缸、上冲压模、废料回收驱动机构、升降驱动板和废料推板；所述废料回收框连接于所述工作台的前侧位置；所述下冲压模设置于所述工作台的上端面中部位置；所述废料顶升机构设置于所述下冲压模的上下两侧位置。本实用新型能便于对冲压产生的废料从模具中自动排出，从而能够有效的提高冲压加工的效率，且能便于对排出的废料推入到废料回收框中进行收集，从而降低了工作人员的劳动强度。
The utility model discloses a metal plate stamping die with waste recycling function, which comprises a workbench and a support column, the supporting column is connected to the surrounding positions of the lower end face of the workbench, and further comprises a waste recycling frame, a lower punching die, Scrap jacking mechanism, support frame, hydraulic cylinder, upper stamping die, scrap recycling driving mechanism, lifting drive plate and scrap pushing plate; the scrap recycling frame is connected to the front side of the worktable; the lower stamping die is provided at the middle position of the upper end face of the worktable; the waste lifting mechanism is arranged at the upper and lower sides of the lower punching die. The utility model can facilitate the automatic discharge of the waste generated by stamping from the mold, thereby effectively improving the efficiency of stamping processing, and can facilitate the discharge of the waste into the waste recycling frame for collection, thereby reducing the labor of the staff. strength.
Description
Technical Field
The utility model relates to a stamping die technical field specifically is a sheet metal stamping die with waste recovery function.
Background
The stamping is a pressure processing method for applying pressure to a material by utilizing a die arranged on a press machine at room temperature to enable the material to generate separation or plastic deformation so as to obtain a required part, the stamping die is an essential part in stamping, some waste materials can be generated after stamping in the stamping processing process of a metal plate, the waste materials can be accumulated in the stamping die after the stamping processing of the existing metal plate stamping die and need to be manually cleaned, and the cleaning mode causes the stamping processing efficiency to be low and increases the labor intensity of workers; therefore, a metal plate material stamping die with a scrap recycling function is required to solve the above problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a sheet metal stamping die with waste recovery function to it is not convenient for carry out the problem of retrieving to the punching press waste material to propose current sheet metal stamping die in the above-mentioned background art to solve.
In order to achieve the above object, the utility model provides a following technical scheme:
a metal plate stamping die with a waste recovery function comprises a workbench and support columns, wherein the support columns are connected to the periphery of the lower end face of the workbench, and the metal plate stamping die further comprises a waste recovery frame, a lower stamping die, a waste jacking mechanism, a support frame, a hydraulic cylinder, an upper stamping die, a waste recovery driving mechanism, a lifting driving plate and a waste pushing plate;
the waste recovery frame is connected to the front position of the workbench;
the lower stamping die is arranged in the middle of the upper end face of the workbench;
the waste jacking mechanisms are arranged at the upper side and the lower side of the lower stamping die;
the support frame is fixedly connected to the rear side position of the rear side of the upper end surface of the workbench;
the hydraulic cylinder is connected to the upper end face of the support frame, and a shaft of the hydraulic cylinder penetrates through the upper end face of the support frame;
the upper stamping die is connected to a shaft of the hydraulic cylinder;
the waste recovery driving mechanism is arranged at the rear side position of the support frame;
the lifting driving plate is connected to the lower side position of the waste recovery driving mechanism;
the waste push plate is arranged in the middle of the waste recycling driving mechanism.
Adopt above-mentioned technical scheme, can be convenient for discharge the mould outside through the punching press waste material climbing mechanism in with the mould, and can be convenient for push away the waste material to the waste recycling frame through waste recycling actuating mechanism and collect.
Preferably, the waste jacking mechanism comprises a telescopic column, a jacking plate and a return spring;
the telescopic column is movably connected to the middle position of the lower stamping die up and down;
the jacking plate is arranged inside the lower stamping die, and the lower end face of the jacking plate is connected with the upper end of the telescopic column;
the reset spring is arranged on the side surface of the telescopic column.
By adopting the technical scheme, the lifting plate can be driven to discharge waste materials from the lower stamping die by the aid of the upward movement of the telescopic columns.
Preferably, the waste recovery driving mechanism comprises a connecting frame, a driving gear, a sliding plate, a longitudinal rack and a transverse rack;
the connecting frame is fixedly connected to the rear end face of the supporting frame;
the driving gear is connected in the connecting frame through a shaft;
one end of the sliding plate is fixedly connected to a shaft of the hydraulic cylinder;
the longitudinal rack is fixedly connected to the lower end face of one side of the sliding plate, and the lifting drive plate is connected to the lower end of the longitudinal rack;
the transverse rack is connected to the side face of the supporting frame in a sliding mode, and the waste pushing plate is fixedly connected to the front end of the transverse rack.
By adopting the technical scheme, the waste jacking mechanism can be driven conveniently through the longitudinal rack and the lifting drive plate, and the waste can be collected conveniently through the transverse rack and the waste push plate.
Preferably, the structural shape of the telescopic column is a quadrangular prism structure.
By adopting the technical scheme, the lifting plate can be conveniently prevented from rotating in the lifting process due to the fact that the telescopic column is of a quadrangular prism structure.
Preferably, the longitudinal rack and the transverse rack are perpendicular to each other, and the longitudinal rack and the transverse rack are meshed with the driving gear.
By adopting the technical scheme, the transverse rack can be driven to synchronously and transversely move through the vertical rack to move up and down conveniently.
Preferably, the lifting drive plate is disposed at a lower position of the telescopic column.
By adopting the technical scheme, the telescopic column can be driven to move up and down conveniently by the up-and-down movement of the lifting drive plate, so that the waste material is discharged from the lower stamping die conveniently.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the sliding plate is driven to move upwards by the upward movement of the hydraulic cylinder, the longitudinal rack is driven to move upwards by the upward movement of the sliding plate, the longitudinal rack drives the lifting drive plate connected with the lower end of the longitudinal rack to move upwards to extrude the telescopic column, and the telescopic column slides upwards to drive the jacking plate to move upwards, so that the waste materials are jacked and discharged from the lower stamping die by the jacking plate, the waste materials are not required to be manually taken out of the lower stamping die, and the stamping processing efficiency is effectively improved;
2. through when vertical rack upward movement, vertical rack drives drive gear and rotates for drive gear drives horizontal rack and moves to the front side, and horizontal rack drives the waste material push pedal and promotes the waste material, makes the waste material enter into the garbage collection frame and collects, thereby can be convenient for collect the exhaust waste material automatically, the effectual intensity of labour who reduces the staff.
Drawings

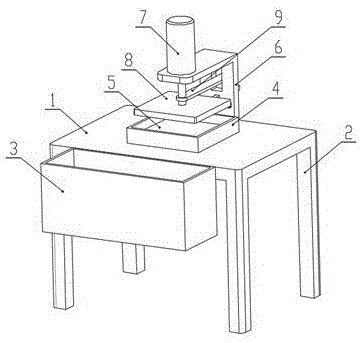

FIG. 1 is a front perspective view of the present invention;
FIG. 2 is a schematic view of the rear perspective structure of the present invention;
FIG. 3 is an enlarged schematic view of point A of FIG. 2 according to the present invention;
FIG. 4 is a schematic view of the cross-sectional structure of the waste material jacking mechanism of the present invention;
fig. 5 is the structure schematic diagram of the waste recycling driving mechanism of the present invention.
In the figure: 1. a work table; 2. a support pillar; 3. a waste recovery frame; 4. punching the die at the lower part; 5. a scrap jacking mechanism; 501. a telescopic column; 502. a jacking plate; 503. a return spring; 6. a support frame; 7. a hydraulic cylinder; 8. an upper stamping die; 9. a waste recovery drive mechanism; 901. a connecting frame; 902. a drive gear; 903. a sliding plate; 904. a longitudinal rack; 905. a transverse rack; 10. lifting the driving plate; 11. a waste push plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution:
a sheet metal stamping die with a waste recovery function comprises a workbench 1 and support columns 2, wherein the support columns 2 are connected to the periphery of the lower end face of the workbench 1, and the sheet metal stamping die further comprises a waste recovery frame 3, a lower stamping die 4, a waste jacking mechanism 5, a support frame 6, a hydraulic cylinder 7, an upper stamping die 8, a waste recovery driving mechanism 9, a lifting driving plate 10 and a waste pushing plate 11;
the waste recovery frame 3 is connected to the front position of the workbench 1; the lower stamping die 4 is arranged in the middle of the upper end face of the workbench 1; the waste jacking mechanisms 5 are arranged at the upper side and the lower side of the lower stamping die 4; the waste jacking mechanism 5 comprises a telescopic column 501, a jacking plate 502 and a return spring 503; the telescopic column 501 is movably connected to the middle position of the lower stamping die 4 up and down; the structural shape of the telescopic column 501 is a quadrangular prism structure; the jacking plate 502 is arranged inside the lower stamping die 4, and the lower end face of the jacking plate 502 is connected with the upper end of the telescopic column 501; the return spring 503 is arranged on the side surface of the telescopic column 501; the support frame 6 is fixedly connected to the rear side position of the rear side of the upper end face of the workbench 1; the hydraulic cylinder 7 is connected to the upper end face of the support frame 6, and the shaft of the hydraulic cylinder 7 penetrates through the upper end face of the support frame 6; the upper stamping die 8 is connected to the shaft of the hydraulic cylinder 7; when the metal plate needs to be punched, the metal plate is conveyed to the lower punching die 4, the hydraulic cylinder 7 is started, the upper punching die 8 is driven to move downwards by the axial downward movement of the hydraulic cylinder 7, and the upper punching die 8 and the lower punching die 4 are matched to punch the metal plate.
The waste recovery driving mechanism 9 is arranged at the rear side position of the support frame 6; the waste recovery driving mechanism 9 comprises a connecting frame 901, a driving gear 902, a sliding plate 903, a longitudinal rack 904 and a transverse rack 905; the connecting frame 901 is fixedly connected to the rear end face of the support frame 6, the driving gear 902 is connected to the inside of the connecting frame 901 through a shaft, one end of the sliding plate 903 is fixedly connected to the shaft of the hydraulic cylinder 7, the longitudinal rack 904 is fixedly connected to the lower end face of one side of the sliding plate 903, and the lifting driving plate 10 is connected to the lower end of the longitudinal rack 904; the transverse rack 905 is connected to the side surface of the support frame 6 in a sliding manner, and the waste push plate 11 is fixedly connected to the front end position of the transverse rack 905; the longitudinal rack 904 and the transverse rack 905 are arranged vertically to each other, and the longitudinal rack 904 and the transverse rack 905 are meshed with the driving gear 902; the lifting driving plate 10 is connected to the lower side position of the waste recovery driving mechanism 9; the lifting driving plate 10 is arranged at the lower side position of the telescopic column 501; the waste push plate 11 is arranged in the middle of the waste recovery driving mechanism 9; after the metal plate is stamped, the sliding plate 903 is driven to move upwards by the upward movement of the hydraulic cylinder 7, the longitudinal rack 904 is driven to move upwards by the upward movement of the sliding plate 903, so that the longitudinal rack 904 drives the lifting drive plate 10 connected with the lower end of the longitudinal rack 904 to move upwards to extrude the telescopic column 501, and the lifting plate 502 is driven to move upwards by the upward sliding of the telescopic column 501, so that the waste materials are ejected from the lower stamping die 4 by the lifting plate 502; when the longitudinal rack 904 moves upward, the longitudinal rack 904 drives the driving gear 902 to rotate, so that the driving gear 902 drives the transverse rack 905 to move forward, and the transverse rack 905 drives the waste pushing plate 11 to push the waste, so that the waste enters the waste recycling frame 3 to be collected.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. A sheet metal stamping die with a waste recovery function comprises a workbench and support columns, wherein the support columns are connected to the periphery of the lower end face of the workbench;
the waste recovery frame is connected to the front position of the workbench;
the lower stamping die is arranged in the middle of the upper end face of the workbench;
the waste jacking mechanisms are arranged at the upper side and the lower side of the lower stamping die;
the support frame is fixedly connected to the rear side position of the rear side of the upper end surface of the workbench;
the hydraulic cylinder is connected to the upper end face of the support frame, and a shaft of the hydraulic cylinder penetrates through the upper end face of the support frame;
the upper stamping die is connected to a shaft of the hydraulic cylinder;
the waste recovery driving mechanism is arranged at the rear side position of the support frame;
the lifting driving plate is connected to the lower side position of the waste recovery driving mechanism;
the waste push plate is arranged in the middle of the waste recycling driving mechanism.
2. The metal plate material stamping die with the scrap recycling function as claimed in claim 1, wherein the scrap jacking mechanism comprises a telescopic column, a jacking plate and a return spring;
the telescopic column is movably connected to the middle position of the lower stamping die up and down;
the jacking plate is arranged inside the lower stamping die, and the lower end face of the jacking plate is connected with the upper end of the telescopic column;
the reset spring is arranged on the side surface of the telescopic column.
3. The scrap recycling function-equipped metal plate material pressing mold according to claim 1, wherein the scrap recycling driving mechanism includes a connecting frame, a driving gear, a slide plate, a longitudinal rack and a transverse rack;
the connecting frame is fixedly connected to the rear end face of the supporting frame;
the driving gear is connected in the connecting frame through a shaft;
one end of the sliding plate is fixedly connected to a shaft of the hydraulic cylinder;
the longitudinal rack is fixedly connected to the lower end face of one side of the sliding plate, and the lifting drive plate is connected to the lower end of the longitudinal rack;
the transverse rack is connected to the side face of the supporting frame in a sliding mode, and the waste pushing plate is fixedly connected to the front end of the transverse rack.
4. The metal plate material press mold with scrap recycling function according to claim 2, wherein: the structural shape of the telescopic column is a quadrangular prism structure.
5. The metal plate material press mold with scrap recycling function according to claim 3, wherein: the longitudinal rack and the transverse rack are perpendicular to each other, and the longitudinal rack and the transverse rack are meshed with the driving gear and connected with each other.
6. The metal plate material press mold with scrap recycling function according to claim 2, wherein: the lifting driving plate is arranged at the lower side position of the telescopic column.
