Abstract
本实用新型涉及婴幼儿生活用品技术领域，尤其涉及可调节坡度的婴幼儿防吐奶床中床，包括上床垫与下床垫，上床垫与下床垫都包括床垫套与床垫套包裹的床垫芯，床垫芯由分舒适层和支撑层。上床垫内设有调节坡度的气囊或三角折叠支架，通过气囊的充放气或三角折叠支架档位调节，实现对床中床上床垫的坡度调整，将上床垫抬起一定的角度或调整到水平状态。本实用新型具有如下有益效果：通过对上床垫内的气囊或三角折叠支架的调节，实现上床垫的坡度调节，抬高婴儿上半身防止回奶等情况发生；同时在调节过程中也无需接触或挪动婴儿，大大提高了床中床角度调节的便携性；具有更好的便捷性、安全性，保持婴儿健康的睡姿。
The utility model relates to the technical field of daily necessities for infants and young children, in particular to a middle bed of an anti-spitting milk bed for infants and young children with an adjustable gradient, comprising an upper mattress and a lower mattress, and both the upper mattress and the lower mattress include a mattress cover and a mattress cover The wrapped mattress core consists of a comfort layer and a support layer. The upper mattress is provided with an airbag or triangular folding bracket for adjusting the slope. By inflating and deflating the airbag or adjusting the position of the triangular folding bracket, the slope of the mattress on the bed in the bed can be adjusted, and the upper mattress can be lifted to a certain angle or Adjust to level. The utility model has the following beneficial effects: by adjusting the air bag or the triangular folding support in the upper mattress, the slope adjustment of the upper mattress can be realized, and the upper body of the baby can be raised to prevent the occurrence of milk return; Or move the baby, which greatly improves the portability of the bed angle adjustment in the bed; it has better convenience and safety, and keeps the baby in a healthy sleeping position.
Description
Technical Field
The utility model relates to an infant articles for daily use technical field especially relates to the infant who can adjust the slope prevents telling milk bed well bed.
Background
Along with the development of social economy and the improvement of living standard of people, people pay more and more attention to infant care and gradually invest more energy. In order to care for infants, a crib is often arranged beside a bed for infants to sleep, but the sleep of the infants can be affected when the infants are taken out of the crib by the traditional crib, so that the crib is directly moved together with the infants when the infants are moved, and the sleep of the infants can be prevented from being affected. However, when the baby lies flat in the bed, the problems of milk returning, milk spitting and the like of the baby are easily caused, and some bed-in-bed with adjustable gradient are also available in the market.
Patent CN201921097514.8 discloses an anti-overflow milk bed middle bed, which comprises a bed body, wherein the bed body comprises a mattress and an enclosure, and the enclosure is arranged along the peripheral edge of the mattress and is connected with the top surface of the mattress; the enclosure comprises an outer sleeve and filling parts, the outer sleeve is connected with the mattress, the filling parts are arranged in the outer sleeve, the filling parts and the outer sleeve form a detachable structure, at least two filling parts are arranged in the outer sleeve, and after one filling part is taken out of the outer sleeve, the height of the corresponding position of the enclosure is reduced; the supporting pad, the supporting pad is suitable for placing on adult's big bed, and its top sets up to slope top surface, and the slope top surface of supporting pad is suitable for supporting the bed body.
However, the above technical solutions still have not little drawbacks: manual increase and reduction supporting pad need pull open the mattress cover in the use of reality, the baby upper half body lifts up, increases or reduces three corner pads, just can accomplish and increase the angle, reduce the angle, put down the waiting function, uses inconvenient, when angle regulation is troublesome, influences baby's sleep quality easily.
Disclosure of Invention
The utility model discloses a main aim at overcomes not enough among the prior art, provides the baby who can adjust the slope and prevents vomiting milk bed well bed. The bed in bed has the advantages of easy and convenient adjustment of any gradient, better milk spitting prevention effect, more comfort and health and the like.
The utility model discloses a realize that the technical scheme that its technical purpose adopted is: the baby who can adjust the slope prevents vomiting milk bed-in-bed, its structural feature is: the mattress comprises an upper mattress and a lower mattress, wherein the upper mattress and the lower mattress both comprise a mattress cover and a mattress core wrapped by the mattress cover. The surface of the mattress cover adopts a knitting process, so that the air permeability can be enhanced. The upper mattress is internally provided with an upper mattress core and a lower mattress core, the upper mattress core and the lower mattress core are internally provided with a regulating device capable of regulating the gradient, the regulating device realizes the gradient regulation of the upper mattress in the bed, the upper mattress is lifted by a certain angle, the upper body of the baby is lifted, the phenomena that the baby spits milk or chokes milk and the like are prevented, and the lying and sleeping of the baby are more comfortable.
Preferably, the adjusting device is an air bag or a triangular folding support, the air bag is provided with an inflation inlet, the air bag is inflated and deflated through the inflation inlet, and the slope of the upper mattress can be adjusted freely through inflation and deflation of the air bag. The triangle folding support can be adjusted in multiple steps in a manual or motor driving mode, and the gradient of the mattress can be adjusted by adjusting the gears of the triangle folding support.
Preferably, the mattress core of the upper mattress is divided into an upper layer and a lower layer, the upper layer is divided into a comfortable layer and a supporting layer, the lower layer is a supporting layer, and the adjusting device is wrapped between the upper layer and the lower layer. The upper layer and the lower layer are wrapped by the adjusting device, so that the adjusting device can be better protected, meanwhile, the baby does not directly contact the adjusting device, and the baby can sleep more comfortably.
Preferably, the mattress core provided in the lower mattress comprises an upper comfort layer and a lower support layer.
Preferably, the comfort layer is made of memory foam, and the supporting layer is made of coconut fiber. The comfortable layer makes the baby sleep more comfortable, and the supporting layer provides better holding power for the bed in the bed.
Preferably, the air bag and the triangular folding bracket are triangular slopes, and the adjustable angle range after the bracket is inflated or the gear position of the bracket is adjusted is 0-30 degrees. When the air bag is inflated to 30 degrees or the triangular folding bracket is adjusted to the maximum angle, the bed mattress cover without elasticity is arranged on the side of the bed in the bed and is stretched straight, and the angle is not increased any more. The mattress angle on the bed in the bed can be easily adjusted by inflating and deflating the air bag or adjusting the gear of the folding bracket.
Preferably, the two sides of the upper mattress are provided with anti-sideslip columns. The side-slip-preventing column can not only provide the support for the baby in the side-lying sleeping position, so that the baby can lie on the side more comfortably, but also prevent the baby from rolling out of the bed from the side, thereby having better safety.
Preferably, the lower mattress is provided with an anti-skid column. The anti-sliding column can prevent the baby from sliding downwards when the gradient of the upper mattress is increased, so that the baby can keep a healthy sleeping posture.
Preferably, the upper mattress and the lower mattress are provided with fixing belts at two sides, the fixing belts are connected with the bed body to relatively fix the bed-in-bed, and the phenomenon that the baby overturns to cause the bed-in-bed to generate large-amplitude deviation is prevented.
Preferably, the left side fixing band of the upper mattress is provided with a rough surface of the magic tape, and the right side fixing band is provided with a hook surface of the magic tape; the left side fixing band of the lower mattress is provided with a hook surface of the magic tape, and the right side fixing band is provided with a hair surface of the magic tape. Through the different connected mode of fixed band, make the function of bed in the bed more various.
The utility model has the advantages that: the utility model realizes the adjustment of the gradient of the upper mattress by 0-30 degrees through the air bag or the triangular folding bracket in the upper mattress, so that the upper body of the baby is raised to prevent the occurrence of the situations such as milk returning and the like, meanwhile, the baby does not need to be moved in the adjustment process, and the adjustment portability of the bed-in-bed is greatly improved; the anti-sideslip column can make the baby more comfortable to lie on the side, can also prevent the baby from rolling out of the bed from the side, has better safety, can prevent the baby from sliding downwards, enables the baby to keep a healthy sleeping posture, and is greatly comfortable; different connecting modes of the fixing belts can make the bed in the bed have more various functions.
Drawings

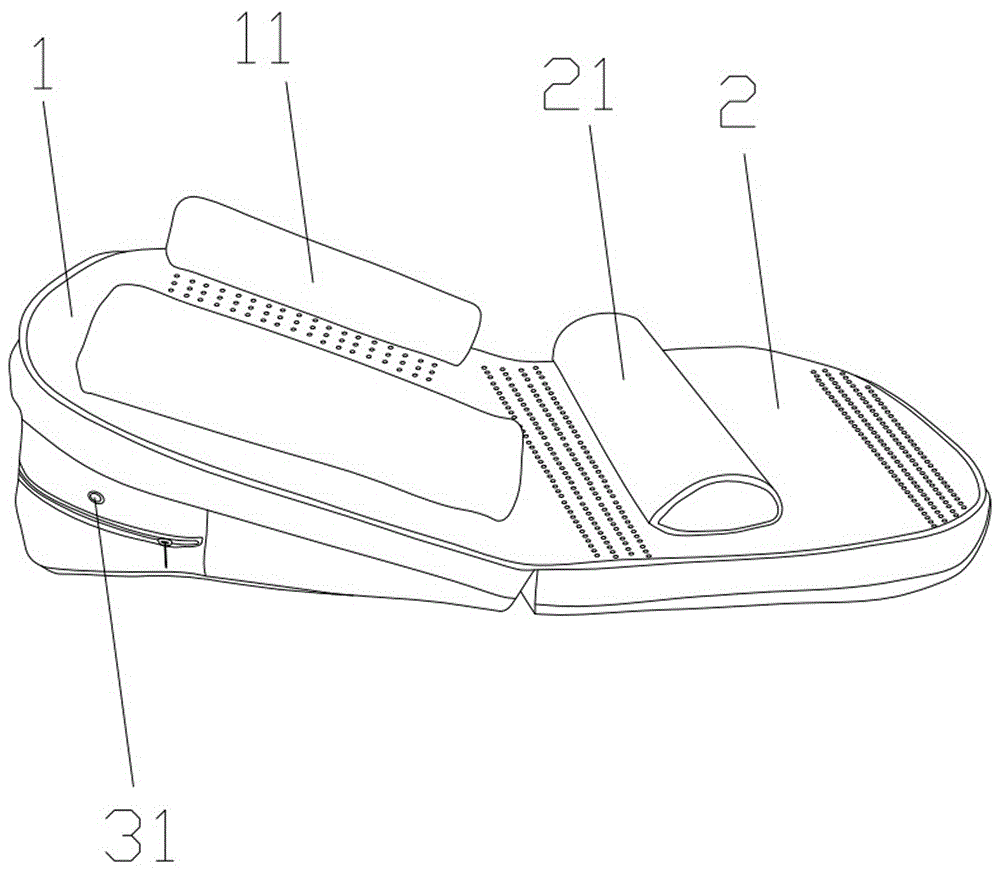

Fig. 1 is a schematic view of the whole structure of the baby milk regurgitation preventing bed with adjustable slope of the utility model.
Fig. 2 is a sectional view of the baby milk regurgitation preventing bed in the embodiment 1 of the invention with adjustable slope.
Fig. 3 is a sectional view of the baby milk regurgitation preventing bed in the embodiment 2 of the invention with adjustable slope.
Wherein: 1. putting on a mattress; 11. an anti-sideslip post; 2. a mattress is put; 21. a slip-down prevention post; 3. an air bag; 31. an inflation inlet; 4. a mattress cover; 5. a mattress core; 51. a comfort layer; 52. a support layer; 6. a triangular folding bracket.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clear, the present invention is further described in detail through the accompanying drawings and embodiments. It should be understood, however, that the description herein of specific embodiments is only intended to illustrate the invention and not to limit the scope of the invention. Moreover, in the following description, descriptions of well-known structures and techniques are omitted so as to not unnecessarily obscure the concepts of the present invention.
In the description of the present invention, it should be noted that when an element is referred to as being "fixed" or "disposed" to another element, it can be directly on the other element or be indirectly connected to the other element. When an element is referred to as being "connected to" another element, it can be directly connected to the other element or be indirectly connected to the other element.
In the description of the present invention, it should be noted that the terms "center", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", etc. indicate the orientation or positional relationship based on the orientation or positional relationship shown in the drawings, or the orientation or positional relationship which the product of the present invention is usually placed in when used, and are only for convenience of describing and simplifying the description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus should not be construed as limiting the present invention. Furthermore, the terms "first," "second," "third," and the like are used solely to distinguish one from another and are not to be construed as indicating or implying relative importance. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise. The meaning of "a number" is one or more unless specifically limited otherwise.
In the description of the present invention, it should also be noted that, unless otherwise explicitly specified or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral connection; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meanings of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1, in embodiment 1, the slope-adjustable baby milk regurgitation-preventing bed-in-bed comprises an upper mattress 1 and a lower mattress 2, wherein both the upper mattress 1 and the lower mattress 2 comprise a mattress cover 4 and a mattress core 5 wrapped by the mattress cover 4. The mattress core is divided into a comfortable layer and a supporting layer, the comfortable layer is made of zero-pressure memory cotton (high-elastic polyurethane), the supporting layer is made of coconut fiber, and the surface of the mattress cover is knitted to enhance the air permeability. An upper layer of mattress core 5 and a lower layer of mattress core 5 are arranged in the upper mattress 1, an adjusting device capable of adjusting the gradient is arranged in the upper layer of mattress core 5 and the lower layer of mattress core 5, the mattress core arranged in the lower mattress 2 is provided with an upper comfortable layer and a lower supporting layer, the gradient of the upper mattress 1 in the bed is adjusted through the adjusting device, the upper mattress 1 is lifted by a certain angle, the upper body of the baby is lifted, the phenomena that the baby spits milk or chokes milk and the like are prevented, and the lying and sleeping of the baby are more comfortable.
Referring to fig. 2, in the present embodiment, the adjusting device is an air bag, the air bag 3 is provided with an inflation port 31, the air bag 3 is inflated and deflated through the inflation port 31, the inflation port can inflate and deflate the air bag by connecting a hand-pinching ball, an air cylinder or an electric air pump, and the slope of the upper mattress can be adjusted at will through the inflation and deflation of the air bag.
Referring to fig. 3, in embodiment 2, the adjusting device is a triangular folding bracket 6, the triangular folding bracket 6 is adjusted in multiple steps in a manual driving manner, and the adjustment rod of the triangular folding bracket is used for manual gear adjustment to adjust the gradient of the upper mattress.
Both embodiments described above allow for a gradient adjustment of the bed mattress 1 in a bed. The upper mattress is lifted by a certain angle, so that the upper body of the baby is lifted, the phenomena of milk spitting or milk choking and the like of the baby are prevented, the baby is more comfortable to lie and sleep, and the portability and the comfort of the adjustment of the bed in the bed are greatly improved.
Referring to fig. 2 and 3, the mattress core 5 has an upper layer and a lower layer, the upper layer is divided into a comfort layer 51 and a support layer 52, the lower layer is a support layer 52, and the middle of the upper layer and the lower layer is wrapped by the air bag 3 or the triangular folding bracket. The mattress core provided in the lower mattress comprises an upper comfort layer 51 and a lower support layer 52.
The air bag 3 or the triangular folding bracket 6 is in a triangular slope shape, and the adjustable angle range is 0-30 degrees. When the air bag is inflated or the triangular folding support is adjusted to 30 degrees, the mattress cover without elasticity is arranged on the side of the bed in the bed and is stretched straight, the angle is not increased any more, the air bag is inflated and deflated, the triangular folding support is provided with a plurality of gears, the gears are adjusted in a manual or motor-driven mode, the two modes can realize the easy adjustment of 0-30 degrees of any angle of the mattress in the bed, and the adjustment mode is more convenient and does not influence the sleep of a baby compared with the traditional cushion increasing mode. The air bag inflation port 31 can be internally or externally arranged, and the air bag is inflated or deflated by externally connecting a hand-pinching ball, an air cylinder or a wireless inflator pump and the like.
The two sides of the upper mattress 1 are provided with anti-sideslip columns 11. The side-slip-preventing column can not only provide the support for the baby in the side-lying sleeping position, so that the baby can lie on the side more comfortably, but also prevent the baby from rolling out of the bed from the side, thereby having better safety.
The lower mattress 2 is provided with anti-skid columns 21. The anti-sliding column can prevent the baby from sliding downwards when the gradient of the upper mattress is increased, so that the baby can keep a healthy sleeping posture.
The fixing belts are arranged on the two sides of the upper mattress 1 and the lower mattress 2 and are connected with the bed body to relatively fix the bed-in-bed, so that the baby is prevented from overturning to cause the bed-in-bed to generate large-amplitude deviation.
Go up 1 left side fixed band of mattress and be equipped with the matte that the magic was pasted, the right side fixed band is equipped with the hook face that the magic was pasted. The left side fixed band of lower mattress 2 is equipped with the hook face that the magic was pasted, and the right side fixed band is equipped with the hair side that the magic was pasted. Through the different connected mode of fixed band, make the function of bed in the bed more various.
The left fixing belt of the upper mattress 1 and the left fixing belt of the lower mattress are connected with each other in a thread gluing mode by surrounding the rails of the baby bed, the right fixing belt of the upper mattress 1 and the right fixing belt of the lower mattress are connected with each other in a thread gluing mode by surrounding the rails of the baby bed, the middle bed is fixed on the baby bed relatively through the fixing belts, and the middle bed is prevented from being greatly deviated.
Meanwhile, the fixing belts on the two sides of the upper mattress are connected below the middle bed through the magic tape, the fixing belts on the two sides of the lower mattress are connected below the middle bed through the magic tape, and the fixing belts connected on the two sides can be used as carrying belts and are convenient to carry.
The fixing bands on the two sides of the upper mattress are connected with one another through the Velcro in the bed, the fixing bands on the two sides of the lower mattress are connected with one another through the Velcro in the bed, the fixing bands connected with the two sides can serve as temporary safety belts for babies, and the function of protecting the babies is achieved to a certain extent.
It should be noted that, although the above embodiments have been described herein, the scope of the present invention is not limited thereby. Therefore, based on the innovative concept of the present invention, the changes and modifications of the embodiments described herein, or the equivalent structures, equivalent processes or equivalent functional changes made by the contents of the specification and the drawings of the present invention, directly or indirectly apply the above technical solutions to other related technical fields, all included in the scope of the present invention.
Claims (10)
1. The baby who can adjust the slope prevents vomiting milk bed in bed, its characterized in that: the mattress comprises an upper mattress (1) and a lower mattress (2), wherein the upper mattress (1) and the lower mattress (2) both comprise a mattress cover (4) and a mattress core (5) wrapped by the mattress cover (4);
the mattress is characterized in that an upper layer and a lower layer of mattress cores (5) are arranged in the upper mattress (1), the upper layer and the lower layer of mattress cores (5) are internally provided with adjusting devices capable of adjusting the gradient, and the gradient of the mattress (1) in the bed can be adjusted through the adjusting devices.
2. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 1 wherein: the adjusting device is an air bag (3) or a triangular folding bracket (6), the air bag (3) is provided with an inflation port (31), and the air bag (3) is inflated and deflated through the inflation port (31); the triangular folding bracket (6) can be adjusted in multiple gears through manual operation or motor driving.
3. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 1 wherein: the mattress core (5) of the upper mattress (1) is divided into an upper layer and a lower layer, the upper layer is divided into a comfortable layer (51) and a supporting layer (52), the lower layer is the supporting layer (52), and the adjusting device is wrapped between the upper layer and the lower layer.
4. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 1 wherein: the mattress core (5) arranged in the lower mattress (2) comprises an upper comfortable layer (51) and a lower supporting layer (52).
5. The adjustable slope infant milk regurgitation preventing bed-in according to claim 3 or 4 wherein: the comfortable layer (51) is made of memory cotton materials, and the supporting layer (52) is made of coconut palm materials.
6. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 2 wherein: the air bag (3) and the triangular folding bracket (6) are triangular slopes, and the adjustable angle range of the inflation or adjustment of the bracket gear is 0-30 degrees.
7. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 1 wherein: two sides of the upper mattress (1) are provided with anti-side sliding columns (11).
8. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 1 wherein: the lower mattress (2) is provided with a lower anti-slip column (21).
9. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 1 wherein: the two sides of the upper mattress (1) and the lower mattress (2) are provided with fixing belts which are connected with the bed body.
10. The adjustable slope infant milk regurgitation preventing bed-in-bed of claim 9 wherein: the left side fixing band of the upper mattress (1) is provided with a rough surface of a magic tape, and the right side fixing band is provided with a hook surface of the magic tape; the left side fixing band of the lower mattress (2) is provided with a hook surface of a magic tape, and the right side fixing band is provided with a hair surface of the magic tape.
