Stereo garage with charging device

Technical Field

The utility model relates to a machinery stereo garage correlation field, more specifically say, relate to a stereo garage with charging device.

Background

With the continuous development of economic level and social progress, the price of the automobiles is continuously reduced and the number of the automobiles is also continuously increased, so that the parking problem is more and more severe, how to solve the parking problem becomes the current problem, the flat parking lot has large floor area, small parking amount and inconvenient access, can not meet the requirements of people, and particularly in a residential district, the three-dimensional garage can well solve the problem.

Due to the vigorous support of national policies and the progress of environmental protection concepts, new energy automobiles, especially electric automobiles, are more and more popular, the development of the electric automobiles is restricted by the problems of long charging time, poor cruising ability, limitation of charging places and the like, and the combination of a stereo garage and a charging system is a great trend of the future development of the garage.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a: the utility model provides a charging device for new forms of energy electric automobile, has solved the inconvenient electric automobile of current mechanical stereo garage difficult problem that charges. The utility model relates to a stereo garage with charging device who designs can effectively solve the electric automobile and charge the safety protection problem when difficult and charge.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a lifting and transverse moving stereo garage with a charging device comprises a lifting and transverse moving stereo garage, a charging pile and an electric pile mounting plate, wherein the electric pile mounting plate is welded on support frames at two ends of a vehicle carrying plate of the lifting and transverse moving stereo garage, the electric pile mounting plate is provided with a screw hole, and the charging pile is mounted on the electric pile mounting plate through threaded connection;

the lifting and transverse moving stereo garage comprises a main body steel structure, a lifting system and a transverse moving system, wherein a transverse guide rail is installed at the bottom layer of a steel structure frame, fixing supports are installed at the top layer, each fixing support lifts and carries a car plate through a lifting chain, front lifting points and rear lifting points are arranged at two ends of each lifting and carrying car plate, lifting chain wheels are arranged around the fixing supports, a transmission chain is arranged, and a power device for driving the lifting chain wheels is installed on the fixing supports.

Further, fill electric pile and include the shell, with the fixed base that links to each other of shell bottom, be located the shell side and be used for placing the standing groove and the voltage induction safety device of rifle that charges, still including the electric wire that charges, the rifle that charges that the electric wire output end is connected, the electric wire netting is connected to the electric wire input that charges.

Further, the bottom of filling electric pile is equipped with the mounting hole, at the bottom of mounting hole with be provided with insulating the pad between the electric pile mounting panel.

Furthermore, a safety anti-falling device is arranged between the lifting vehicle carrying plate and the fixed framework.

Furthermore, safety anti-falling device is including being located anti-falling rings on the fixed bolster and installing the hook seat on carrying the sweep boundary beam, still includes electro-magnet drive safety rings and automatic safe lifting hook, and it is connected by the connecting rod.

Compared with the prior art, the utility model has the advantages of as follows: the utility model provides a stereo garage with charging device has realized mechanical stereo garage and has filled the good combination of electric pile to convenient to use only needs the card of punching the card during concrete operation to carry out the input, takes out the rifle that charges and can realize the function of charging immediately, and has safety arrangement, and is rational in infrastructure, has effectively promoted the quantity that can park on the unit ground area, has greatly increased efficiency. The related safe anti-falling mechanism can prevent the vehicle from falling down suddenly, effectively ensures the safety of the person and the vehicle, and has important significance.

Drawings

The present invention will be described in detail with reference to the accompanying drawings and specific embodiments:

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the safety device of the present invention;

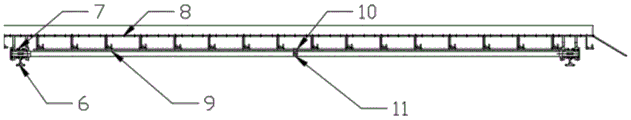

FIG. 3 is a schematic view of a traversing system of the present invention;

fig. 4 is a schematic view of the charging pile of the present invention;

in the figure: 1. the car carrying plate comprises a car carrying plate boundary beam, 2 a falling-prevention lifting ring, 3 a safety lifting hook, 4 a connecting rod, 5 an automatic safety lifting hook, 6 a guide rail, 7 a driving travelling wheel, 8 a transmission main shaft, 9 a car carrying plate, 10 a driving gear and a speed reducing motor, 11 a driven gear, 12 a first layer of guide rail, 13 a first layer of car carrying plate transverse moving system, 14 a second layer of lifting system, 15 a second layer of moving guide rail, 16 a steel structure frame, 17 a rear lifting point, 18 a transmission chain, 19 a lifting car carrying plate, 20 a front lifting point, 21 a lifting chain wheel, 22 and a driving motor.

Detailed Description

The technical solution in the embodiment of the present invention is clearly and completely described below with reference to the drawings in the embodiment of the present invention. It is clear that the use and purpose of these exemplary embodiments are only to exemplify the invention, and do not constitute any limitation in any form to the actual scope of protection of the invention, no more so to limit the scope of protection of the invention.

As shown in fig. 1 and fig. 3 jointly, a stereo garage with charging device, including steel structural framework 16, it has guide rail 6 to lie in ground floor fixed mounting in steel structural framework 16, steel structural framework 16's top layer fixed mounting has preceding hoisting point 20 and back hoisting point 17, and one deck guide rail 12 is installed steel structural framework 16 bottom, lift year sweep 19 and install between preceding hoisting point 20 and the back hoisting point 17, steel structural framework 16 is equipped with lifting sprocket 21 around, is equipped with drive chain 18, works through driving motor 22, drives the sweep 19 motion is carried in the lift, and driving gear and gear motor 10 drive transmission main shaft 8 rotate, thereby the initiative walking wheel 7 at transmission main shaft both ends walks on guide rail 6 and realizes carrying the lateral motion of sweep 9. The middle parking space is required to complete lifting and transverse moving, the parking space is driven by the frame walking on the guide rail 6 to move transversely and transversely, and a safety anti-falling device is arranged between the lifting vehicle carrying plate 19 and the steel structure frame 16.

As shown in fig. 2, when the parking space rises to a predetermined height, the safety device safety hook 3 and the anti-falling hanging ring 2 are in the positions shown in the figure, and if the car carrying plate suddenly drops, the safety hook 3 can be hung on the anti-falling hanging ring 2 and cannot fall. Triggering the electromagnet to be electrified when the vehicle carrying plate rises or falls, wherein the safety hook 3 turns left under the action of the electromagnet, and the automatic safety hook 5 is connected with the safety hook 3 through the connecting rod 4 to realize synchronous rotation.

The basic principles and the main features of the invention and the advantages of the invention have been shown and described above, it will be evident to those skilled in the art that the invention is not limited to the details of the foregoing illustrative embodiments, but that the invention can be embodied in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are, therefore, to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description. Any reference sign in a claim should not be construed as limiting the claim concerned.

It should be understood that although the present description refers to embodiments, not every embodiment contains only a single technical solution, and such description is for clarity only, and those skilled in the art should take the description as a whole, and the technical solutions in the embodiments may be appropriately combined to form other embodiments understood by those skilled in the art.

Claims

1. A three-dimensional garage with a charging device is characterized in that, comprising a lifting and traversing three-dimensional garage, a charging pile and an electric pile mounting plate, and the electric pile mounting plate is welded on two sides of the vehicle-carrying plate of the lifting and traversing three-dimensional garage. On the end support frame, the electric pile installation plate has screw holes, the charging pile is installed on the electric pile installation plate through threaded connection, and the lifting and traversing three-dimensional garage includes a main steel structure, a lifting system and a traverse. System, the bottom of the main steel structure is installed with transverse guide rails, and the top layer is installed with fixed brackets, each fixed bracket is used to lift the car carrier board through the lifting chain, and the two ends of the lift car carrier board are provided with front hanging points and rear hanging points , the fixing bracket is provided with a lifting sprocket at the front and rear, a transmission chain is installed, and a power device for driving the lifting sprocket is installed on the fixing bracket.

2 . The three-dimensional garage with a charging device according to claim 1 , wherein the charging pile comprises a shell, a base fixedly connected to the bottom of the shell, a placement slot on the side of the shell and used for placing the charging gun and a voltage. 3 . The induction safety device further includes a charging wire, a charging gun connected to the output end of the charging wire, and an input end of the charging wire connected to the power grid.

3 . The three-dimensional garage with a charging device according to claim 2 , wherein a safety anti-falling device is provided between the lift truck board and the fixed frame. 4 .

4 . The three-dimensional garage with a charging device according to claim 3 , wherein the safety anti-falling device comprises an anti-falling ring located on the fixing bracket and a hook seat installed on the side beam of the vehicle carrying board. 5 . , and also includes electromagnet-driven safety rings and automatic safety hooks, which are connected by connecting rods.
