CN215253792U - A new type of curtain wall

Info

Publication number: CN215253792U
Application number: CN202120204753.XU
Authority: CN
Inventors: 刘谦
Original assignee: Zhejiang Zhuhui Curtain Wall Co ltd
Current assignee: Zhejiang Zhuhui Curtain Wall Co ltd
Priority date: 2021-01-25
Filing date: 2021-01-25
Publication date: 2021-12-21
Anticipated expiration: 2031-01-25

Abstract

The utility model discloses a novel curtain wall, which relates to a curtain wall and aims to solve the problem that the bolts are damaged due to excessive stress caused by the stress concentration. There are a number of steel bars for connecting the building body on the side fixedly, a column is clamped between the adjacent embedded parts, a fixed block is rotatably connected to the embedded part, the two ends of the fixed block are clamped with the column, and the central axis of the fixed block Bolts are threadedly connected, and the bolts are used to reduce the distance between the fixed block and the embedded parts to clamp the uprights, and glass units are fixedly connected between adjacent uprights. By arranging a fixed block which can adjust the distance from the embedded part, the utility model makes the fixed block and the embedded part clamp the column, enhances the connection strength between the column and the embedded part, so that the curtain wall structure is more stable.

Description

Novel curtain wall

Technical Field

The utility model relates to a curtain, more specifically say, it relates to a novel curtain.

Background

The curtain wall is the outer wall enclosure of the building, does not bear the weight, hangs like a curtain, so is also called as a curtain wall, and is a light wall with decorative effect commonly used by modern large-scale and high-rise buildings. The outer building envelope structure or decorative structure consists of a panel and a support structure system, can have certain displacement capacity or certain deformation capacity relative to a main structure, and does not bear the function of the main structure (an outer wall frame type support system is also one type of a curtain wall system).

The existing curtain wall mainly comprises an embedded part, a stand column, a cross beam and a glass block to form a curtain wall structure, wherein the embedded part is installed on a building body, but the embedded part is connected with the stand column and the stand column are connected with the cross beam through bolts, which is equivalent to that the bolts are directly in threaded connection with a common bearing surface of the stand column and the cross beam, namely, the gravity borne by an object acts on the bolts, so that the stress is concentrated to cause the bolts to be stressed too much and the connection relation is damaged.

Therefore, a new solution is needed to solve this problem.

SUMMERY OF THE UTILITY MODEL

Not enough to prior art exists, the utility model aims to provide a novel curtain through setting up the fixed block of distance between adjustable and the built-in fitting for fixed block and built-in fitting centre gripping stand strengthen the joint strength between stand and the built-in fitting, thereby make the curtain structure more stable.

The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a novel curtain wall, includes a plurality of array distribution's built-in fitting, a plurality of reinforcing bars that are used for connecting building body of one side fixedly connected with of built-in fitting are adjacent the joint has the stand between the built-in fitting, it is connected with the fixed block to rotate on the built-in fitting, the both ends and the stand joint of fixed block, the center pin threaded connection of fixed block has the bolt, the bolt is used for adjusting the distance between fixed block and the built-in fitting and adjacent with the centre gripping stand fixedly connected with glass unit between the stand.

Through adopting above-mentioned technical scheme, stand and built-in fitting joint and the built-in fitting passes through reinforcing bar and building body fixed connection, the joint strength between reinforcing stand and the built-in fitting, make the gravity that the stand received disperse to the built-in fitting on, transmit the power that the built-in fitting received to the building body, strengthen the joint strength between built-in fitting and the building body, make curtain structure more stable, and, through setting up the fixed block of adjustable and distance between the built-in fitting, make fixed block and built-in fitting centre gripping stand, strengthen the joint strength between stand and the built-in fitting, thereby make curtain structure more stable.

The utility model discloses further set up to: the two ends of the embedded part are both provided with T-shaped limiting grooves, the adjacent limiting grooves are communicated, and the two ends of the upright post are arranged in a T shape and embedded into the limiting grooves.

Through adopting above-mentioned technical scheme, the both ends of stand and the inner wall laminating of spacing groove restrict the vertical direction of stand and remove, and the joint strength between reinforcing stand and the built-in fitting makes the curtain structure more stable.

The utility model discloses further set up to: threaded grooves used for containing bolts are formed in the embedded parts, and holding grooves used for containing fixing blocks are formed in the two ends of the stand columns.

Through adopting above-mentioned technical scheme, through threaded connection between with built-in fitting and the stand of bolt to in the fixed block embedding holding tank, make fixedly between built-in fitting, stand and the fixed block, simple structure, fixed strength is high, makes the curtain structure more stable.

The utility model discloses further set up to: the bolt is characterized in that an elastic part is arranged in the thread groove, the outer peripheral wall of the bolt is sleeved with the elastic part, one end of the elastic part is fixedly connected with the embedded part, and the other end of the elastic part is fixedly connected with the fixed block.

Through adopting above-mentioned technical scheme, through setting up the elastic component, just so can rotate the fixed block earlier for the fixed block only contacts with the built-in fitting, has installed the stand, rotates the elastic component, makes fixed block and built-in fitting carry out centre gripping in advance to the stand through the resilience of elastic component, makes things convenient for staff's operation.

The utility model discloses further set up to: the glass unit includes the frame and with frame fixed connection's glass piece, the both ends fixedly connected with of frame is the slider of "T" shape, the slider sets up towards the direction of stand, the length direction fixedly connected with sand grip of following the stand on the stand, offer on the sand grip and be used for the gliding spout of slider.

Through adopting above-mentioned technical scheme, the slider embedding spout that is "T" shape, the restriction slider turns up and separates with the spout to the restriction frame turns up and separates with the stand, strengthens the joint strength between stand and the glass piece frame, makes the curtain connect more stably enough.

The utility model discloses further set up to: the bottom fixedly connected with of sand grip blocks the piece.

Through adopting above-mentioned technical scheme, through the position of stopper restriction frame for the frame is installed easily, makes things convenient for operating personnel to operate.

The utility model discloses further set up to: and a rubber strip is fixedly connected between the adjacent frames.

Through adopting above-mentioned technical scheme, through setting up joint strength and the sealed degree that the rubber strip increases between the frame, the structure of curtain is more stable.

The utility model discloses further set up to: and flanges used for clamping the glass blocks are fixedly connected to the upright columns along the length direction of the upright columns through fixing screws.

Through adopting above-mentioned technical scheme, strengthen the joint strength between frame, stand, fixed block and the built-in fitting through the flange for the curtain structure is more stable.

To sum up, the utility model discloses following beneficial effect has: through adopting above-mentioned technical scheme, stand and built-in fitting joint and the built-in fitting passes through reinforcing bar and building body fixed connection, the joint strength between reinforcing stand and the built-in fitting, make the gravity that the stand received disperse to the built-in fitting on, transmit the power that the built-in fitting received to the building body, strengthen the joint strength between built-in fitting and the building body, make curtain structure more stable, and, through setting up the fixed block of adjustable and distance between the built-in fitting, make fixed block and built-in fitting centre gripping stand, strengthen the joint strength between stand and the built-in fitting, thereby make curtain structure more stable.

Drawings

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is an exploded view of the present invention;

FIG. 3 is a schematic structural view of a middle embedded part of the present invention;

fig. 4 is a schematic structural view of the fixing block of the present invention;

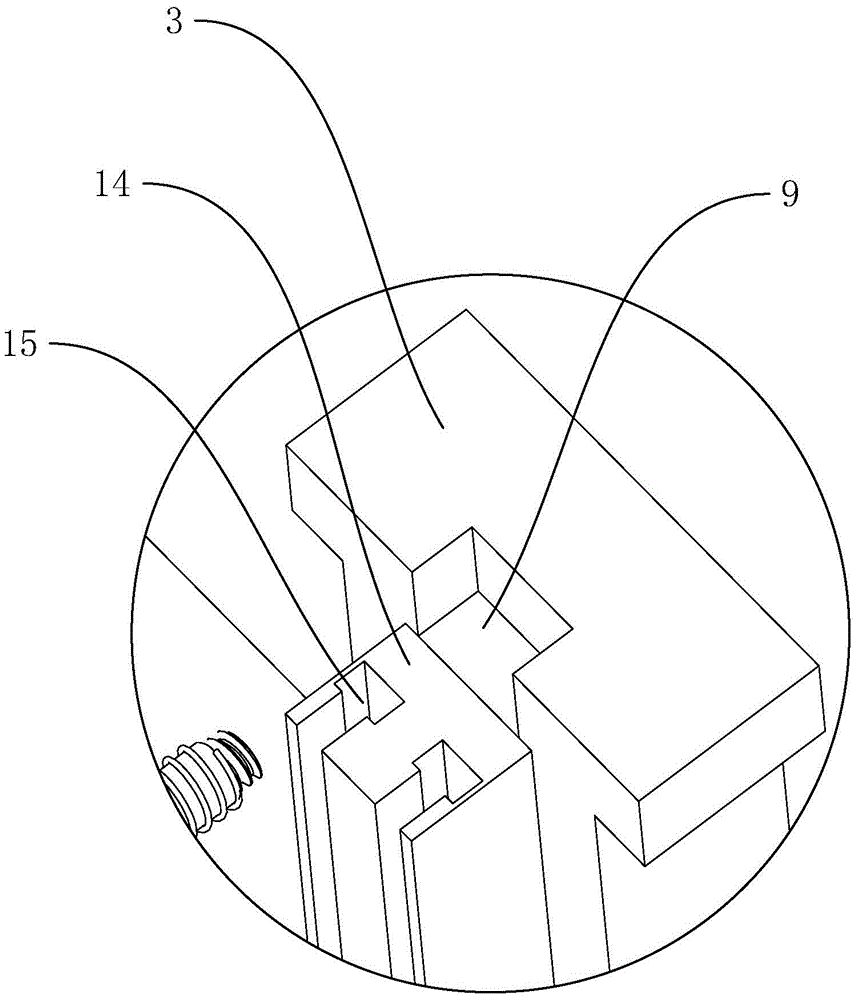

FIG. 5 is an enlarged view of portion A of FIG. 2;

fig. 6 is an enlarged schematic view of a portion B in fig. 2.

In the figure: 1. embedding parts; 2. reinforcing steel bars; 3. a column; 4. a fixed block; 5. a bolt; 6. a limiting groove; 7. blocking edges; 8. a thread groove; 9. accommodating grooves; 10. an elastic member; 11. a frame; 12. a glass block; 13. a slider; 14. a convex strip; 15. a chute; 16. a blocking block; 17. a rubber strip.

Detailed Description

The present invention will be described in detail with reference to the accompanying drawings and examples.

A novel curtain wall is shown in figures 1-4 and comprises a plurality of embedded parts 1 distributed in an array, wherein the embedded parts 1 are arranged along the length direction of a building body, a plurality of reinforcing steel bars 2 used for connecting the building body are welded on one side of each embedded part 1, the reinforcing steel bars 2 penetrate through the building body to realize the fixation between the building body and the embedded parts 1, an upright post 3 is clamped on the other side of each adjacent embedded part 1, the upright posts 3 are arranged in the vertical direction, two ends of each upright post 3 are respectively clamped with the adjacent embedded parts 1, a fixed block 4 is rotatably connected on each embedded part 1, the fixed block 4 is arranged on one side, opposite to the building body, of each embedded part 1, the upright posts 3 are installed after the fixed block is rotated, a worker rotates the fixed block, two ends of the fixed block are clamped with the upright posts 3, then a bolt 5 is in threaded connection with a central shaft of the fixed block 4, and the bolt 5 penetrates through the fixed block 4 to be in threaded connection with the embedded parts 1, the bolts 5 are used for reducing the distance between the fixed block 4 and the embedded part 1 so as to clamp the upright posts 3, and glass units are bonded between the adjacent upright posts 3.

As shown in fig. 2-4, the two ends of the embedded part 1 are both provided with a T-shaped limiting groove 6, adjacent limiting grooves 6 are communicated with each other, the two ends of the upright post 3 are both T-shaped and are attached to the inner peripheral wall of the limiting groove 6, the bolt 5 is installed towards the embedded part 1, one end of the bolt 5 is bonded to the fixed block 4, the other end of the bolt 5 is in threaded connection with the embedded part 1, a thread groove 8 for accommodating the bolt 5 is formed in the embedded part 1, the elastic part 10 is sleeved on the outer peripheral wall of the bolt 5, the elastic part 10 is a tension spring, one end of the elastic part 10 is bonded to the embedded part 1, the other end of the elastic part 10 is bonded to the fixed block 4, the two ends of the upright post 3 are both provided with an accommodating groove 9 for accommodating the fixed block 4, and pre-fixing of the upright post 3 is realized.

As shown in fig. 1, 5 and 6, the glass unit includes a frame 11 and a glass block 12 bonded to the frame 11, a T-shaped slider 13 is bonded to both ends of one surface of the frame 11 facing the column 3, the slider 13 is disposed along a length direction of the frame 11, a protruding strip 14 is bonded to the column 3 along the length direction of the column 3, the length of the protruding strip 14 is equal to that of the slider 13, a sliding slot 15 for sliding the slider 13 is formed in the protruding strip 14, the sliding slot 15 is located on one surface of the protruding strip 14 facing the slider 13, a blocking block 16 is bonded to a bottom end of the protruding strip 14 to limit separation of the slider 13 from the sliding slot 15, a rubber strip 17 is bonded between adjacent frames 11 to realize sealing between the glass units, a rib 7 for clamping the glass block 12 is fixedly connected to the column 3 along the length direction of the column 3 through a fixing screw, and adjacent ribs 7 on the same vertical line are in contact with each other.

The installation process comprises the following steps: firstly, an operator fixes a plurality of embedded parts 1 with a building body through reinforcing steel bars 2, then the two ends of an upright post 3 are respectively clamped into limiting grooves 6 on adjacent embedded parts 1 to limit the separation of the upright post 3 from the limiting grooves 6, and the operator rotates a fixed block 4 first, an elastic part 10 is deformed by tensile force and then extends, then the operator rotates the fixed block 4 to a horizontal state, the operator releases the fixed block 4, the elastic part 10 is restored to the original shape without tensile force, so that the two ends of the fixed block 4 are respectively embedded into the adjacent upright posts 3 on the same vertical line, then the operator screws a bolt 5 into the fixed block 4, the bolt 5 is contacted and fixed with the embedded parts 1, the fixed block 4 moves towards the embedded parts 1 until the upright posts 3 are clamped, and the fixation among the upright posts 3, the embedded parts 1 and the fixed block 4 is realized, through mutual joint of each part for the stress dispersion that each part bore improves curtain wall structure's stability.

It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. A new type of curtain wall is characterized in that: it comprises several embedded parts (1) distributed in an array, and one side of the embedded part (1) is fixedly connected with several steel bars (2) for connecting the building body. A column (3) is clamped between the embedded parts (1) adjacent to the embedded part (1), a fixing block (4) is rotatably connected to the embedded part (1), and two ends of the fixing block (4) are connected to the column (4). 3) Clamping, the central axis of the fixing block (4) is threadedly connected with a bolt (5), and the bolt (5) is used to adjust the distance between the fixing block (4) and the embedded part (1) to clamp Hold uprights (3), and glass units are fixedly connected between adjacent uprights (3).

2. A new type of curtain wall according to claim 1, characterized in that: both ends of the embedded part (1) are provided with "T"-shaped limit grooves (6), adjacent to the limit grooves (6). The position slot (6) is communicated, and both ends of the upright column (3) are arranged in a "T" shape and are embedded in the position limit slot (6).

3. A new type of curtain wall according to claim 2, characterized in that: a thread groove (8) for accommodating a bolt (5) is opened in the embedded part (1), and two sides of the upright column (3) are provided with a thread groove (8). Both ends are provided with accommodating grooves (9) for accommodating the fixing block (4).

4. A new type of curtain wall according to claim 3, characterized in that: the threaded groove (8) is provided with an elastic member (10), and the elastic member (10) is sleeved on the outer periphery of the bolt (5). One end of the elastic piece (10) is fixedly connected with the embedded piece (1), and the other end of the elastic piece (10) is fixedly connected with the fixing block (4).

5. A new type of curtain wall according to claim 1, characterized in that: the glass unit comprises a frame (11) and a glass block (12) fixedly connected with the frame (11), two of the frame (11) The end is fixedly connected with a "T"-shaped slider (13), the slider (13) is arranged in the direction of the column (3), and the column (3) is fixedly connected along the length direction of the column (3). A protruding strip (14) is provided with a chute (15) for sliding the slider (13) on the protruding strip (14).

6. A new type of curtain wall according to claim 5, characterized in that a blocking block (16) is fixedly connected to the bottom end of the protruding strip (14).

7 . The novel curtain wall according to claim 6 , wherein a rubber strip ( 17 ) is fixedly connected between the adjacent frames ( 11 ). 8 .

8. A new type of curtain wall according to claim 7, characterized in that: the upright column (3) is fixedly connected with a retaining edge for holding the glass block (12) along the length direction of the upright column (3) by fixing screws (7).
