CN215246453U

CN215246453U - Magnetic gift box

Info

Publication number: CN215246453U
Application number: CN202023351092.8U
Authority: CN
Inventors: 杨广辉; 王炳南
Original assignee: Dongguan East Color Printing Packaging Co ltd
Current assignee: Dongguan East Color Printing Packaging Co ltd
Priority date: 2020-12-31
Filing date: 2020-12-31
Publication date: 2021-12-21
Anticipated expiration: 2030-12-31

Abstract

The utility model relates to the technical field of packaging boxes, in particular to a magnetic gift box, which comprises a box body, a left cover movably connected with the box body, and a right cover movably connected with the box body. The top of the box at the bottom of the box, the storage device and the storage cavity detachably connected to the bottom of the box, the right cover and the left cover both include side panels located at the top end or/and the bottom end of the box top, and the top or/and bottom end of the box top The side plate and the box top are connected by a magnetic attraction assembly. The utility model adds an object cavity, which increases the practicability of the magnetic gift box; the guiding and limiting effect of the top of the box on the side plate prevents the right cover and the left cover from shaking when they are connected with the box body, resulting in the stability of the magnetic gift box. Lowering; by arranging the magnetic attraction component one on the side panel and the top of the box, the area of the magnetic attraction component one on the magnetic attraction gift box is increased, so that the connection between the right cover and the left cover and the box body is more stable; The bottom of the box is easy to disassemble and assemble, which is convenient for the replacement of the storage device.

Description

Magnetic gift box

Technical Field

The utility model belongs to the technical field of the packing carton technique and specifically relates to indicate a magnetism is inhaled gift box.

Background

In recent years, with the development of times, the living standard of people is gradually improved, and the pursuit of beauty is higher and higher. The gift box is used as a product expressing feelings among relatives and friends, the quality and the attractiveness of the gift box are particularly important, the existing gift box is low in practicability, the requirement of the gift box on the height of a gift is high, and the connection between the box cover and the box body of the gift box is not stable enough, so that the gift box looks not exquisite enough. Therefore, the drawbacks are obvious, and a solution is needed.

SUMMERY OF THE UTILITY MODEL

In order to solve the technical problem, an object of the utility model is to provide a gift box is inhaled to magnetism.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

the utility model provides a present box is inhaled to magnetism, its includes the box body, be located box body one side and with box body swing joint's left cover and be located the box body opposite side and with box body swing joint's right side lid, the box body includes the box bottom, connect in the box bottom and lie in the box top of box bottom top, can dismantle with the box bottom and be connected and lie in the box bottom put the thing device and lie in the thing chamber of putting that puts thing device top, right side lid and left cover all include the curb plate that lies in box top end or/and bottom, are located between the curb plate and the box top of box top end or/and bottom and inhale a subassembly zonulae occludens through magnetism.

Furthermore, the first magnetic attraction component comprises a first magnet and a second magnet which is mutually attracted with the first magnet, the first magnet is arranged in the side plate positioned at the top end or/and the bottom end of the box top, and the second magnet is arranged in the side wall at the top end or/and the bottom end of the box top and is opposite to the first magnet.

Furthermore, the storage device is connected with the box bottom through a second magnetic component.

Furthermore, the second magnetic component comprises a third magnet and a fourth magnet, wherein the third magnet is arranged on the storage device, and the fourth magnet is arranged on the box bottom and is mutually attracted with the third magnet.

Further, magnet four is located the central axis at the bottom of the box and is connected with the inside wall at the bottom of the box, magnet three is connected and is put on the inside wall that thing device is close to box bottom one side and set up with magnet four is relative.

Furthermore, one side of the storage device, which is far away from the box bottom, is provided with a plurality of placing grooves.

Furthermore, a first accommodating groove is formed in the side plate positioned at the top end or/and the bottom end of the box top.

Further, the top end surface or/and the bottom end surface of the magnetic gift box are oval.

Furthermore, the top end or/and the bottom end of the article holding device are/is provided with a second accommodating groove.

Further, the top and the bottom of putting the thing device all are provided with holding tank two, the box body still including connect in the bandage one of box bottom top inside wall and connect in the bandage two of box bottom inside wall, bandage one and bandage two pass holding tank two respectively and get into and put the thing intracavity.

The utility model has the advantages that: the utility model discloses an add and put the thing chamber for magnetism is inhaled gift box and has been reduced and has been inhaled the restriction of gift height in gift box to placing at magnetism, has increased the practicality of magnetism and has inhaled gift box. Through setting up right side lid and left lid for magnetism inhales the gift box when using, has more senior sense, makes magnetism inhale the ceremony sense that the gift box uncapped stronger. Through the guiding and limiting effect of the box top on the side plates, the right cover and the left cover are sleeved outside two sides of the box top, and the box top limits the positions of the right cover and the left cover connected to the box body, so that the phenomenon that the right cover and the left cover are shaken when being connected with the box body to cause the reduction of the stability of the magnetically-attracted gift box is avoided; the first magnetic suction component is arranged on the side plate and the box top, so that the area of the first magnetic suction component arranged on the magnetic gift box can be increased, the connection stability of the side plate and the box top is further increased, the connection between the right cover and the box body and the left cover is more stable, and the problem that when the area of the first magnetic suction component arranged on the right cover, the left cover and the box top is small, the magnetic suction connection between the right cover and the box body and the magnetic suction connection between the left cover and the box body are not stable enough, so that the gift is broken or lost due to the fact that the gift falls down from the box body when the connection between the right cover and the box body and the connection between the left cover and the box body are disconnected is avoided, and economic loss is caused; because put the thing device and can dismantle with the box bottom and be connected, when the gift size did not match with the standing groove size of putting in the thing device, can dismantle the thing device from the box bottom in, change suitable thing device of putting and install in the box bottom, it is convenient with the dismouting of box bottom to put the thing device.

Drawings

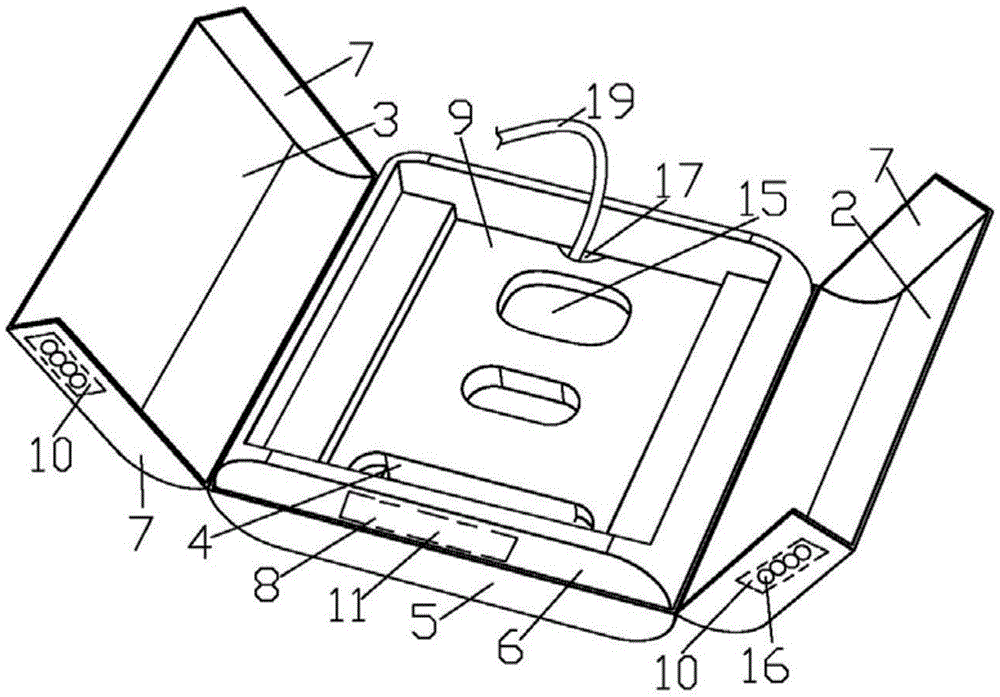

Fig. 1 is a schematic perspective view of the present invention.

Fig. 2 is a schematic perspective view of another embodiment of the present invention.

Fig. 3 is a schematic view of the bottom view of the storage device of the present invention.

Fig. 4 is a schematic top view of the bottom of the box of the present invention.

Description of reference numerals:

1. a box body; 2. a left cover; 3. a right cover; 4. a placement device; 5. a box bottom; 6. the box top; 7. a side plate; 8. a first magnetic component; 9. a storage cavity; 10. a first magnet; 11. a second magnet; 12. a second magnetic component; 13. a magnet III; 14. a fourth magnet; 15. a placement groove; 16. a first accommodating groove; 17. a second accommodating groove; 18. binding a first belt; 19. and a second binding band.

Detailed Description

In order to facilitate understanding of those skilled in the art, the present invention will be further described with reference to the following examples and drawings, which are not intended to limit the present invention.

As shown in fig. 1 to 4, the utility model provides a pair of present box is inhaled to magnetism, it includes box body 1, be located box body 1 one side and with box body 1 swing joint's left side lid 2 and be located box body 1 opposite side and with box body 1 swing joint's right side lid 3, box body 1 includes the box bottom 5, connects at the box bottom 5 and be located the box top 6 of box bottom 5 top, can dismantle with the box bottom 5 and be connected and be located the box bottom 5 in put thing device 4 and be located the thing chamber 9 of putting that puts thing device 4 top, right side lid 3 and left side lid 2 are all including the curb plate 7 that is located 6 tops of box top or bottom, are located between the curb plate 7 of 6 tops of box top or bottom and the box top 6 through magnetism 8 zonulae occludens of subassembly. Specifically, put thing chamber 9 and enclose by the inside wall of box body 1, the lateral wall of putting thing device 4, the inside wall of left side lid 2 and the inside wall of right side lid 3 and establish and form.

When the gift box is used, a gift is placed in the storage device 4, and after the gift is placed, the right cover 3 and the left cover 2 are fixedly connected with the box top 6 through the magnetic attraction assembly I8; when the gift needs to be taken out, the right cover 3 and the left cover 2 are lifted upwards, so that the gift can be easily taken out after the side plate 7 is separated from the box top 6; when the gift is placed in putting thing device 4, the gift can stretch out to putting thing chamber 9 in, put thing chamber 9 through addding, avoid when the height of gift is too high, the top of gift can take place to contradict with right lid 3 or left lid 2, when leading to curb plate 7 of right lid 3 or left lid 2 to inhale subassembly 8 and box top 6 through magnetism and be connected, curb plate 7 can not closely laminate with box bottom 5, make the stability that right lid 3 or left lid 2 and box bottom 5 are connected reduce, put thing chamber 9 through addding, make magnetism inhale the gift box and reduced the restriction of placing gift height in magnetism inhales the gift box, make the gift that has a take the altitude to place in magnetism and inhale the gift box, the practicality of magnetism gift box has been increased. Through setting up right side lid 3 and left side lid 2 for the gift box is inhaled to magnetism has more advanced sense when using, just can see the full appearance of gift when opening right side lid 3 and left side lid 2, makes the ceremony sense that the gift box was uncovered to magnetism stronger. Through the guiding and limiting effect of the box top 6 on the side plate 7, the right cover 3 and the left cover 2 are sleeved outside two sides of the box top 6, and the box top 6 limits the position of the right cover 3 and the left cover 2 connected on the box body 1, so that the situation that the right cover 3 and the left cover 2 are shaken when being connected with the box body to cause the reduction of the stability of the magnetically-attracted gift box is avoided; the magnetic attraction assembly I8 is arranged on the side plate 7 and the box top 6, so that the area of the magnetic attraction assembly I8 on the magnetic attraction gift box can be increased, the stability of the connection of the side plate 7 and the box top 6 is further increased, the connection of the right cover 3 and the left cover 2 with the box body 1 is more stable, and the phenomenon that when the area of the magnetic attraction assembly I8 on the right cover 3, the left cover 2 and the box top 6 is smaller, the magnetic attraction connection of the right cover 3 and the left cover 2 with the box body 1 is not stable enough, so that the gift is disconnected when the connection of the right cover 3 and the left cover 2 with the box body 1 is disconnected, falls down from the box body 1, the gift is broken or lost, and economic loss is caused; because put thing device 4 and box bottom 5 and can dismantle and be connected, when the gift size did not match with the 15 sizes of standing groove in putting thing device 4, can dismantle thing device 4 from box bottom 5 in, change suitable thing device 4 of putting and install in box bottom 5 for the gift is put thing device 4 and firmly fixed, and 5 accessible spiro union, joint, glue at the bottom of the box, magnetism inhale the mode connection such as.

Furthermore, the first magnetic component 8 includes a first magnet 10 and a second magnet 11 mutually attracted with the first magnet 10, the first magnet 10 is installed in the side plate 7 at the top end or/and the bottom end of the box top 6, and the second magnet 11 is installed in the side wall at the top end or/and the bottom end of the box top 6 and is opposite to the first magnet 10.

Preferably, the first magnet 10 is installed in the two side plates 7 at the top end of the box top 6, and the second magnet 11 is installed in the side walls at the top end of the box top 6. All set up magnet 10 in the curb plate 7 that is located box top 6 top at right lid 3 and left lid 2, through magnet 10 and two 11 inter attractions of magnet for right lid 3 and left lid 2 all with the firm connection in box top 6 together, and right lid 3 and left lid 2 are difficult for droing from box body 1, lead to the article that box body 1 placed to drop.

Furthermore, the storage device 4 is connected with the box bottom 5 through the second magnetic component 12.

In the prior art, the object placing device 4 is usually adhered in the box body 1 through an adhesive, however, a long period of time exists between the production and the use of a gift box, before the gift box is used, the adhesion between the object placing device 4 and the box body 1 is reduced due to moisture in the outside air and direct sunlight or insolation, when the gift box is used for placing gifts, the object placing device 4 is easy to fall off from the box body 1 in the process of moving the gift box, so that the gifts placed on the object placing device 4 collide with the inner side wall of the gift box, the gifts and the gift box are damaged, and when the gift box is opened, the gifts and the inside of the gift box are damaged in different degrees; the utility model discloses a to put thing device 4 and box bottom 5 and inhale subassembly two 12 through magnetism and be connected for put thing device 4 and box bottom 5 be connected not receive external environment's influence. When the object placing device 4 needs to be replaced, only the original object placing device 4 needs to be pulled out from the box bottom 5, and then the other object placing device 4 is connected with the box bottom 5 through the magnetic attraction component II 12, so that the object placing device 4 and the box bottom 5 are convenient to disassemble and assemble and simple in connection structure, and the disassembling and assembling efficiency of the object placing device 4 and the box bottom 5 is improved without the help of an external device.

Further, the second magnetic component 12 includes a third magnet 13 mounted on the object placing device 4 and a fourth magnet 14 mounted on the box bottom 5 and attracting the third magnet 13.

Set up three 13 of magnet on putting thing device 4, set up four 14 of magnet on the box bottom 5, through four 14 of magnet and three 13 inter attraction of magnet, make

put thing device

4 and 5 firm links together at the bottom of the box, make to put thing device 4 and be difficult for coming off in the box bottom 5, lead to placing the gift in putting thing device 4 and box body 1 or right side lid 3 or left side lid 2 bumps, lead to magnetism to inhale gift box and gift and take place the damage, cause economic loss.

Further, magnet four 14 is located the central axis of box bottom 5 and is connected with the inside wall of box bottom 5, magnet three 13 is connected and is set up on the inside wall that puts thing device 4 is close to box bottom 5 one side and relative with magnet four 14.

Through will inhale magnetism two 12 settings of subassembly on the central axis of box bottom 5, avoid inhaling magnetism two 12 of subassembly and inhale subassembly 8 mutual interference with magnetism, lead to inhaling magnetism two 12 of subassembly or/and inhale magnetism of subassembly 8 and reduce for inhale the stability reduction of gift box when using of magnetism.

Further, a plurality of placing grooves 15 are arranged on one side of the storage device 4 away from the box bottom 5.

When the gift is placed in the placing groove 15, the side wall of the placing groove 15 can tightly wrap the gift, so that the gift and the placing device 4 are relatively fixed, and the gift is prevented from shaking in the placing device 4; the placing groove 15 matched with the gift size can be selected according to the gift size, so that the gift is tightly wrapped by the placing groove 15, and the gift is prevented from falling out of the placing groove 15; when thing device 4 does not have with gift size assorted standing groove 15 in the gift box is inhaled to magnetism, can extract thing device 4 from the box bottom 5, find again have with gift size assorted standing groove 15 put thing device 4, put thing device 4 with this and inhale two 12 firm connections of subassembly through magnetism with the box bottom 5 again, further improved the practicality of magnetism gift box of inhaling for magnetism is inhaled the gift box and can be used to place the not gift of equidimension, and the gift is placed and is more stable in putting thing device 4, is difficult for droing in the standing groove 15.

Furthermore, the side plate 7 at the top end or/and the bottom end of the box top 6 is provided with a first accommodating groove 16 matched with the finger contour.

Preferably, the two side plates 7 at the top end of the box top 6 are provided with a first accommodating groove 16, and the number of the first accommodating grooves 16 arranged on the side plates 7 is 4. Fingers of two hands are respectively placed in the first accommodating grooves 16 of the two side plates 7, the right cover 3 and the left cover 2 are pulled up by the fingers, and at the moment, the magnet III 13 is gradually far away from the magnet IV 14, so that the side plates 7 are disconnected from the box top 6, and the cover opening of the magnetically-attracted gift box is completed; through set up holding tank 16 on curb plate 7, when making the finger place in holding tank 16, the area of contact increase of finger and right side lid 3 and left lid 2, the finger is with the corresponding increase of the frictional force of right side lid 3 and left lid 2, when making open right side lid 3 or left lid 2, the finger is difficult to be followed right side lid 3 or left lid 2 and is gone up the slippage, it is more smooth and easy to make the process of opening right side lid 3 or left lid 2, and holding tank 16 sets up the side of inhaling the gift box in magnetism, do not influence the pleasing to the eye of inhaling the gift box of magnetism.

Specifically, the front surface of the magnetic gift box is rectangular or square. When the side surface and the front surface of the magnetic gift box are both square or rectangular, the magnetic gift box looks too square and rigid, and the corners of the magnetic gift box are too sharp, so that the magnetic gift box is easy to collide and deform in the gift delivery process and is also easy to be punctured by the sharp corners in use; the magnetic gift box is attractive and simple in vision and high-grade in use due to the fact that the side face of the magnetic gift box is oval, corners of the magnetic gift box are smooth and cannot be deformed easily after being collided, and the magnetic gift box cannot be stabbed by sharp corners in use, so that the falling-preventing performance of the magnetic gift box and the safety of the magnetic gift box in use are improved;

further, the top end or/and the bottom end of the article holding device 4 is/are provided with a second accommodating groove 17 matched with the finger contour.

Preferably, the top end surface and the bottom end surface of the object placing device 4 are both provided with two accommodating grooves 17, and the number of the two accommodating grooves 17 is two. When the object placing device 4 needs to be replaced, fingers are placed into the second accommodating groove 17, the object placing device 4 is pulled out upwards from the box bottom 5, the third magnet 13 is gradually far away from the fourth magnet 14, the object placing device 4 is disconnected from the box bottom 5, the fingers are placed into the second accommodating groove 17 of the other object placing device 4, the other object placing device 4 is placed into the box bottom 5, and the other object placing device 4 is fixed with the box bottom 5 through the magnetic attraction component II. Through add holding tank two 17 on putting thing device 4, need not with the help of other instruments for it is more convenient to put the dismouting of thing device 4.

Furthermore, the box body 1 further comprises a first binding band 18 connected to the inner side wall of the top end of the box bottom 5 and a second binding band 19 connected to the inner side wall of the bottom end of the box bottom 5, and the first binding band 18 and the second binding band 19 respectively penetrate through the second accommodating groove 17 to enter the accommodating cavity 9.

By additionally arranging the first binding belt 18 and the second binding belt 19 which are connected with the box bottom 5, the first binding belt 18 and the second binding belt 19 can bind and fix gifts placed in the storage device 4, so that the gifts are placed in the magnetic gift box more stably; the first binding belt 18 and the second binding belt 19 can also fix the object placing device 4, and bind the object placing device 4 and the box bottom 5 together, so that the stability of connection between the object placing device 4 and the box bottom 5 is further improved, and the object placing device 4 is prevented from falling off from the box bottom 5.

All the technical features in the embodiment can be freely combined according to actual needs.

The above-mentioned embodiment is the utility model discloses the implementation scheme of preferred, in addition, the utility model discloses can also realize by other modes, any obvious replacement is all within the protection scope of the utility model under the prerequisite that does not deviate from this technical scheme design.

Claims

1. A magnetic gift box, characterized in that: comprising a box body (1), a left cover (2) located on one side of the box body (1) and movably connected with the box body (1), and a left cover (2) located on the other side of the box body (1) A right cover (3) on one side and movably connected with a box body (1), the box body (1) comprising a box bottom (5), a box top connected to the box bottom (5) and located above the box bottom (5) (6), a storage device (4) detachably connected to the box bottom (5) and located in the box bottom (5), and a storage cavity (9) located above the storage device (4), the right cover (3) and The left cover (2) includes a side plate (7) located at the top end or/and the bottom end of the box top (6), and is located between the side plate (7) at the top end or/and the bottom end of the box top (6) and the box top (6). It is tightly connected by magnetic attraction component one (8).

2. A magnetic gift box according to claim 1, characterized in that: the magnetic assembly one (8) comprises a magnet one (10) and a magnet two (11) mutually attracted with the magnet one (10), The first magnet (10) is installed in the side plate (7) at the top or/and bottom end of the box top (6), and the second magnet (11) is installed at the top or/and bottom end of the box top (6). The side wall is arranged opposite to the magnet one (10).

3 . The magnetic gift box according to claim 1 , wherein the storage device ( 4 ) is connected with the box bottom ( 5 ) through the second magnetic attraction assembly ( 12 ). 4 .

4. A magnetic gift box according to claim 3, characterized in that: the second magnetic assembly (12) comprises a third magnet (13) installed on the storage device (4) and a third magnet (13) installed at the bottom of the box (5) Magnet four (14) on top and attracting magnet three (13).

5. A magnetic gift box according to claim 4, characterized in that: the magnet four (14) is located on the central axis of the box bottom (5) and is connected with the inner side wall of the box bottom (5), the The third magnet (13) is connected to the inner side wall of the storage device (4) on the side close to the box bottom (5) and is arranged opposite to the fourth magnet (14).

6 . The magnetic gift box according to claim 1 , wherein a plurality of placement slots ( 15 ) are provided on the side of the storage device ( 4 ) away from the box bottom ( 5 ). 7 .

7 . The magnetic gift box according to claim 1 , wherein the side plate ( 7 ) located at the top or/and the bottom end of the top ( 6 ) is provided with a receiving groove one ( 16 ). 8 .

8 . The magnetic gift box according to claim 1 , wherein the top surface or/and the bottom end surface of the magnetic gift box are elliptical. 9 .

9. A magnetic gift box according to claim 1, characterized in that: the top or/and bottom end of the storage device (4) is provided with two receiving slots (17).

10. A magnetic gift box according to claim 1, characterized in that: both the top and bottom ends of the storage device (4) are provided with two accommodating grooves (17), and the box body (1) also includes a The first strap (18) on the inner side wall of the top end of the box bottom (5) and the second strap (19) connected to the inner side wall of the bottom end of the box bottom (5), the strap one (18) and the strap two (19) respectively pass through the two receiving grooves (17) and enter the storage cavity (9).
