CN215225731U

CN215225731U - Rural financial management is with categorised save set of electronic bill

Info

Publication number: CN215225731U
Application number: CN202120151738.3U
Authority: CN
Inventors: 高兴华; 巨晓萍; 张秀贤
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-20
Filing date: 2021-01-20
Publication date: 2021-12-21
Anticipated expiration: 2031-01-20

Abstract

The utility model discloses a classification and preservation device for electronic bills for rural financial management. It includes a box shell with a roller at the bottom of the box shell, a hinged cabinet door on the right side of the box shell, an electronic lock on the cabinet door, and an electrical connection lighting lamp on the left side of the box shell The top of the lighting tube is connected to the top of the inner wall of the box shell, and three drawers are evenly arranged below the lighting tube along the vertical direction of the inner wall of the box shell, and a fixing plate is arranged above the drawers, so There are two fixing grooves on both sides of the fixing plate, the fixing grooves are placed on the fixing piece, the right side of the screw is connected to the casing of the box, the bottom of the fixing plate is fixedly connected to a hanger rod, and the inside of the hanger rod is provided with Compared with the prior art, the protruding block matched with the sliding groove has the advantage of providing an electronic bill storage device which is convenient for inspection, storage and extraction.

Description

Rural financial management is with categorised save set of electronic bill

Technical Field

The utility model relates to a financial technical field specifically indicates a categorised save set of electronic bill for rural financial management.

Background

In the accounting office process, a large number of bills need to be used. Accounting process of financial accounting personnel is exactly a process of putting in order, concluding up, categorised, qualitative to the document, and accounting personnel can be equipped with the device of depositing the bill specially. Current accounting bill save set, the single structure tradition, and the multi-mode of inconvenient bill is preserved, causes the inconvenient not convenient of taking the bill, needs to improve. Therefore, in view of the above situation, there is a need to develop an accounting bill keeping device to overcome the shortcomings of the current practical application.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model is to overcome above technical difficulty, provide one kind, the electronic bill save set of being convenient for inspect, preserve, extract.

In order to solve the technical problem, the utility model provides a technical scheme does: the classified storage device for the electronic bills for the rural financial management comprises a box body shell, wherein idler wheels are arranged at the bottom of the box body shell, a cabinet door is hinged to the right side of the box body shell, an electronic lock is arranged on the cabinet door, a lighting lamp tube switch electrically connected with a lighting lamp tube is arranged on the left side face of the box body shell, the top of the lighting lamp tube is connected with the top end of the inner wall of the box body shell, three drawers are uniformly arranged below the lighting lamp tube along the vertical direction of the inner wall of the box body shell, inwards concave sliding grooves are formed in two sides of the drawers, a fixing plate is arranged above the drawers, two fixing grooves are formed in two sides of the fixing plate and are arranged on a fixing piece, screws respectively penetrate through the upper portion and the lower portion of the right side of the fixing piece, the right side of the screws is connected with the box body shell, a hanging rod is fixedly connected to the bottom of the fixing plate, and a convex block matched with the sliding grooves is arranged on the inner side of the hanging rod, fixed rings are respectively arranged on two sides of the bottom surface of the fixed plate, the fixed rings are connected with sliding blocks on the same side through ropes, the sliding blocks are arranged in T-shaped grooves matched with the sliding blocks, and the T-shaped grooves are located at the tops of the drawers.

Preferably, the rural financial management electronic bill classification save set, the dampproofing pad of box shell inner wall subsides prevents that the bill from weing.

Preferably, a rural financial management uses categorised save set of electronic bill, box shell inner wall is equipped with temperature and humidity sensor, the top is equipped with rather than complex temperature and humidity alarm, can give other people the warning fast.

Preferably, a rural financial management is with categorised save set of electronic bill, the inside upper end of box shell is equipped with the main control board, the equal electric connection main control board of lighting lamp switch, electronic lock, temperature and humidity sensor and temperature and humidity alarm in the device, by the unified control of main control board.

Preferably, the electronic bill classifying and storing device for rural financial management is characterized in that a groove is formed in the front side of the drawer, and the drawer is convenient to pull out.

Preferably, the electronic bill classification and storage device for rural financial management has the advantages that the arrangement of the partition plates in the three drawers is different, bills of different specifications can be placed, and the classification of the bills is facilitated.

Preferably, rural financial management use electronic bill classification save set, the inside right side of T type groove is equipped with link block's extension spring, stability when improving the drawer motion.

Compared with the prior art, the utility model the advantage lie in: the utility model discloses it is more intelligent, can lock on it, prevent other people's maloperation, have temperature and humidity alarm, can give other people when the environment is unfavorable for the bill to preserve fast and remind, have certain angle of inclination when the drawer is taken out, be convenient for inspect, take.

Drawings

Fig. 1 is a schematic structural diagram of the present invention.

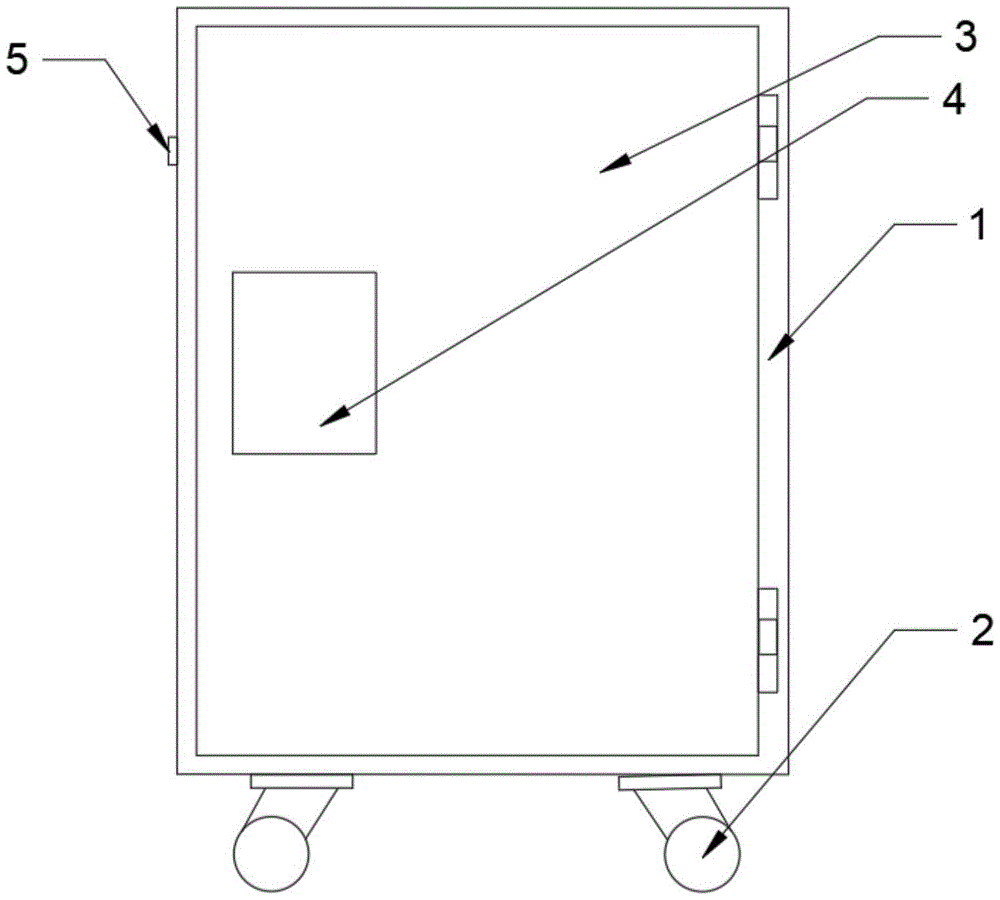

Fig. 2 is a schematic structural diagram of the outer casing of the present invention.

Fig. 3 is a schematic structural view of the drawer of the present invention when closed.

Fig. 4 is a schematic structural view of the drawer of the present invention when opened.

Fig. 5 is a schematic view of the fixing plate of the present invention.

As shown in the figure: 1. the multifunctional cabinet comprises a cabinet body shell, 2, rollers, 3, a cabinet door, 4, an electronic lock, 5, a lighting lamp tube switch, 6, a lighting lamp tube, 7, a drawer, 8, a sliding groove, 9, a fixing plate, 10, a fixing groove, 11, a fixing piece, 12, screws, 13, a hanging rod, 14, a protruding block, 15, a fixing ring, 16, a sliding block, 17, a T-shaped groove, 18 and a main control board.

Detailed Description

The present invention will be described in further detail with reference to the accompanying drawings. Referring to fig. 1-5, an electronic bill classification storage device for rural financial management comprises a box body shell 1, wherein a moisture-proof pad is pasted on the inner wall of the box body shell 1 to prevent bills from being affected with moisture, a temperature and humidity sensor is arranged on the inner wall of the box body shell 1, a temperature and humidity alarm matched with the temperature and humidity sensor is arranged at the top of the box body shell 1 to quickly warn people, rollers 2 are arranged at the bottom of the box body shell 1, a cabinet door 3 is hinged to the right side of the box body shell 1, an electronic lock 4 is arranged on the cabinet door 3, a lighting lamp tube switch 5 electrically connected with a lighting lamp tube 6 is arranged on the left side surface of the box body shell 1, the top of the lighting lamp tube 6 is connected with the top end of the inner wall of the box body shell 1, three drawers 7 are uniformly arranged below the lighting lamp tube 6 along the vertical direction of the inner wall of the box body shell 1, grooves are arranged on the front sides of the drawers 7 to facilitate pulling out of the three drawers 7, bills of different specifications can be placed to facilitate the classification of the bills, the two sides of the drawer 7 are provided with concave sliding grooves 8, a fixed plate 9 is arranged above the drawer 7, two fixed grooves 10 are respectively arranged at two sides of the fixed plate 9, the fixing groove 10 is arranged on a fixing member 11, the upper part and the lower part of the right side of the fixing member 11 are respectively provided with a screw 12 in a penetrating way, the right side of the screw 12 is connected with the box body shell 1, the bottom of the fixing plate 9 is fixedly connected with a suspender 13, the inner side of the suspension rod 13 is provided with a convex block 14 matched with the sliding groove 8, two sides of the bottom surface of the fixing plate 9 are respectively provided with a fixing ring 15, the fixed ring 15 is connected with a slide block 16 on the same side by a rope, the slide block 16 is arranged in a T-shaped groove 17 matched with the slide block, t type groove 17 is located drawer 7 top, the inside right side in T type groove 17 is equipped with the extension spring of link block 16, stability when improving the drawer motion.

The utility model discloses an operating principle sets up the required bound that the bill was preserved with temperature and humidity sensor, opens electronic lock 4, opens lighting tube switch 5, takes out required drawer 7 of depositing, puts into the grid of selection with the bill in, places the back, closes drawer 7, closes lighting tube 6, closes cabinet door 3.

The present invention and the embodiments thereof have been described above, but the description is not limited thereto, and the embodiment shown in the drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.

Claims

1. A device for classifying and preserving electronic bills for rural financial management, characterized in that it comprises a case shell (1), the bottom of the case shell (1) is provided with a roller (2), and the case shell (1) A cabinet door (3) is hinged on the right side, an electronic lock (4) is arranged on the cabinet door (3), and a lighting tube electrically connected to the lighting tube (6) is arranged on the left side of the box shell (1) A switch (5), the top of the lighting tube (6) is connected to the top of the inner wall of the box shell (1), and three drawers ( 7), two sides of the drawer (7) are provided with concave sliding grooves (8), the top of the drawer (7) is provided with a fixing plate (9), and two sides of the fixing plate (9) are provided with two a fixing slot (10), the fixing slot (10) is placed on the fixing piece (11), the upper part and the lower part of the right side of the fixing piece (11) are respectively provided with screws (12), the screws (12) The right side is connected to the casing (1) of the box body, the bottom of the fixing plate (9) is fixedly connected to a hanger rod (13), and the inside of the hanger rod (13) is provided with a projection (14) matching the sliding groove (8), Both sides of the bottom surface of the fixing plate (9) are respectively provided with fixing rings (15), the fixing rings (15) are connected by ropes to the sliding blocks (16) on the same side, and the sliding blocks (16) are placed in the corresponding sliding blocks (16). In the T-slot (17), the T-slot (17) is located at the top of the drawer (7).

2. A device for classifying and preserving electronic bills for rural financial management according to claim 1, characterized in that: a moisture-proof pad is attached to the inner wall of the box shell (1).

3. A kind of electronic bill classification and preservation device for rural financial management according to claim 1, characterized in that: the inner wall of the box shell (1) is provided with a temperature and humidity sensor, and the top is provided with a temperature and humidity alarm that cooperates with it .

4. A device for classifying and preserving electronic bills for rural financial management according to claim 1, characterized in that: a main control board (18) is installed at the inner upper end of the box shell (1), and a lighting tube in the device The switch (5), the electronic lock (4), the temperature and humidity sensor and the temperature and humidity alarm are all electrically connected to the main control board (18).

5 . The device for classifying and preserving electronic bills for rural financial management according to claim 1 , wherein a groove is provided on the front side of the drawer ( 7 ). 6 .

6 . The device for classifying and preserving electronic bills for rural financial management according to claim 1 , characterized in that: the layouts of the partitions in the three drawers ( 7 ) are different. 7 .

7. A device for classifying and storing electronic bills for rural financial management according to claim 1, characterized in that: a tension spring connected to the slider (16) is provided on the inner right side of the T-shaped groove (17).
