Abstract
本实用新型公开了一种机电工程环保除尘装置，包括底座，所述底座的上侧壁设有壳体，所述壳体的内部下方分别设有固定槽和抽风机，所述壳体的右侧壁且在所述抽风机的右端设有过滤盒，所述过滤盒的内部与所述抽风机的输入端相连通，所述过滤盒的内部上下两侧壁之间卡接有过滤网，所述过滤盒的右端连通有软管的一端，本实用新型在对过滤板进行清洗时，使用者需向右拉动过滤板，使得过滤板在第一毛刷板和第二毛刷板之间不断运动，毛刷板可将过滤板上的粉尘刮下，同时清洗液通过出水管滴至过滤板上，使得粉尘可随着水流流至收集箱内，使用者最后将收集箱拉出并将污水倒出即可，清洗过程简单、快捷。
The utility model discloses an environmental protection dust removal device for electromechanical engineering. The side wall is provided with a filter box at the right end of the exhaust fan, the interior of the filter box is communicated with the input end of the exhaust fan, and a filter screen is clamped between the upper and lower side walls of the filter box. The right end of the filter box is connected with one end of the hose. When cleaning the filter plate of the present invention, the user needs to pull the filter plate to the right, so that the filter plate is between the first brush plate and the second brush plate. With continuous movement, the brush plate can scrape off the dust on the filter plate, and at the same time, the cleaning liquid drips onto the filter plate through the water outlet, so that the dust can flow into the collection box with the water flow, and the user finally pulls out the collection box and removes it. The sewage can be poured out, and the cleaning process is simple and fast.
Description
Technical Field
The utility model relates to a dust collecting equipment technical field, specific field is an electromechanical engineering environmental protection dust collector.
Background
Mechatronics is a cross-synthesis integrating multiple disciplines of mechanics, electronics, optics, control, computers, information, etc., and its development and progress rely on and advance the development and progress of the related art. Therefore, the main development direction of mechatronics is intellectualization, modularization, networking, miniaturization, greening and systematization, in the machine manufacturing industry, a large amount of dust which is suspended in the air and has a diameter of about one micron exists in an electromechanical engineering workshop, the dust can cause discomfort of the body of a worker and damage the body health of the worker, the dust is the main reason for inducing various diseases, the dust also can affect the operation of a machine, and after the existing dust removal device is used for a period of time, the filter screen needs to be detached and cleaned by a worker to ensure the filtering effect, but the detaching and cleaning process is troublesome and needs to be manually cleaned by the worker, and a large amount of time and energy are consumed in the process.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an electromechanical engineering environmental protection dust collector to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: an environment-friendly dust removal device for electromechanical engineering comprises a base, wherein a shell is arranged on the upper side wall of the base, a fixed groove and an exhaust fan are respectively arranged below the inner part of the shell, a filter box is arranged on the right side wall of the shell and at the right end of the exhaust fan, the inner part of the filter box is communicated with the input end of the exhaust fan, filter screens are clamped between the upper side wall and the lower side wall of the inner part of the filter box, the right end of the filter box is communicated with one end of a hose, a dust hood is sleeved at the other end of the hose, an L-shaped air outlet pipe is arranged at the output end of the exhaust fan, a filter cavity and a cleaning cavity are respectively arranged above the inner part of the shell, air outlet holes and air inlet holes are respectively arranged on the upper side wall and the lower side wall of the filter cavity, the air inlet holes are communicated with the upper side wall of the L-shaped air outlet pipe, and a chute and a clamping groove are respectively arranged on the front side wall and the rear side wall and the left side wall of the filter cavity, slide in the spout and be equipped with the filter, the left side wall of filter is equipped with the joint piece, the right-hand member of filter runs through wash the chamber and be equipped with the pull ring, the upper and lower both ends in washing chamber are equipped with storage water tank and collecting box respectively, the last side wall of storage water tank is equipped with the water filling port, the lower side wall of storage water tank is equipped with outlet pipe and first brush board respectively, wash the intracavity and be in the top of collecting box is equipped with the drain bar, be equipped with wash port and second brush board on the drain bar respectively, the right side wall of casing just corresponds the collecting box is equipped with the opening, the lower lateral wall and the left side wall of base are equipped with respectively and remove wheel and push rod.
Preferably, the dust hood is a foldable telescopic hood.
Preferably, the left end of the filter box is in threaded connection with the right side wall of the shell.
Preferably, a heating resistance wire is arranged in the air outlet hole.
Preferably, the collecting box is connected with the lower side wall inside the cleaning cavity in a sliding mode through a sliding rail, and a handle is arranged on the right side wall of the collecting box.
Compared with the prior art, the beneficial effects of the utility model are that: the utility model provides an electromechanical engineering environmental protection dust collector, the utility model discloses when wasing the filter, the user need inject the washing liquid into the storage water tank earlier, stimulate the filter right afterwards, make the filter constantly move between first brush board and second brush board, the brush board can be scraped the dust on the filter down, the washing liquid drips to the filter through the outlet pipe simultaneously, make the dust can flow to the collecting box along with rivers in, the user pull out the collecting box at last and pour out sewage can, the cleaning process is simple, swift, need not to dismantle the filter, user's time and energy have been saved, the utility model discloses a be provided with the heating resistor silk in the venthole, can heat the stoving to humid air, effectively avoided the room air humidity and to the harmful effects that electrical equipment caused.
Drawings

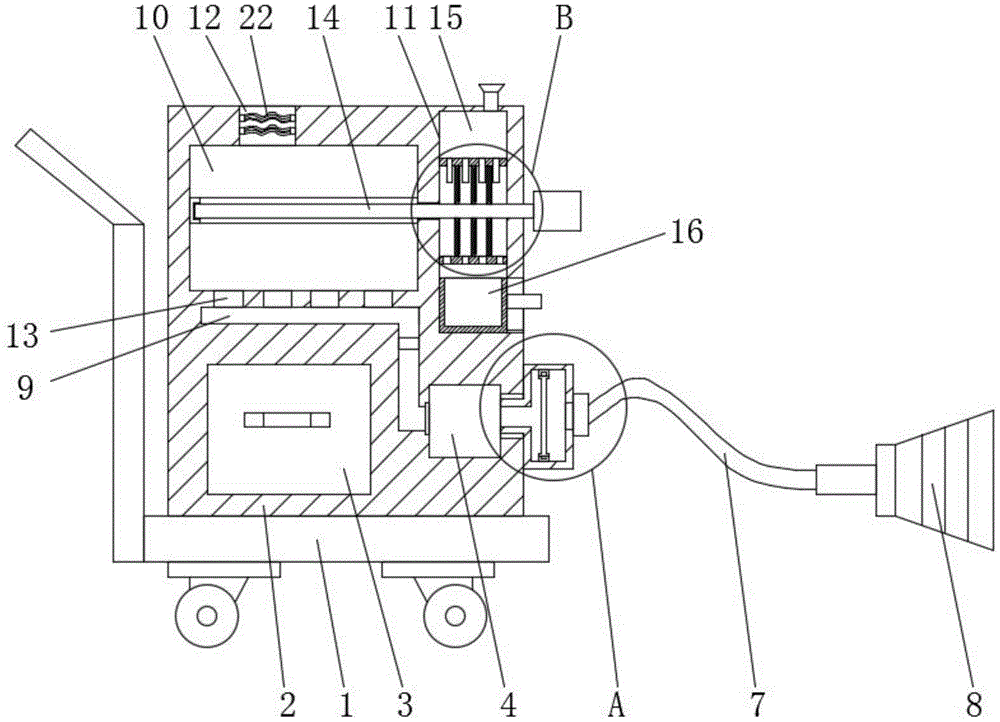

FIG. 1 is a schematic sectional view of the front view of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A in FIG. 1;
fig. 3 is an enlarged schematic view of a portion B in fig. 1.
In the figure: 1-base, 2-shell, 3-fixed groove, 4-exhaust fan, 5-filter box, 6-filter screen, 7-hose, 8-dust hood, 9-L shape air outlet pipe, 10-filter chamber, 11-cleaning chamber, 12-air outlet hole, 13-air inlet hole, 14-filter plate, 15-water storage tank, 16-collecting box, 17-water outlet pipe, 18-first brush plate, 19-drainage plate, 20-water outlet hole, 21-second brush plate, 22-heating resistance wire.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: an environment-friendly dust removal device for electromechanical engineering comprises a base 1, wherein a shell 2 is arranged on the upper side wall of the base 1, a fixing groove 3 and an exhaust fan 4 are respectively arranged below the inner part of the shell 2, a filter box 5 is arranged on the right side wall of the shell 2 and the right end of the exhaust fan 4, the inside of the filter box 5 is communicated with the input end of the exhaust fan 4, a filter screen 6 is clamped between the upper side wall and the lower side wall of the inside of the filter box 5, the filter screen 6 can be disassembled for replacement, the right end of the filter box 5 is communicated with one end of a hose 7, the other end of the hose 7 is sleeved with a dust hood 8, when the environment-friendly dust removal device is not used, the dust hood 8 can be placed in the fixing groove 3, the output end of the exhaust fan 4 is provided with an L-shaped air outlet pipe 9, a cleaning cavity 10 and a cleaning cavity 11 are respectively arranged above the inner part of the shell 2, the upper side wall and the lower side wall of the filter chamber 10 are respectively provided with an air outlet 12 and an air inlet 13, the air inlet 13 is communicated with the upper side wall of the L-shaped air outlet pipe 9, the front side wall and the rear side wall and the left side wall of the filter chamber 10 are respectively provided with a sliding groove and a clamping groove, a filter plate 14 is arranged in the sliding groove in a sliding manner, a user can hold the dust hood 8 by hand and place the dust hood in a position to be dedusted, then the exhaust fan 4 is started, air with dust enters the filter box 14 through the hose 7, the filter screen 6 firstly filters large granular dust or impurities, then the air with dust enters the filter chamber 10 through the L-shaped air outlet pipe 9, the filter plate 14 in the filter chamber 10 carries out secondary filtration on the air, finally, the clean air is discharged from the air outlet 12, the left side wall of the filter plate 14 is provided with a clamping block, the right end of the filter plate 14 penetrates through the cleaning chamber 11 and is provided with a pull ring, a water storage tank 15 and a collection box 16 are respectively arranged at the upper end and the lower end of the cleaning cavity 11, a water filling port is arranged on the upper side wall of the water storage tank 15, a water outlet pipe 17 and a first brush plate 18 are respectively arranged on the lower side wall of the water storage tank 15, a drainage plate 19 is arranged in the cleaning cavity 11 and above the collection box 16, a drainage hole 20 and a second brush plate 21 are respectively arranged on the drainage plate 19, the upper end and the lower end of the first brush plate 18 and the upper end and the lower end of the second brush plate 21 are respectively contacted with the filter plate 14, an opening is arranged on the right side wall of the shell 2 and corresponding to the collection box 16, when the filter plate 14 needs to be cleaned, a user needs to firstly inject cleaning liquid into the water storage tank 15 and then pull the filter plate 14 rightwards to enable the filter plate 14 to continuously move between the first brush plate 18 and the second brush plate 21, when the filter plate 14 moves, first brush board 18 with second brush board 21 can be scraped the dust on the filter 14 down, and the washing liquid drips to the filter 14 on through outlet pipe 17 simultaneously for the dust can flow extremely along with rivers in the collecting box 16, the user will at last collecting box 16 pull out and with sewage pour can, base 1's lower lateral wall and left side wall are equipped with respectively and remove wheel and push rod, and this setting has made things convenient for the utility model discloses a removal.
Particularly, the dust hood 8 is a foldable telescopic hood, and a user can adjust the size of a hood opening of the dust hood 8 according to the size of a dust removing space needed, so that the dust removing effect is improved.
Specifically, the left end of the filter cartridge 5 is in threaded connection with the right side wall of the housing 2.
Specifically, a heating resistance wire 22 is arranged in the air outlet 12, and the heating resistance wire 22 can heat and dry air to prevent the moist air from causing adverse effects on electrical components.
In particular, the collecting chamber 16 is slidably connected to the inner lower side wall of the washing chamber 11 by a slide rail, and this arrangement makes the movement of the collecting chamber 16 more stable, and the right side wall of the collecting chamber 16 is provided with a handle.
The working principle is as follows: when the utility model is used, a user needs to hold the dust hood 8 and arrange the dust hood in a position to be dedusted, then the exhaust fan 4 is started, air with dust enters the filter box 14 through the hose 7, the filter screen 6 firstly filters large-particle dust or impurities, then the air with dust enters the filter chamber 10 through the L-shaped air outlet pipe 9, the filter plate 14 in the filter chamber 10 carries out secondary filtration on the air, finally, clean air is discharged from the air outlet hole 12, when the filter plate 14 needs to be cleaned, the user needs to inject cleaning liquid into the water storage tank 15 firstly, then the filter plate 14 is pulled rightwards, so that the filter plate 14 continuously moves between the first brush plate 18 and the second brush plate 21, the brush plates can scrape the dust on the filter plate 14, meanwhile, the cleaning liquid is dripped onto the filter plate 14 through the water outlet pipe 17, so that the dust can flow into the collecting tank 16 along with water flow, the user finally pulls out the collection tank 16 and pours out the contaminated water.
In the description of the present invention, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses the standard part that uses all can purchase from the market, and dysmorphism piece all can be customized according to the record of description and attached drawing, and the concrete connection mode of each part all adopts conventional means such as ripe bolt, rivet, welding among the prior art, and machinery, part and equipment all adopt prior art, and conventional model is including the conventional connected mode of circuit connection adoption conventional among the prior art, and here detailed description is not again.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
