CN215192052U

CN215192052U - Circular cutting bell-shaped base

Info

Publication number: CN215192052U
Application number: CN202120897196.4U
Authority: CN
Inventors: 周明海; 王世游; 傅永鑫; 周晓平; 周宏伟; 吴盛勇; 权军
Original assignee: Jiangxi Shenyou Medical Instrument Co ltd
Current assignee: Jiangxi Pinghai Medical Equipment Co ltd
Priority date: 2021-04-28
Filing date: 2021-04-28
Publication date: 2021-12-17
Anticipated expiration: 2031-04-28

Abstract

The utility model discloses a ring-cut bell-shaped seat, which comprises a connecting rod, an inverted nail groove and a bell-shaped seat main body, the bell-shaped seat main body is fixedly connected to one end of the connecting rod, and the The inverted nail groove is fixedly connected to the bottom of the side end face of the main body of the bell seat, at least one set of movable grooves is opened on the side end face of the connecting rod, the interior of the movable groove is movably connected with a rotating paddle, and the interior of the connecting rod is provided with There is an air chamber, the air chamber communicates with the inside of the main body of the bell seat, a rubber plug is slidably connected to the inside of the air chamber, and a driving rod is fixedly connected to the upper end surface of the rubber plug, and the driving rod is connected to the rotary dial. The inner wall of the bell-shaped seat body is fixedly connected with a silicone pad, and the bottom of the inner wall of the bell-shaped seat body is provided with a limit rubber strip, which can effectively improve the fixing effect of the existing ring-cut bell-shaped seat to the glans. And the device is convenient and efficient to use.

Description

Circular cutting bell-shaped base

Technical Field

The utility model relates to the field of medical equipment, in particular to ring-cutting bell-shaped seat.

Background

With the continuous improvement of living standard and cultural standard of people, people have higher requirements on self health and living quality, the long foreskin is a common reproduction problem of men, the long foreskin is easy to store dirty and dirty to cause inflammation, the health of patients is harmed, and the couple life brings adverse effects.

Through patent search, there are the following known prior art solutions:

publication No. CN108478263A, application date: 2018.04.09. the invention discloses a circumcision stitching instrument and a circumcision stitching device, and relates to the technical field of medical instruments. The circumcision stitching instrument comprises a top body, a balanus seat and a shell, wherein a sliding block is arranged in the shell along the axial clearance fit of the shell, the top body comprises an ejection part and a connecting part, the top body is positioned in the shell, the connecting part is coaxially connected with the sliding block, a binding ring is arranged on the shell, a binding groove is arranged on the binding ring, the necking end of the balanus seat is connected to the shell through a connecting piece, a knife abutting ring is sleeved on the flaring end, an annular blade is arranged in the top body, a first guide bulge is arranged on the outer wall of the sliding block, and a first guide groove matched with the first guide bulge is arranged on the inner wall of the shell; the circumcision suturing device comprises suturing nails and the circumcision suturing device, wherein the suturing nails are matched with a suturing groove, and a nail bin cover is arranged on a suturing ring. The circumcision stitching instrument has the advantages of higher concentricity between the shell and the top body and good operation effect.

However, the device has partial defects in the actual use process, the glans penis is arranged inside the bell-shaped seat by the existing annular cutting bell-shaped seat when the device is used, the foreskin is arranged outside the bell-shaped seat, the foreskin is limited and fixed by an instrument, but the glans penis cannot be effectively fixed on the glans penis seat, the operation effect and the operation quality can be greatly influenced if the glans penis deviates in the operation, and the glans penis is difficult to generate a better fixing effect and is easy to cause certain damage due to the softer texture of the glans penis by the traditional clamping instrument.

Therefore, there is a need to provide a circular cutting bell socket to solve the above-mentioned problems.

SUMMERY OF THE UTILITY MODEL

The technical problem to be solved

An object of the utility model is to provide a circular cutting bell-shaped seat to solve the problem among the above-mentioned background art.

Two technical schemes

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a ring-cutting bell-shaped seat, includes connecting rod, falls nail groove and bell-shaped seat main part, bell-shaped seat main part fixed connection is in the one end of connecting rod, fall nail groove fixed connection in the side end face bottom of bell-shaped seat main part, at least a set of movable groove has been seted up to the side end face of connecting rod, the inside swing joint in movable groove has the rotation plectrum, the air chamber has been seted up to the inside of connecting rod, the air chamber is linked together with the inside of bell-shaped seat main part, the inside sliding connection of air chamber has the rubber buffer, the up end fixedly connected with actuating lever of rubber buffer, the actuating lever links to each other with the rotation plectrum, the inner wall fixedly connected with silica gel pad of bell-shaped seat main part, the inner wall bottom of bell-shaped seat main part is equipped with spacing adhesive tape.

As a further scheme of the invention, the upper end face of the driving rod is fixedly connected with a bearing platform, the upper end face of the bearing platform is fixedly connected with a spring, and the other end of the spring is connected with one end of the air chamber, which is far away from the bell-shaped seat main body.

As a further scheme of the invention, the outer end face of the bearing platform is rotatably connected with a rotating shaft, the outer end face of the rotating shaft is rotatably connected with a connecting plate, one end of the connecting plate, which is far away from the rotating shaft, is fixedly connected with the rotating shifting piece, and the connecting plate is matched with the movable groove.

As a further scheme of the invention, the silica gel pad comprises an air hole, an external thread, an outer cushion layer, an air gap and an inner cushion layer, the outer cushion layer is fixedly connected with the inner cushion layer, through holes are uniformly formed in the inner part of the inner cushion layer, the air gap is formed between the outer cushion layer and the inner cushion layer, the air hole is formed in the middle of the outer cushion layer, the external thread is formed in the side end face of the outer cushion layer, the air hole is communicated with the air chamber and the air gap, and an internal thread matched with the external thread is arranged on the inner wall of the bell-shaped seat main body.

As a further scheme of the invention, the movable groove comprises a lifting groove and a limiting groove, the lifting groove and the limiting groove are mutually vertical, and the connecting plate is connected inside the lifting groove and the limiting groove in a sliding manner.

As a further scheme of the invention, the inner wall of the limit groove is embedded with a limit bump, the lower end face of the connecting plate is provided with a groove matched with the limit bump, and the limit bump is used for limiting and fixing the connecting plate.

As a further scheme of the invention, the limiting rubber strip, the outer cushion layer and the inner cushion layer are made of soft silica gel.

Three beneficial effects

1. The utility model provides a pair of circular cutting bell-shaped seat, be equipped with spacing adhesive tape in the inner wall bottom of bell-shaped seat main part, spacing adhesive tape when the glans penis is put into the bell-shaped seat main part with the terminal crown groove adaptation of glans penis, and then carry on spacing to the glans penis and prevent that the glans penis from producing the aversion in the bell-shaped seat main part, simultaneously through being equipped with the air chamber in the inside of connecting rod, and the air chamber communicates with the inside of bell-shaped seat main part, the glans penis is arranged in the inside of bell-shaped seat main part during the operation, drive the actuating lever through rotating and take out the rubber buffer that is located the inside of air chamber, make the air chamber inboard produce the negative pressure and adsorb the glans penis in the inside of bell-shaped seat main part and prevent breaking away from or removing;

2. the utility model provides a pair of ring-cutting bell-shaped seat, further for the convenience that improves the device, there is the spring through accepting the platform elastic connection at the up end of actuating lever, and accept the platform and rotate through the axis of rotation and be connected with the connecting plate, the connecting plate can with lift groove and spacing groove adaptation, pulling rotates the plectrum and drives the connecting plate and rise in the lift inslot and can drive actuating lever and rubber buffer to move, rotate simultaneously and rotate the plectrum and drive the connecting plate and get into the spacing groove, can fix the position of actuating lever and rubber buffer, need not last tractive, and still be equipped with spacing convex point in the spacing groove and carry out spacing to the connecting plate and prevent to break away from, after the operation, rotate and rotate the plectrum, make the connecting plate fall into the lift groove and can reset automatically under the effect of spring, the operation is comparatively convenient;

3. the utility model provides a ring-cutting bell-shaped seat, in order to prevent negative pressure adsorption from causing damage or uncomfortable feeling to glans penis, a silica gel pad is fixedly connected in the bell-shaped seat main body, the silica gel pad is made of soft silica gel material, the outer cushion layer is tightly attached to the inner wall of the bell-shaped seat main body, the glans penis is arranged in the bell-shaped seat main body and is attached to the inner cushion layer when in use, air gaps in the inner cushion layer and the outer cushion layer are communicated with an air chamber through air holes, when the rubber plug is pulled, the glans penis is adsorbed and wrapped by the inner cushion layer through even through holes on the surface of the inner cushion layer, the effect of negative pressure adsorption is improved, the suction force is dispersed to avoid the unnecessary damage caused by excessive concentration, the outer cushion layer and the inner cushion layer adopt soft silica gel material, the skin is harmless and has good buffer effect, meanwhile, because the inner cushion layer is in contact with the glans penis more tightly and needs to be cleaned and replaced frequently, the silica gel pad is fixedly installed with the bell-shaped seat main body through external threads, the silica gel pad is convenient to clean and replace.

Drawings

The present invention will be further explained with reference to the drawings and examples.

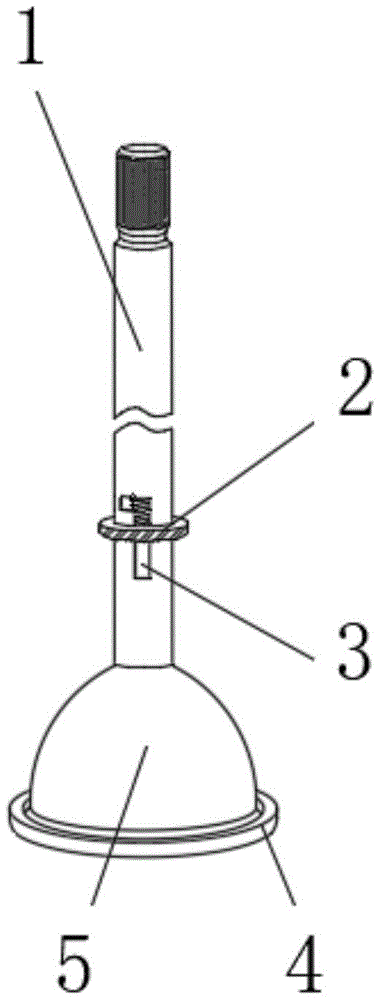

Fig. 1 is a schematic view of the overall structure of the present invention;

fig. 2 is a schematic view of the internal structure of the present invention;

fig. 3 is an enlarged schematic structural diagram of a point a in fig. 2 according to the present invention;

FIG. 4 is a schematic view of the rotary shifting piece of the present invention;

fig. 5 is a schematic structural view of the silica gel pad of the present invention;

fig. 6 is a schematic view of the structure of the movable trough of the present invention.

In the figure: 1. a connecting rod; 2. rotating the shifting sheet; 3. a movable groove; 4. a nail reversing groove; 5. a bell base body; 6. a drive rod; 7. a rubber plug; 8. a limiting rubber strip; 9. a silica gel pad; 10. an air chamber; 11. a spring; 12. a connecting plate; 13. a receiving platform; 14. a rotating shaft; 15. air holes; 16. an external thread; 17. an outer cushion layer; 18. an air gap; 19. an inner cushion layer; 20. a lifting groove; 21. limiting salient points; 22. a limiting groove.

Detailed Description

Embodiments of the present invention will be described below with reference to the drawings. In this process, the width of the lines or the size of the components in the drawings may be exaggerated for clarity and convenience of description.

In addition, the following terms are defined based on the functions of the present invention, and may be different according to the intention of the user or the operator or the convention. Therefore, these terms are defined based on the entire contents of the present specification.

As shown in fig. 1-6, a circular cutting bell-shaped base comprises a connecting rod 1, a nail reversing groove 4 and a bell-shaped base main body 5, the bell-shaped base main body 5 is fixedly connected to one end of the connecting rod 1, the nail reversing groove 4 is fixedly connected to the bottom of the side end face of the bell-shaped base main body 5, at least one set of movable groove 3 is formed in the side end face of the connecting rod 1, a rotary dial piece 2 is movably connected to the inside of the movable groove 3, an air chamber 10 is formed in the inside of the connecting rod 1, the air chamber 10 is communicated with the inside of the bell-shaped base main body 5, a rubber plug 7 is slidably connected to the inside of the air chamber 10, a driving rod 6 is fixedly connected to the upper end face of the rubber plug 7, the driving rod 6 is connected to the rotary dial piece 2, a silica gel pad 9 is fixedly connected to the inner wall of the bell-shaped base main body 5, and a limiting rubber strip 8 is arranged at the bottom of the inner wall of the bell-shaped base main body 5.

The upper end face of the driving rod 6 is fixedly connected with a bearing platform 13, the upper end face of the bearing platform 13 is fixedly connected with a spring 11, the other end of the spring 11 is connected with one end of the air chamber 10 departing from the bell-shaped seat main body 5, the outer end face of the bearing platform 13 is rotatably connected with a rotating shaft 14, the outer end face of the rotating shaft 14 is rotatably connected with a connecting plate 12, one end of the connecting plate 12 departing from the rotating shaft 14 is fixedly connected with the rotating plectrum 2, the connecting plate 12 is matched with the movable groove 3, the silica gel pad 9 comprises an air hole 15, an external thread 16, an outer pad layer 17, an air gap 18 and an inner pad layer 19, the outer pad layer 17 is fixedly connected with the inner pad layer 19, the inner pad layer 19 is uniformly provided with through holes, the air gap 18 is arranged between the outer pad layer 17 and the inner pad layer 19, the air hole 15 is arranged in the middle of the outer pad layer 17, the external thread 16 is arranged on the side end face of the outer pad layer 17, and the air hole 15 is communicated with the air chamber 10 and the air gap 18, the inner wall of bell-shaped seat main part 5 is equipped with the internal thread with 16 looks adaptations of external screw thread, activity groove 3 includes lift groove 20 and spacing groove 22, lift groove 20 and spacing groove 22 mutually perpendicular, connecting plate 12 sliding connection is in lift groove 20 and spacing groove 22's inside, spacing groove 22 inner wall inlays and is equipped with spacing bump 21, and the lower terminal surface of connecting plate 12 set up the groove with 21 looks adaptations of spacing bump, spacing bump 21 is used for the spacing fixed to connecting plate 12, spacing adhesive tape 8, outer cushion 17 and inner cushion 19 adopt the soft silica gel material.

The working principle is as follows: when the novel turtle shell type blood vessel examination device is used, a turtle shell is placed inside the bell-shaped seat main body 5, a crown groove of the turtle shell is matched with the limiting rubber strip 8, the rotating shifting piece 2 is pulled to drive the driving rod 6 and the rubber plug 7 to move inside the air chamber 10, negative pressure is generated inside the air chamber 10, the turtle shell and the inner cushion layer 19 are completely attached and adsorbed, then the rotating shifting piece 2 is rotated to move the connecting plate 12 to the inside of the limiting groove 22 and limit the turtle shell through the limiting salient points 21, the rotating shifting piece 2 is rotated to move the connecting plate 12 to the lifting groove 20 after an operation is completed, the rubber plug 7 automatically resets under the action of the spring 11, air pressure of the air chamber 10 returns to be normal, the device is sterilized after the turtle shell is taken out, and the silica gel pad 9 is detached through the external threads 16 to be cleaned or replaced.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims

1. A ring-cut bell-shaped seat, comprising a connecting rod (1), an inverted nail groove (4) and a bell-shaped seat main body (5), the bell-shaped seat main body (5) being fixedly connected to the connecting rod (1); At one end, the inverted nail groove (4) is fixedly connected to the bottom of the side end surface of the main body (5) of the bell seat, and is characterized in that: the side end surface of the connecting rod (1) is provided with at least one set of movable grooves (3), A rotating paddle (2) is movably connected inside the movable groove (3), an air chamber (10) is opened inside the connecting rod (1), and the air chamber (10) is connected to the bell seat main body (5). ) are communicated with each other, a rubber plug (7) is slidably connected to the inside of the air chamber (10), and a drive rod (6) is fixedly connected to the upper end surface of the rubber plug (7), and the drive rod (6) Connected with the rotating paddle (2), the inner wall of the bell-shaped seat main body (5) is fixedly connected with a silicone pad (9), and the bottom of the inner wall of the bell-shaped seat main body (5) is provided with a limit rubber strip (8).

2. A ring-cut bell seat according to claim 1, characterized in that: the upper end surface of the driving rod (6) is fixedly connected with a receiving platform (13), and the upper end surface of the receiving platform (13) A spring (11) is fixedly connected, and the other end of the spring (11) is connected with the end of the air chamber (10) facing away from the main body (5) of the bell-shaped seat.

3. A ring-cut bell seat according to claim 2, characterized in that: the outer end surface of the bearing platform (13) is rotatably connected with a rotating shaft (14), and the outer end surface of the rotating shaft (14) rotates A connecting plate (12) is connected, the end of the connecting plate (12) facing away from the rotating shaft (14) is fixedly connected with the rotating paddle (2), and the connecting plate (12) is adapted to the movable groove (3) .

4. A ring-cut bell seat according to claim 1, characterized in that: the silicone pad (9) comprises an air hole (15), an external thread (16), an outer cushion layer (17), an air gap ( 18) and the inner cushion layer (19), the outer cushion layer (17) and the inner cushion layer (19) are fixedly connected, the interior of the inner cushion layer (19) is uniformly provided with via holes, and the air gap (18) ) is opened between the outer cushion layer (17) and the inner cushion layer (19), the air hole (15) is opened in the middle of the outer cushion layer (17), and the outer thread (16) is opened on the side of the outer cushion layer (17). The air hole (15) communicates with the air chamber (10) and the air gap (18), and the inner wall of the bell seat main body (5) is provided with an inner thread matching the outer thread (16).

5. A ring-cut bell seat according to claim 3, characterized in that: the movable groove (3) comprises a lifting groove (20) and a limiting groove (22), the lifting groove (20) and the The limiting grooves (22) are perpendicular to each other, and the connecting plate (12) is slidably connected to the inside of the lifting groove (20) and the limiting groove (22).

6. The ring-cut bell seat according to claim 5, characterized in that: the inner wall of the limiting groove (22) is embedded with limiting bumps (21), and the lower part of the connecting plate (12) is embedded with a limiting bump (21). The end face is provided with a groove matching with the limiting protrusions (21), and the limiting protrusions (21) are used for limiting and fixing the connecting plate (12).
