Abstract
本实用新型公开了一种新型的太阳能发电组件保护支架，包括：底座，所述底座的一端连接有活动杆，且活动杆的表面设置有支撑架，所述支撑架的内部开设有滑槽，且滑槽的截面形状为“T”字型；滑块，设置在所述滑槽的内部，且滑块与滑槽之间构成滑动连接，所述滑块的顶部固定有安装板，且安装板用于对太阳能发电组件进行固定，所述支撑架的表面开设有对接槽。该新型的太阳能发电组件保护支架，采用可移动的安装板以及等间隔分布的对接槽，使得可以针对不同尺寸的太阳能发电组件进行夹持摆放，配合直径相同的通孔与对接孔，从而便于调节太阳能发电组件的摆放角度，通过设置有限位板与限位槽，使得支撑架与活动杆可以进行组装。
The utility model discloses a novel solar power generation component protection bracket, comprising: a base, one end of the base is connected with a movable rod, and the surface of the movable rod is provided with a support frame, and a chute is opened inside the support frame, And the cross-sectional shape of the chute is "T"shape; the slider is arranged inside the chute, and a sliding connection is formed between the slider and the chute, a mounting plate is fixed on the top of the slider, and is installed The plate is used to fix the solar power generation assembly, and the surface of the support frame is provided with a butt joint groove. The new type of solar power module protection bracket adopts a movable mounting plate and equally spaced butt slots, so that solar power modules of different sizes can be clamped and placed, and matched with through holes and butt holes of the same diameter, so as to facilitate the The placement angle of the solar power generation components is adjusted, and the support frame and the movable rod can be assembled by setting the limit plate and the limit slot.
Description
Technical Field
The utility model relates to a solar energy component technical field specifically is a novel solar energy power generation subassembly protective cradle.
Background
Solar energy is a clean renewable energy and easily utilizes for a long time, today in the traditional energy shortage day by day, people more and more pay attention to the development of solar energy resource, except that setting up large-scale solar photovoltaic board array in suitable spacious wasteland at present, still one kind is set up in the photovoltaic board on building roof in order to supply the family, the electricity generation subassembly that mill or community used, solar energy electricity generation subassembly support is the special support of fixed solar panel design, neotype solar energy electricity generation subassembly protection support's development has brought very big facility when putting for solar panel, its kind and quantity are also increasing day by day.
However, the solar power generation assembly protection bracket on the market at present has the following problems:
1. the solar power generation assembly protection bracket is inconvenient for clamping and placing solar panels with different sizes;
2. the solar power generation assembly protection bracket is inconvenient for adjusting the placing angle of the solar panel;
3. the components on the solar power generation component protection bracket are inconvenient to assemble; therefore, improvements are made to the above problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a novel solar energy power generation subassembly protective cradle to solve the solar energy power generation subassembly protective cradle on the existing market that the above-mentioned background art provided and be not convenient for carry out the centre gripping to not unidimensional solar panel and put, solar energy power generation subassembly protective cradle is not convenient for adjust solar panel's the problem of the equipment of being not convenient for of the subassembly on angle of putting and the solar energy power generation subassembly protective cradle.
In order to achieve the above object, the utility model provides a following technical scheme: a novel solar power generation component protective cradle, comprising:
the device comprises a base, wherein one end of the base is connected with a movable rod, a support frame is arranged on the surface of the movable rod, a sliding groove is formed in the support frame, and the cross section of the sliding groove is T-shaped;
the sliding block is arranged inside the sliding groove, the sliding block and the sliding groove form sliding connection, an installation plate is fixed to the top of the sliding block and used for fixing the solar power generation assembly, a butt joint groove is formed in the surface of the supporting frame and distributed at equal intervals relative to the surface of the supporting frame, and the locking screws penetrate through the installation plate and are connected with the butt joint groove;
the supporting frame comprises supporting frames, wherein the supporting frames are arranged on the supporting frames, and the supporting frames are arranged on the supporting frames.
Preferably, the both sides swing joint of base has the bracing piece, and the both sides of movable rod have seted up the butt joint hole to the butt joint hole is equidistant distribution about the surface of movable rod, makes the butt joint hole be equidistant distribution on the surface of movable rod, thereby is convenient for put the angle modulation to solar panel.
Preferably, the supporting rod is far away from the one end of base and has been seted up the through-hole, and the diameter of through-hole and the diameter phase-match of butt joint hole to the bolt runs through the through-hole and is connected with the butt joint hole, makes through-hole and butt joint hole be in same horizontal position, thereby is convenient for fix the angle between base and the movable rod.
Preferably, the two sides of the movable rod, which are close to the support frame, are provided with limiting grooves, and the limiting grooves are symmetrically distributed about the central line of the support frame, so that the limiting grooves are connected with limiting plates, and the support frame is prevented from being placed and deviating.
Preferably, limiting plates are fixed to two sides of the supporting frame and connected with the limiting grooves, so that the supporting frame is connected with the limiting plates, and the supporting frame is convenient to position and mount.
Preferably, the inside of limiting plate is provided with set screw, and set screw is used for carrying out fixed mounting with the movable rod and support frame for set screw runs through the limiting plate and is connected with the movable rod, thereby prevents that the support frame from droing.
Compared with the prior art, the beneficial effects of the utility model are that: this neotype solar energy power generation subassembly protective cradle adopts mobilizable mounting panel and the butt joint groove of equidistance distribution for can carry out the centre gripping to the solar energy power generation subassembly of unidimensional not and put, cooperate the through-hole that the diameter is the same and butt joint hole, thereby be convenient for adjust solar energy power generation subassembly put the angle, through being provided with limiting plate and spacing groove, make support frame and movable rod can assemble.
1. According to the novel solar power generation assembly protection support, the sliding block at the bottom of the mounting plate moves along the inside of the sliding groove, when the sliding block moves to a specified position, the locking screw penetrates through the mounting plate and is connected with the butt joint groove, so that the mounting plate is fixed after moving to the specified position, and then the groove in the inner wall of the sleeve is connected with the protrusion, so that the mounting plate is not easy to fall off when moving, and solar panels with different sizes are convenient to clamp and place;
2. according to the novel solar power generation assembly protection bracket, the supporting rod rotates along the rotating shaft, the movable rod moves angularly along one end of the base, so that the through hole in the surface of the supporting rod and the corresponding butt joint hole are in the same horizontal position, and the bolt penetrates through the through hole and is connected with the butt joint hole, so that the arrangement angle of a solar panel can be adjusted conveniently;
3. this neotype solar energy power generation subassembly protective cradle is connected the limiting plate of support frame both sides and the spacing groove on movable rod surface, because the size and the spacing size phase-match of spacing groove for the support frame is difficult for taking place the skew after putting on the movable rod, runs through the limiting plate with set screw again and is connected with the movable rod, thereby is convenient for assemble the subassembly on the protective cradle.
Drawings

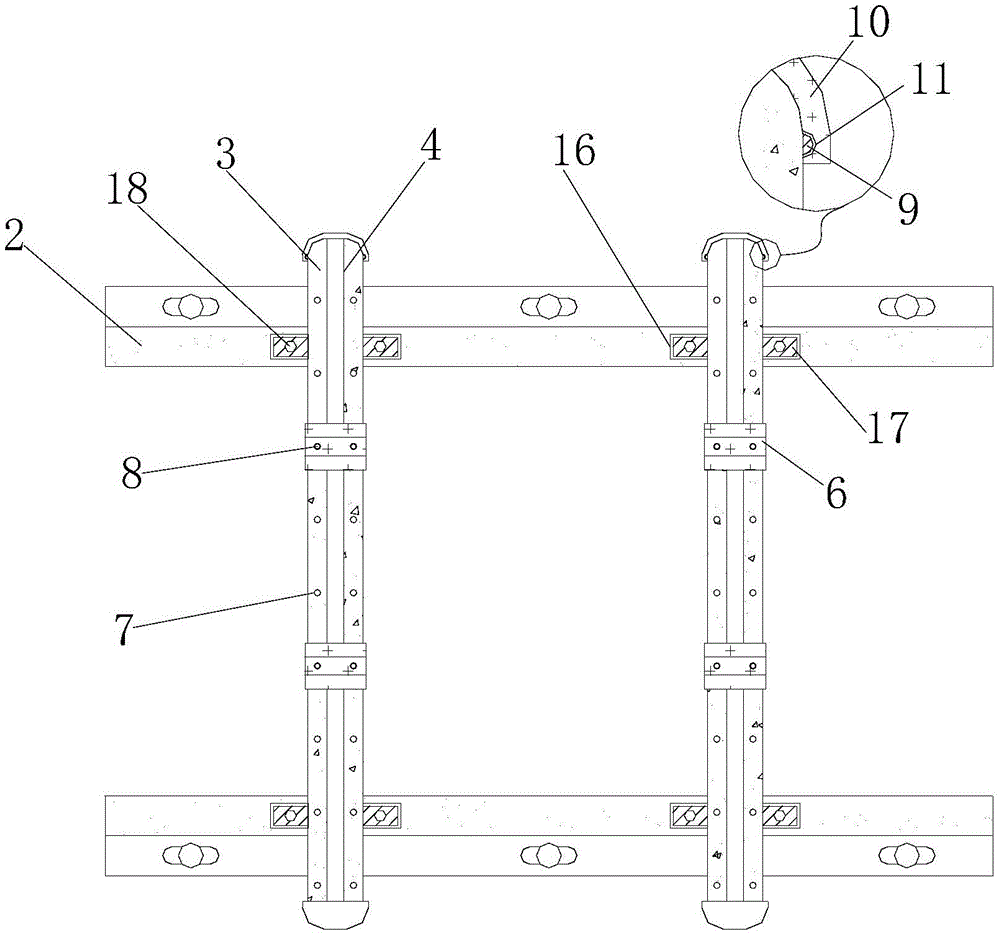

FIG. 1 is a schematic structural view of a front cross section of the present invention;
FIG. 2 is a schematic top view of the cross-sectional structure of the present invention;
fig. 3 is a schematic view of the rear view structure of the present invention.
In the figure: 1. a base; 2. a movable rod; 3. a support frame; 4. a chute; 5. a slider; 6. mounting a plate; 7. a butt joint groove; 8. locking the screw; 9. a protrusion; 10. a sleeve; 11. a groove; 12. a support bar; 13. a butt joint hole; 14. a through hole; 15. a bolt; 16. a limiting groove; 17. a limiting plate; 18. and fixing the screw.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: a novel solar power generation component protective cradle, comprising: a base 1, one end of the base 1 is connected with a movable rod 2, a support frame 3 is arranged on the surface of the movable rod 2, a chute 4 is arranged inside the support frame 3, the cross section of the sliding chute 4 is T-shaped, the sliding block 5 is arranged inside the sliding chute 4, the sliding block 5 and the sliding chute 4 form sliding connection, the top of the sliding block 5 is fixed with the mounting plate 6, the mounting plate 6 is used for fixing the solar power generation assembly, the surface of the support frame 3 is provided with butt joint grooves 7, the butt joint grooves 7 are distributed at equal intervals relative to the surface of the support frame 3, the locking screw 8 penetrates through the mounting plate 6 to be connected with the butt joint groove 7, the bulges 9 are arranged on the two sides of the supporting frame 3, the bulges 9 are symmetrically distributed about the central line of the supporting frame 3, the outer side of the supporting frame 3 is sleeved with a sleeve 10, and the inner wall of the sleeve 10 is provided with a groove 11, and the groove 11 is connected with the protrusion 9.
Two sides of the base 1 are movably connected with supporting rods 12, two sides of the movable rod 2 are provided with butt joint holes 13, and the butt joint holes 13 are distributed at equal intervals relative to the surface of the movable rod 2; one end of the support rod 12 far away from the base 1 is provided with a through hole 14, the diameter of the through hole 14 is matched with that of the butt joint hole 13, and a bolt 15 penetrates through the through hole 14 and is connected with the butt joint hole 13.
Rotate bracing piece 12 along the pivot, carry out angular displacement with movable rod 2 along the one end of base 1 again for the through-hole 14 on bracing piece 12 surface is in same horizontal position with corresponding butt joint hole 13, runs through-hole 14 with bolt 15 again and is connected with butt joint hole 13, thereby is convenient for adjust solar panel's the angle of putting.
Two sides of the movable rod 2 close to the support frame 3 are provided with limit grooves 16, and the limit grooves 16 are symmetrically distributed about the central line of the support frame 3; limiting plates 17 are fixed on two sides of the support frame 3, and the limiting plates 17 are connected with the limiting grooves 16; the limiting plate 17 is provided with a fixing screw 18 inside, and the fixing screw 18 is used for fixedly mounting the movable rod 2 and the support frame 3.
The limiting plates 17 on the two sides of the support frame 3 are connected with the limiting grooves 16 on the surface of the movable rod 2, and the size of the limiting grooves 16 is matched with that of the limiting plates 17, so that the support frame 3 is not prone to shifting after being placed on the movable rod 2, and then the fixing screws 18 penetrate through the limiting plates 17 to be connected with the movable rod 2, and therefore the assembly on the protective support is convenient to assemble.
In conclusion, the limit plates 17 at the two sides of the supporting frame 3 are connected with the limit grooves 16 on the surface of the movable rod 2, the fixing screws 18 penetrate through the limit plates 17 to be connected with the movable rod 2, thereby facilitating the assembly of the components on the protective bracket, the rotation of the support rod 12 along the rotation axis, so that the through hole 14 on the surface of the support rod 12 and the corresponding butt joint hole 13 are in the same horizontal position, the bolt 15 penetrates through the through hole 14 and is connected with the butt joint hole 13, thereby being convenient for adjusting the placing angle of the solar power generation assembly, moving the slide block 5 at the bottom of the mounting plate 6 along the inside of the chute 4, when the locking screw 8 is moved to a designated position, the locking screw is connected with the butt joint groove 7 through the mounting plate 6, thereby facilitating the holding and placement of solar power modules of different sizes, which are not described in detail in this specification and are well known to those skilled in the art.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides a novel solar energy power generation subassembly protective cradle which characterized in that includes:
the device comprises a base (1), wherein one end of the base (1) is connected with a movable rod (2), a support frame (3) is arranged on the surface of the movable rod (2), a sliding groove (4) is formed in the support frame (3), and the cross section of the sliding groove (4) is T-shaped;
the sliding block (5) is arranged inside the sliding groove (4), the sliding block (5) is in sliding connection with the sliding groove (4), an installation plate (6) is fixed to the top of the sliding block (5), the installation plate (6) is used for fixing the solar power generation assembly, a butt joint groove (7) is formed in the surface of the support frame (3), the butt joint grooves (7) are distributed at equal intervals relative to the surface of the support frame (3), and the locking screws (8) penetrate through the installation plate (6) and are connected with the butt joint grooves (7);
the supporting frame is characterized by comprising protrusions (9) which are arranged on two sides of the supporting frame (3), the protrusions (9) are symmetrically distributed about the center line of the supporting frame (3), a sleeve (10) is sleeved on the outer side of the supporting frame (3), a groove (11) is formed in the inner wall of the sleeve (10), and the groove (11) is connected with the protrusions (9).
2. The novel solar power generation assembly protection bracket of claim 1, wherein: the utility model discloses a portable electronic device, including base (1), both sides swing joint have bracing piece (12) of base (1), and butt joint hole (13) have been seted up to the both sides of movable rod (2) to butt joint hole (13) are the equal interval distribution about the surface of movable rod (2).
3. The novel solar power generation assembly protection bracket of claim 2, characterized in that: the supporting rod (12) is far away from one end of the base (1) and is provided with a through hole (14), the diameter of the through hole (14) is matched with that of the butt joint hole (13), and a bolt (15) penetrates through the through hole (14) and is connected with the butt joint hole (13).
4. The novel solar power generation assembly protection bracket of claim 1, wherein: limiting grooves (16) are formed in two sides, close to the support frame (3), of the movable rod (2), and the limiting grooves (16) are symmetrically distributed about the center line of the support frame (3).
5. The novel solar power generation assembly protection bracket of claim 4, wherein: limiting plates (17) are fixed to two sides of the supporting frame (3), and the limiting plates (17) are connected with limiting grooves (16).
6. The novel solar power generation assembly protection bracket of claim 5, wherein: the inside of limiting plate (17) is provided with set screw (18), and set screw (18) are used for carrying out fixed mounting with movable rod (2) and support frame (3).
