The utility model discloses a novel smart window, comprising a lower window sill and an upper window sill, a bearing seat is installed on the lower window sill, the bearing seat is rotatably matched with a lead screw, and one end of the lead screw is connected to a first step motor, The lead screw is threadedly matched with the nut slider, and the guide rod fixed with the nut slider and the window frame form a moving pair, thereby driving the opening and closing of the window; the obvious effect of the new smart window is that the window adopts a curved track design , The two windows are on the same horizontal line, and the appearance is smooth and beautiful. The push-out window adopts three sets of parallelogram structure, which divides the window into three parts. It takes up less space when it is extended and bears less force when there is wind. The design of the inner sliding window makes the whole window easier to clean. Three opening and closing methods make the window function more abundant and the appearance more beautiful and novel.

Description

Novel smart window

Technical Field

The utility model relates to a window technical field, the more specifically novel smart window that says so.

Background

Two windows of ordinary window are crisscross, are not on same water flat line, and the window washs more difficultly, and it is more that the extrapolation window occupation space when overhanging, and the atress is great when windy, and novel smart window has used radian track design and multiple mode of opening and shutting, makes two windows of window on same water flat line, changes the washing, and the outward appearance is more pleasing to the eye. The outward-push window adopts three groups of parallelogram structures, and is divided into three parts, so that the defects that the whole window occupies more space when extending outwards and is stressed greatly in wind can be avoided, and the window is more novel and attractive. Combustible gas sensor, buzzer, temperature sensor, raindrop sensor and infrared remote control. The addition of these smart devices has enabled windows to have smart elements.

SUMMERY OF THE UTILITY MODEL

In order to overcome the above-mentioned defect of prior art, the utility model provides a novel smart window.

The utility model provides a following technical scheme:

a novel intelligent window comprises a lower windowsill and an upper windowsill, wherein a bearing seat is mounted on the lower windowsill and is in running fit with a lead screw, one end of the lead screw is connected with a first stepping motor, the lead screw is in thread fit with a nut slider, and a guide rod fixedly connected with the nut slider and a window frame form a sliding pair, so that the window is driven to open and close;

the window opening and closing mechanism further comprises a second stepping motor, the second stepping motor is connected with a lead screw through a coupler, a slide block is arranged on the lead screw and can move up and down, the slide block is connected with a connecting rod, the connecting rod is connected with a window swing rod through a rivet and drives the swing rod to swing so as to push a parallelogram structure of a window to move, and the window is opened and closed;

the hinge connects the window with the side plate of the window frame, the window can be pulled inwards, and the hinge is installed through a flat head screw.

The intelligent window control system is characterized by further comprising a controller, wherein the controller is respectively connected with the combustible gas sensor, the buzzer, the temperature sensor, the raindrop sensor, the infrared remote control module, the first stepping motor and the second stepping motor, and the controller controls the first stepping motor and the second stepping motor according to received signals to realize intelligent opening and closing of the window.

The upper windowsill and the lower windowsill are provided with the radian tracks, so that the two windows are on the same horizontal line when closed, the upper windowsill is provided with the universal ball and the universal ball with the rod, and the lower windowsill is provided with the external thread rolling bearing.

The window frame is characterized by further comprising a window frame center column and a window frame side plate which are arranged between the upper windowsill and the lower windowsill.

The utility model discloses a technological effect and advantage:

1. the window adopts radian track type design, and two windows are on the same horizontal line, and the outward appearance is level and beautiful. The outward-push window adopts three groups of parallelogram structures, the window is divided into three parts, the outward-push window occupies small space when extending outwards, and the outward-push window is stressed less when wind exists. The design of the inner pulling window enables the whole window to be easier to clean. Three kinds of modes of opening and shutting for the window function is abundanter, and the outward appearance is more pleasing to the eye novel.

2. The intelligent device is added to enable the window to be intelligent, when combustible gas leaks indoors, the window can be automatically opened, the buzzer makes a sound to remind people, and when the set time is up, the buzzer is automatically closed or closed through remote control; when the indoor temperature reaches a set value, the window is automatically opened for ventilation; when raining outdoors, the window can be automatically closed; the infrared remote control can remotely control the opening and closing of the window.

Drawings

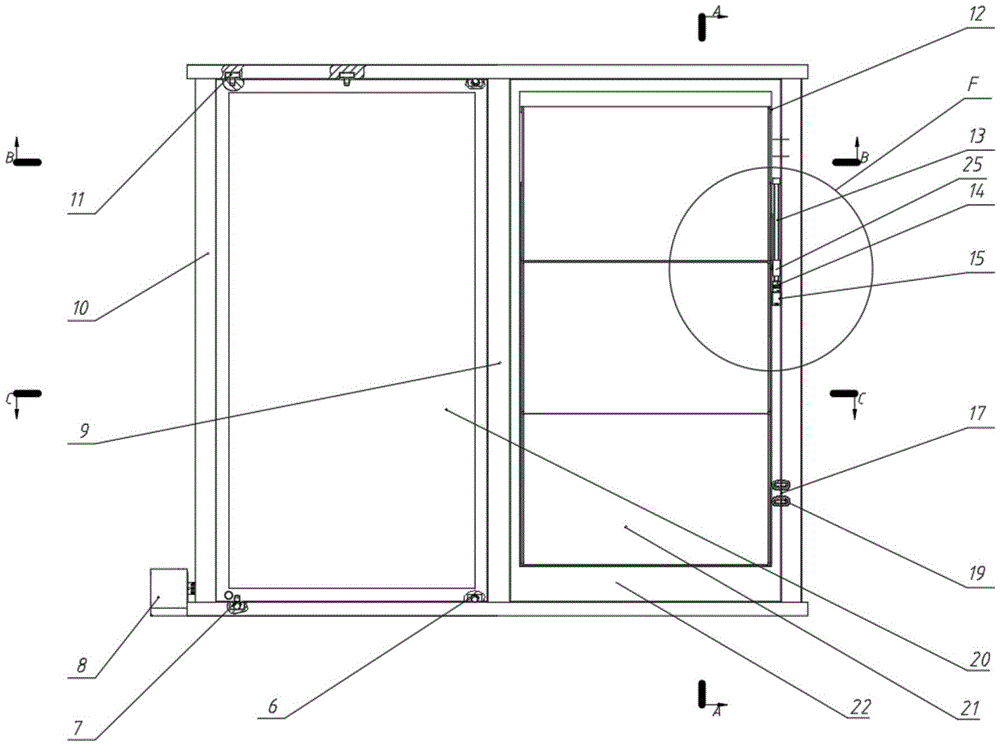

Fig. 1 is a schematic overall structure diagram of the present invention;

FIG. 2 is an enlarged view of the structure at F in FIG. 1;

FIG. 3 is a schematic view A-A of FIG. 1;

FIG. 4 is a schematic view of B-B in FIG. 1

FIG. 5 is a schematic view of C-C in FIG. 1.

FIG. 1, lower sill; 2. a guide bar; 3. a nut slider; 4. a bearing seat; 5. a windowsill is arranged; 6. a universal ball; 7. a universal ball with a rod; 8. a first stepper motor; 9. a window frame center pillar; 10. a window frame side plate; 11. An external thread rolling bearing; 12. a threaded pin; 13. a lead screw; 14. a coupling; 15. a second stepping motor; 16. riveting; 17. hinge; 18. a connecting rod; 19. a flat head screw; 20. a translating window pane; 21. An outer push window glass; 22. a window frame; 23. a connecting plate; 24. a lead screw; 25. a slider; 26. swing link

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The novel smart window shown in fig. 1 to 5 comprises a lower windowsill 1 and an upper windowsill 5, wherein a bearing seat 4 is installed on the lower windowsill 1, the bearing seat 4 is in running fit with a lead screw 24, one end of the lead screw 24 is connected with a first stepping motor, the lead screw 24 is in threaded fit with a nut slider 3, and a guide rod 2 fixedly connected with the nut slider 3 and a window frame 22 form a sliding pair, so that the window is driven to open and close;

the window opening and closing mechanism further comprises a second stepping motor, the second stepping motor 15 is connected with a lead screw 13 through a coupler 14, a slide block 25 is arranged on the lead screw 13, the slide block 25 can move up and down, the slide block 25 is connected with a connecting rod 18, the connecting rod 18 is connected with a swing rod 26 of a window through a rivet 16 to drive the swing rod to swing, and parallelogram structures (mutually hinged by adopting a parallelogram principle and similar to a telescopic door) of the window are pushed to move to open and close the window;

the hinge 17 connects the window to the frame side panel 10, the window can be pulled inwards, and the hinge 17 is mounted by a grub screw 19.

The upper windowsill 5 and the lower windowsill 1 are provided with the radian tracks, so that the two windows are on the same horizontal line when closed, the upper windowsill 5 is provided with the universal ball 6 and the universal ball 7 with the rod, and the lower windowsill 1 is provided with the external thread rolling bearing 11, so that the friction force is reduced.

And a window frame center pillar 9 and a window frame side panel 10 installed between the upper sill 5 and the lower sill 1.

The use and the operating principle of the novel window are as follows:

1. radian rail mounted window motion's mode is, first step motor (8) drive lead screw (24) and rotate, the translation about rotation drive nut slider (3) of lead screw (24), guide arm (2) and window frame (22) constitution sliding pair of nut slider (3) rigid coupling, thereby drive opening and shutting of translation window glass 20, the radian track has been designed with lower windowsill (1) in upper windowsill (5), make two windows when closed on same water flat line, install universal ball (6) about the window, take pole universal ball (7) and external screw thread antifriction bearing (11), frictional force has been reduced, do benefit to opening and shutting of window.

2. And a second stepping motor (15) and a lead screw (13) integrally rotate to move the sliding block up and down, and a connecting rod (18) drives a swing rod to swing to push a parallelogram structure to move so as to open and close the window.

3. The inward-pulling window is fixed with the window frame through the hinge (17), and the window can be pulled inward, so that the whole window is easier to clean.

The combination of three kinds of modes that open and shut for the window structure is more novel, whole change wash, the outward appearance is better looking, and the function is abundanter.

The points to be finally explained are: first, in the description of the present application, it should be noted that, unless otherwise specified and limited, the terms "mounted," "connected," and "connected" should be understood broadly, and may be a mechanical connection or an electrical connection, or a communication between two elements, and may be a direct connection, and "upper," "lower," "left," and "right" are only used to indicate a relative positional relationship, and when the absolute position of the object to be described is changed, the relative positional relationship may be changed;

the above description is only for the preferred embodiment of the present invention and should not be taken as limiting the invention, and any modifications, equivalent replacements, improvements, etc. made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims

1. The utility model provides a novel smart window which characterized in that: the window frame is characterized by comprising a lower windowsill and an upper windowsill, wherein a bearing seat is arranged on the lower windowsill and is in running fit with a lead screw, one end of the lead screw is connected with a first stepping motor, the lead screw is in threaded fit with a nut sliding block, and a guide rod fixedly connected with the nut sliding block and a window frame form a sliding pair so as to drive a window to be opened and closed;

the window is characterized by further comprising a second stepping motor, the second stepping motor is connected with a lead screw through a coupler, a slide block is arranged on the lead screw and can move up and down, the slide block is connected with a connecting rod, and the connecting rod is connected with a swing rod of the window through a rivet and drives the swing rod to swing so as to push the parallelogram structure of the window to move.

2. The novel smart window of claim 1, wherein: the hinge connects the window with the side plate of the window frame, the window can be pulled inwards, and the hinge is installed through a flat head screw.

3. The novel smart window of claim 1, wherein: the intelligent window control system is characterized by further comprising a controller, wherein the controller is respectively connected with the combustible gas sensor, the buzzer, the temperature sensor, the raindrop sensor, the infrared remote control module, the first stepping motor and the second stepping motor, and the controller controls the first stepping motor and the second stepping motor according to received signals to realize intelligent opening and closing of the window.

4. The novel smart window of claim 1, wherein: the upper windowsill and the lower windowsill are provided with the radian tracks, so that the two windows are on the same horizontal line when closed, the upper windowsill is provided with the universal ball and the universal ball with the rod, and the lower windowsill is provided with the external thread rolling bearing.

5. The novel smart window of claim 1, wherein: the window frame is characterized by further comprising a window frame center column and a window frame side plate which are arranged between the upper windowsill and the lower windowsill.
