Abstract

The utility model relates to an independent support device for a post-casting belt formwork, belonging to the technical field of post-casting belt construction. The utility model comprises a fixed rod. A height-adjustable movable rod is arranged above the fixed rod. The upper end of the middle column is provided with a fixed top plate to support concrete, and the front and rear sides of the fixed top plate are provided with movable top plates to support formwork or square wood, and the movable top plate passes through The pull screw is connected to the fixed top plate; compared with the prior art, the utility model adopts an independent supporting structure with adjustable length, and the independent supporting device is set separately from the template and the supporting system, which can facilitate the simultaneous installation without interfering with each other. The top plate is combined with the formwork system, which is convenient for the height adjustment of the formwork and the joints are tight; the concrete strength is subjected to the load by the formwork and the support system before the strength of the formwork is removed, and the formwork is converted into an independent support structure to bear the load at the same time. Casting and cleaning of construction joints.

Description

Independent supporting device for post-cast strip template

Technical Field

The utility model belongs to the technical field of the construction of post-cast strip, concretely relates to independent strutting arrangement of post-cast strip template.

Background

The post-cast strip is a concrete strip reserved at the corresponding position of a foundation slab, a wall and a beam according to the design or construction specification requirement in order to prevent harmful cracks possibly generated by uneven self shrinkage or uneven settlement of a cast-in-place reinforced concrete structure in the building construction. At present, relevant specifications stipulate that the template and the support of the post-cast strip of the reinforced concrete structure can be detached only after concrete pouring at the post-cast strip is completed and the strength meets the stripping conditions. Because the template and the supporting device at the post-cast strip are independently supported, a quite large working surface is still required, and the template and the supporting device are still required to be connected with a large-area template and the supporting device, so that the overall strength, rigidity and stability of the template and the supporting system are ensured. Because the template and the support are arranged to ensure enough strength, rigidity and stability, the plate seam and the support joint need to be staggered, the construction is complicated, and the plate seam and the support joint cannot be completely disconnected. The bottom of the post-cast strip plate and the bottom beam plate are not detached, so that garbage at the joint of the post-cast strip cannot be thoroughly cleaned, the quality defect is caused, and a large number of templates and supports cannot be circulated.

Most construction sites at the present stage adopt a construction method of using a steel pipe shoring after demolishing, but the method causes a plurality of quality and safety accidents when a formwork and a gap between a support and the steel pipe shoring are demolished; the construction method of the later steel pipe jacking cannot ensure that the applied stress of the jacking just meets the structural requirements, so that quality accidents are caused; in some construction projects, a concrete column is additionally arranged in the same period as the structural concrete, and the post-cast strip is dismantled after construction is finished. Therefore, the post-cast strip template independent supporting device is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an independent strutting arrangement of post-cast strip template to solve the problem that proposes among the above-mentioned background art.

The utility model discloses a following technical scheme realizes above-mentioned purpose:

the utility model provides an independent strutting arrangement of post-cast strip template, includes the dead lever, the top of dead lever is equipped with height-adjustable's movable rod, the top of movable rod is equipped with the center pillar, just the upper end of center pillar is equipped with fixed top layer board, supports the concrete, both sides all are equipped with movable top layer board around the fixed top layer board, support template or square timber, movable top layer board is connected with fixed top layer board through split screw.

As the utility model discloses a further optimization scheme, dead lever from the bottom up includes support, pole setting portion in proper order, the inside of pole setting portion is equipped with upper end open-ended pole groove, the surface of pole setting portion is close to top position department and is equipped with the external screw thread, just the outer wall both ends symmetric position department of pole setting portion opens there is the pin seam, and two sets of pin seams pass the pole groove, and the pin seam is located external screw thread position department.

As the utility model discloses a further optimization scheme, the movable rod from the bottom up includes straight rod portion and pole cap in proper order, and the lower tip of straight rod portion is located the pole inslot of dead lever, the pinhole of arranging in proper order from top to bottom is equipped with in the straight rod portion, the top of straight rod portion be equipped with center pillar assorted post groove.

As the utility model discloses a further optimization scheme still includes screw thread clamp and dowel, screw thread clamp threaded connection is on the external screw thread surface, and the dowel passes the pinhole of dowel seam and movable rod, the screw thread clamp is located the dowel below.

As the utility model discloses a further optimization scheme, fixed top supporting plate includes the roof, the lower extreme edge all around of roof is equipped with two sets of first curb plates and the second curb plate of symmetry respectively, be close to a plurality of groups screw that both sides position department all was equipped with range from top to bottom on the second curb plate, the lower extreme central point of center pillar fixed connection roof puts.

As the utility model discloses a further optimization scheme, the both sides of activity top layer board are equipped with to the screw rod seam of wearing towards fixed top layer board protruding position department, to drawing the screw rod and passing the screw rod seam of activity top layer board both sides bellied and the screw on two sets of second curb plates.

The beneficial effects of the utility model reside in that: the invention adopts an independent supporting structure with adjustable length, the independent supporting device, the template and the supporting system are separately arranged, so that the installation can be conveniently performed at the same time without mutual interference, and the movable top supporting plate is combined with the template system, so that the height of the movable top supporting plate and the template can be conveniently adjusted, and the joint is tight; before the concrete strength meets the form removal strength, the load is borne by the template and the support system, the load is borne by the independent support structure when the form is removed, and the independent support does not influence the roughening and cleaning of the construction joint of the post-cast strip.

The invention effectively solves the problem that the suspended concrete has a stable supporting structure for a long time in the post-cast strip construction process, completely avoids the occurrence of quality safety accidents in construction, the adjustable supporting plate can properly extend out of the post-cast strip, the secondary template can properly penetrate into the bottom of the primary concrete, ensures the tightness of seams, meets the requirements of relevant construction specifications, avoids the work amount of secondary back-jacking, and has uniform procedures of supporting once and dismantling once.

The part of the invention has the advantages of convenient manufacture, simple construction, reliable operation and safe use, and the independent support structure can be repeatedly used, thereby saving the cost and the resources.

Drawings

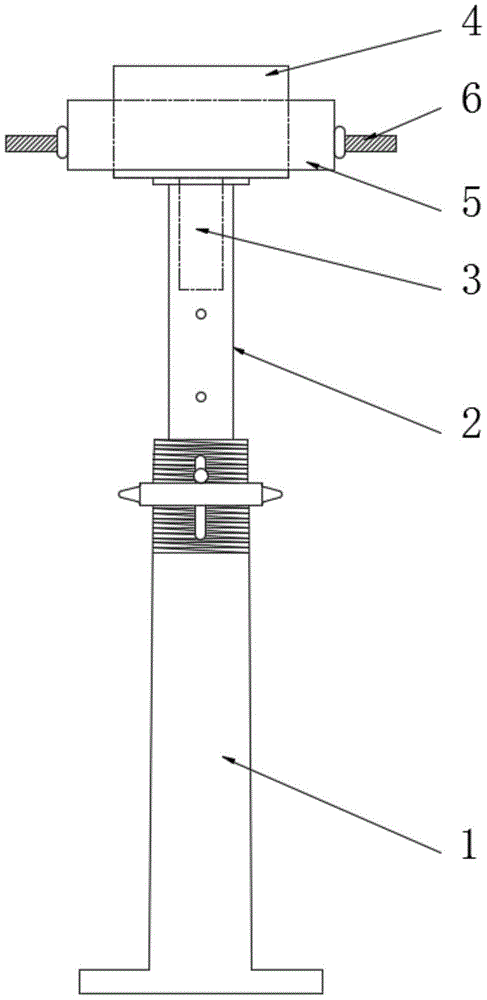

FIG. 1 is a schematic view of the overall structure of the post-cast strip formwork independent support device of the present invention;

FIG. 2 is a schematic structural view of a fixed rod and a movable rod of the post-cast strip template independent supporting device of the present invention;

FIG. 3 is a schematic top view of the top supporting plate of the post-cast strip form independent supporting device of the present invention;

fig. 4 is a schematic side view of the top supporting plate of the post-cast strip formwork independent supporting device of the present invention.

In the figure: 1. fixing the rod; 11. a support; 12. a vertical rod part; 13. an external thread; 14. a rod groove; 15. pin sewing; 16. fixing the pin; 17. a threaded clamp; 2. a movable rod; 21. a straight rod part; 22. a pin hole; 23. a column groove; 24. a rod cap; 3. a center pillar; 4. fixing a top supporting plate; 41. a top plate; 42. a first side plate; 43. a second side plate; 44. a screw hole; 5. a movable top supporting plate; 51. screw rod seam; 6. and (4) oppositely pulling the screw rod.

Detailed Description

The present application will now be described in further detail with reference to the drawings, it should be noted that the following detailed description is given for illustrative purposes only and is not to be construed as limiting the scope of the present application, as those skilled in the art will be able to make numerous insubstantial modifications and adaptations to the present application based on the above disclosure.

Example 1

As shown in fig. 1, the post-cast strip template independent supporting device of the present embodiment is made of steel or aluminum alloy, and comprises a fixed rod 1, a height-adjustable movable rod 2 above the

fixed rod

1, 2/3 for the length of the fixed rod 1 being the total length of the independent supporting device, 2/3 for the length of the movable rod 2 being the total length of the independent supporting device, a center pillar 3 at the top end of the movable rod 2, 300mm for the length, 6mm for the diameter, and 8mm for the wall thickness of the center pillar 3, and the upper end of the central column 3 is provided with a fixed top supporting plate 4, the front side and the rear side of the fixed top supporting plate 4 are both provided with movable top supporting plates 5, the movable top supporting plates 5 are connected with the fixed top supporting plate 4 through counter-pull screw rods 6, the side plane dimension of the movable top supporting plate 5 is 200mm multiplied by 300mm, the height is 135mm, one side is removed from the center by 50mm x 200mm side panel to match the modulus of the square timber and the template.

Dead lever 1 from the bottom up includes support 11 in proper order, pole setting portion 12, support 11 diameter is 200mm, pole setting portion 12 diameter is 100mm, the inside of pole setting portion 12 is equipped with upper end open-ended pole groove 14, wall thickness 8mm, the surface of pole setting portion 12 is close to top position department and is equipped with external screw thread 13, external screw thread 13 is along 1 last mouthful length down of dead lever 300mm, and the outer wall both ends symmetric position department of pole setting portion 12 opens and has a pin seam 15, two side pin seams 15 are set up at external screw thread 13 is in the centre, two sets of pin seams 15 pass pole groove 14, and pin seam 15 is located external screw thread 13 position department, pin seam 15 is wide 20mm, length 200 mm.

The movable rod 2 from the bottom up includes straight pole portion 21 and pole cap 24 in proper order, and 2 diameters of movable rod are 80mm, 8mm of wall thickness, and pole cap 24 enlarges the stress surface of movable rod 2, and the diameter 100mm of pole cap 24, high 50mm, the lower tip of straight pole portion 21 are located the pole groove 14 of dead lever 1, are equipped with the pinhole 22 of arranging in proper order from top to bottom on the straight pole portion 21, the top of straight pole portion 21 be equipped with center pillar 3 assorted post groove 23.

The thread clamp 17 is in threaded connection with the outer surface of the outer thread 13, the fixed pin 16 penetrates through the pin slot 15 and the pin hole 22 of the movable rod 2, the distance between the pin holes 22 is 100mm, the thread clamp 17 is located below the fixed pin 16, the height of the thread clamp 17 is 50mm, the wall thickness of the clamp is 8mm, and two sides of the clamp symmetrically extend out of a 50mm clamp shoulder for the tool to adjust the stress when the clamp height is adjusted.

The fixed top supporting plate 4 comprises a top plate 41, two groups of first side plates 42 and two groups of second side plates 43 which are symmetrical are arranged on the peripheral edges of the lower end of the top plate 41 respectively, the plane size of the top plate 41 and the first side plates 42 or the second side plates 43 is 100mm multiplied by 200mm, the height of the first side plates 42 or the second side plates 43 is 200mm, two groups of screw holes 44 are symmetrically arranged on the second side plates 43 close to the positions of two sides, the distance between the upper group of screw holes 44 and the lower group of screw holes 44 is 100mm, and the center position of the lower end of the middle column 3 is fixedly connected with the top plate 41.

Opposite threaded screw slits 51 are arranged at the positions, protruding towards the fixed top supporting plate 4, of two sides of the movable top supporting plate 5, the size of each threaded screw slit 51 is 20mm multiplied by 85mm, and the opposite pull threaded screws 6 penetrate through the protruding threaded screw slits 51 at the two sides of the movable top supporting plate 5 and the threaded holes 44 in the two groups of second side plates 43.

The construction method of the post-cast strip template independent supporting device in the embodiment is as follows:

1. along the length direction of the post-cast strip, one beam end is arranged, the distance between the side plate ends does not exceed 2 m, and the position of an independent supporting device is designed;

2. holes are formed in the beam bottom plate and the plate bottom plate at the designed positions along the edge of the post-cast strip, and the size of the hole is consistent with that of the fixed jacking plate;

3. the thread clamp 17 is placed at the bottom of the external thread 13 of the fixing rod 1;

4. the movable rod 2 is placed in a rod groove 14 of the fixed rod 1, the height of a side plate on the jacking is subtracted according to the designed elevation, then the height which is properly used for adjustment is subtracted, and a fixed pin 16 is inserted into a pin hole 22;

5. aligning the positions of the openings of the beam bottom plate and the plate bottom plate, and erecting a fixed rod 1 and a movable rod 2;

6. inserting the central column 3 into the column groove 23 of the movable rod 2, and fixing the fixed top supporting plate 4;

7. according to the elevation of the plate surface, the height of the movable rod 2 is adjusted by utilizing the threaded clamp 17, so that the elevation of the top surface of the fixed top supporting plate 4 is consistent with that of the top surface of the template;

8. two movable top supporting plates 5 are fixed on second side plates 43 on two sides of the fixed top supporting plate 4 through opposite-pulling screw rods 6, so that the top surface of each movable top supporting plate 5 is consistent with the elevation of the bottom surface of a template or a square timber;

9. after the independent supporting device is installed, installing reinforcing steel bars and pouring concrete;

10. after the concrete strength meets the dismantling condition, dismantling the movable top supporting plate 5, and dismantling the template and the supporting system;

11. after the condition of casting post-cast strip concrete is met, cleaning a post-cast strip construction joint, erecting post-cast strip supports and templates, binding post-cast strip steel bars, and casting post-cast strip concrete;

12. and (4) removing the independent supporting device after the concrete strength of the post-cast strip meets the removing condition.

The above-mentioned embodiments only represent some embodiments of the present invention, and the description thereof is specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, without departing from the spirit of the present invention, several variations and modifications can be made, which are within the scope of the present invention.

Claims

1. An independent support device for a post-casting belt formwork, characterized in that it comprises a fixed rod (1), a height-adjustable movable rod (2) is provided above the fixed rod (1), and the movable rod (2) ) is provided with a central column (3) at the top, and the upper end of the central column (3) is provided with a fixed top support plate (4), and the front and rear sides of the fixed top support plate (4) are provided with movable top support A plate (5), the movable top plate (5) is connected with the fixed top plate (4) through a pair of pulling screws (6).

2. An independent support device for a post-casting belt formwork according to claim 1, characterized in that the fixing rod (1) comprises a support (11) and a vertical rod (12) in order from bottom to top, so The interior of the vertical rod portion (12) is provided with a rod groove (14) with an open upper end, the outer surface of the vertical rod portion (12) is provided with an external thread (13) at a position close to the top end, and the vertical rod portion ( 12) Pin slits (15) are opened at symmetrical positions at both ends of the outer wall, two sets of pin slits (15) pass through the rod groove (14), and the pin slits (15) are located at the position of the external thread (13).

3. The post-casting belt template independent support device according to claim 2, wherein the movable rod (2) comprises a straight rod portion (21) and a rod cap (24) in order from bottom to top, and the The lower end portion of the rod portion (21) is located in the rod groove (14) of the fixed rod (1), the straight rod portion (21) is provided with pin holes (22) arranged in sequence up and down, ) is provided with a column groove (23) matching with the central column (3).

4. An independent support device for a post-casting strip formwork according to claim 3, characterized in that it further comprises a threaded clamp (17) and a fixing pin (16), and the threaded clamp (17) is threadedly connected to the external thread (13) On the outer surface, the fixing pin (16) passes through the pin slot (15) and the pin hole (22) of the movable rod (2), and the threaded clamp (17) is located under the fixing pin (16).

5. The post-casting belt formwork independent support device according to claim 1, wherein the fixed top plate (4) comprises a top plate (41), and the peripheral edges of the lower end of the top plate (41) are respectively provided with There are two symmetrical sets of first side plates (42) and second side plates (43), the second side plates (43) are provided with several groups of screw holes (44) arranged up and down at positions close to both sides, The central column (3) is fixedly connected to the center position of the lower end of the top plate (41).

6. The post-casting belt formwork independent support device according to claim 5, characterized in that, two sides of the movable top plate (5) are provided with a pair of opposite Through the screw slits (51), the pair of pulling screws (6) pass through the screw slits (51) protruding on both sides of the movable top plate (5) and the screw holes (51) on the two sets of second side plates (43). 44).
