CN215163975U - A new type of ironing machine with adjustable ironing angle - Google Patents

Abstract

The utility model relates to the technical field of ironing machines, and discloses a novel ironing machine with adjustable ironing angle, which comprises two support bins, and an adjustment bin is fixedly connected between the two support bins. The inner walls of the left and right sides of the support bin are fixedly connected with slide rails, the inside of the support bin is movably installed with a lift plate, and the left and right sides of the lift plate are fixedly connected with sliders that are slidably connected to the slide rails. A rotating rod is movably installed on the inner bottom wall of the support bin. The new type of ironing machine with adjustable ironing angle can rotate the two worms by starting the double-shaft motor, and the worm is arranged to engage with the worm wheel, so that the two rotating rods can rotate together, and the slider is arranged with the worm wheel. The sliding rail is connected by sliding, so that the lifting plate can move up and down through the threaded connection between the threaded groove and the bottom threaded rod, which drives the lifting rod to move up and down, so as to make the horizontal plate rise and fall, so as to adjust the height of the whole device.

Description

Novel ironing machine with adjustable ironing angle

Technical Field

The utility model relates to an ironing machine technical field specifically is a novel ironing machine with adjustable angle irones.

Background

The ironing machine is one kind of washing machine, belongs to the laundry ironing equipment, and its main component is generally single or two rollers, and the roller is rotated through hand cranking or through electric power, and the roller is heated by steam or electricity, and after reaching a certain temperature, when the moist clothing is passed through between two rollers and is rolled, can remove a large amount of moisture, and reach the effect of ironing, be used for the roll-flattening process of sheet, tablecloth and cloth etc..

Chinese patent CN 207537788U discloses a quick western-style clothes ironing machine, which comprises a base, a fixing plate, a first cylinder, a first air rod, a second cylinder, a second air rod, a first guide rail, a movable ironing frame, a mounting frame, a second guide rail, a third guide rail, a fourth guide rail, a fifth guide rail, a first ironing mechanism, a second ironing mechanism, and a characteristic of the quick western-style clothes ironing machine: the utility model discloses a quick western-style clothes ironing machine, including cylinder one end, air pole two, ironing mechanism one, ironing mechanism two is connected with the steam chest, the utility model discloses a quick western-style clothes ironing machine's setting has improved ironing efficiency, has reduced manufacturing cost, but this utility model can't adjust the angle of ironing, and the highly unable regulation of whole device, the event provides a novel ironing machine with adjustable angle of ironing in order to solve above-mentioned problem.

SUMMERY OF THE UTILITY MODEL

Technical problem to be solved

Not enough to prior art, the utility model provides a novel ironing machine with adjustable angle irones possesses the height-adjustable advantage of ironing angle adjustable and whole device, has solved unable regulation and has ironed the angle, and the problem of the highly unable regulation of whole device.

(II) technical scheme

For the purpose of realizing the above-mentioned adjustable height with whole device of ironing angle adjustable, the utility model provides a following technical scheme: a novel ironing machine with adjustable ironing angles comprises two supporting bins, an adjusting bin is fixedly connected between the two supporting bins, slide rails are fixedly connected to the inner walls of the left side and the right side of each supporting bin, lifting plates are movably mounted in the supporting bins, sliders which are slidably connected with the slide rails are fixedly connected to the left side and the right side of each lifting plate, rotating rods are movably mounted on the inner bottom walls of the two supporting bins, the bottoms of the two lifting plates are fixedly connected with bottom threaded rods, one ends of the bottom threaded rods penetrate through and extend into the two rotating rods respectively, lifting rods, one ends of which penetrate through and extend to the top of each supporting bin, are fixedly connected to the tops of the four lifting rods, worm wheels are fixedly mounted on the front sides and the back sides of the tops of the two lifting plates, a double-shaft motor is fixedly mounted on the inner bottom walls of the adjusting bins, the output shafts on the left side and the right side of the double-shaft motor are fixedly connected with worms, one ends of the worms penetrate through the two adjusting bins respectively and extend to the insides of the two adjusting bins and are meshed with worm wheels, the two worms are movably connected with the inner walls on the opposite sides of the two adjusting bins respectively, the bottom of the horizontal plate is fixedly connected with a metal bin, the inner wall on the left side of the metal bin is fixedly provided with a driving motor, the output shaft of the driving motor is fixedly connected with a top threaded rod movably connected with the inner wall on the right side of the metal bin, a limiting rod positioned at the bottom of the top threaded rod is fixedly connected between the inner walls on the left side and the right side of the adjusting bin, a movable block positioned at the outer side of the limiting rod is movably installed on the outer side of the top threaded rod, the left side of the top of the horizontal plate is fixedly connected with a U-shaped connecting frame, the top of the U-shaped connecting frame is hinged with a turnover plate, and the bottom of the turnover plate is fixedly connected with two top U-shaped hinged frames, equal fixedly connected with telescopic link all around at returning face plate top, four the top fixedly connected with ironing board of telescopic link, the outside cover of telescopic link is equipped with reset spring, the carriage release lever that runs through and extend to the horizontal plate top is run through to the front at movable block top and the equal fixedly connected with one end in the back, two the equal fixedly connected with bottom U type in top of carriage release lever articulates the frame, two the top of the articulated frame of bottom U type all articulates has respectively with two articulated frame articulated connecting rods in top U type.

Preferably, two thread grooves are formed in the top of the rotating rod and are respectively in threaded connection with the two threaded rods.

Preferably, the front and the back of the top of the two supporting bins are provided with circular through holes, and the four circular through holes are respectively matched with the four lifting rods.

Preferably, the metal bin is in a rectangular shape with a hollowed-out interior and a missing top.

Preferably, the right side of the movable block is provided with a threaded through hole in threaded connection with the top threaded rod, and the right side of the movable block is provided with a limiting hole matched with the limiting rod.

Preferably, the top of the horizontal plate is provided with two rectangular through holes, the two moving rods respectively penetrate through the two rectangular through holes, and the rectangular through holes are matched with the moving rods.

(III) advantageous effects

Compared with the prior art, the utility model provides a novel ironing machine with adjustable angle irones possesses following beneficial effect:

the novel ironing machine with adjustable ironing angle rotates two worms by starting a double-shaft motor, is engaged with a worm wheel by the worm and the worm wheel, further enables two rotating rods to rotate together, is connected with a sliding rail in a sliding way by a sliding block, enables a lifting plate to move up and down by threaded connection of a threaded groove and a bottom threaded rod, drives the lifting rod to move up and down, further enables a horizontal plate to lift, realizes the adjustment of the height of the whole device, further enables the whole device to be more convenient and practical to use, enables the top threaded rod to rotate by starting a driving motor, enables a movable block to move left and right by threaded connection of a threaded through hole and the top threaded rod by arranging a limiting rod, drives the moving rod to move left and right, and enables the connecting rod to extrude a U-shaped hinging frame at the top and further enables the turnover plate to turn over when the moving rod moves to the right, the ironing plate is driven to turn, so that the ironing angle can be adjusted, and the ironing is more convenient for workers.

Drawings

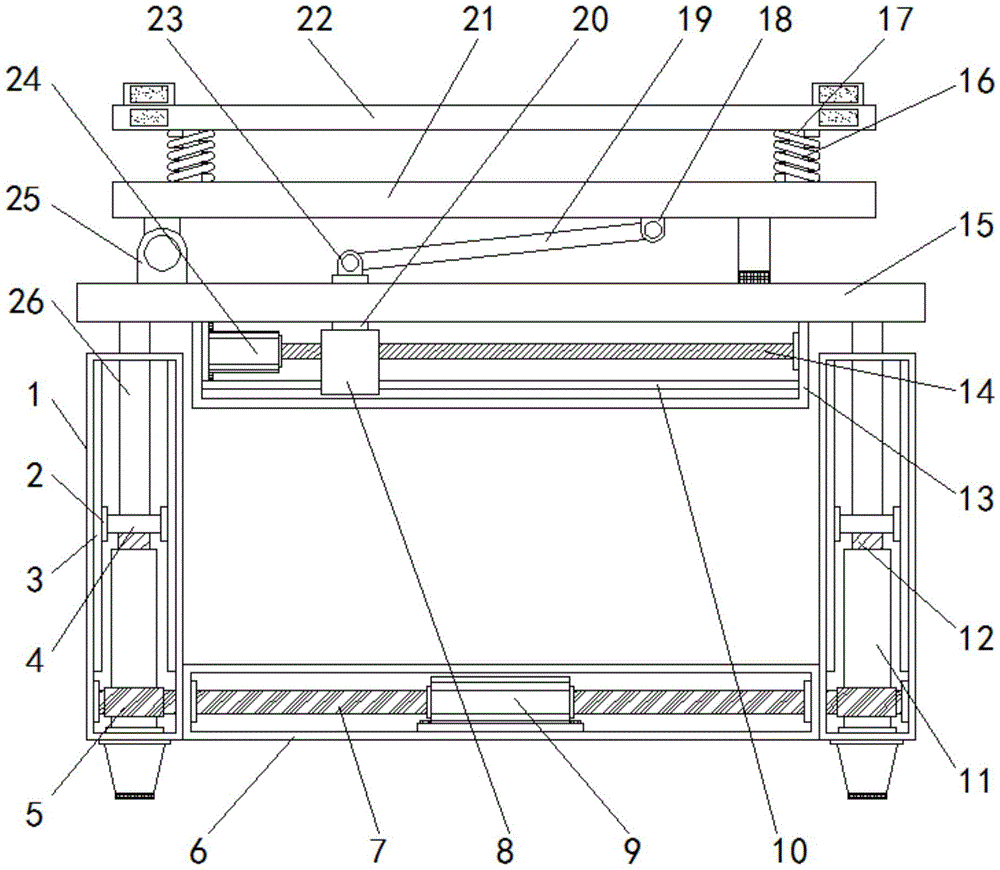

FIG. 1 is a schematic structural view of the present invention;

fig. 2 is a top view of the supporting chamber of the present invention.

In the figure: the device comprises a supporting bin 1, a sliding block 2, a sliding rail 3, a lifting plate 4, a worm wheel 5, an adjusting bin 6, a worm 7, a movable block 8, a double-shaft motor 9, a limiting rod 10, a rotating rod 11, a bottom threaded rod 12, a metal bin 13, a top threaded rod 14, a horizontal plate 15, a telescopic rod 16, a return spring 17, a top U-shaped hinged frame 18, a connecting rod 19, a moving rod 20, a turnover plate 21, an ironing plate 22, a bottom U-shaped hinged frame 23, a driving motor 24, a U-shaped connecting frame 25 and a lifting rod 26.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, a novel ironing machine with adjustable ironing angle comprises two supporting bins 1, an adjusting bin 6 fixedly connected between the two supporting bins 1, slide rails 3 fixedly connected to the inner walls of the left and right sides of the supporting bins 1, lifting plates 4 movably mounted inside the supporting bins 1, sliders 2 slidably connected to the slide rails 3 and fixedly connected to the left and right sides of the lifting plates 4, rotating rods 11 movably mounted on the inner bottom walls of the two supporting bins 1, bottom threaded rods 12 respectively connected to the bottoms of the two lifting plates 4, wherein one end of each threaded rod is respectively penetrated through and extended into the two rotating rods 11, thread grooves are respectively formed in the tops of the two rotating rods 11, the two thread grooves are respectively connected to the two threaded rods, and lifting rods 26 respectively connected to the front and back surfaces of the tops of the two lifting plates 4, wherein one end of each lifting rod is penetrated through and extended to the top of the supporting bins 1, the front and the back of the top of the two supporting bins 1 are both provided with circular through holes, the four circular through holes are respectively matched with the four lifting rods 26, the top of the four lifting rods 26 is fixedly connected with a horizontal plate 15, the peripheral walls of the two rotating rods 11 are both fixedly provided with worm wheels 5, the inner bottom wall of each adjusting bin 6 is fixedly provided with a double-shaft motor 9, output shafts at the left and the right sides of the double-shaft motor 9 are both fixedly connected with worms 7, one ends of the worms 7 respectively penetrate through and extend to the inside of the two adjusting bins 6 and are meshed with the worm wheels 5, the two worms 7 are respectively movably connected with the inner walls at the opposite sides of the two adjusting bins 6, the bottom of the horizontal plate 15 is fixedly connected with a metal bin 13, the metal bin 13 is in a rectangular shape with a hollowed inside and a missing top, the inner wall at the left side of the metal bin 13 is fixedly provided with a driving motor 24, the output shaft of the driving motor 24 is fixedly connected with a top threaded rod 14 movably connected with the inner wall at the right side of the metal bin 13, a limiting rod 10 positioned at the bottom of a top threaded rod 14 is fixedly connected between the inner walls of the left side and the right side of an adjusting bin 6, a movable block 8 positioned at the outer side of the limiting rod 10 is movably arranged at the outer side of the top threaded rod 14, a threaded through hole in threaded connection with the top threaded rod 14 is formed in the right side of the movable block 8, a limiting hole matched with the limiting rod 10 is formed in the right side of the movable block 8, a U-shaped connecting frame 25 is fixedly connected to the left side of the top of a horizontal plate 15, a turnover plate 21 is hinged to the top of the U-shaped connecting frame 25, two top U-shaped hinge frames 18 are fixedly connected to the bottom of the turnover plate 21, telescopic rods 16 are fixedly connected to the periphery of the top of the turnover plate 21, each telescopic rod 16 consists of a sleeve bin and a moving rod, one end of the moving rod penetrates through and extends into the sleeve bin, limiting blocks positioned in the sleeve bin are fixedly connected to the outer side of the moving rod, a through hole matched with the moving rod is formed in one side of the sleeve bin, the limiting blocks are arranged to prevent the moving rod from being separated from the sleeve bin in the moving process, the top parts of the four telescopic rods 16 are fixedly connected with the ironing plate 22, the left side and the right side of the inside of the ironing plate 22 are respectively embedded with a first magnet plate, the left side and the right side of the top part of the ironing plate 22 are respectively movably provided with a pressing plate, the inside parts of the two pressing plates are respectively embedded with a second magnet plate, the first magnet plate can be adsorbed with the second magnet plate, the pressing plates can press and hold clothes placed on the ironing plate 22 through the adsorption of the first magnet plate and the second magnet plate, the outer side of each telescopic rod 16 is sleeved with a reset spring 17, the front surface and the back surface of the top part of the moving block 8 are respectively fixedly connected with moving rods 20, one end of each moving rod 20 penetrates through and extends to the top part of the horizontal plate 15, the top part of the horizontal plate 15 is provided with two rectangular through holes, the two moving rods 20 respectively penetrate through the two rectangular through holes, the rectangular through holes are matched with the moving rods 20, the moving rods 20 can move left and right in the rectangular through holes, the top of two movable rods 20 is all fixedly connected with bottom U type articulated frame 23, and the top of two bottom U type articulated frames 23 all articulates there is the connecting rod 19 with two articulated frame 18 articulated of top U type respectively, and the electrical components that appear in here all is connected with master controller and power electricity, and the master controller can play the conventional known equipment of control for the computer etc. and the electric power connection technology of prior publication, and does not describe in this text in detail.

To sum up, the novel ironing machine with adjustable ironing angle is characterized in that two worms 7 are rotated by starting a double-shaft motor 9, the worms 7 are meshed with a worm wheel 5, two rotating rods 11 can be rotated together, the lifting plate 4 can be in threaded connection with a bottom threaded rod 12 through a threaded groove and can move up and down by arranging a sliding block 2 and a sliding rail 3 in a sliding connection manner, the lifting rod 26 is driven to move up and down, the horizontal plate 15 is lifted and lowered, the height of the whole device is adjusted, the whole device is more convenient and practical to use, the top threaded rod 14 is rotated by starting a driving motor 24, the movable block 8 can be driven to move left and right through the threaded connection with a top threaded rod 14 through a threaded through hole by arranging a limiting rod 10, the movable rod 20 is driven to move left and right, when the movable rod 20 moves to the right, the connecting rod 19 can extrude a U-shaped hinging frame 18 at the top, and then make the upset board 21 upset, drive the upset of ironing board 22, realize the regulation to ironing the angle, make the staff more convenient when ironing, solved and can't adjust the angle of ironing, and the unable problem of adjusting of the height of whole device.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. A novel ironing machine with adjustable ironing angle, comprising two supporting bins (1), characterized in that: an adjusting bin (6) is fixedly connected between the two supporting bins (1). , the inner walls of the left and right sides of the support bin (1) are fixedly connected with slide rails (3), and a lift plate (4) is movably installed inside the support bin (1). Both sides are fixedly connected with sliding blocks (2) slidably connected with the sliding rails (3), and rotating rods (11) are movably installed on the inner bottom walls of the two support bins (1). The bottoms of (4) are fixedly connected with bottom threaded rods (12), one end of which respectively penetrates and extends into the interior of the two rotating rods (11). Lifting rods (26) running through and extending to the top of the support bin (1), the tops of the four lifting rods (26) are fixedly connected with a horizontal plate (15), and the outer peripheral walls of the two rotating rods (11) are A worm gear (5) is fixedly installed, and a biaxial motor (9) is fixedly installed on the inner bottom wall of the adjustment bin (6). and extends to the inside of the two adjustment chambers (6) and engages with the worm gear (5) worms (7), the two worms (7) are respectively movably connected to the inner walls of the two adjustment chambers (6) on the opposite side , a metal bin (13) is fixedly connected to the bottom of the horizontal plate (15), a drive motor (24) is fixedly installed on the inner wall of the left side of the metal bin (13), and the output shaft of the drive motor (24) is fixed A top threaded rod (14) movably connected with the inner wall on the right side of the metal bin (13) is connected, and a limit at the bottom of the top threaded rod (14) is fixedly connected between the inner walls on the left and right sides of the adjustment bin (6). Rod (10), the outer side of the top threaded rod (14) is movably mounted with a movable block (8) located on the outer side of the limit rod (10), and the left side of the top of the horizontal plate (15) is fixedly connected with a U-shaped connection A frame (25), the top of the U-shaped connecting frame (25) is hinged with a turning plate (21), and the bottom of the turning plate (21) is fixedly connected with two top U-shaped hinge frames (18), Telescopic rods (16) are fixedly connected around the top of the turning plate (21), ironing boards (22) are fixedly connected to the tops of the four telescopic rods (16), and the outer sides of the telescopic rods (16) are fixedly connected with an ironing board (22). A return spring (17) is sleeved, and the front and back of the top of the movable block (8) are fixedly connected with a moving rod (20) whose one end penetrates and extends to the top of the horizontal plate (15), two of the moving rods (20) ) are fixedly connected with a bottom U-shaped hinge frame (23), and the tops of the two bottom U-shaped hinge frames (23) are hinged with connecting rods ( 19). 2. A new type of ironing machine with adjustable ironing angle according to claim 1, characterized in that: the tops of the two rotating rods (11) are provided with thread grooves, and the two thread grooves are respectively connected with Two threaded rods are screwed together. 3. A new type of ironing machine with adjustable ironing angle according to claim 1, characterized in that: the front and the back of the top of the two support bins (1) are provided with circular through holes, and four The circular through holes are respectively adapted to the four lifting rods (26). 4. A new type of ironing machine with adjustable ironing angle according to claim 1, characterized in that: the shape of the metal bin (13) is a rectangle with a hollow inside and a missing top. 5. A new type of ironing machine with adjustable ironing angle according to claim 1, characterized in that: the right side of the movable block (8) is provided with a threaded connection with the top threaded rod (14). The right side of the movable block (8) is provided with a limit hole adapted to the limit rod (10). 6. A new type of ironing machine with adjustable ironing angle according to claim 1, characterized in that: the top of the horizontal plate (15) is provided with two rectangular through holes, and two of the moving The rods (20) respectively pass through two rectangular through holes, and the rectangular through holes are adapted to the moving rods (20).
