Abstract

The utility model discloses a countable automatic feeding equipment, including the bottom plate, the lateral wall symmetry fixedly connected with support of bottom plate, the lateral wall fixedly connected with conveyer of support, the lateral wall of conveyer are equipped with the rubber sleeve. The utility model discloses set up a countable automatic feeding equipment, through bottom plate linking bridge, fixed the conveyer by the support, through the use of rubber sleeve, because the rubber sleeve has the recess, can carry out the material spacing, can carry the material layering through the rubber sleeve moreover, conveniently count the work when carrying, can avoid piling up of material moreover, transport material that can be steady prevents to influence the processing that needs afterwards.

Description

Countable automatic feeding equipment

Technical Field

The utility model relates to a charging equipment technical field specifically is a countable automatic feeding equipment.

Background

The conveyer has the characteristics of capability of continuously carrying materials in an interval, low operation cost, high efficiency, easiness in control and the like, is the most main basic equipment for realizing material conveying and carrying of a modern equipment transmission system, belongs to automatic conveying machinery in modern production enterprises, is inconvenient to count during conveying, can stack materials and influence subsequent processing, and therefore the automatic material feeding equipment capable of counting is provided.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a countable automatic feeding equipment to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a countable automatic feeding equipment, includes the bottom plate, the top lateral wall symmetry fixedly connected with support of bottom plate, the lateral wall fixedly connected with conveyer of support, the lateral wall of conveyer is equipped with the rubber sleeve, and the rubber sleeve has the recess.

Preferably, the top side wall of the bottom plate is symmetrically and fixedly connected with the box body.

Preferably, concave blocks are symmetrically and fixedly connected between the inner side walls of the two conveyors, inner rods are assembled in the inner cavities of the two concave blocks, and support plates are fixedly connected to the top side walls of the inner rods.

Preferably, the inner cavity of the support plate is symmetrically provided with a round roller.

Preferably, the bottom side wall of the inner rod is fixedly connected with a spring, the bottom side wall of the spring is fixedly connected with a bottom rod, the bottom side wall of the bottom rod is attached to the bottom plate, the outer side wall of the bottom rod is provided with a hollow block, and the side wall of the hollow block is fixedly connected with the box body.

Preferably, the left side wall of the left side bracket is fixedly connected with a frame, and the top side wall of the frame is fixedly connected with a side plate.

Compared with the prior art, the beneficial effects of the utility model are that: the utility model discloses set up a countable automatic feeding equipment, through bottom plate linking bridge, fixed the conveyer by the support, through the use of rubber sleeve, because the rubber sleeve has the recess, can carry out the material spacing, can carry the material layering through the rubber sleeve moreover, conveniently count the work when carrying, can avoid piling up of material moreover, transport material that can be steady prevents to influence subsequent processing.

Drawings

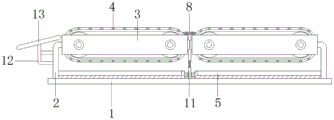

Fig. 1 is a schematic structural diagram of the present invention.

FIG. 2 is a detail view of the structure of the plate of FIG. 1.

Fig. 3 is a detailed view of the structure of the bottom bar of fig. 1.

In the figure: 1. the device comprises a bottom plate, 2, a support, 3, a conveyor, 4, a rubber sleeve, 5, a box body, 6, a concave block, 7, an inner rod, 8, a support plate, 9, a round roller, 10, a spring, 11, a bottom rod, 12, a frame, 13, a side plate, 14 and a hollow block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a countable automatic feeding equipment, comprising a base plate 1, the symmetrical fixedly connected with support 2 of top lateral wall of bottom plate 1, the lateral wall fixedly connected with conveyer 3 of support 2, the lateral wall of conveyer 3 is equipped with rubber sleeve 4, through 1 linking bridge 2 of bottom plate, fix conveyer 3 by support 2, use through rubber sleeve 4, because rubber sleeve 4 has the recess, can carry out the material spacing, and can carry the material layering through rubber sleeve 4, conveniently count work when carrying.

Particularly, the box body 5 is symmetrically and fixedly connected to the top side wall of the bottom plate 1, and the box body 5 can receive materials falling off from the conveyor 3, so that subsequent collection work is facilitated.

Particularly, symmetry fixedly connected with concave block 6 between two conveyer 3's the inside wall, the inner chamber of two concave blocks 6 is equipped with interior pole 7, and interior pole 7's top lateral wall fixedly connected with extension board 8, interior pole 7 assemble between concave block 6, block through extension board 8 with conveyer 3's clearance, prevent that the material from dropping when carrying.

Specifically, the inner cavity of the support plate 8 is symmetrically provided with the round rollers 9, and the round rollers 9 can rotate in the inner cavity of the support plate 8, so that the material is conveyed more smoothly and stably.

Specifically, the end lateral wall fixedly connected with spring 10 of interior pole 7, the end lateral wall fixedly connected with sill bar 11 of spring 10, the end lateral wall and the laminating of bottom plate 1 of sill bar 11 mutually, the lateral wall of sill bar 11 is equipped with hollow block 14, hollow block 14's lateral wall and 5 fixed connection of box, spring 10 can promote sill bar 11 and the laminating of bottom plate 1, run through hollow block 14 simultaneously, make more stable of sill bar 11, pole 7 in can supporting by sill bar 11 simultaneously, can carry out the shock attenuation through spring 10, make transportation process more steady.

Specifically, the left side wall fixedly connected with frame 12 of left side support 2, the top side wall fixedly connected with curb plate 13 of frame 12, through frame 12 connection curb plate 13, when the material is carried, can lift the material, prevent to drop the damage when transporting.

The working principle is as follows: through 1 linking bridge 2 of bottom plate, fix conveyer 3 by support 2, carry the work by conveyer 3, drive rubber sleeve 4 simultaneously and rotate, through the use of rubber sleeve 4, because rubber sleeve 4 has the recess, can carry out spacingly with the material, can carry the material layering through rubber sleeve 4 moreover.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.

Claims (5)

1. The utility model provides a countable automatic feeding equipment, includes bottom plate (1), its characterized in that: the top side wall of the bottom plate (1) is symmetrically and fixedly connected with a support (2), the side wall of the support (2) is fixedly connected with a conveyor (3), the outer side wall of the conveyor (3) is assembled with a rubber sleeve (4), and the rubber sleeve (4) is provided with a groove;

two symmetrical fixedly connected with concave block (6) between the inside wall of conveyer (3), two the inner chamber of concave block (6) is equipped with interior pole (7), the top lateral wall fixedly connected with extension board (8) of interior pole (7).

2. The countable automatic feeding apparatus of claim 1, wherein: the top side wall of the bottom plate (1) is symmetrically and fixedly connected with a box body (5).

3. The countable automatic feeding apparatus of claim 1, wherein: the inner cavity of the support plate (8) is symmetrically provided with round rollers (9).

4. The countable automatic feeding apparatus of claim 1, wherein: the utility model discloses a bottom wall of interior pole (7) is including the bottom wall fixedly connected with spring (10), the bottom wall fixedly connected with sill bar (11) of spring (10), the bottom wall and bottom plate (1) of sill bar (11) are laminated mutually, the lateral wall of sill bar (11) is equipped with hollow block (14), the lateral wall and box (5) fixed connection of hollow block (14).

5. The countable automatic feeding apparatus of claim 1, wherein: the left side wall of support (2) is fixedly connected with frame (12) on the left side, the top lateral wall fixedly connected with curb plate (13) of frame (12).
