Abstract

The utility model discloses a screen shaking device with replaceable screen meshes, which comprises a main body, a plurality of screen meshes for filtering different particle sizes are detachably arranged in the main body, and a disassembly door is arranged on the side of the main body, so that the The top of the main body is provided with a feeding port. The shaker device capable of replacing the screen mesh solves the problem that the screen mesh is difficult to replace in the existing shaker screen machine.

Description

Can replace sieve device that shakes of screen cloth

Technical Field

The utility model belongs to the technical field of screening instrument and equipment, concretely relates to can replace shaking sieve device of screen cloth.

Background

Circular sieve shaker usually presents the cask form, and the centre is equipped with the multilayer sieve tray and is equipped with the screen bottom in the bottom, is provided with the screen cloth in the sieve tray, and the screen cloth aperture reduces gradually from top to bottom, utilizes the relative motion of particulate material and sifter, makes partial granule see through the sieve mesh of different apertures.

The current circular shaking screen machine has the advantage that reliable operation and screening ability are strong, can satisfy the screening requirement of material among the municipal works, however to current circular shaking screen machine, the material after automatic circular shaking screen machine sieves is difficult all to pour out on the one hand, shaking screen machine inside also is difficult to wash and maintain, the difficult replacement of screen cloth of the circular shaking screen machine of on the other hand, perhaps need load and unload the sieve tray after sieving, greatly reduced work efficiency.

Disclosure of Invention

The utility model aims at providing a can replace sieve shaker of screen cloth solves the problem that the screen cloth is difficult to the replacement among the current sieve shaker.

In order to achieve the above purpose, the utility model adopts the technical scheme that: the utility model provides a can replace sieve shaking device of screen cloth, includes the main part, detachably is provided with a plurality of screen cloths that are used for filtering different particle sizes in the main part, and the lateral part of main part is provided with dismantles the door, the top of main part is provided with the feed inlet.

The technical scheme of the utility model, still have following characteristics:

as the utility model discloses technical scheme's an preferred scheme, it is the two-leaf vertical hinged door to dismantle the door, be provided with the padlock on the two-leaf vertical hinged door, be provided with the padlock handle in the padlock.

As the utility model discloses technical scheme's an preferred scheme, the inboard of main part is provided with many to the arch, the screen cloth sets up between many pairs of arch.

As the utility model discloses technical scheme's an preferred scheme, the main part is the cylindric, the screen cloth is circular.

As the utility model discloses technical scheme's an preferred scheme, the feed inlet is gone out to be provided with the funnel through the hose.

As the utility model discloses technical scheme's an preferred scheme, be provided with a plurality of steel rings in the hose.

Compared with the prior art, the utility model discloses a can replace sieve device that shakes of screen cloth has following advantage: (1) the utility model discloses a can replace sieve device that shakes of screen cloth can dismantle the screen cloth, and it is also comparatively simple to dismantle, and the screen cloth of filtering different particle diameters can be changed according to the demand on the one hand in the design like this, and on the other hand pulls down the screen cloth, can unload in batches to the material of the different particle diameters after the screening. (2) The utility model discloses a can replace sieve device that shakes of screen cloth, its simple structure, manufacturing cost is lower, has better market perspective.

Drawings

The accompanying drawings, which are described herein, serve to provide a further understanding of the invention and constitute a part of this specification, and the exemplary embodiments and descriptions thereof are provided for explaining the invention without unduly limiting it. In the drawings:

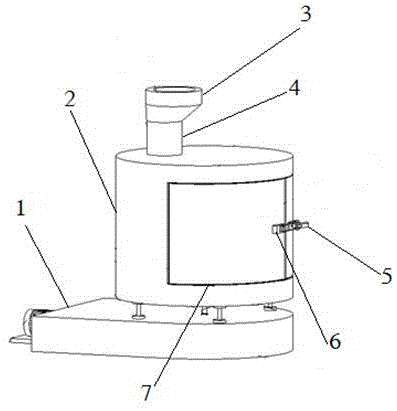

FIG. 1 is a schematic structural view of a shaker device with replaceable screen of the present invention installed on a vibrating apparatus;

fig. 2 is a schematic sectional view of a screen shaking device capable of replacing a screen mesh, which is installed on a vibrating instrument;

fig. 3 is a schematic structural view of a detaching door in a sieve shaker of the present invention with replaceable screen cloth;

fig. 4 is a schematic structural diagram of a hose in a shaker device with replaceable screen cloth according to the present invention.

In the figure, 1, a vibration meter, 2, a main body, 3, a funnel, 4, a hose, 5, a lock catch, 6, a lock catch handle, 7, a disassembly door, 8, a screen, 9, a bulge and 10 a steel ring.

Detailed Description

The technical solution of the present invention will be further described in detail with reference to the accompanying drawings and specific embodiments.

As shown in fig. 1 and 2, the utility model discloses a shaking screen device capable of replacing screen cloth, including main part 2, detachably is provided with a plurality of screen cloths 8 that are used for filtering different particle sizes in main part 2, and the lateral part of main part 2 is provided with dismantlement door 7, and the top of main part 1 is provided with the feed inlet.

The utility model discloses a can replace sieve device that shakes of screen cloth, its main part 2 is installed on current vibrometer 1, and before the work, according to filtering the particle diameter from big to little earlier, arrange in main part 2 about being a plurality of screen cloths 8 in proper order.

Afterwards, start vibrating apparatus 1, vibrating apparatus 1 makes 2 vibrations of main part, and the material that will wait to sieve is added from the feed inlet at 2 tops of main part, and the material will accomplish the screening of corresponding particle diameter when every layer of screen cloth 8. After the screening is finished, the disassembling door 7 is opened, and the screen 8 is taken out to obtain materials with different particle sizes.

In addition, it should be noted that, this detachable mode can also ensure that the inside of the main body 2 is cleaned, and after the screen 8 is quickly detached, a large space can be reserved in the main body 2, so that the cleaning by the staff is facilitated.

As shown in fig. 3, the utility model discloses a can replace shaking sieve device of screen cloth in, dismantle door 7 for two-leaf vertical hinged door, be provided with padlock 5 on the two-leaf vertical hinged door, be provided with padlock handle 6 in the padlock 5.

After the padlock handle 6 is buckled in the padlock 5, the closing of the double-leaf vertical hinged door can be completed, and when the padlock handle is not buckled, the double-leaf vertical hinged door can be opened, so that the operation is convenient.

As shown in fig. 2, in the shaking screen device with replaceable screen of the present invention, the main body 2 is cylindrical, and the screen 8 is circular, and is consistent with the existing screen 8, so as to be conveniently installed on the existing vibrating instrument 1.

As shown in fig. 2, in the screen-replaceable shaking device of the present invention, a plurality of pairs of protrusions 9 are provided on the inner side of the main body 2, and the screen 8 is provided between the plurality of pairs of protrusions 9.

The design can ensure that the screen 8 can be smoothly inserted and pulled out from the plurality of pairs of bulges 9, and the disassembly and the assembly can be rapidly completed.

As shown in figure 2, in the shaking screen device with replaceable screen cloth of the utility model, a funnel 3 is arranged at the outlet of a feed inlet through a hose 4.

Material is added from hopper 3 and flows through hose 4 into main body 2 and falls onto uppermost screen 8. And then filtering by each stage of screen 8 in sequence to complete screening of different particle sizes.

As shown in fig. 4, in the screen shaking device with replaceable screen of the present invention, a plurality of steel rings 10 are provided in the hose 4, so as to ensure that the hose 4 has sufficient strength.

To sum up, compare with prior art, the utility model discloses a can replace shaking sieve device of screen cloth has following advantage: (1) the utility model discloses a can replace sieve device that shakes of screen cloth can dismantle the screen cloth, and it is also comparatively simple to dismantle, and the screen cloth of filtering different particle diameters can be changed according to the demand on the one hand in the design like this, and on the other hand pulls down the screen cloth, can unload in batches to the material of the different particle diameters after the screening. (2) The utility model discloses a can replace sieve device that shakes of screen cloth, its simple structure, manufacturing cost is lower, has better market perspective.

While the foregoing description shows and describes several preferred embodiments of the invention, it is to be understood, as noted above, that the invention is not limited to the forms disclosed herein, but is not intended to be exhaustive of other embodiments and is capable of use in various other combinations, modifications, and environments and is capable of changes within the scope of the inventive concept as expressed above, or as otherwise known in the relevant art. But variations and modifications which do not depart from the spirit and scope of the invention should be construed as being included in the scope of the appended claims.

Claims

1. The screen shaking device with the replaceable screen is characterized by comprising a main body (2), wherein a plurality of screens (8) used for filtering different particle sizes are detachably arranged in the main body (2), a detaching door (7) is arranged on the side part of the main body (2), and a feeding hole is formed in the top of the main body (2); the disassembly door (7) is a double-leaf vertical hinged door, a padlock (5) is arranged on the double-leaf vertical hinged door, and a padlock handle (6) is arranged in the padlock (5); the main body (2) is cylindrical, and the screen (8) is circular; the inner side of the main body (2) is provided with a plurality of pairs of bulges (9), and the screen (8) is arranged between the plurality of pairs of bulges (9); a hopper (3) is arranged at the outlet of the feed inlet through a hose (4); a plurality of steel rings (10) are arranged in the hose (4).
