Abstract
本实用新型公开了一种麻石有机质纤维除尘器，涉及除尘器领域，包括装置主体，装置主体的一侧下方连接有排气管，装置主体的内部上方分别安装有固定筒和两个电机。本实用新型通过设置有电机、丝杆、螺纹套、刮环刷、导料块、水泵，当需要清理过滤网筒上的灰尘和杂质时，使用者通过操作台启动电机和水泵，电机工作带动丝杆转动，丝杆转动带动螺纹套移动，螺纹套移动带动刮环刷移动，而由于刮环刷的内壁与过滤网筒的外壁相接触，导致刮环刷移动时可清理过滤网筒上的灰尘和杂质，同时水泵工作以使抽水管抽取储水箱内的水，水经输水管输入至喷盘内，再经喷头喷出至过滤网筒上，从而可配合刮环刷对过滤网筒进行清理，并提高了对过滤网筒的清理效率。
The utility model discloses a granite organic fiber dust collector, which relates to the field of dust collectors. The utility model is provided with a motor, a screw rod, a threaded sleeve, a scraper brush, a material guide block and a water pump. When it is necessary to clean the dust and impurities on the filter screen cylinder, the user starts the motor and the water pump through the operating table, and the motor drives the operation of the motor. The rotation of the screw rod drives the threaded sleeve to move, and the movement of the threaded sleeve drives the movement of the wiper brush. Since the inner wall of the wiper brush is in contact with the outer wall of the filter cylinder, the wiper brush can clean the filter cylinder when it moves. Dust and impurities, at the same time the pump works to make the water pipe extract the water in the water storage tank, the water is input into the spray plate through the water pipe, and then sprayed to the filter cylinder through the nozzle, so that the filter cylinder can be cleaned with the scraper brush. cleaning, and improve the cleaning efficiency of the filter cartridge.
Description
Technical Field
The utility model relates to a dust remover field specifically is a granite organic matter fibre dust remover.
Background
The equipment for separating dust from flue gas is called dust remover or dust removing equipment, and the performance of the dust remover is expressed by the amount of gas which can be processed, the resistance loss of the gas when passing through the dust remover and the dust removing efficiency.
Most of existing granite organic matter fiber dust collectors can adopt a filter screen to filter dust, but a large amount of dust and impurities can be remained on the surface of the filter screen after the filter screen is used for a long time, and the dust and the impurities are difficult to clean, so that the dust and the impurities are accumulated on a filter screen cylinder, and further the filtering effect of the filter screen is influenced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problem that dust and impurities on a filter screen cylinder are not convenient to clean, the dust remover for the granite organic matter fiber is provided.
In order to achieve the above object, the utility model provides a following technical scheme: a granite organic matter fiber dust remover comprises a device main body, wherein an exhaust pipe is connected to the lower portion of one side of the device main body, a fixed cylinder and two motors are respectively installed on the upper portion of the interior of the device main body, a filter screen cylinder is installed at the bottom of the fixed cylinder, a bottom cylinder is installed at the bottom of the filter screen cylinder, both sides of the bottom cylinder are respectively connected with a discharge pipe, the outer surface of the discharge pipe is provided with a solenoid valve, the interior of the bottom cylinder is fixedly provided with a material guide block, the output ends of the two motors are respectively connected with a lead screw, the outer surfaces of the two lead screws are respectively sleeved with a thread sleeve, a scraping ring brush is fixed between the two thread sleeves, the interior of the fixed cylinder is provided with a spray disk, the bottom of the spray disk is provided with a plurality of spray nozzles, a water storage tank is installed on one side of the device main body, the top of the water storage tank is connected with a water inlet pipe, and a water pump is installed inside the water storage tank, the water inlet end of the water pump is connected with a water pumping pipe, and the water outlet end of the water pump is connected with a water delivery pipe which extends into the device main body and is communicated with the spray disk.
Preferably, the plurality of spray heads are distributed at the bottom of the spray disc in an annular array shape, and the spray disc is communicated with the spray heads.
Preferably, both sides of the guide block are inclined downwards along the direction of the discharge pipe, and the top of the guide block is smooth.
Preferably, the screw rod is in threaded connection with the threaded sleeve, and the bottom end of the screw rod is connected with the top of the bottom barrel through a bearing.
Preferably, the inner wall of the scraping ring brush is provided with bristles, and the scraping ring brush is in contact with the filter screen cylinder.
Preferably, the top of the device main body is connected with an air inlet pipe, and the bottom of the device main body is provided with a discharge hole.
Preferably, the outer surface of the device main body is provided with an operation table, and the operation table is respectively electrically connected with the motor, the electromagnetic valve and the water pump.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model is provided with a motor, a screw rod, a thread bushing, a scraping ring brush, a guide block, a water pump, a spray disk and a spray nozzle, when dust and impurities on the filter screen cylinder need to be cleaned, a user starts the motor and the water pump through an operation platform, the motor works to drive the screw rod to rotate, the screw rod rotates to drive the thread bushing to move, the thread bushing moves to drive the scraping ring brush to move, and the inner wall of the scraping ring brush is contacted with the outer wall of the filter screen cylinder, so that the dust and impurities on the filter screen cylinder can be cleaned when the scraping ring brush moves, meanwhile, the water pump works to enable a water pumping pipe to pump water in a water storage tank, the water is input into the spray disk through a water pipe and then is sprayed onto the filter screen cylinder through the spray nozzle, thereby the filter screen cylinder can be cleaned by matching with the scraping ring brush, the cleaning efficiency of the filter screen cylinder is improved, and a large amount of dust and impurities are prevented from being adhered to the inner wall of the filter screen cylinder, so that the filter screen cylinder can effectively filter air, and the material can be fallen to the discharge tube in by the dust and the impurity of scraping off or on the guide block, and because the both sides of guide block all along the direction downward sloping of arranging the material pipe to can make the impurity on the guide block flow into to the discharge tube along with the rivers in, then prevented that dust and impurity from piling up in the inside of end section of thick bamboo.
Drawings
Fig. 1 is a schematic view of the front structure of the main body of the device of the present invention;

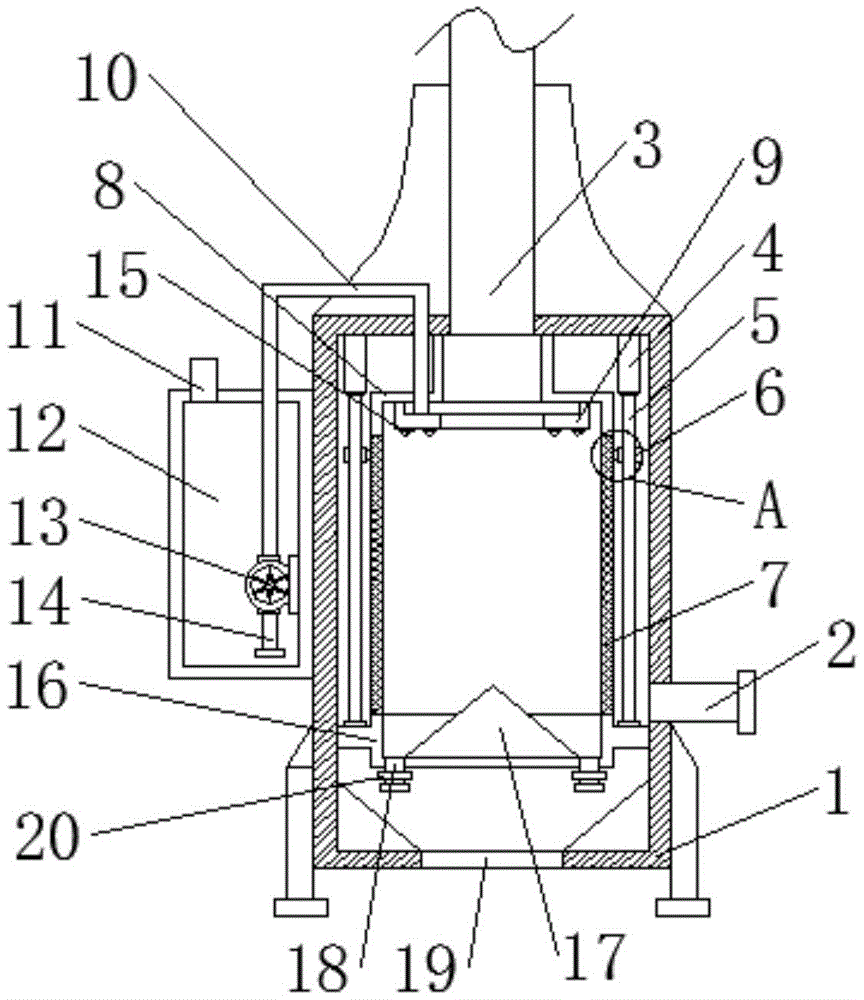

FIG. 2 is a schematic view of the front cross-section structure of the device body of the present invention;
FIG. 3 is a schematic top view of a partial structure of the scraping ring brush of the present invention;
fig. 4 is an enlarged view of a portion a in fig. 2 according to the present invention.
In the figure: 1. a device main body; 2. an exhaust pipe; 3. an air inlet pipe; 4. a motor; 5. a screw rod; 6. a threaded sleeve; 7. a filter screen cylinder; 8. a fixed cylinder; 9. spraying a disc; 10. a water delivery pipe; 11. a water inlet pipe; 12. a water storage tank; 13. a water pump; 14. a water pumping pipe; 15. a spray head; 16. a bottom cylinder; 17. a material guide block; 18. a discharge pipe; 19. a discharge port; 20. an electromagnetic valve; 21. scraping ring brushes; 22. an operation platform.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.
Referring to fig. 1-4, a dust remover for organic fiber of granite comprises a main body 1, an exhaust pipe 2, an air inlet pipe 3, motors 4, a screw rod 5, a thread bushing 6, a filter screen cylinder 7, a fixed cylinder 8, a spray disk 9, a water delivery pipe 10, a water inlet pipe 11, a water storage tank 12, a water pump 13, a water pumping pipe 14, a spray head 15, a bottom cylinder 16, a material guide block 17, a material discharge pipe 18, a material discharge port 19, an electromagnetic valve 20, a scraping ring brush 21 and an operation table 22, wherein the lower part of one side of the main body 1 is connected with the exhaust pipe 2, the upper part inside the main body 1 is respectively provided with the fixed cylinder 8 and the two motors 4, the bottom of the fixed cylinder 8 is provided with the filter screen cylinder 7, the bottom cylinder 7 is provided with the bottom cylinder 16, both sides of the bottom cylinder 16 are connected with the material discharge pipe 18, the outer surface of the material discharge pipe 18 is provided with the electromagnetic valve 20, the material guide block 17 is fixed inside the bottom cylinder 16, the output ends of the two motors 4 are connected with the screw rod 5, the surface of two lead screws 5 has all cup jointed thread bush 6, be fixed with between two thread bush 6 and scrape ring brush 21, the internally mounted of solid fixed cylinder 8 spouts dish 9, spout the bottom of dish 9 and install a plurality of shower nozzles 15, storage water tank 12 is installed to one side of device main part 1, the top of storage water tank 12 is connected with inlet tube 11, the internally mounted of storage water tank 12 has water pump 13, water pump 13's the end of intaking is connected with drinking-water pipe 14, water pump 13's play water end is connected with and extends to 1 inside raceway 10 that is linked together to the device main part and with spouting dish 9, conveniently carry water to spouting in the dish 9 through raceway 10.
Please refer to fig. 1-2, a plurality of nozzles 15 are distributed at the bottom of the spray plate 9 in an annular array, the spray plate 9 is communicated with the nozzles 15, and the nozzles 15 can spray water, thereby improving the cleaning effect of the filter screen cylinder 7; both sides of the material guide block 17 are inclined downwards along the direction of the material discharge pipe 18, the top of the material guide block 17 is smooth, so that impurities accumulated on the material guide block 17 can flow into the material discharge pipe 18 through water flow, and the discharge efficiency of the impurities is improved.
Please refer to fig. 1-4, the screw rod 5 is connected with the thread bushing 6 by a thread, the bottom end of the screw rod 5 is connected with the top of the bottom barrel 16 by a bearing, the thread bushing 6 can move on the screw rod 5, thereby conveniently driving the scraping ring brush 21 to move; the inner wall of the scraping ring brush 21 is provided with brush hair, the scraping ring brush 21 is in contact with the filter screen cylinder 7, and the scraping ring brush 21 moves to clean dust and impurities on the filter screen cylinder 7, so that the filter screen cylinder 7 can be prevented from being blocked by the dust and the impurities.
Please refer to fig. 1-2, the top of the main body 1 is connected with an air inlet pipe 3, the bottom of the main body 1 is provided with a discharge port 19, so that air can enter the filter screen cylinder 7 through the air inlet pipe 3, and dust and impurities can be discharged from the discharge port 19; the outer surface mounting of device main part 1 has operation panel 22, and operation panel 22 respectively with motor 4, solenoid valve 20 and water pump 13 electric connection, and the person of facilitating the use opens or closes motor 4, solenoid valve 20 and water pump 13 through operation panel 22.
The working principle is as follows: firstly, a user installs the dust remover and connects a power supply, gas enters a filter screen cylinder 7 through an air inlet pipe 3, the gas flows into the interior of a device main body 1 after being filtered by the filter screen cylinder 7 and is discharged through an exhaust pipe 2, when dust and impurities on the filter screen cylinder 7 need to be cleaned, the user starts a motor 4 and a water pump 13 through an operation table 22, the motor 4 works to drive a screw rod 5 to rotate, the screw rod 5 rotates to drive a threaded sleeve 6 to move, the threaded sleeve 6 moves to drive a scraping ring brush 21 to move, the scraping ring brush 21 can clean the dust and the impurities on the filter screen cylinder 7 when moving due to the fact that the inner wall of the scraping ring brush 21 is contacted with the outer wall of the filter screen cylinder 7, meanwhile, the water pump 13 works to enable a water pumping pipe 14 to pump water in a water storage tank 12, the water is input into a spray disc 9 through a water conveying pipe 10 and then is sprayed onto the filter screen cylinder 7 through a spray nozzle 15, and the filter screen cylinder 7 can be cleaned by matching with the scraping ring brush 21, at the same time, the user activates the solenoid valve 20 through the console 22 to cause the impurities, dust and water to pass through the discharge pipe 18 and to be discharged through the discharge port 19.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
