Abstract
本申请涉及一种高度可调节的建筑工程造价咨询平台，属于咨询设备技术领域，高度可调节的建筑工程造价咨询平台包括安装座，所述安装座上开设有安装槽，所述安装槽内设置有显示屏，所述显示屏上设置有转动轴，所述安装座上开设有滑槽，所述滑槽与安装槽连通，所述转动轴活动连接在滑槽内，所述安装座上铰接有保护盖，所述保护盖的转动轴线平行于显示屏的转动轴线，所述显示屏上设置有用于连接保护盖的连接件。本申请具有便于使用显示屏的效果。
The present application relates to a height-adjustable construction engineering cost consulting platform, belonging to the technical field of consulting equipment. The height-adjustable construction engineering cost consulting platform includes a mounting seat, and a mounting groove is formed on the mounting seat, and an installation groove is arranged in the mounting groove. There is a display screen, the display screen is provided with a rotating shaft, the mounting seat is provided with a chute, the chute is communicated with the mounting groove, the rotating shaft is movably connected in the chute, and the mounting seat is hinged There is a protection cover, the rotation axis of the protection cover is parallel to the rotation axis of the display screen, and the display screen is provided with a connecting piece for connecting the protection cover. The present application has the effect of facilitating the use of the display screen.
Description
Technical Field
The application relates to the technical field of consulting equipment, in particular to a height-adjustable construction project cost consulting platform.
Background
The project cost consultation refers to the social acceptance commission, the whole process of undertaking construction projects and dynamic cost management, and comprises the services of feasibility research, investment estimation, project economic evaluation, project approximate calculation, budget, project settlement, project completion settlement, project bid approval, bid price compilation and verification, project cost monitoring, and project cost information data providing.
In the related art, for example, chinese patent document with publication number CN209281306U discloses a height-adjustable construction cost consulting platform for construction engineering, which comprises a display mechanism, a box body and a telescopic mechanism, wherein the display mechanism comprises a connector and a liquid crystal touch screen, the upper end of the connector is fixedly connected with the liquid crystal touch screen, and the connector is fixedly connected with the box body. The box body is driven to slide through the telescopic structure, so that the liquid crystal touch screen slides to a required position.
In view of the above-mentioned related technologies, the inventor found that a lot of dust can be accumulated on the surface of the liquid crystal display screen in the idle process after the liquid crystal display screen is not used for a long time, which affects the subsequent use.
SUMMERY OF THE UTILITY MODEL
To facilitate the use of the display screen, the application provides a height-adjustable construction project cost consultation platform.
The application provides a height-adjustable's building engineering cost consultation platform adopts following technical scheme:
the utility model provides a building engineering cost consultation platform with adjustable height, includes the mount pad, the mounting groove has been seted up on the mount pad, be provided with the display screen in the mounting groove, be provided with the axis of rotation on the display screen, the spout has been seted up on the mount pad, spout and mounting groove intercommunication, axis of rotation swing joint is in the spout, it has the visor to articulate on the mount pad, the axis of rotation of visor is on a parallel with the axis of rotation of display screen, be provided with the connecting piece that is used for connecting the visor on the display screen.
By adopting the technical scheme, when the display screen is not needed, the display screen is positioned in the mounting groove, and the operating surface of the display screen faces to the direction close to the bottom wall of the mounting groove, so that the possibility of dust accumulation on the operating surface of the display screen is reduced; when the display screen needs to be used, the protective cover is rotated, the display screen is adjusted through the connecting piece, the rotating shaft slides simultaneously, the rotating shaft slides to one end of the sliding groove far away from the protective cover, the display screen is rotated to enable the display screen to be abutted against the protective cover, and therefore the display screen is turned over, and the display screen is used favorably.
Preferably, the connecting piece comprises connecting rods respectively hinged to one surface of the display screen facing the protective cover and the protective cover, the connecting rods are hinged to each other, and the hinge axis of each connecting rod is parallel to the rotation axis of the rotation shaft.
Through adopting above-mentioned technical scheme, adjust the display screen through the connecting rod to do benefit to and overturn display screen to suitable angle, facilitate for the use of display screen.
Preferably, a spring for pushing the rotating shaft to slide is arranged between the mounting groove and the rotating shaft, one end of the spring is arranged on the side wall of the mounting groove, and the other end of the spring is rotatably arranged on the rotating shaft.
Through adopting above-mentioned technical scheme, when rotating the display screen, the spring promotes the axis of rotation and slides, is favorable to the slip of display screen, facilitates for the use of display screen.
Preferably, the chute is provided with a magnet for adsorbing the rotating shaft at one end far away from the protective cover, and the rotating shaft is a metal shaft.
Through adopting above-mentioned technical scheme, the axis of rotation slides to the spout and keeps away from the one end of visor, and magnet adsorbs the axis of rotation to fix the axis of rotation to suitable angle, take place unnecessary rotation in order to avoid the display screen in the use.
Preferably, the one side that the display screen is close to the visor is seted up and is used for holding the holding tank of connecting rod, the connecting rod articulates in the holding tank.
Through adopting above-mentioned technical scheme, when need not use the display screen, rotate the display screen, put into the mounting groove with the display screen in, rotate the visor, put into the holding tank with the connecting rod in, be favorable to accomodating and using of connecting rod.
Preferably, still include the organism, the mount pad slides and sets up on the organism, be provided with the gliding electric jar of order about the mount pad on the organism.
Through adopting above-mentioned technical scheme, start the electric jar and promote the mount pad and slide to adjust the mount pad to suitable height, so that the use of display screen.
Preferably, the pen is arranged on the mounting seat, the elastic clamping ring matched with the pen in a clamping manner is arranged on the mounting seat, and an opening for the pen to move in or out is formed in the elastic clamping ring.
Through adopting above-mentioned technical scheme, when the user need do the record, adopt the joint mode of pen and elasticity joint ring to do benefit to the use and the placing of pen, improve user's experience and feel.
Preferably, the machine body is provided with a hook, and the hook is connected with a paper clamping plate in a hanging manner.
Through adopting above-mentioned technical scheme, through the mode that articulates between double-layered cardboard and the couple, be favorable to taking off the double-layered cardboard, facilitate for the use and the accomodating of double-layered cardboard.
In summary, the present application includes at least one of the following beneficial technical effects:
1. when the display screen needs to be used, the protective cover is rotated, the display screen is adjusted through the connecting piece, meanwhile, the rotating shaft is slid to one end, away from the protective cover, of the sliding groove, and the display screen is rotated to enable the display screen to be abutted against the protective cover, so that the display screen is turned over, and the use of the display screen is facilitated;
2. the rotating shaft slides to one end of the sliding groove, which is far away from the protective cover, and the magnet adsorbs the rotating shaft, so that the rotating shaft is fixed to a proper angle, and the display screen is prevented from rotating unnecessarily in the using process;
3. the electric cylinder is started to push the mounting seat to slide so as to adjust the mounting seat to a proper height and facilitate the use of the display screen.
Drawings

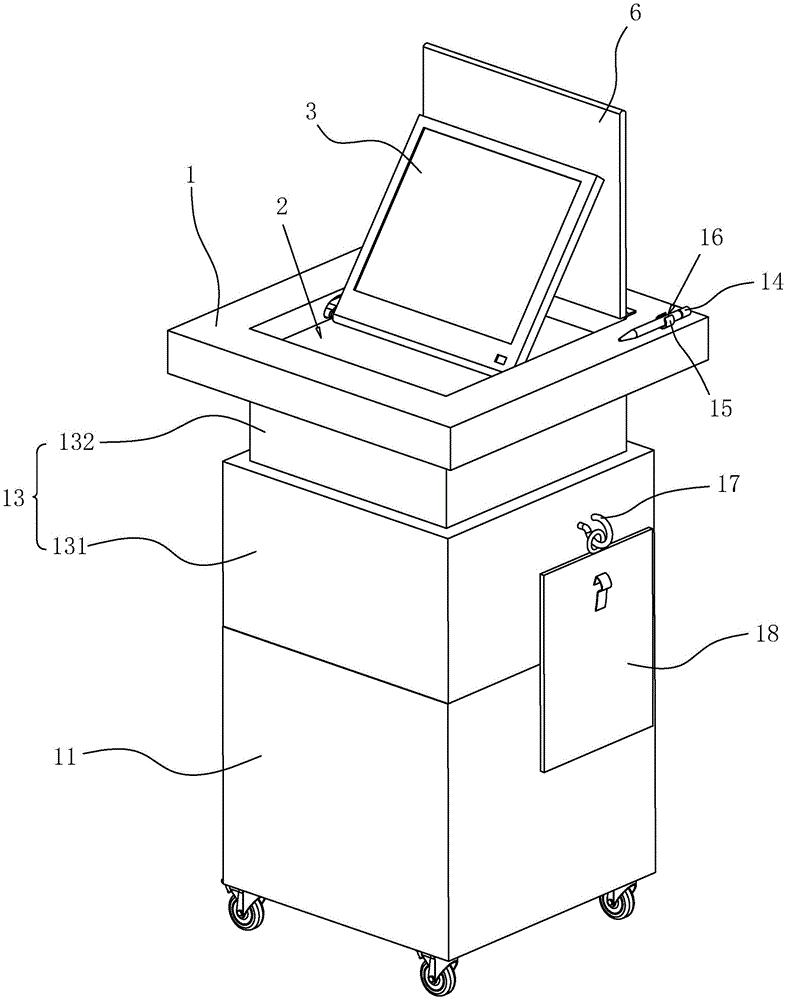

Fig. 1 is a schematic overall structure diagram of an embodiment of the present application.
Fig. 2 is a sectional view of the entire structure of the embodiment of the present application.
Fig. 3 is a sectional view of the entire structure of the mount in the embodiment of the present application.
Fig. 4 is an enlarged view of a portion a in fig. 3.
Description of reference numerals: 1. a mounting seat; 2. mounting grooves; 3. a display screen; 4. a rotating shaft; 5. a chute; 6. a protective cover; 7. a connecting rod; 8. a spring; 9. a magnet; 10. accommodating grooves; 11. a body; 12. an electric cylinder; 13. a telescopic column; 131. an outer column; 132. an inner column; 14. a pen; 15. an elastic clamping ring; 16. an opening; 17. hooking; 18. a paper clamping plate; 19. a handle; 20. a dovetail block; 21. a dovetail groove.
Detailed Description
The present application is described in further detail below with reference to figures 1-4.
The embodiment of the application discloses a height-adjustable construction project cost consultation platform. Referring to fig. 1 and 2, the height-adjustable construction cost consultation platform for construction engineering comprises a machine body 11, a mounting seat 1 is slidably arranged on the machine body 11, a mounting groove 2 is formed in the mounting seat 1, a display screen 3 is arranged in the mounting groove 2, a rotating shaft 4 is fixedly connected to the display screen 3, the rotating axis of the rotating shaft 4 is in the horizontal direction, a sliding groove 5 is formed in the mounting seat 1, the rotating shaft 4 is movably connected in the sliding groove 5, the sliding groove 5 is communicated with the mounting groove 2, a protective cover 6 is hinged to the mounting seat 1 through a hinge, the rotating axis of the protective cover 6 is parallel to the rotating axis of the display screen 3, and a handle 19 is fixedly connected to the protective cover 6 so as to turn over the protective cover 6; be provided with the connecting piece that is used for connecting visor 6 on the display screen 3, the one end that visor 6 was kept away from to spout 5 sets up to the arc to carry on spacingly to axis of rotation 4.
Referring to fig. 2, in order to facilitate the sliding of the display screen 3, the connecting member includes a connecting rod 7 respectively hinged on one side of the display screen 3 facing the protective cover 6 and the protective cover 6, the two connecting rods 7 are hinged to each other, a holding groove 10 for holding the connecting rod 7 is provided on one side of the display screen 3 close to the protective cover 6, the connecting rod 7 is hinged in the holding groove 10, and the hinge axis of the connecting rod 7 is parallel to the rotation axis of the rotation shaft 4.
When the display screen 3 is not needed to be used, the operation surface of the display screen 3 faces to the direction close to the bottom wall of the mounting groove 2, and the protective cover 6 has a protective effect on the display screen 3, so that dust is reduced from attaching to the display screen 3; when the display screen 3 is needed to be used, the protective cover 6 is rotated by the pulling handle 19, the display screen 3 is adjusted through the connecting rod 7, the protective cover 6 is far away from one end of the sliding rotating shaft 4 to the sliding groove 5, the display screen 3 is enabled to be abutted against the protective cover 6, and therefore the display screen 3 is turned over, operation is easy, and convenience is brought to the use of the display screen 3.
Referring to fig. 3 and 4, in order to facilitate the use of the display screen 3, a spring 8 for pushing the rotating shaft 4 to slide is arranged between the side wall of the mounting groove 2 and the rotating shaft 4, one end of the spring 8 is fixedly connected to the side wall of the mounting groove 2, the other end of the spring 8 is connected with a dovetail block 20, a dovetail groove 21 in sliding fit with the dovetail block 20 is formed in the rotating shaft 4, and the dovetail grooves 21 are circumferentially arranged along the rotating shaft 4; one end of the chute 5, which is far away from the protective cover 6, is fixedly connected with a magnet 9 for adsorbing the rotating shaft 4, and the rotating shaft 4 is a metal shaft, in this embodiment, the rotating shaft 4 is an iron shaft.
Rotate display screen 3 and drive axis of rotation 4 and rotate, spring 8 promotes axis of rotation 4 and slides towards the direction of keeping away from visor 6 to promote axis of rotation 4 and slide to the one end that visor 6 was kept away from to spout 5, magnet 9 adsorbs axis of rotation 4, prescribes a limit to axis of rotation 4 and rotates, fixes axis of rotation 4 to certain angle, so that the user uses, the unnecessary rotation appears when reducing the use.
Referring to fig. 2, a telescopic column 13 is arranged between the machine body 11 and the mounting base 1, the telescopic column 13 includes an outer column 131 fixedly connected to the machine body 11 and an inner column 132 slidably arranged in the outer column 131, the inner column 132 is fixedly connected to the mounting base 1, an electric cylinder 12 is arranged in the outer column 131, and the mounting base 1 is connected to an output end of the electric cylinder 12. The electric cylinder 12 is started to drive the mounting base 1 to slide, and the mounting base 1 is slid to the required height, so that a user can conveniently adjust the position of the display screen 3 according to the use requirement.
Referring to fig. 1 and 3, a pen 14 is detachably connected to the mounting base 1, an elastic clamping ring 15 matched with the pen 14 in a clamping mode is fixedly connected to the mounting base 1, an opening 16 used for allowing the pen 14 to move in or out is formed in the elastic clamping ring 15, a hook 17 is fixedly connected to the outer column 131, and a paper clamping plate 18 is hung on the hook 17. When a user needs to record, the pen 14 is taken down from the elastic clamping ring 15, and the paper clamping plate 18 is taken down from the hook 17 for recording, so that convenience is brought to the use of the user.
The implementation principle of the embodiment of the application is as follows: when need not use display screen 3, display screen 3 is located mounting groove 2, and display screen 3's operation face orientation is close to the direction of the 2 diapalls of mounting groove, and visor 6 has the guard action to display screen 3 to reduce the dust and adhere to on display screen 3.
When needs use display screen 3, pulling handle 19 rotates visor 6, adjust display screen 3 through connecting rod 7, the spring 8 that is in compression state this moment promotes axis of rotation 4 and slides towards the direction of keeping away from visor 6, axis of rotation 4 slides to the one end that visor 6 was kept away from to spout 5, magnet 9 adsorbs axis of rotation 4, it rotates to inject axis of rotation 4, fix axis of rotation 4 to certain angle, make 3 butt of display screen on visor 6, thereby realize the upset of display screen 3, and the operation is simple, use for display screen 3 facilitates.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
