CN215124655U

CN215124655U - Convenient nursing device

Info

Publication number: CN215124655U
Application number: CN202121070221.8U
Authority: CN
Inventors: 赵诚; 关欣
Original assignee: Xuan Wu Hospital of the Capital Medical University
Current assignee: Xuan Wu Hospital of the Capital Medical University
Priority date: 2021-05-18
Filing date: 2021-05-18
Publication date: 2021-12-14
Anticipated expiration: 2031-05-18

Abstract

The utility model relates to a convenient nursing device, which at least comprises a trousers body, the trousers body is composed of a trousers head and two trouser legs which are sewn together with the trousers head, and a urine bag for placing a urine bag can be selectively installed on the trouser legs. bag accommodating components, at least two of the urine bag accommodating components are separately arranged on the two trouser legs in a manner capable of respectively storing the same weight of urine; the trouser head is provided with a puncture observation portion capable of performing puncture point observation and puncture point protection The puncture observation part at least includes an observation window and a cover, wherein the observation window is positioned and opened on the trousers in a way that can expose the puncture point, and the cover selectively connected with the trousers can provide observation window to block. By arranging two mutually symmetrical urine bag accommodating components, the device can make the drained urine flow into the urine bags located on the two trouser legs at the same time, so that the increased weight of the two trouser legs is equal, and the urine bag can reduce the impact of the urine bag on the patient's activities. influences.

Description

Convenient nursing device

Technical Field

The utility model relates to a medical care apparatus technical field especially relates to a convenient nursing device.

Background

Generally, a patient who has difficulty in moving, urinary incontinence or unsmooth urination can use the drainage bag for collecting wound drainage liquid or urine, and the patient often hangs the drainage bag on clothes to move conveniently when using the drainage bag, but the drainage bag is not only unattractive and not elegant, but also exposes the privacy of the patient and increases the psychological burden of the patient. In addition, in the clinical treatment, many patients need to keep an indwelling catheter or an abdominal cavity drainage tube for auxiliary treatment. After the catheter is kept, the common patient trousers bring a great deal of inconvenience to the conditions of placing the urinary catheter for the patient, smoothly flowing urine of the bedridden patient, getting out of bed for the patient, moving the patient and the like, and also cause a lot of embarrassment for the patient. Meanwhile, the trousers of the common patient are not provided with openings, and the drainage tube needs to be extended out of the waist of the patient during nursing, so that the backflow is easy to occur. The indwelling urinary catheter may be twisted, pressed and displaced by the posture of the patient, which may lead to urinary system infection, urinary catheter blockage, etc.

Under the general condition, the ureter needs to be fixed with the sticky tape, tearing repeatedly of sticky tape causes skin allergic ulceration easily and arouses fever, the pruritus, and simultaneously, the urine bag that the ureter is connected exposes outside, causes the emergence of infection easily, and can bring the inelegance in the vision for patient and personnel on every side, influence patient's personality dignity, inconvenient protection patient's privacy, when patient moves, need hang the urine bag on patient's trouser legs or mention by other people, lead to patient's inconvenience of action.

Chinese patent CN209931576U discloses a special nursing pants for indwelling catheterized patient. A pair of special nursing trousers for indwelling catheterization patients is characterized in that a cutting opening is formed in the upper portion of the front face of each nursing trousers, and the nursing trousers are divided into an opening portion and a wearing portion through the cutting opening; the opening part and the wearing part are opened or closed through a connecting piece; a thin belt for fixing the catheter is arranged below the lowest end of the cutting opening on the outer side of the nursing trousers; a pocket for placing a urine bag is arranged below the thin belt. The utility model discloses a beneficial effect is: the comfortable pillow is suitable for various body types, has better comfort, is convenient to open and is durable; the catheter fixing device can be used for fixing the catheter when a patient lies in bed and can also be used for fixing the catheter when the patient gets out of the bed to move, so that traction is reduced; the urine collecting bag can be placed in the pocket, so that the urine collecting bag is more concealed and more convenient for the patient to move and live; the catheter is worn out from the tail end of the magic tape, and the difficult urination and the urine reflux phenomenon can not occur. However, the patent does not fix the urinary catheter, and the urinary catheter is easy to hang during the movement of the patient; the urine bag only locates on a trouser legs and makes two legs weight different easily, influences patient's normal walking, in addition, does not set up corresponding observation window to puncture the position, and the recovery condition of unable convenient observation puncture point has increased medical personnel and has carried out the degree of difficulty that the wound was observed.

Furthermore, on the one hand, due to the differences in understanding to the person skilled in the art; on the other hand, since the inventor studied a lot of documents and patents when making the present invention, but the space did not list all details and contents in detail, however, this is by no means the present invention does not possess these prior art features, but on the contrary the present invention has possessed all features of the prior art, and the applicant reserves the right to increase the related prior art in the background art.

SUMMERY OF THE UTILITY MODEL

Aiming at the defects of the prior art, the technical scheme of the utility model is to provide a convenient nursing device, which at least comprises a trouser body, wherein the trouser body comprises trouser tops and two trouser legs integrally sewed with the trouser tops, the trouser legs are selectively provided with urine bag containing components for containing urine bags, and at least two urine bag containing components are respectively arranged on the two trouser legs in a manner of storing urine with the same weight; the underpants are provided with a puncture observation part capable of observing puncture points and protecting the puncture points, the puncture observation part at least comprises an observation window and a cover body, wherein the observation window is positioned and opened according to a mode capable of exposing the puncture points on the underpants, and the cover body is selectively connected with the underpants and can shield the observation window.

According to a preferred embodiment, the urine bag receiving assembly comprises at least a bag body, a first connecting member and a limit snap, wherein at least one positioning edge of the bag body is detachably mounted on the outer surface of the trouser leg through the first connecting member.

According to a preferred embodiment, the limiting snap fastener comprises a male fastener body and a female fastener body, the male fastener body is arranged at the edge of the bag body close to the underpants, and the male fastener body is uniformly distributed along the sideline direction of the bag body; the plurality of female buckle bodies are buckled with the secondary buckle bodies in a mode that the bag bodies can be flatly paved on the trouser legs.

According to a preferred embodiment, the urine bag containing components are symmetrically arranged on the two trouser legs, the single urine containing component 2 can fix the urine bag on the trouser legs in a manner of limiting the space size, and the urine bag communicated with the urine pipe is selectively placed into the space limited by the bag body and the trouser legs under the condition that the limiting snap fasteners are not buckled.

According to a preferred embodiment, the cover body comprises at least a surface layer and an inner layer, the inner layer is detachably connected with the surface layer in a mode that the inner layer can shield the window area defined by the observation window, so that the inner layer can be detached and replaced according to the using condition of the inner layer.

According to a preferred embodiment, the edge of the cover body is further provided with a second connecting piece connected with the edge of the observation window arranged on the underpants, and the third connecting piece can selectively connect the cover body with the underpants, so that the cover body can shield the observation window.

According to a preferred embodiment, the trousers body is further provided with a urinary catheter fixing assembly capable of fixing the position of a urinary catheter, the urinary catheter fixing assembly at least comprises a first fixing piece and a second fixing piece, and the first fixing piece is installed on the trousers body along a set path.

According to a preferred embodiment, the second fixing member is connected to the first fixing member in such a way that its body can be attached to the first fixing member, and the urinary catheter is laid between the first and second fixing members along a set path so that the first and second fixing members bonded to each other can define the position of the urinary catheter.

According to a preferred embodiment, said urinary catheter comprises at least a urinary catheter insertable into the urinary bladder of a human being and at least two drainage tubes connected to said urinary catheter by means of a three-way valve.

According to a preferred embodiment, the openings at the ends of the underpants far away from the trouser legs are also provided with trouser waists which can enable the trouser body to be worn on the lower limbs of a patient in a limiting way.

The utility model has the advantages of:

the detachable urine bag containing component is arranged, so that a bag body is installed on nursing trousers of a patient according to requirements, the patient can conveniently select the structure of the trousers body according to requirements, the manufacturing cost and the weight of the trousers body are reduced without detaching redundant structures, the use of the patient is facilitated, and meanwhile, by arranging two mutually symmetrical urine bag containing components, the drained urine can simultaneously flow into the urine bags on the two trouser legs, so that the increased weights of the two trouser legs are equal, and the influence of the urine bags on the movement of the patient is reduced; in addition, a urinary catheter fixing component is detachably arranged on the trousers body of the device, and when the urinary catheter is required to conduct drainage, the component can fix the urinary catheter positioned outside the trousers body, so that the urinary catheter can be only limited on the surface of the trousers body and can be arranged along a set path; finally, the observation part corresponding to the puncture part is arranged on the trousers body, so that the observation of the puncture part can be smoothly finished by medical personnel without dropping the nursing trousers of the patient, and the wound and pain of the patient due to the fact that the patient is pulled by taking off the nursing trousers are avoided.

Drawings

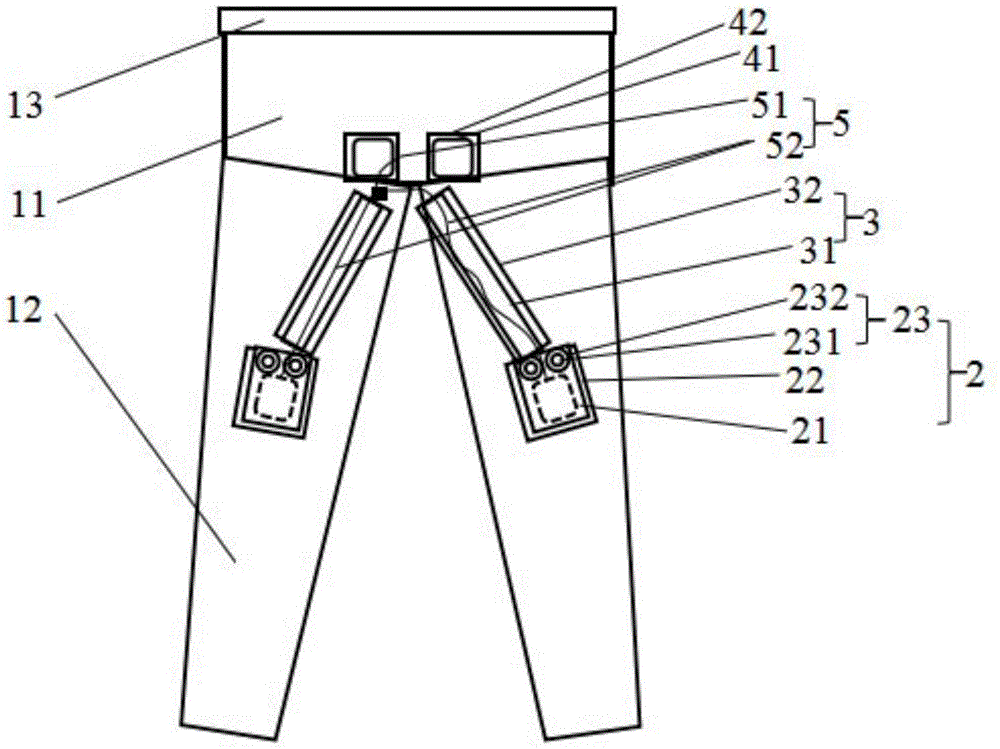

FIG. 1 is a schematic structural view of a preferred embodiment of a portable care device of the present invention;

fig. 2 is a schematic structural view of a preferred embodiment of the cover of the portable nursing device of the present invention.

List of reference numerals

1: and (3) the trousers body 2: urine bag containing assembly 3: urinary catheter fixing component

4: puncture observation unit 5: the urinary catheter 11: underpants

12: the trouser legs 13: waist of trousers 21: bag body

22: first connecting member 23: the limit snap fasteners 231: sub-button body

232: the female buckle body 31: first fixing member 32: second fixing part

41: the observation window 42: cover 43: second connecting piece

421: surface layer 422: inner layer 51: catheter

52: drainage tube

Detailed Description

The following detailed description is made with reference to fig. 1 to 2.

Example 1

A portable nursing device comprises a trousers body 1, a urine bag containing component 2, a urinary catheter fixing component 3 and a puncture observation part 4.

According to a specific embodiment, a urine bag containing assembly 2 for stably placing a urine bag is detachably mounted on the pants body 1 according to whether the patient has a need to drain urine. The urine bag holds 2 minutes and locates on two trouser legs of the trousers body 1 to the urine that gets into the urine bag at the drainage can increase two trouser legs simultaneously and to the weight that the human body was applyed, has avoided unilateral trouser legs weight overweight, influences patient's normal action ability. The trousers body 1 is also provided with a urinary catheter fixing component 3. The urinary catheter fixing component 3 can fix the urinary catheter 5 led out from the urinary bladder of the human body and limit the position thereof on the pants body 1, so that the urinary catheter is communicated with a urinary bag arranged in the urinary bag accommodating component 2 in a set path. Subassembly 3 is fixed to ureter can selectively cladding in the trousers body 1 or depend on the trousers body 1 surface for ureter 5 can follow the trousers body 1 and move, avoids ureter and the trousers body 1 to be the separation attitude and influences the trousers body 1 and follow patient's limbs and move or the ureter is dragged by the foreign object and causes patient's health damage and urine return circuit to take place to reveal. The trousers body 1 is also provided with a puncture observation part 4 which can check the puncture position and protect the puncture point according to the puncture position of the patient. The medical care personnel can observe the healing condition of the puncture site from the observation window of the puncture observation part 4 under the condition that the patient does not take off the patient trousers, and the puncture observation part 4 can protect the puncture site to a certain extent.

As shown in figure 1, the trousers body 1 is composed of a trouser top 11 and two trouser legs 12 which are integrally sewn with the trouser top 11, and the trouser legs 12 are selectively provided with a urine bag containing component 2 for containing a urine bag. Two urine bag hold subassembly 2 and divide according to the mode that can save equal weight urine respectively and locate two trouser legs 12 on to when the leading-in urine of ureter 5 to urine bag, the weight that two trouser legs 12 increase is close to equally, and then has avoided one side weight overweight and influence the normal motion such as walking of patient. The opening of the end of the underpants 11 far away from the trouser legs 12 is also provided with a trouser waist 13 which can enable the trouser body 1 to be worn on the lower limbs of a patient in a limiting way. The urine bag receiving assembly 2 is arranged in a symmetrical manner on the two legs 12. The single urine receiving member 2 can secure the urine bag to the leg 12 in a manner that defines the amount of space. In the case that the limit snaps 23 are not fastened, the urine bag communicated with the urine tube 5 is selectively put into the space limited by the bag body 21 and the trouser legs 12.

Preferably, the urine bag containing assembly 2 comprises at least a bag body 21, a first connecting member 22 and a limit snap 23. Three positioning edges of the bag body 21 are detachably mounted on the outer surfaces of the trouser legs 12 through the first connectors 22. The positioning edges refer to the bottom edge of the bag body 21 close to the bottom of the trouser legs and two side edges in the same length direction with the trouser legs 12. Preferably, the first connecting component 22 comprises a chain body respectively arranged on the set position of the trouser legs and the positioning edge of the bag body 21. Further preferably, the chain body on the positioning edge is also provided with a zipper. When in use, the two chains are connected together through the zipper, so that a urine bag containing cavity is formed. When not needed, the medical staff or the patient can directly detach the bag body 21 from the trousers body 1. Preferably, the limit snap 23 provided at the upper edge of the bag body 21 includes a male snap body 231 and a female snap body 232. The sub-buckle 231 is installed at the edge of the body of the bag 21 close to the underpants 11, and the sub-buckle 231 is uniformly arranged along the side line direction of the bag 21. The plurality of female snap members 232 are engaged with the male snap members 231 so that the bag body 21 can be smoothly laid on the trouser legs 12. When in use, the sub-button body 231 and the corresponding female button body 232 are mutually buckled according to requirements.

The trousers body 1 is also provided with a urinary catheter fixing component 3 which can fix the position of the urinary catheter 5. The catheter fixation assembly 3 comprises a first fixation member 31 and a second fixation member 32. The first fixing member 31 is installed on the trousers body 1 along a set path. The second fixing member 32 is connected to the first fixing member 31 in such a manner that its body can be attached to the first fixing member 31. Preferably, the first fixing member 31 may be a felt strip, and the second fixing member 32 may be a hook and loop fastener that can be fitted to the felt. The urinary catheter 5 is laid between the first fixing member 31 and the second fixing member 32 along a set path so that the first fixing member 31 and the second fixing member 32 bonded to each other can define the position of the urinary catheter 5. Preferably, the urinary catheter 5 comprises at least a urinary catheter 51 insertable into the bladder of the patient and two drainage tubes 52 connected to the urinary catheter 51 by means of a three-way valve. The part of the tube body of the two drainage tubes 52 which are positioned outside the trouser legs 12 is limited in position by the urine tube fixing component 3, so that when the urine tubes are required to conduct drainage, the component can fix the urine tubes which are positioned outside the trouser body, and the urine tubes can only be limited on the surface of the trouser body and can be arranged along a set path

The underpants 11 are provided with a puncture observation part 4 which can observe and protect a puncture point. The puncture observation unit 4 includes at least an observation window 41 and a cover 42. The observation window 41 is positioned and opened on the underpants 11 according to the mode that can expose the puncture point, and the cover body 42 selectively connected with the underpants 11 can shield the observation window 41. The cover 42 is also provided at its edge with a second connector 43. The second connecting piece 43 can connect the cover body 42 and the connecting window profile edge to each other. As shown in fig. 2, the cover 42 includes a surface layer 421 and an inner layer 422. The inner layer 422 is detachably connected to the surface layer 421 in such a manner that it can cover the window area defined by the observation window 41, so that the inner layer 422 can be detached and replaced according to the use condition thereof. A second connecting piece 43 connected with the edge of the observation window 41 arranged on the underpants 11 is arranged on the side edge of the cover body 42. The third connecting member 43 can selectively connect the cover 42 with the underpants 11, so that the cover 42 can shield the viewing window 41. Preferably, the inner layer 423 of the cover 42 is larger than the area of the viewing window 41, so as to also shield the area of the second connecting member 43. The utility model has the advantages of make things convenient for medical personnel to accomplish the observation of puncture position smoothly under the condition that does not take off patient's nursing trousers, avoided taking off to wear the trousers and pulled patient's wound and painful.

It should be noted that the above-mentioned embodiments are exemplary, and those skilled in the art can devise various solutions in light of the present disclosure, which are also within the scope of the present disclosure and fall within the scope of the present disclosure. It should be understood by those skilled in the art that the present specification and drawings are illustrative only and are not limiting upon the claims. The scope of the invention is defined by the claims and their equivalents.

Claims

1. A convenient care device comprising at least a trouser body (1), the trouser body (1) being composed of a trouser head (11) and two trouser legs (12) sewn together with the trouser head (11) and formed integrally, wherein It is characterized in that a urine bag accommodating assembly (2) for placing a urine bag is optionally installed on the trouser legs (12), and at least two of the urine bag accommodating assemblies (2) are arranged separately in a manner capable of storing the same weight of urine respectively. on the two trouser legs (12);

The trousers (11) are provided with a puncture observation portion (4) capable of performing puncture point observation and puncture point protection, and the puncture observation portion (4) at least includes an observation window (41) and a cover (42), wherein,

The observation window (41) is positioned and opened on the trousers (11) in a manner capable of exposing the puncture point, and the cover (42) selectively connected with the trousers (11) can be positioned on the observation window (41) to block.

2. The convenient care device according to claim 1, wherein the urine bag accommodating assembly (2) at least comprises a bag body (21), a first connector (22) and a limit snap (23), Wherein, at least one positioning edge of the bag body (21) is detachably mounted on the outer surface of the trouser leg (12) through a first connecting piece (22).

3. The convenient nursing device according to claim 2, characterized in that, the limit snap (23) comprises a sub-button body (231) and a female button body (232), and the sub-button body (231) is installed The bag body (21) is close to the edge of the body of the trousers (11), and the sub-buttons (231) are evenly arranged along the edge of the bag (21); a plurality of the female buttons (232) The bag body (21) is fastened to the sub-button body (231) in such a way that the bag body (21) can be laid flat on the trouser leg (12).

4. The convenient care device according to claim 3, wherein the urine bag accommodating assembly (2) is arranged on the two trouser legs (12) in a relatively symmetrical manner, and a single urine accommodating assembly 2. The urine bag can be fixed on the trouser leg (12) in a way that can limit the size of its space, and the urine bag communicated with the urethra (5) when the limit snap button (23) is not fastened It is selectively put into the space limited by the bag body (21) and the trouser leg (12).

5. The convenient care device according to claim 4, wherein the cover body (42) at least comprises a surface layer (421) and an inner layer (422), and the inner layer (422) can shield the The observation window (41) is detachably connected with the surface layer (421) in the manner of the window area defined by the observation window (41), so that the inner layer (422) can be disassembled and replaced according to its usage.

6. The convenient nursing device according to claim 5, characterized in that, the edge of the cover body (42) is further provided with a second edge connected to the edge of the observation window (41) provided on the trousers (11) A connecting piece (43), the second connecting piece (43) can selectively connect the cover body (42) with the trousers (11), so that the cover body (42) can block the observation window (41).

7. The convenient nursing device according to claim 6, characterized in that, the trousers body (1) is further provided with a urinary catheter fixing component (3) capable of fixing the position of the urinary catheter (5). The tube fixing assembly (3) includes at least a first fixing piece (31) and a second fixing piece (32), wherein the first fixing piece (31) is mounted on the trousers body (1) along a set path.

8. The convenient nursing device according to claim 7, characterized in that, the second fixing member (32) is connected to the first fixing member in a manner that the body of the second fixing member (32) can be attached to the first fixing member (31). (31) connection, the urinary tube (5) is laid between the first fixing piece (31) and the second fixing piece (32) along a set path, so that the first fixing piece (31) which is bonded to each other And the second fixing member (32) can define the position of the urinary catheter (5).

9. The convenient nursing device according to claim 8, characterized in that, the urinary catheter (5) at least comprises a urinary catheter (51) capable of being inserted into a human bladder, and a three-way valve and the urinary catheter (51) ) connected at least two drainage tubes (52).

10. The convenient nursing device according to claim 9, characterized in that, on the opening at one end of the trousers head (11) away from the trouser leg (12), there is further provided with a device that enables the trousers body (1) to be worn on the patient's lower limbs in a limited position. on the waistband (13).
