CN215103704U - Textile melt mixing barrel

Info

Publication number: CN215103704U
Application number: CN202120909700.8U
Authority: CN
Inventors: 张敬龙
Original assignee: Wuxi Juxin Technology Co ltd
Current assignee: Wuxi Juxin Technology Co ltd
Priority date: 2021-04-29
Filing date: 2021-04-29
Publication date: 2021-12-10
Anticipated expiration: 2031-04-29

Abstract

The utility model particularly relates to a textile melt mixing material cylinder, which comprises a support table, a material barrel is arranged on the upper end of the support table, a bracket provided on the left side of the material barrel is provided with a first motor, and the feeding screw The end surface of the groove is evenly provided with a cleaning scraper, the feeding port is fixed with a mixing cylinder, the upper end of the mixing cylinder is provided with a box body, and the rear end surface of the guide slider is provided with a mixing and stirring mechanism. The rotation of the first pulley can drive the coaxial drive gear to rotate, and the drive gear rotates so that the meshing rack can move up and down, so the mixing mechanism located under the rack slides up and down on the surface of the guide rod through the guide slider Therefore, it can drive the starting mixing motor to move up and down to fully and evenly mix the textile melt raw materials inside the mixing cylinder, thereby avoiding the phenomenon that a large number of textile melts are formed into agglomerates during the mixing and stirring process, and it is not easy to Clogging caused by extrusion.

Description

Textile melt mixing barrel

Technical Field

The utility model belongs to the technical field of the textile processing, concretely relates to weaving fuse-element mixing feed cylinder.

Background

Melt spinning, referred to as melt spinning. The chemical fiber spinning method is that polymer is heated and melted, extruded through a spinneret orifice and cooled and solidified in air to form fibers. The polymer used for melt spinning must be melted into viscous state without significant decomposition, polyester fiber, polyamide fiber and polypropylene fiber can be produced by melt spinning method, the existing dynamic mixing cylinder generally comprises a mixing shaft and a mixing sleeve, at least one mixing device used for melt mixing is arranged between the mixing shaft and the mixing sleeve, the melt spinning is textile melt formed by mixing two or more than two raw materials and is mainly used for manufacturing textile processing and the like, at present, in the technical field of mixing and stirring of textile melt, all raw materials are mixed in the cylinder to mix various melt raw materials, and in the production and stirring of the textile melt, a large amount of the textile melt can generate agglomeration and blocking phenomena and is not easy to extrude to cause blocking phenomena, so that the raw materials in the production of the textile melt can not be fully mixed and stirred, the quality of the textile melt is seriously affected.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a weaving fuse-element mixture section of thick bamboo to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a textile melt mixing cylinder comprises a supporting table, a cylinder is arranged at the upper end of the supporting table, a discharge nozzle is arranged at the left side of the cylinder, a first motor is arranged in a support arranged at the left side of the cylinder, a rotating shaft rod is connected with the output end of the first motor in a transmission manner, one end of the rotating shaft rod penetrates through the interior of the cylinder and extends to the interior of the cylinder, a feeding screw groove is spirally arranged on the surface of one end of an extending part of the rotating shaft rod, a cleaning scraper blade is uniformly arranged on the end surface of the feeding screw groove, a heating plate is arranged on the periphery of the interior of the cylinder, a feeding port is arranged at the left side of the end surface of the cylinder, a mixing cylinder is fixed on the feeding port, a feeding pipe is arranged at the upper end of the right side of the mixing cylinder, cylinders are arranged at two sides of the mixing cylinder and positioned at two sides of the cylinder, a box body is arranged at the upper end of the interior of the box body, a transverse plate is arranged at the right side of the end surface of the transverse plate, a second motor is arranged at the right side of the transverse plate, the left side of second motor is equipped with the support, it is equipped with the transmission shaft to rotate on the support, be equipped with drive gear and first belt pulley on the transmission shaft respectively, one side meshing of drive gear is equipped with the rack, the bottom symmetry of diaphragm is equipped with the direction slide bar two sets of, and is two sets of all be equipped with the direction slider on the direction slide bar, the rear end face of direction slider is equipped with mixes rabbling mechanism.

As the further optimization of this technical scheme, the activity is run through to the both sides of mixing drum and is equipped with movable baffle two sets ofly, two sets of movable baffle's one end extends to the inside activity wainscot setting of mixing drum, plays the sealed effect of keeping off the material, and two sets of movable baffle's other end bottom side is equipped with and drives the actuating block, realizes the removal effect of opening and shutting of movable baffle, the bottom one side that drives the actuating block and the telescopic link one end fixed connection of cylinder play the regulation effect to movable baffle.

As a further optimization of the technical scheme, the middle of the transverse plate is provided with a positioning through groove, so that the rack can move up and down, one end of the rack extends to the bottom side of the transverse plate through the positioning through groove and is fixedly connected with the top end of the mixing and stirring mechanism, and the mixing and stirring mechanism can move up and down.

As the further optimization of this technical scheme, mix rabbling mechanism includes the movable plate, realizes that hybrid motor's setting is fixed, the preceding terminal surface of movable plate is equipped with hybrid motor, hybrid motor's output transmission is connected with the (mixing) shaft, evenly be equipped with mixed puddler on the (mixing) shaft, realize the efficiency to the mixing of weaving fuse-element.

As a further optimization of the technical scheme, a through hole is formed in the middle of the top end of the box body and vertically corresponds to the rack, and a limiting strip plate is arranged on the top end of the rack to achieve the effect of limiting the movement of the rack.

As the further optimization of this technical scheme, be equipped with the second belt pulley on the output shaft of second motor, the second belt pulley is connected through the transmission between the belt that is equipped with and the first belt pulley, can order about the rack and reciprocate, the terminal surface lopsidedness of feed cylinder is equipped with the bracing piece, improves the stability of whole device, and the other end of bracing piece and the left side upper end fixed connection of box, can guarantee the stability in the box working process, the support connection has the support horizontal pole between the bottom side of bracing piece and the left side of mixing drum, has guaranteed the stability of mixing drum when mixing the stirring.

The utility model discloses a technological effect and advantage: the textile melt mixing barrel comprises a cylinder, two groups of movable baffles, a first belt wheel, a second belt wheel, a guide slide bar, a guide slide block, a first belt wheel, a second belt wheel, a guide slide bar, a first guide slide block and a second guide block, wherein the two groups of movable baffles are driven by the retraction of the cylinder to move in a moving manner so that the first belt wheel can drive the drive gear coaxial with the first belt wheel to rotate and the drive gear to rotate, the gear engaged with the gear can move up and down, the mixing stirring mechanism below the gear can slide up and down on the surface of the guide slide bar through the guide slide block, so that the textile melt raw materials inside the mixing barrel can be fully and uniformly mixed, and further, the phenomenon that a large amount of textile melt is agglomerated in the mixing process is avoided, and the phenomenon that the textile melt is not easy to extrude to cause blockage is not easy to occur, and the raw materials in the production of the textile melt can not be fully mixed and stirred, which seriously influences the quality of the textile melt.

The textile melt after mixing in the mixing cylinder drives the movable baffle to move towards the outer parts of the two sides of the mixing cylinder through the starting of the cylinder, meanwhile, the textile melt enters the material cylinder through the arranged charging opening, at the moment, the first motor is started to drive the rotating shaft rod to rotate, the rotating shaft rod drives the feeding screw groove to rotate, so that the textile raw material is driven to extrude and convey through the rotation of the feeding screw groove, thereby the textile melt is sprayed out from the arranged discharging nozzle, and the cleaning scraper arranged on the feeding screw groove is rotationally connected with the veneering of the inner wall of the material cylinder, the residual melt on the inner wall of the material cylinder can be scraped through the rotation of the feeding screw groove, the quality problem that the extrusion is influenced by the excessive residual melt on the inner wall of the material cylinder is avoided, meanwhile, the textile melt in the material cylinder can be heated to the preset temperature through the heating plate when the heating and heat preservation are needed, thereby realizing the effect of the heating and heat preservation treatment of the textile melt, and the problem of solidification of the textile melt in the barrel is avoided.

Drawings

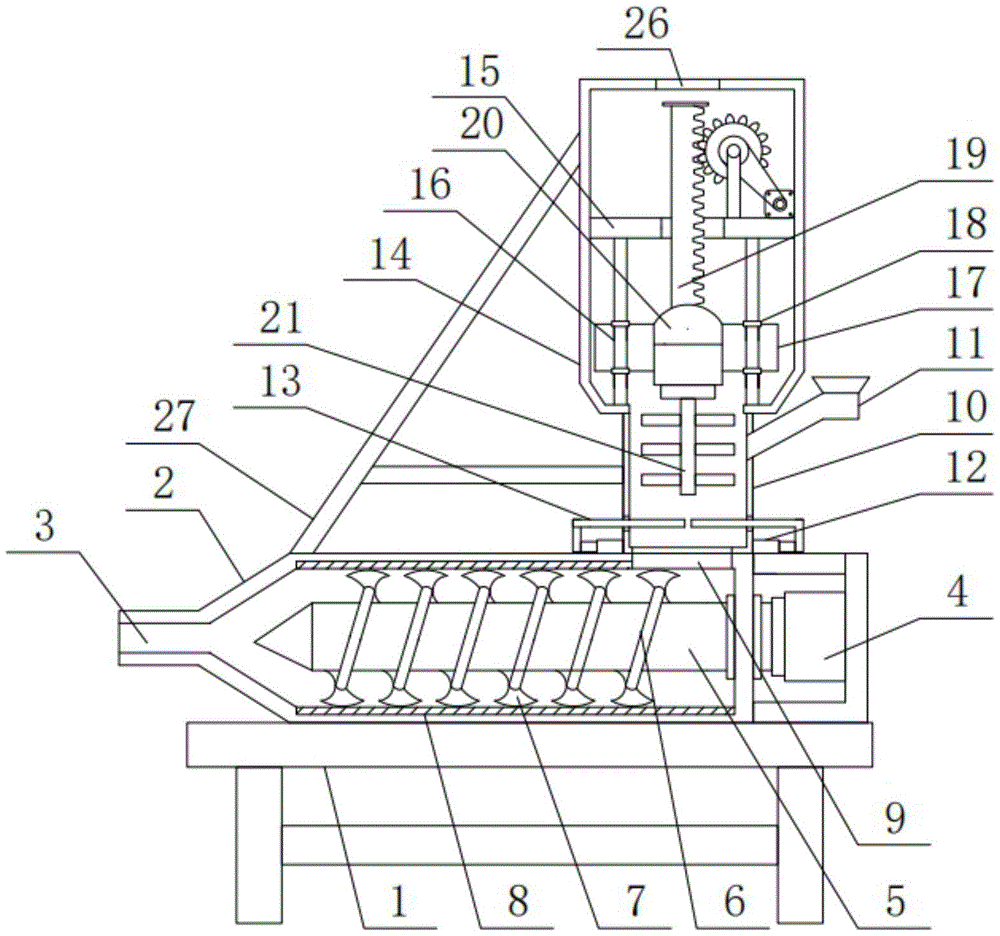

Fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic view of the external structure of the present invention;

fig. 3 is a schematic structural diagram of the internal part of the box body of the present invention.

In the figure: 1. a support table; 2. a charging barrel; 3. a discharge nozzle; 4. a first motor; 5. a spindle rod; 6. a charging screw groove; 7. a cleaning blade; 8. heating plates; 9. a feed inlet; 10. a mixing drum; 11. a feed pipe; 12. a cylinder; 13. a movable baffle; 14. a box body; 15. a transverse plate; 16. a guide slide bar; 17. a mixing and stirring mechanism; 18. a guide slider; 19. a rack; 20. a hybrid motor; 21. a stirring shaft; 22. a second motor; 23. a second pulley; 24. a drive gear; 25. a first pulley; 26. a through hole; 27. a support rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides a weaving fuse-element mixing feed cylinder, including a supporting bench 1, the upper end of a supporting bench 1 is equipped with feed cylinder 2, be convenient for to the extrusion of weaving fuse-element, the left side of feed cylinder 2 is equipped with ejection of compact nozzle 3, the realization is processed the extrusion of weaving fuse-element, be equipped with first motor 4 in the support that the left side of feed cylinder 2 was equipped with, it rotates to drive pivot pole 5, the output transmission of first motor 4 is connected with pivot pole 5, it rotates the extrusion output that realizes the fuse-element to drive reinforced spiral shell groove 6, the inside setting that extends to feed cylinder 2 is run through to the one end of pivot pole 5, the extension one end surface spiral of pivot pole 5 is equipped with reinforced spiral shell groove 6, accelerate the output efficiency of fuse-element raw materials, the terminal surface of reinforced spiral shell groove 6 evenly is equipped with cleaning scraper 7, be convenient for the effect of striking off to the residual material of 2 inner walls of feed cylinder, 2 inside a week is equipped with hot plate 8, be convenient for to the heat retaining effect of heating of raw materials.

The terminal surface left side of feed cylinder 2 is equipped with charge door 9, be convenient for the mixing material enter into to feed cylinder 2 in, be fixed with mixing drum 10 on the charge door 9, be convenient for to the mixing stirring function of weaving fuse-element, the right side upper end of mixing drum 10 is equipped with inlet pipe 11, be convenient for the fuse-element raw materials pour into to mixing drum 10 in, mixing drum 10 both sides and the both sides that are located feed cylinder 2 are equipped with cylinder 12, be convenient for to the regulation effect of adjustable fender 13, the both sides of mixing drum 10 are run through the activity and are equipped with adjustable fender 13 two sets ofly, be convenient for to the effect that the fender material of mixing stirring is sealed to the fuse-element raw materials, the one end of two sets of adjustable fender 13 extends to the inside activity wainscot setting of mixing drum 10, and the other end bottom side of two sets of adjustable fender 13 is equipped with and drives the piece, the telescopic link one end fixed connection who drives piece and cylinder 12, the effect of the fender material blowing of realization to the fuse-element raw materials.

The upper end of the mixing drum 10 is provided with a box body 14, which is convenient for the arrangement and fixation of other components of the device, one side of the end surface of the charging drum 2 is obliquely provided with a support rod 27, the support to the box body 14 is stably fixed through the arrangement of the support rod 27, the other end of the support rod 27 is fixedly connected with the upper end of the left side of the box body 14, the firmness of the box body 14 is ensured, a support cross rod is connected between the bottom side of the support rod 27 and the left side of the mixing drum 10 in a supporting way, the support and fixation effect to the mixing drum 10 is achieved through the arrangement of the support cross rod, the upper end inside the box body 14 is provided with a transverse plate 15, which is convenient for the arrangement and installation of a second motor 22, the right side of the end surface of the transverse plate 15 is provided with a second motor 22, which achieves the driving effect, the left side of the second motor 22 is provided with a support, which is convenient for the rotation arrangement of a driving gear 24, a transmission shaft is rotatably arranged on the support, and a first belt pulley 25 are respectively arranged on the transmission shaft, the second belt pulley 23 is driven to rotate.

Be equipped with second belt pulley 23 on the output shaft of second motor 22, second belt pulley 23 is connected through the belt that is equipped with the transmission between the belt 25, one side meshing of drive gear 24 is equipped with rack 19, the middle part of diaphragm 15 is equipped with the location and runs through the groove, the one end of rack 19 runs through the groove through the location and extends to the bottom side of diaphragm 15 and the top fixed connection who mixes rabbling mechanism 17, the bottom symmetry of diaphragm 15 is equipped with two sets of direction slide bar 16, all be equipped with direction slider 18 on two sets of direction slide bar 16, the rear end face of direction slider 18 is equipped with mixes rabbling mechanism 17, mix rabbling mechanism 17 and include the movable plate, the preceding terminal surface of movable plate is equipped with hybrid machine 20, the output transmission of hybrid machine 20 is connected with (mixing) shaft 21, evenly be equipped with on the (mixing) shaft 21 and mix the rabbling rod.

It is specific, it can drive rather than coaxial drive gear 24 rotatory to rotate through first belt pulley 25 during the use, drive gear 24 is rotatory to make the rack 19 of meshing mutually with it can realize reciprocating, the event is located the mixing and stirring mechanism 17 of rack 19 below and slides on the surface of direction slide bar 16 through direction slider 18, thereby can drive mixing motor 20 and reciprocate carry out abundant even mixture to the weaving fuse-element raw materials of mixing drum 10 inside, and then avoided appearing a large amount of weaving fuse-elements and producing the phenomenon of agglomeration and be difficult to extrude the phenomenon that causes the jam at the mixing and stirring in-process, and the unable abundant mixing and stirring of raw materials in the weaving fuse-element production, the problem of the quality of weaving fuse-element is seriously influenced.

Weaving fuse-element after the mixture passes through cylinder 12 in the mixing drum 10 starts to drive adjustable fender 13 and removes to mixing drum both sides outside, weaving fuse-element simultaneously enters into to feed cylinder 2 in through charge door 9 that sets up, start first motor 4 this moment and drive pivot pole 5 and rotate, pivot pole 5 drives reinforced groove screw 6 and rotates, thereby the rotatory textile raw materials that drives of reinforced groove screw 6 extrudees the transport, thereby make weaving fuse-element spout from the discharge nozzle 3 that sets up, and the wainscot through the cleaning scraper blade 7 that sets up on reinforced groove screw 6 and feed cylinder 2 inner wall rotates the setting of being connected, can rotate at reinforced groove screw 6 and strike off the processing to remaining fuse-element on feed cylinder 2 inner wall, avoid remaining too much the quality problems that influence was extruded on the feed cylinder 2 inner wall.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims

1. A textile melt mixing cartridge comprising a support table (1), characterized in that: the upper end of the supporting table (1) is provided with a material cylinder (2), the left side of the material cylinder (2) is provided with a discharging nozzle (3), a support arranged on the left side of the material cylinder (2) is internally provided with a first motor (4), the output end of the first motor (4) is connected with a rotating shaft rod (5) in a transmission manner, one end of the rotating shaft rod (5) penetrates through the material cylinder (2) to be arranged, the surface of one end of an extending part of the rotating shaft rod (5) is spirally provided with a feeding screw groove (6), the end surface of the feeding screw groove (6) is uniformly provided with a cleaning scraper (7), a heating plate (8) is arranged on the periphery inside the material cylinder (2), the left side of the end surface of the material cylinder (2) is provided with a feeding port (9), a mixing cylinder (10) is fixed on the feeding port (9), the upper end of the right side of the mixing cylinder (10) is provided with a feeding pipe (11), and air cylinders (12) are arranged on two sides of the mixing cylinder (10) and on the two sides of the material cylinder (2), the upper end of mixing drum (10) is equipped with box (14), the inside upper end of box (14) is equipped with diaphragm (15), the terminal surface right side of diaphragm (15) is equipped with second motor (22), the left side of second motor (22) is equipped with the support, it is equipped with the transmission shaft to rotate on the support, be equipped with drive gear (24) and first belt pulley (25) on the transmission shaft respectively, one side meshing of drive gear (24) is equipped with rack (19), the bottom symmetry of diaphragm (15) is equipped with direction slide bar (16) two sets ofly, and is two sets of all be equipped with direction slider (18) on the direction slide bar (16), the rear end face of direction slider (18) is equipped with and mixes rabbling mechanism (17).

2. A textile melt mixing cartridge according to claim 1, wherein: the both sides of mixing drum (10) are run through the activity and are equipped with movable baffle (13) two sets ofly, two sets of movable baffle (13) one end extends to the inside activity wainscot setting of mixing drum (10), and two sets of movable baffle (13) other end bottom side is equipped with the drive block, bottom one side and the telescopic link one end fixed connection of cylinder (12) of drive block.

3. A textile melt mixing cartridge according to claim 1, wherein: the middle part of the transverse plate (15) is provided with a positioning through groove, and one end of the rack (19) extends to the bottom side of the transverse plate (15) through the positioning through groove and is fixedly connected with the top end of the mixing and stirring mechanism (17).

4. A textile melt mixing cartridge according to claim 1, wherein: mix rabbling mechanism (17) including the movable plate, the preceding terminal surface of movable plate is equipped with hybrid motor (20), the output transmission of hybrid motor (20) is connected with (mixing) shaft (21), evenly be equipped with the mixing stirring pole on (mixing) shaft (21).

5. A textile melt mixing cartridge according to claim 1, wherein: the top middle part of box (14) is equipped with through hole (26), through hole (26) and perpendicular the corresponding setting of rack (19), and the top of rack (19) is equipped with spacing slat.

6. A textile melt mixing cartridge according to claim 1, wherein: be equipped with second belt pulley (23) on the output shaft of second motor (22), second belt pulley (23) are connected through the transmission between the belt that is equipped with and first belt pulley (25), the terminal surface lopsidedness of feed cylinder (2) is equipped with bracing piece (27), and the other end of bracing piece (27) and the left side upper end fixed connection of box (14), the support is connected with the support horizontal pole between the bottom side of bracing piece (27) and the left side of mixing drum (10).
