Abstract
本实用新型公开了一种中西医结合内科临床诊治装置，包括移动机构，调节机构和收纳机构，所述移动机构的顶部设置有收纳机构，所述收纳机构的顶部设置有调节机构，所述收纳机构包括收纳槽，所述收纳槽的内部设置有滑杆，所述滑杆的外表面设置有滑块，所述滑块的右侧设置有连接组件，所述滑杆的内部加工有限位槽，所述限位槽的内部设置有弹簧，所述弹簧的顶部设置有限位块，所述连接组件的外表面设置有托盘。该中西医结合内科临床诊治装置，通过收纳机构包括收纳槽，能够将连接组件在滑杆上进行位置移动，方便了医护人员的使用，通过移动组件，能够推动病床移动，利用调节机构，能够根据病人的身体大小进行高度调整。
The utility model discloses a clinical diagnosis and treatment device for integrated traditional Chinese and Western medicine, which comprises a moving mechanism, an adjusting mechanism and a storage mechanism. The top of the moving mechanism is provided with a storage mechanism, and the top of the storage mechanism is provided with an adjustment mechanism. The mechanism includes a receiving groove, the interior of the receiving groove is provided with a sliding rod, the outer surface of the sliding rod is provided with a sliding block, the right side of the sliding block is provided with a connecting component, and the interior of the sliding rod is machined with a limit groove , the interior of the limiting slot is provided with a spring, the top of the spring is provided with a limiting block, and the outer surface of the connecting component is provided with a tray. The clinical diagnosis and treatment device for integrated traditional Chinese and Western medicine internal medicine, through the storage mechanism including the storage slot, can move the connecting component on the sliding rod, which is convenient for medical staff to use, and can push the hospital bed to move through the moving component. Height adjustments are made to the patient's body size.
Description
Technical Field
The utility model belongs to the technical field of clinical diagnosis and treatment, specifically a device is treated in chinese and western medicine combination internal medicine clinical diagnosis and treatment.
Background
The device is treated in the clinical diagnosis of traditional chinese and western medicine combination internal medicine need place medical personnel's instrument at the diagnosis and treatment in-process, and the position adjustment can not be carried out to the tray according to doctor's position to the preparation medicine tray of the most on the existing market, and the inconvenient instrument that uses the doctor is classified and is accomodate.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a traditional chinese and western medicine combines internal medicine clinical diagnosis and treatment device to solve prior art and be difficult to the fixed problem to medical tray.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a traditional chinese and western medicine combines internal medicine clinical diagnosis and treatment device, includes moving mechanism, adjustment mechanism and receiving mechanism, moving mechanism's top is provided with receiving mechanism, receiving mechanism's top is provided with adjustment mechanism, receiving mechanism is including accomodating the groove, the inside of accomodating the groove is provided with the slide bar, the surface of slide bar is provided with the slider, the right side of slider is provided with coupling assembling, the inside processing of slide bar has the spacing groove, the inside of spacing groove is provided with the spring, the top of spring is provided with the stopper, coupling assembling's surface is provided with the tray.
Further, the moving mechanism comprises a moving assembly, and the moving assembly is composed of a supporting rod and a roller.
Further, the inside of moving mechanism is provided with damping spring, four are no less than to damping spring's quantity.
Further, adjustment mechanism includes the steady frame, the top of steady frame is provided with diagnosis and treatment equipment.
Further, the stabilizing frame penetrates through and extends to the inside of the adjusting mechanism, and an adjusting groove is machined in the stabilizing frame.
Furthermore, the inside of adjustment tank is provided with the piece that resets, the surface of the piece that resets is provided with the card button.
Further, the card button runs through and extends to adjustment mechanism's outside, adjustment mechanism's surface has seted up the bayonet socket, card button and bayonet socket are swing joint.
Further, coupling assembling comprises horizontal pole and montant, horizontal pole and montant are swing joint.
Furthermore, the number of the limiting grooves is not less than eight, and the sliding block is movably connected with the limiting block.
Further, horizontal pole length on the coupling assembling is shorter than the length of accomodating the groove, the stopper runs through to the top of spacing groove.
Compared with the prior art, the utility model discloses, possess following beneficial effect:
1. this device is treated in clinical diagnosis of traditional chinese and western medicine combination internal medicine, including accomodating the groove through receiving mechanism, can make things convenient for medical personnel's use with coupling assembling position removal on the slide bar.
2. This device is treated in traditional chinese and western medicine combination internal medicine clinical diagnosis, through removing the subassembly, can promote the sick bed and remove, utilize adjustment mechanism, can carry out height control according to patient's health size.
Drawings

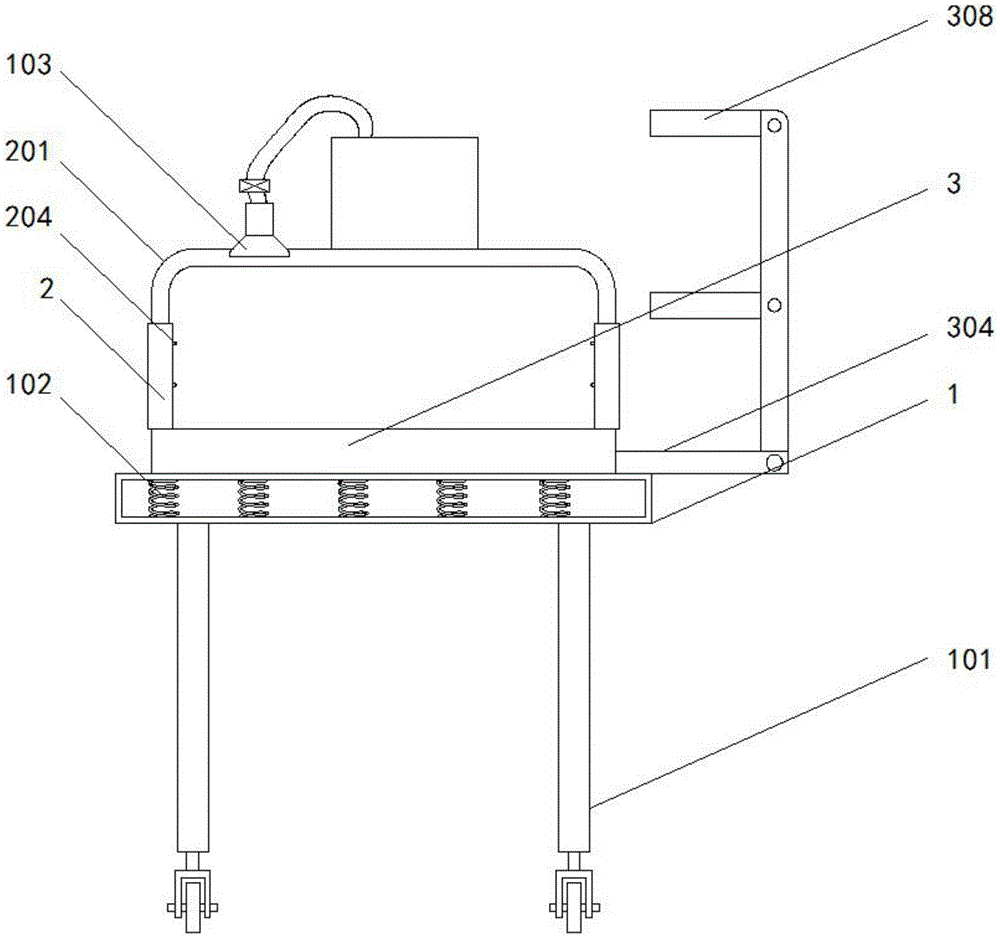

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a sectional view of the structure adjusting mechanism of the present invention;
fig. 3 is a right side schematic view of the structural storage mechanism of the present invention;
fig. 4 is a partial enlarged view of a portion a in the structure diagram 3 of the present invention.
In the figure: 1. the medical instrument comprises a moving mechanism, 101, a moving assembly, 102, a damping spring, 103, diagnosis and treatment equipment, 2, an adjusting mechanism, 201, a stabilizing frame, 202, an adjusting groove, 203, a reset sheet, 204, a clamping button, 3, an accommodating mechanism, 301, an accommodating groove, 302, a sliding rod, 303, a sliding block, 304, a connecting assembly, 305, a limiting groove, 306, a spring, 307, a limiting block, 308 and a tray.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention.
The principles and features of the present invention are described below in conjunction with the following drawings, the examples given are only intended to illustrate the present invention and are not intended to limit the scope of the present invention.
Referring to fig. 1, 3 and 4, the device for clinical diagnosis and treatment of a traditional Chinese and western medicine combination internal medicine in this embodiment includes a moving mechanism 1, an adjusting mechanism 2 and an accommodating mechanism 3, the accommodating mechanism 3 is movably connected to the top of the moving mechanism 1, the adjusting mechanism 2 is movably connected to the top of the accommodating mechanism 3, the accommodating mechanism 3 includes an accommodating groove 301, a sliding rod 302 is fixedly connected to the inside of the accommodating groove 301, a sliding block 303 is movably connected to the outer surface of the sliding rod 302, the sliding block 303 can move on the sliding rod 302, a connecting assembly 304 is movably connected to the right side of the sliding block 303, the connecting assembly 304 is composed of a cross rod and a vertical rod, the cross rod and the vertical rod are movably connected, a limiting groove 305 is formed inside the sliding rod 302, a spring 306 is movably connected to the inside of the limiting groove 305, a limiting block 307 is fixedly connected to the top of the spring 306, the sliding block 303 can be limited, and the situation that the connecting assembly 304 can slide freely on the sliding block 303 without limitation, eight is no less than to the quantity of spacing groove 305, and slider 303 is swing joint with stopper 307, can make slider 303 extrude stopper 307, and horizontal pole length on the coupling assembling 304 is short in the length of accomodating groove 301, can accomodate coupling assembling 304, and stopper 307 runs through to the top of spacing groove 305, and coupling assembling 304's surface swing joint has tray 308, passes through.
The connection assembly 304 in this embodiment can not only sort and place the trays 308, but also fold and store the trays when not in use.
It should be noted that the tray 308 can be parallel to the vertical rods of the connecting member 304, and the vertical rods need to be parallel to the cross rods of the connecting member 304.
Referring to fig. 1, the moving mechanism 1 includes a moving assembly 101, the moving assembly 101 is composed of a supporting rod and a roller, and is convenient for pushing a hospital bed, a damping spring 102 is fixedly connected inside the moving mechanism 1, so that the bumping of an uneven road surface to the hospital bed can be reduced in the pushing process, and the number of the damping spring 102 is not less than four.
The damping spring 102 in the embodiment can perform damping and buffering on the sickbed in the moving process of the sickbed, so that the comfort level of a patient is ensured.
It should be noted that the support rod is movably connected with the roller.
Please refer to fig. 1 and 2, the adjusting mechanism 2 includes a fixing frame 201, the top fixedly connected with diagnosis and treatment equipment 103 of the fixing frame 201, can diagnose and treat after fixing the patient, the fixing frame 201 penetrates and extends to the inside of the adjusting mechanism 2, the inside processing of the fixing frame 201 has an adjusting groove 202, the inside fixedly connected with of the adjusting groove 202 resets the piece 203, the outer fixed surface of the piece 203 that resets is connected with a clamping button 204, can stretch out and draw back the fixing frame 201 in the adjusting mechanism 2 according to the requirement, the clamping button 204 penetrates and extends to the outside of the adjusting mechanism 2, the bayonet socket has been seted up on the outer surface of the adjusting mechanism 2, the clamping button 204 is movably connected with the bayonet socket, and the clamping button 204 is convenient to stretch out or be extruded.
The adjusting mechanism 2 in this embodiment can adjust the height according to the physical characteristics of the patient, so that the diagnosis and treatment device 103 can better diagnose and treat the patient.
It should be noted that the number of bayonets can be added according to the requirement.
The working principle of the above embodiment is as follows: open tray 308 from coupling assembling 304 through receiving mechanism 3, can place medical instrument on tray 308, be two because of the quantity of tray 308, can separately place different instruments, because of coupling assembling 304 is swing joint with slider 303, manual removal coupling assembling 304, slider 303 extrudes stopper 307 thereupon, stopper 307 extrudees spring 306, thereby make things convenient for slider 303 to carry on spacingly when moving on slide bar 302, because of receiving mechanism 3 fixed connection is at the top of moving mechanism 1 again, the inside fixedly connected with damping spring 102 of moving mechanism 1, can play the effect of buffering, the travelling comfort has been strengthened.
