Abstract
一种B超探头防脱落放置架，属于医疗器械设备技术领域；包括B超探头和放置盒，所述放置盒的内壁右侧设置有传动机构，所述传动机构的左侧设置有反馈机构，所述放置盒的内壁底部固定有固定块，所述固定块上开设有凹槽，所述传动机构包括第二弹簧，所述第二弹簧的底部固定在连接板上，所述连接板的左侧固定有第二滑块，所述连接板的上表面固定有拉杆，所述拉杆的顶部设置有拉环。该B超探头防脱落放置架，当取出B超探头时，可直接拉动拉环，带动第二滑块向上移动，进而挤压第一滑块向左移动，使滑杆在滑槽中滑动，通过圆筒、转杆、转盘、清洁消毒模块的配合，可以对B超探头的左侧进行清洁消毒。
An anti-falling placement stand for a B-ultrasound probe, belonging to the technical field of medical equipment and equipment; comprising a B-ultrasound probe and a placement box, a transmission mechanism is provided on the right side of the inner wall of the placement box, and a feedback mechanism is provided on the left side of the transmission mechanism, A fixing block is fixed at the bottom of the inner wall of the placing box, a groove is formed on the fixing block, the transmission mechanism includes a second spring, and the bottom of the second spring is fixed on the connecting plate, and the left side of the connecting plate is A second sliding block is fixed on the side, a pull rod is fixed on the upper surface of the connecting plate, and a pull ring is arranged on the top of the pull rod. The B-ultrasound probe anti-dropping rack, when taking out the B-ultrasound probe, can directly pull the pull ring to drive the second slider to move upward, and then squeeze the first slider to move to the left, so that the slider slides in the chute, The left side of the B-ultrasound probe can be cleaned and disinfected through the cooperation of the cylinder, the rotating rod, the rotating plate, and the cleaning and disinfection module.
Description
Technical Field
The utility model belongs to the technical field of medical instrument equipment, specifically relate to a B ultrasonic probe anti-drop rack.
Background
B-mode ultrasound examination is a form of ultrasound examination, a non-surgical diagnostic examination, and is generally used in clinical applications. The ultrasonic diagnosis instrument has no pain, no damage and no radioactivity to the examined person, can be safely examined, can clearly display various section images of each organ and surrounding organs by B ultrasonic, and can clearly diagnose at early stage by applying ultrasonic examination because the images are rich in solid body feeling and are close to the real anatomical structure.
When carrying out the B ultrasonic inspection, generally will use the B ultrasonic probe, because the B ultrasonic probe will contact with examiner's epidermis when the inspection, and then need clean the disinfection to the B ultrasonic probe, current B ultrasonic probe anti-drop rack does not all have the function of cleaning the disinfection to the B ultrasonic probe, all is that medical personnel regularly clean the disinfection, complex operation, and long-time unclean disinfection has the phenomenon that probably causes the germ infection.
Disclosure of Invention
The utility model mainly solves the technical problem existing in the prior art and provides an anti-drop rack for a B-ultrasonic probe.
The above technical problem of the present invention can be solved by the following technical solutions: the utility model provides a B ultrasonic probe anti-drop rack, includes B ultrasonic probe and places the box, the inner wall right side of placing the box is provided with drive mechanism, drive mechanism's left side is provided with feedback mechanism, the inner wall bottom of placing the box is fixed with the fixed block, set up flutedly on the fixed block, drive mechanism includes the second spring, the bottom of second spring is fixed on the connecting plate, the left side of connecting plate is fixed with the second slider, the last fixed surface of connecting plate has the pull rod, the top of pull rod is provided with the pull ring, the right side of connecting plate is provided with the limiting plate.
Preferably, the feedback mechanism comprises a first spring, a first sliding block is fixed on the right side of the first spring, a sliding rod is fixed at the bottom of the first sliding block, a cylinder is arranged at the bottom of the sliding rod, a sliding groove for the sliding rod to slide is formed in the surface of the cylinder, a rotating rod is fixed on the inner wall of the cylinder, and a cleaning and disinfecting module is fixed at the right end of the rotating rod.
Preferably, the right side of the placing box is provided with a first slotted hole.
Preferably, a support rod capable of sliding is fixed on the top of the inner wall of the placing box, and the bottom of the support rod is fixed on the upper surface of the first sliding block.
Preferably, the right side of the placing box is provided with a second slotted hole, and the diameter of the second slotted hole is the same as that of the B-ultrasonic probe.
Preferably, the joint between the right side of the first slider and the left side of the second slider is inclined.
The utility model discloses beneficial effect who has:
when the B-ultrasonic probe is taken out, the anti-drop rack for the B-ultrasonic probe can directly pull the pull ring to drive the second slide block to move upwards and further extrude the first slide block to move leftwards, so that the slide rod slides in the chute, and the left side of the B-ultrasonic probe can be cleaned and disinfected through the matching of the cylinder, the rotating rod and the cleaning and disinfecting module; when placing the B ultrasonic probe, can directly stimulate the pull ring, make the limiting plate rise, put into the standing groove through the second slotted hole with the B ultrasonic probe, loosen the pull ring and be in compression state because of the second spring, make the limiting plate carry on spacingly to the right side of B ultrasonic probe, just so prevented that the B ultrasonic probe from coming off by accident.
Drawings

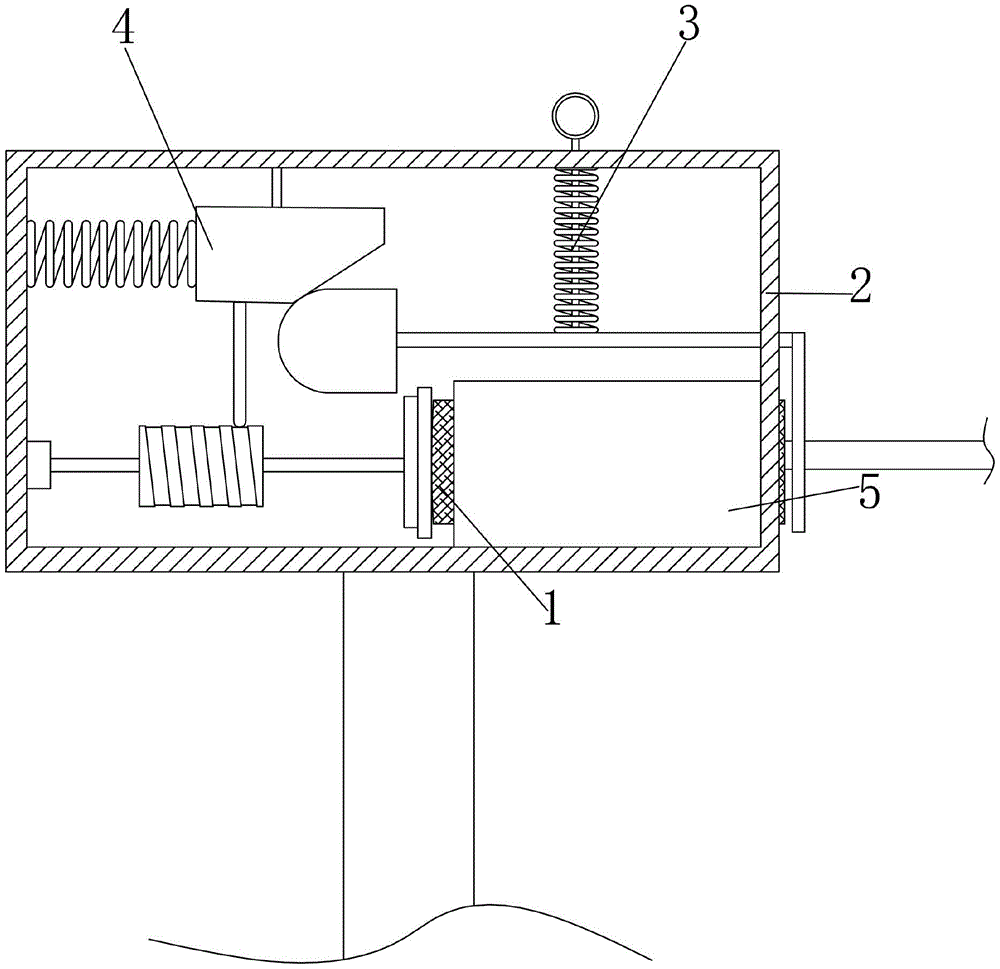

Fig. 1 is a schematic front view of the present invention;
fig. 2 is a schematic structural diagram of the transmission mechanism of the present invention;
fig. 3 is a schematic structural diagram of the feedback mechanism of the present invention;
fig. 4 is a schematic side view of the fixing block of the present invention;
fig. 5 is a schematic side view of the storage box of the present invention.
In the figure: 1. b ultrasonic probe; 2. placing the box; 3. a transmission mechanism; 31. a second spring; 32. a connecting plate; 33. a second slider; 34. a pull rod; 35. a pull ring; 4. a feedback mechanism; 41. a first spring; 42. a first slider; 43. a slide bar; 44. a cylinder; 45. a chute; 46. a rotating rod; 47. a cleaning and disinfecting module; 5. a fixed block; 6. a groove; 7. a first slot; 8. a second slot.
Detailed Description
The technical solution of the present invention is further specifically described below by way of examples and with reference to the accompanying drawings.
Example (b): an anti-drop rack for a B-ultrasonic probe is shown in figures 1-5 and comprises the B-ultrasonic probe and a placing box, wherein a transmission mechanism is arranged on the right side of the inner wall of the placing box, a feedback mechanism is arranged on the left side of the transmission mechanism, a fixed block is fixed at the bottom of the inner wall of the placing box, a groove is formed in the fixed block, the diameter of the groove is the same as that of the B-ultrasonic probe, and the B-ultrasonic probe is directly placed into the groove when the B-ultrasonic probe is placed.
The transmission mechanism comprises a second spring, the bottom of the second spring is fixed on a connecting plate, a second sliding block is fixed on the left side of the connecting plate, a limiting plate is fixed on the right side of the connecting plate, a pull rod is fixed on the upper surface of the connecting plate, a pull ring is fixed on the top of the pull rod, the pull rod can rise through pulling the pull ring, the connecting plate is driven to rise, the limiting plate is driven to rise by the rising of the connecting plate, a B ultrasonic probe can be placed into a groove of the fixing block through a second slotted hole, the left side of the B ultrasonic probe is supported against the cleaning and disinfecting module, when the second sliding block rises, the first sliding block is attached to the second sliding block due to the first sliding block, the right side of the first sliding block is inclined, the first sliding block can be extruded to move towards the left side, when the first sliding block is not extruded, the first spring is in a compression state and restores to the original position.
The feedback module comprises a first spring, the right side of the first spring is fixed with the left side of a first slider, the top of the first slider is fixed with a supporting rod, the top of the supporting rod can slide at the top of the inner wall of a placing box, when the first slider is extruded, the supporting rod can play a role in preventing the first slider from inclining when being extruded, the bottom of the first slider is fixed with a sliding rod, the bottom of the sliding rod is provided with a cylinder, a sliding groove for sliding the sliding rod leftwards and rightwards is formed in the surface of the cylinder, the inner wall of the cylinder is fixed with a rotating rod, the right end of the rotating rod is fixed with a cleaning and disinfecting module, when the first slider is extruded by a second slider, the first slider can be moved leftwards, the sliding rod is further driven to move leftwards in the sliding groove, the cleaning and disinfecting module can be driven to rotate, and the cleaning and disinfecting of a B ultrasonic probe attached to the cleaning and disinfecting module can be performed.
The principle of the utility model is as follows: when the B-ultrasonic probe cleaning and disinfecting device works, when the B-ultrasonic probe is placed into the placing box, the pull ring is pulled to drive the pull rod to ascend, the pull rod drives the connecting plate to ascend, the limiting plate is driven to ascend, medical workers place the B-ultrasonic probe into the placing groove of the fixing block through the second groove hole on the right side of the placing box, when the left side of the B-ultrasonic probe abuts against the cleaning and disinfecting module, the pull ring is loosened, the connecting plate is driven to descend because the second spring is in a compressed state, the second slider is driven to descend, the first slider is driven to move rightwards because the first spring is in a compressed state, the slide rod is driven to slide rightwards in the slide groove, the cylinder is driven to rotate, the cleaning and disinfecting module is driven to rotate, the B-ultrasonic probe attached to the cleaning and disinfecting module is cleaned and disinfected, and after the pull ring is loosened, the limiting plate is just enabled to descend to limit the right side of the B-ultrasonic probe, prevent that the B ultrasonic probe from coming off by accident, stimulate the pull ring when using the B ultrasonic probe, and then make the pull rod rise, and then drive the second slider and rise, make the first slider of second slider extrusion, because of first spring compression, make first slider remove left, and then drive the slide bar and slide left in the spout, and then it is rotatory to drive the drum, it is rotatory to drive the cleaning and disinfecting module, can clean the B ultrasonic probe once more, when the pull rod moves a certain position, make the limiting plate relieve the spacing to the B ultrasonic probe, can take out the B ultrasonic probe, all can clean the disinfection to the B ultrasonic probe when putting the B ultrasonic probe of getting like this, just so do not need the artificial cleaning and disinfecting to the B ultrasonic probe of medical personnel, medical personnel's operation has been made things convenient for.
Finally, it should be noted that the above embodiments are merely representative examples of the present invention. Obviously, the present invention is not limited to the above-described embodiments, and many modifications are possible. Any simple modification, equivalent change and modification made to the above embodiments according to the technical spirit of the present invention should be considered as belonging to the protection scope of the present invention.
Claims (6)
1. The utility model provides a B ultrasonic probe anti-drop rack, includes the B ultrasonic probe and places the box, its characterized in that the inner wall right side of placing the box is provided with drive mechanism, drive mechanism's left side is provided with feedback mechanism, the inner wall bottom of placing the box is fixed with the fixed block, set up flutedly on the fixed block, drive mechanism includes the second spring, the bottom of second spring is fixed on the connecting plate, the left side of connecting plate is fixed with the second slider, the last fixed surface of connecting plate has the pull rod, the top of pull rod is provided with the pull ring, the right side of connecting plate is provided with the limiting plate.
2. The anti-drop rack for the B-ultrasonic probes according to claim 1, wherein the feedback mechanism comprises a first spring, a first slider is fixed on the right side of the first spring, a slide bar is fixed at the bottom of the first slider, a cylinder is arranged at the bottom of the slide bar, a sliding groove for the slide bar to slide is formed in the surface of the cylinder, a rotating rod is fixed on the inner wall of the cylinder, and a cleaning and disinfecting module is fixed at the right end of the rotating rod.
3. The anti-drop rack for B-ultrasonic probes according to claim 1, wherein the right side of the placement box is provided with a first slot.
4. The anti-drop rack for the B-ultrasonic probe according to claim 1, wherein a slidable support rod is fixed to the top of the inner wall of the placement box, and the bottom of the support rod is fixed to the upper surface of the first slide block.
5. The anti-drop rack for B-ultrasonic probes according to claim 1, wherein the right side of the placement box is provided with a second slot, and the diameter of the second slot is the same as the diameter of the B-ultrasonic probe.
6. The anti-drop rack for the B-ultrasonic probe according to claim 2, wherein the joint of the right side of the first slider and the left side of the second slider is inclined.
