Abstract
The utility model provides a visual laryngoscope piece of surface anesthesia type, includes the laryngoscope piece body, this external installation department that is equipped with of laryngoscope piece, installation department along the extending direction setting of laryngoscope piece body, is equipped with the tunnel in the installation department, and the tunnel sets up along the extending direction of installation department. The utility model discloses well tunnel can be used for installing current larynx spray tube, thereby can make the larynx spray tube insert the oral cavity through the tunnel, visual interface is to oropharynx portion, the glottis, it carries out surface anesthesia to spout the narcotic drug under the glottis and in the trachea, also can be at the entrance point installation injection device in tunnel, to the interior anesthesia liquid medicine of injecting in the tunnel, the anesthesia liquid medicine sprays and goes out at the exit end in tunnel, thereby visual interface is to oropharynx portion, the glottis, spout the narcotic drug under the glottis and in the trachea and carry out surface anesthesia, above-mentioned surface anesthesia mode is reliable relatively, surface anesthesia is carried out to the efficient, reduce patient's uncomfortable and damage.
Description
Technical Field
The utility model relates to the technical field of medical equipment, concretely relates to visual laryngoscope piece of surface anesthesia type and laryngoscope.
Background
The visual laryngoscope is a visual intubation system newly developed in recent years, comprises a lens, a lens handle, a liquid crystal visual window and the like, is widely applied to clinical anesthesia and ICU (intensive care unit), greatly improves the success rate of tracheal intubation, and provides safer airway protection for patients. However, in some special cases in the clinic, induction intubation is not possible, and conscious intubation is required. The conscious trachea cannula is usually required to perform oropharyngeal and subglottic anesthesia, and the superficial anesthesia is to apply local anesthetic with strong penetrating power to the surface of a mucous membrane so that the local anesthetic penetrates the mucous membrane to block nerve endings under the mucous membrane, so that the mucous membrane generates an anesthesia phenomenon, and the intubating reflex of a patient is relieved.
The clinical methods for oropharyngeal and tracheal anesthesia include thyrocricocentesis and laryngeal nozzle surface anesthesia. However, the perionychus puncture tracheal anesthesia is a traumatic operation, and can cause fear, pain, severe cough, tracheal injury, intratracheal hemorrhage and other adverse stimuli to patients. And the larynx spray tube can't carry out the surface anesthesia to oropharynx portion and glottis accurately because plasticity is relatively poor to greatly reduced the surface anesthesia effect, lead to patient relatively poor medical service experience when carrying out the clear-headed intubate, increase patient uncomfortable sense. Therefore, how to explore a novel, reliable and efficient surface anesthesia method has important significance for improving the medical service quality and the medical experience of patients.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: the surface anesthesia type visual laryngoscope lens and the laryngoscope are provided, which are convenient for relatively reliable and efficient surface anesthesia and reduce the discomfort and the injury of patients.
The utility model discloses the technical scheme who takes does:
the utility model provides a visual laryngoscope piece of surface anesthesia type, includes the laryngoscope piece body, this external installation department that is equipped with of laryngoscope piece, installation department along the extending direction setting of laryngoscope piece body, is equipped with the tunnel in the installation department, and the tunnel sets up along the extending direction of installation department.
The diameter of the tunnel inlet end is equal to that of the tunnel outlet end, and the diameter of the tunnel between the tunnel inlet end and the tunnel outlet end is larger than or equal to that of the tunnel inlet end.
The tunnel diameters are equal and all are a, from the entrance end of the tunnel to the exit end of the tunnel, with a ranging from 2.9 mm to 3.1 mm.
The exit end in tunnel is fixed with and has elastic seal cover, and the one end that is close to the tunnel of seal cover is greater than the one end that deviates from the tunnel of seal cover.
The inlet end of the tunnel is provided with a limiting device which is symmetrically arranged, the limiting device comprises a fixed rib and a limiting rib, the fixed rib is fixed on the inlet end surface of the tunnel, the limiting rib is close to the center of the tunnel, and a spring is fixed between the fixed rib and the limiting rib; the limiting ribs are arc-shaped, and the openings of the two limiting ribs are arranged oppositely.
The diameter of the tunnel decreases from the entrance end of the tunnel to the exit end of the tunnel.
The diameter of the exit end of the tunnel is b, which ranges from 0.09 mm to 0.11 mm.
The entrance point of tunnel can be dismantled and be fixed with the stopple, is equipped with the mounting hole on the stopple, and the top demountable installation of stopple has sealed lid, is fixed with the connecting band between sealed lid and the stopple.
The radian of the tunnel is equal to that of the laryngoscope blade body, the inlet end face of the tunnel and the inlet end face of the laryngoscope blade body are in the same plane, and the outlet end face of the tunnel and the outlet end face of the laryngoscope blade body are in the same plane.
A laryngoscope comprises a surface anesthesia type visual laryngoscope lens.
The utility model discloses well tunnel can be used for installing current larynx spray tube, thereby can make the larynx spray tube insert the oral cavity through the tunnel, visual interface is to oropharynx portion, the glottis, it carries out surface anesthesia to spout the narcotic drug under the glottis and in the trachea, also can be at the entrance point installation injection device in tunnel, to the interior anesthesia liquid medicine of injecting in the tunnel, the anesthesia liquid medicine sprays and goes out at the exit end in tunnel, thereby visual interface is to oropharynx portion, the glottis, spout the narcotic drug under the glottis and in the trachea and carry out surface anesthesia, above-mentioned surface anesthesia mode is reliable relatively, surface anesthesia is carried out to the efficient, reduce patient's uncomfortable and damage.
Drawings

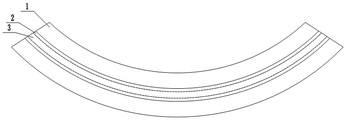

Fig. 1 is a schematic structural diagram (one) of the present invention;
FIG. 2 is a schematic cross-sectional view of FIG. 1;
FIG. 3 is a schematic view of a portion of the structure of FIG. 1;
FIG. 4 is a schematic view (one) of the inlet end of the mounting portion;

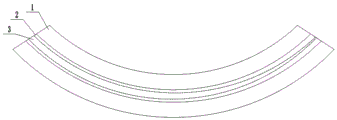

fig. 5 is a schematic structural diagram (ii) of the present invention;
FIG. 6 is a schematic cross-sectional view of FIG. 5;
fig. 7 is a schematic structural view (ii) of the inlet end of the mounting portion.
Detailed Description
As shown in fig. 1-7, a visual laryngoscope lens of surface anesthesia type comprises a laryngoscope lens body 1, a mounting part 2 is arranged outside the laryngoscope lens body 1, the mounting part 2 is arranged along the extending direction of the laryngoscope lens body 1, a tunnel 3 is arranged in the mounting part 2, and the tunnel 3 is arranged along the extending direction of the mounting part 2.
The shape of the mounting part 2 and the tunnel 3 is adapted to the shape of the laryngoscope blade body 1.
The cross-section of the tunnel 3 is circular.
The diameter of the entrance end of the tunnel 3 is equal to the diameter of the exit end of the tunnel 3, and the diameter of the tunnel 3 between the entrance end of the tunnel 3 and the exit end of the tunnel 3 is greater than or equal to the diameter of the entrance end of the tunnel 3.
The diameter of the tunnel 3 is equal and is a, from the entrance end of the tunnel 3 to the exit end of the tunnel 3, and a ranges from 2.9 mm to 3.1 mm, a is preferably 3 mm, facilitating the installation of the throat nozzle 5.
The exit end of tunnel 3 is fixed with and has elastic seal cover 4, and rubber sleeve can be chooseed for use to seal cover 4, and seal cover 4 plays sealed effect, and the one end that is close to tunnel 3 of seal cover 4 is greater than the one end that deviates from tunnel 3 of seal cover 4, and seal cover 4 is the toper, is convenient for seal, and the seal cover 4 deviates from the one end of tunnel 3 and the outer wall laminating of inserted larynx spray tube 5.
The entrance point of tunnel 3 is equipped with the stop device that the symmetry set up, stop device is including fixed muscle 7 and spacing muscle 6, fixed muscle 7 is fixed on the inlet end face of tunnel 3, spacing muscle 6 is close to the center of tunnel 3, be fixed with spring 8 between fixed muscle 7 and the spacing muscle 6, when needs installation larynx spray tube 5, part two spacing muscle 6, spacing muscle 6 compression spring 8, insert larynx spray tube 5 from the entrance point of tunnel 3, after the installation targets in place, loosen spacing muscle 6, spacing muscle 6 top is tight on larynx spray tube 5, spring 8 is in compression state this moment, it is spacing to carry out.
Be equipped with bayonet socket 9 on spacing muscle 6, when separating two spacing muscle 6, can use finger or tweezers or other instrument card in bayonet socket 9, separate two spacing muscle 6.
The limiting ribs 6 are arc-shaped, the openings of the two limiting ribs 6 are arranged oppositely, and the pushing device is convenient to push and attach to the throat spray pipe 5.
The diameter of the entrance point of tunnel 3 is greater than the diameter of the exit end of tunnel 3, and from the entrance point of tunnel 3 to the exit end of tunnel 3, the diameter of tunnel 3 reduces gradually, easily forms high pressure at the exit end of tunnel 3, is convenient for install injection device at the entrance point of tunnel 3, to injecting anesthesia liquid medicine in tunnel 3, anesthesia liquid medicine sprays and goes out at the exit end of tunnel 3.
The diameter of the exit end of the tunnel 3 is b, which ranges from 0.09 mm to 0.11 mm, preferably 0.1 mm.
The entrance point of tunnel 3 can be dismantled and be fixed with stopple 10, be equipped with mounting hole 11 on the stopple 10, mounting hole 11 is used for installing injection device, stopple 10 plays sealed effect, stopple 10 demountable installation, be convenient for adjust stopple 10 according to injection device, set up the mounting hole 11 in different apertures on the stopple 10, the top demountable installation of stopple 10 has sealed lid 12, be fixed with connecting band 13 between sealed lid 12 and the stopple 10, sealed lid 12 plays sealed effect, when not needing the injection, cover sealed lid 12 and cover, when needing the injection, take off sealed lid 12.
The radian of the tunnel 3 is equal to that of the laryngoscope lens body 1, the inlet end face of the tunnel 3 and the inlet end face of the laryngoscope lens body 1 are in the same plane, and the outlet end face of the tunnel 3 and the outlet end face of the laryngoscope lens body 1 are in the same plane.
A laryngoscope comprising a visual laryngoscope blade of the above surface anaesthetic type, which is not shown in the figure.
When in use, the surface anesthesia type visual laryngoscope lens is arranged on the lens handle of the laryngoscope for normal operation, and the inlet end of the tunnel 3 is close to the lens handle. When the throat nozzle 5 is used for surface anesthesia, the diameter of the inlet end of the tunnel 3 is equal to the diameter of the outlet end of the tunnel 3, the diameter of the tunnel 3 between the inlet end of the tunnel 3 and the outlet end of the tunnel 3 is larger than or equal to the diameter of the inlet end of the tunnel 3, the throat nozzle 5 is convenient to install, the throat nozzle 5 is inserted into an oral cavity through the tunnel 3, the outer end of the throat nozzle 5 is connected with an anesthetic liquid conveying device, the explanation is omitted for the prior art, and the visual interface is used for performing surface anesthesia on the oropharynx, glottis, subglottis and intratracheal injection of anesthetic; when the mode of adopting the injection carries out the surface anesthesia, from the entrance point of tunnel 3 to the exit end of tunnel 3, the diameter of tunnel 3 reduces gradually, easily form the high pressure at the exit end of tunnel 3, install injection device at the entrance point of tunnel 3, injection device can adopt the syringe, to the interior anesthesia liquid medicine of injecting of tunnel 3, the anesthesia liquid medicine sprays and goes out at the exit end of tunnel 3, the anesthesia liquid medicine can form water vaporific, improve the efficiency of surface anesthesia, when necessary, can set up the force (forcing) pump on injection device and carry out the pressurization injection.
The above-mentioned embodiment is right the utility model discloses an explanation, it is not right the utility model discloses a limited, any right the scheme after the simple transform of the utility model all belongs to the protection scope of the utility model.
Claims (10)
1. A visual laryngoscopic lens of surface anesthesia type, includes the laryngoscopic lens body, its characterized in that: the laryngoscope piece body is equipped with the installation department outward, and the installation department sets up along the extending direction of laryngoscope piece body, is equipped with the tunnel in the installation department, and the tunnel sets up along the extending direction of installation department.
2. The visual laryngoscope blade as claimed in claim 1 wherein: the diameter of the tunnel inlet end is equal to that of the tunnel outlet end, and the diameter of the tunnel between the tunnel inlet end and the tunnel outlet end is larger than or equal to that of the tunnel inlet end.
3. The visual laryngoscope blade as claimed in claim 2 wherein: the tunnel diameters are equal and all are a, from the entrance end of the tunnel to the exit end of the tunnel, with a ranging from 2.9 mm to 3.1 mm.
4. The visual laryngoscope blade as claimed in claim 2 wherein: the exit end in tunnel is fixed with and has elastic seal cover, and the one end that is close to the tunnel of seal cover is greater than the one end that deviates from the tunnel of seal cover.
5. The visual laryngoscope blade as claimed in claim 2 wherein: the inlet end of the tunnel is provided with a limiting device which is symmetrically arranged, the limiting device comprises a fixed rib and a limiting rib, the fixed rib is fixed on the inlet end surface of the tunnel, the limiting rib is close to the center of the tunnel, and a spring is fixed between the fixed rib and the limiting rib; the limiting ribs are arc-shaped, and the openings of the two limiting ribs are arranged oppositely.
6. The visual laryngoscope blade as claimed in claim 1 wherein: the diameter of the tunnel decreases from the entrance end of the tunnel to the exit end of the tunnel.
7. The visual laryngoscope blade as claimed in claim 6 wherein: the diameter of the exit end of the tunnel is b, which ranges from 0.09 mm to 0.11 mm.
8. The visual laryngoscope blade as claimed in claim 6 wherein: the entrance point of tunnel can be dismantled and be fixed with the stopple, is equipped with the mounting hole on the stopple, and the top demountable installation of stopple has sealed lid, is fixed with the connecting band between sealed lid and the stopple.
9. The visual laryngoscope blade as claimed in claim 1 wherein: the radian of the tunnel is equal to that of the laryngoscope blade body, the inlet end face of the tunnel and the inlet end face of the laryngoscope blade body are in the same plane, and the outlet end face of the tunnel and the outlet end face of the laryngoscope blade body are in the same plane.
10. A laryngoscope, characterized by: comprising a topical anesthetic visual laryngoscope lens as claimed in any one of claims 1 to 9.
