Abstract
The utility model discloses a cleaning device for production and preparation of conditioned beef, which comprises a first frame body, a second water pump arranged at the bottom of the first frame body, the input end of the second water pump is communicated with an external water source, the output end of the second water pump is connected with a fourth pipeline, the fourth pipeline is far away from the end of the second water pump and extends into the cleaning box, the cleaning box is fixedly arranged on the first frame body, a mesh plate is clamped in the cleaning box, a drain pipe is arranged at the bottom of the cleaning box, a first driving device is arranged on the side surface of the cleaning box, a roller is rotationally connected above the cleaning box, a plurality of beating plates are uniformly arranged on the ring surface of the roller, a second driving device is arranged above the cleaning box, the roller brush is vertically and rotatably connected in the cleaning box, the upper section of the conveying device is horizontal, the lower section of the conveying device obliquely and downwards extends into the cleaning box, the conveying device is characterized in that partition plates are uniformly arranged on the surface of the conveying belt, and a third driving device for providing power for the conveying device is arranged on the side face of the conveying device.
Description
Technical Field
The utility model relates to a beef production technical field, what the utensil physically related to is a belt cleaning device who takes care of beef production preparation.
Background
The beef refers to the meat obtained from a cow body, and is one of common meat products, the source of the meat can be a cow, a bull and a small cow, the muscle part of the cow can be cut into steak, beef blocks or cowherd bones, the meat can also be mixed with other meat to be made into sausage or blood sausage, the meat can be eaten by other parts, and the beef can also be eaten by cow tails, cow livers, cow tongues, cow tripes, cow pancreas glands, cow thymus, cow hearts, cow brains, cow kidneys and cow penis.
SUMMERY OF THE UTILITY MODEL
Therefore, in order to solve the above-mentioned not enough, the utility model provides a reasonable in design herein is convenient for with beef sanitization, improve the cleaning efficiency, reduce intensity of labour's belt cleaning device who takes care of beef production preparation.
The utility model is realized by constructing a cleaning device for conditioning beef production and preparation, which comprises
A first frame body;
the second water pump sets up in first support body bottom, second water pump input and external water source intercommunication, the output are connected with the fourth pipeline, the fourth pipeline is kept away from second water pump end and is stretched into and wash the incasement:
the cleaning box is fixedly arranged on the first frame body, a mesh plate is clamped in the cleaning box, and a drain pipe is arranged at the bottom of the cleaning box;
the first driving device is arranged on the side surface of the cleaning box;
the roller is rotatably connected above the cleaning box, and a plurality of beating plates are uniformly arranged on the annular surface of the roller;
the first driving device provides power for the rotation of the roller;
the second driving device is arranged above the cleaning box;
the rolling brush is vertically and rotatably connected in the cleaning box;
the second driving device drives the rolling brush to rotate;
conveyor, upper portion section level, lower part section slope stretch into downwards and wash the incasement, conveyor conveyer belt surface evenly mounted has the baffle, acts on and will washs the incasement beef and fish out, conveyor side-mounting has the third drive arrangement who provides power for its work.
Furthermore, the conveying belt surface of the conveying device is provided with water leakage holes, a water receiving groove which is inclined downwards to the cleaning box is arranged below the horizontal section at the upper part of the conveying device, the arrangement aims to drain the water on the surface of the cleaned beef and facilitate the next processing, and the water receiving groove collects the drained water and guides the water into the cleaning box.
Further, wash case side upper portion and be provided with the drain, wash case side drain below and install an album dirty case, the aim at of this setting, wash case upper strata filth along with rivers flow into an album dirty incasement from the drain, be convenient for keep wasing the incasement and sleep the cleanliness, avoid the filth to adhere to on the beef surface.
Further, the upper portion joint has the filter in the collection dirty incasement, and the aim at of this setting is convenient for with filth and sewage separation, the processing of being convenient for.
Further, dirty case side bottom intercommunication of collection has first pipeline, dirty case end of collection is kept away from to first pipeline is provided with the filter, and the aim at of this setting is convenient for handle sewage, environmental protection.
Further, filter output intercommunication has the second pipeline, the filter end and first water pump intercommunication are kept away from to the second pipeline, a fifth pipeline of first water pump output intercommunication, fifth pipeline one end extends to conveyor slope section top, fifth pipeline middle part intercommunication has the third pipeline that extends to the washing incasement, and the purpose that this set up lies in, the cyclic utilization of the resource of being convenient for, the water economy resource.
Furthermore, conveyor slope section top is provided with sixth pipeline and seventh pipeline, sixth pipeline and external water source intercommunication, seventh pipeline and sixth pipeline intercommunication, seventh pipeline bottom evenly is provided with the several shower nozzle, and the aim at of this setting further washes the beef on the conveyor, improves and washes the effect.
The utility model has the advantages of as follows: the utility model relates to a rationally, second water pump work is to wasing incasement water injection, to wasing the incasement and drop into beef, first drive arrangement driving roller rotates, beat that the board does not stop and hit and beat beef, beef is received and is hit the back of beating, the filth on beef surface separates out, float on the surface of water, second drive arrangement drive round brush rotates, scrub beef, third drive arrangement drive conveyor work, the drive baffle is marchd, the baffle will wash incasement beef and take out the conveyer belt and take out to next process, be convenient for with beef sanitization, high cleaning efficiency, and labor intensity is reduced.
Drawings
Fig. 1 is a schematic structural diagram of the present invention;
fig. 2 is a front view of the present invention;
fig. 3 is a side view of the present invention;

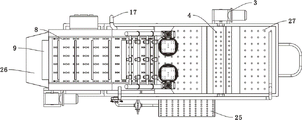

fig. 4 is a top view of the present invention;
FIG. 5 is a cross-sectional view A-A of FIG. 3;
FIG. 6 is a cross-sectional view B-B of FIG. 2;
in the figure: 1. a first frame body; 2. a cleaning tank; 3. a first driving device; 4. a drum; 5. beating a plate; 6. a second driving device; 7. a sewage collection tank; 8. a conveying device; 9. a partition plate; 10. a filter; 11. a first conduit; 12. a second conduit; 13. a first water pump; 14. a sewage draining outlet; 15. a third pipeline; 16. a second water pump; 17. a fourth conduit; 18. a fifth pipeline; 19. a third driving device; 20. a drain pipe; 21. a sixth pipeline; 22. a sixth pipeline; 23. rolling and brushing; 24. a spray head; 25. a filter plate; 26. a water receiving tank; 27. mesh plates.
Detailed Description
The present invention will be described in detail with reference to fig. 1 to 6, and the technical solutions in the embodiments of the present invention will be clearly and completely described, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
The utility model provides a improve belt cleaning device that provides a take care of beef production and preparation here, as shown in fig. 1~6, include
A first frame body 1;
the cleaning box 2 is fixedly arranged on the first frame body 1, a mesh plate 27 is clamped in the cleaning box 2, and a drain pipe 20 is arranged at the bottom of the cleaning box 2;
a first driving device 3 mounted on a side surface of the cleaning tank 2;
the roller 4 is rotatably connected above the cleaning box 2, and a plurality of beating plates 5 are uniformly arranged on the annular surface of the roller 4;
the first driving device 3 provides power for the rotation of the roller 4;
a second driving device 6 installed above the cleaning tank 2;
the rolling brush 23 is vertically and rotatably connected in the cleaning box 2;
the second driving device 6 drives the rolling brush 23 to rotate;
During the implementation, the work of second water pump 16 is to wasing 2 interior water injections of case, to throwing into beef in wasing 2 casees, first drive arrangement 3 drive drum rotates, beat the hitting beef that board 5 does not stop, beef receives to hit and beats the back, the filth on beef surface is separated out, float on the surface of water, second drive arrangement 6 drive round brush 23 rotates, scrub beef, 19 drive conveyor 8 work of third drive arrangement, drive baffle 9 is marchd, baffle 9 will wash 2 interior beef of incasement and take out to the conveyer belt and take out to next process, be convenient for with beef sanitization, and the efficiency of cleaning is improved, and the intensity of labour is reduced.
As shown in fig. 1 and 5, the conveyor belt surface of the conveyor 8 is provided with water leakage holes, a water receiving tank 26 which is inclined downwards to the cleaning tank 2 is arranged below the upper horizontal section of the conveyor 8, the arrangement is convenient for draining the water on the surface of the cleaned beef and further facilitating the next processing, and the water receiving tank 26 collects the drained water and guides the water into the cleaning tank 2.
As shown in figures 1-2, wash 2 side upper portions of case and be provided with drain 14, wash 2 side drain 14 below of case and install an album dirty case 7, the aim at of this setting, wash 2 upper strata filths of case and flow into album dirty case 7 along with rivers from drain 14 in, be convenient for keep washing 2 interior cleanliness of sleeping, avoid the filth to adhere to the beef surface.
As shown in figures 4 and 6, the filtering plate 25 is clamped at the upper part in the sewage collecting box 7, and the purpose of the arrangement is to facilitate the separation of sewage and the treatment.
As shown in fig. 1-2, the bottom of the side surface of the sewage collection tank 7 is communicated with a first pipeline 11, and a filter 10 is arranged at the end, far away from the sewage collection tank 7, of the first pipeline 11, so that sewage can be conveniently treated and the environment can be protected.
As shown in fig. 1, the output end of the filter 10 is communicated with a second pipeline 12, the end of the second pipeline 12 far away from the filter 10 is communicated with a first water pump 13, the output end of the first water pump 13 is communicated with a fifth pipeline 18, one end of the fifth pipeline 18 extends to the upper part of the inclined section of the conveying device 8, and the middle part of the fifth pipeline 18 is communicated with a third pipeline 15 extending into the cleaning box 2.
As shown in fig. 2 and 5, a sixth pipeline 21 and a seventh pipeline 22 are arranged above the inclined section of the conveying device 8, the sixth pipeline 21 is communicated with an external water source, the seventh pipeline 22 is communicated with the sixth pipeline 21, and a plurality of spray heads 24 are uniformly arranged at the bottom of the seventh pipeline 22, so that the beef on the conveying device 8 is further washed, and the washing effect is improved.
The previous description of the disclosed embodiments is provided to enable any person skilled in the art to make or use the present invention. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the generic principles defined herein may be applied to other embodiments without departing from the spirit or scope of the invention. Thus, the present invention is not intended to be limited to the embodiments shown herein but is to be accorded the widest scope consistent with the principles and novel features disclosed herein.
Claims (7)
1. The utility model provides a belt cleaning device of beef production preparation takes care of which characterized in that: comprises that
A first frame body (1);
second water pump (16), set up in first support body (1) bottom, second water pump (16) input and external water source intercommunication, the output is connected with fourth pipeline (17), keep away from second water pump (16) end in fourth pipeline (17) stretches into washing case (2):
the cleaning box (2) is fixedly arranged on the first frame body (1), a mesh plate (27) is clamped in the cleaning box (2), and a drain pipe (20) is arranged at the bottom of the cleaning box (2);
a first driving device (3) mounted on the side surface of the cleaning box (2);
the roller (4) is rotatably connected above the cleaning box (2), and a plurality of beating plates (5) are uniformly arranged on the annular surface of the roller (4);
the first driving device (3) provides power for the rotation of the roller (4);
a second driving device (6) installed above the cleaning tank (2);
the rolling brush (23) is vertically and rotatably connected in the cleaning box (2);
the second driving device (6) drives the rolling brush (23) to rotate;
conveyor (8), upper portion section level, lower part section slope stretch into downwards and wash in case (2), baffle (9) are evenly installed to conveyor (8) conveyer belt surface, act on will wash the interior beef of case (2) and fish out, conveyor (8) side-mounting has third drive arrangement (19) that provide power for its work.
2. The cleaning device for production and preparation of conditioned beef according to claim 1, characterized in that: the water leakage holes are formed in the surface of the conveying belt of the conveying device (8), and a water receiving groove (26) which is inclined downwards to the cleaning box (2) is formed below the upper horizontal section of the conveying device (8).
3. The cleaning device for production and preparation of conditioned beef according to claim 1, characterized in that: wash case (2) side upper portion and be provided with drain (14), wash case (2) side drain (14) below and install collection dirty case (7).
4. The cleaning device for production and preparation of conditioned beef according to claim 3, characterized in that: the upper part in the dirt collecting box (7) is clamped with a filter plate (25).
5. The cleaning device for production and preparation of conditioned beef according to claim 4, characterized in that: the bottom of the side face of the sewage collection box (7) is communicated with a first pipeline (11), and a filter (10) is arranged at the end, far away from the sewage collection box (7), of the first pipeline (11).
6. The cleaning device for production and preparation of conditioned beef according to claim 5, characterized in that: the output end of the filter (10) is communicated with a second pipeline (12), the end, far away from the filter (10), of the second pipeline (12) is communicated with a first water pump (13), the output end of the first water pump (13) is communicated with a fifth pipeline (18), one end of the fifth pipeline (18) extends to the upper side of the inclined section of the conveying device (8), and the middle of the fifth pipeline (18) is communicated with a third pipeline (15) extending into the cleaning box (2).
7. The cleaning device for production and preparation of conditioned beef according to claim 1, characterized in that: a sixth pipeline (21) and a seventh pipeline (22) are arranged above the inclined section of the conveying device (8), the sixth pipeline (21) is communicated with an external water source, the seventh pipeline (22) is communicated with the sixth pipeline (21), and a plurality of spray heads (24) are uniformly arranged at the bottom of the seventh pipeline (22).
