CN215072847U - A multifunctional outdoor portable device - Google Patents

Abstract

The utility model discloses a multifunctional outdoor portable device, which comprises a casing, a solar cell panel is embedded on the casing, a speaker, an LED light panel and a button unit are embedded on the casing, and the casing is embedded with a speaker, an LED light panel and a button unit. A PCB board and a rechargeable battery are arranged in the casing. The PCB board is provided with an MCU controller, an audio amplifier module, an audio playback module, a Bluetooth module and a charging circuit. The Bluetooth module, the audio playback module, and the button unit and the LED light panel are respectively electrically connected to the MCU controller, the speaker, the audio amplifier module and the audio playback module are electrically connected in sequence, the solar panel, the charging circuit and the The rechargeable batteries are electrically connected in sequence, and the PCB board is powered by the rechargeable batteries. The utility model integrates the bluetooth speaker function and the lighting function on one device, and has the solar charging function at the same time, which can meet the function requirements of lighting and signal lights.

Description

Multifunctional outdoor portable equipment

Technical Field

The utility model relates to an outdoor audio amplifier illumination integration equipment especially relates to a multi-functional outdoor portable equipment.

Background

With the development of economic society, more and more people pursue outdoor activities, and meanwhile, a variety of outdoor electronic devices are appeared on the market, and the devices can generally provide functions of lighting or sound boxes, but the integration degree of the existing devices is not high, and a user needs to carry a plurality of devices at the same time. Meanwhile, the existing equipment is lack of solar charging function, and the use requirement of outdoor long-time power utilization cannot be met. In addition, some existing outdoor lamps only have a lighting function, light beams emitted by the lamps are generally scattered outwards and only can illuminate the periphery of the lamps, and the light beams are not concentrated, so that the lamps are difficult to use as long-distance signal lamps and difficult to meet corresponding functional requirements.

SUMMERY OF THE UTILITY MODEL

The to-be-solved technical problem of the utility model lies in, to prior art's not enough, provide one kind with bluetooth speaker function, illumination function integration on an equipment, have solar charging function simultaneously, can satisfy the outdoor portable equipment of illumination and signal lamp functional requirement.

In order to solve the technical problem, the utility model adopts the following technical scheme.

The utility model provides a multi-functional outdoor portable equipment, its is including the casing, it is equipped with solar cell panel to inlay on the casing, it is equipped with speaker, LED lamp plate and button unit to inlay on the casing, be equipped with PCB board and rechargeable battery in the casing, be equipped with MCU controller, audio amplification module, audio playback module, bluetooth module and charging circuit on the PCB board, bluetooth module audio playback module the button unit with LED lamp plate electric connection respectively in the MCU controller, the speaker audio amplification module with audio playback module electric connection in proper order, solar cell panel charging circuit with rechargeable battery electric connection in proper order borrows by rechargeable battery does the PCB board power supply.

Preferably, a charging socket is embedded in the housing, and the charging socket is electrically connected with the charging circuit.

Preferably, the portable electronic device further comprises a handle, the handle is in an inverted U shape, the handle is arranged on two sides of the shell in a spanning mode, and two ends of the handle are respectively in running fit with the shell.

Preferably, a power switch is embedded in the housing, and the power switch is electrically connected with the PCB.

Preferably, an electric energy output socket is embedded in the shell and electrically connected with the PCB.

Preferably, an electric quantity indicator lamp is embedded on the shell and electrically connected with the PCB.

Preferably, the LED lamp plate is including limit shell, LED base plate and light-passing board, be equipped with a plurality of white light LED chips, a plurality of ruddiness LED chip and a plurality of blue light LED chip on the LED base plate, be formed with a plurality of concave lens portions, a plurality of first collimation lens portion and a plurality of second collimation lens portion on the light-passing board, concave lens portion with white light LED chip one-to-one aligns, first collimation lens portion with ruddiness LED chip one-to-one aligns, second collimation lens portion with blue light LED chip one-to-one aligns.

Preferably, the white light LED chips, the red light LED chips and the blue light LED chips are distributed on the LED substrate in a staggered manner.

Preferably, the key unit includes a white light key for controlling the white light LED chip to be turned on, a red light key for controlling the red light LED chip to be turned on, and a blue light key for controlling the blue light LED chip to be turned on.

Preferably, the solar cell panel is embedded in the top of the shell.

The utility model discloses an among the multi-functional outdoor portable equipment, bluetooth module audio frequency amplification module audio frequency playing module with bluetooth speaker structure is constituteed to the speaker, utilizes simultaneously the LED lamp plate with the illumination lamps and lanterns structure is constituteed to the key unit, on this basis, utilizes but solar cell panel acquires the electric energy improve equipment's duration, compares prior art, the utility model discloses with bluetooth speaker function, illumination function integration on an equipment, have solar charging function simultaneously, satisfied user's needs and market demand betterly.

Drawings

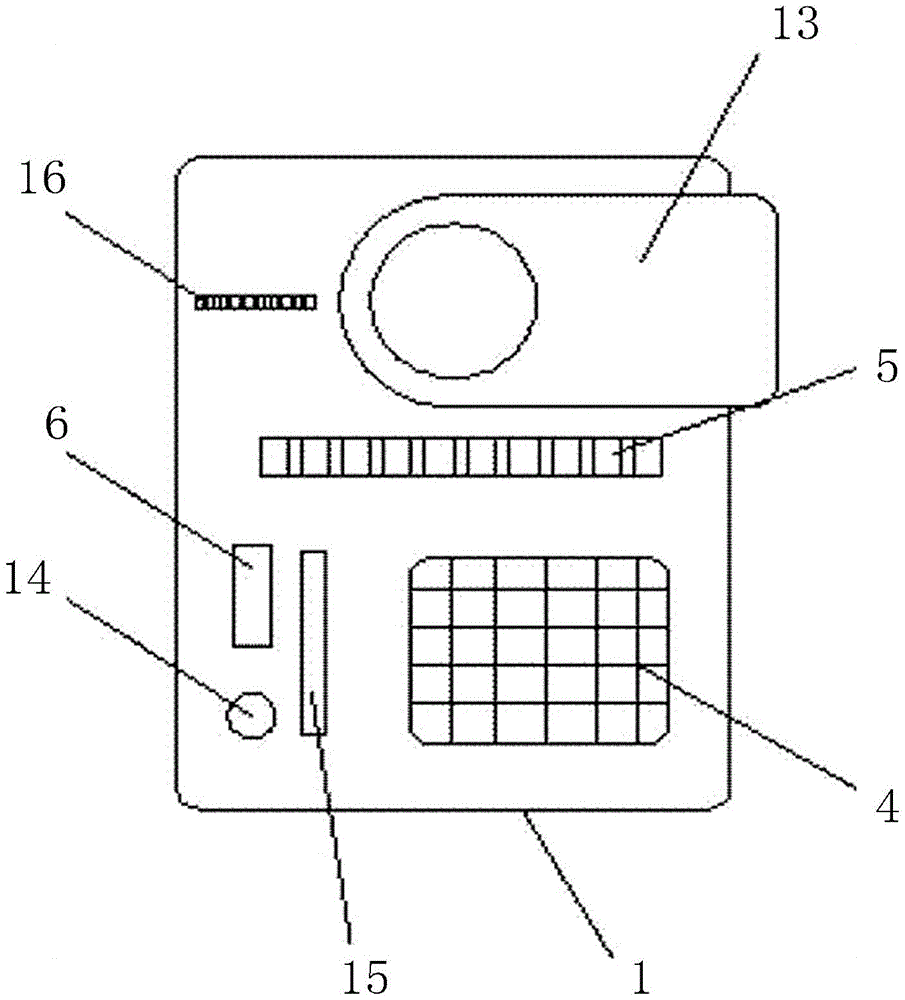

FIG. 1 is a structural diagram of the multifunctional outdoor portable device of the present invention;

fig. 2 is a top view of the multifunctional outdoor portable device of the present invention;

FIG. 3 is a cross-sectional view of an LED lamp panel;

FIG. 4 is a partial block diagram of FIG. 3;

FIG. 5 is a partial block diagram of FIG. 3;

FIG. 6 is a partial block diagram of FIG. 3;

FIG. 7 is a structural view of an LED substrate;

fig. 8 is a circuit block diagram of the multifunctional outdoor portable device of the present invention.

Detailed Description

The present invention will be described in more detail with reference to the accompanying drawings and examples.

The utility model discloses a multifunctional outdoor portable device, which is shown by combining with figures 1 to 8 and comprises a shell 1, a solar cell panel 2 is embedded on the shell 1, a loudspeaker 3, an LED lamp panel 4 and a key unit 5 are embedded on the shell 1, a PCB and a rechargeable battery 12 are arranged in the shell 1, the PCB is provided with an MCU controller 7, an audio amplification module 8, an audio playing module 9, a Bluetooth module 10 and a charging circuit 11, the Bluetooth module 10, the audio playing module 9, the key unit 5 and the LED lamp panel 4 are respectively and electrically connected to the MCU controller 7, the loudspeaker 3, the audio amplification module 8 and the audio playing module 9 are electrically connected in sequence, the solar cell panel 2, the charging circuit 11 and the rechargeable battery 12 are electrically connected in sequence, and the rechargeable battery 12 is used for supplying power to the PCB.

Among the above-mentioned equipment, bluetooth module 10 audio frequency amplification module 8 audio frequency playing module 9 with the bluetooth speaker structure is constituteed to speaker 3, utilizes simultaneously LED lamp plate 4 with the illumination lamps and lanterns structure is constituteed to button unit 5, on this basis, utilizes but the duration of the electric energy improve equipment that solar cell panel 2 acquireed compares prior art, the utility model discloses with bluetooth speaker function, illumination function integration on an equipment, have solar charging function simultaneously, satisfied user's needs and market demand betterly.

In order to realize wired charging, in this embodiment, a charging socket 6 is embedded on the housing 1, and the charging socket 6 is electrically connected to the charging circuit 11.

In order to facilitate carrying, the portable electronic device further includes a handle 13, the handle 13 is in an inverted U shape, the handle 13 is disposed across two sides of the housing 1, and two ends of the handle 13 are respectively rotatably engaged with the housing 1.

Preferably, a power switch 14 is embedded in the housing 1, and the power switch 14 is electrically connected to the PCB.

Further, an electric energy output socket 15 is embedded on the shell 1, and the electric energy output socket 15 is electrically connected with the PCB. The electric energy output by the electric energy output socket 15 can be used for charging electronic equipment such as a mobile phone and the like, so that the charging requirement of a user is met.

In order to observe the electric quantity conveniently, in this embodiment, an electric quantity indicator lamp 16 is embedded on the housing 1, and the electric quantity indicator lamp 16 is electrically connected with the PCB.

In practical applications, a common illuminating lamp generally scatters light to the surroundings, so that the transmission distance of a light beam is short, and the common illuminating lamp is only suitable for illumination and is not suitable for serving as a signal lamp, but for a field environment, red light, blue light, green light and the like can be used as signal light, and in order to have the above functions, in this embodiment:

as shown in fig. 3 to 7, the LED lamp panel 4 includes a side shell 40, an LED substrate 41 and a light-transmitting plate 42, the LED substrate 41 is provided with a plurality of white LED chips 43, a plurality of red LED chips 44 and a plurality of blue LED chips 45, the light-transmitting plate 42 is provided with a plurality of concave lens portions 46, a plurality of first collimating lens portions 47 and a plurality of second collimating lens portions 48, the concave lens portions 46 are aligned with the white LED chips 43 one by one, the first collimating lens portions 47 are aligned with the red LED chips 44 one by one, and the second collimating lens portions 48 are aligned with the blue LED chips 45 one by one.

In the above structure, the white LED chip 43, the red LED chip 44 and the blue LED chip 45 are disposed on the LED substrate 41, wherein the white LED chip 43 is used as an illumination light source, and when the electric quantity is applied, the white light emitted from the white LED chip 43 is scattered to the surroundings through the concave lens portion 46, thereby illuminating the surroundings. When the user need use the signal lamp function, the accessible selects the chromatic light order ruddiness LED chip 44 lights or blue light LED chip 45 lights, ruddiness LED chip 44 perhaps light that blue light LED chip 45 sent becomes behind the collimating lens portion, can shine farther to the department to people in distance have made things convenient for observe red blue signal light, and in the practical application, the user only needs control white light LED chip 43, ruddiness LED chip 44 and blue light LED chip 45 alternative and lights, can realize corresponding illumination and red blue signal light function.

In order to further enlarge the light emitting area, in this embodiment, the white LED chips 43, the red LED chips 44, and the blue LED chips 45 are distributed on the LED substrate 41 in a staggered manner.

In order to realize the color light switching function, in this embodiment, the key unit 5 includes a white light key for controlling the white light LED chip 43 to be turned on, a red light key for controlling the red light LED chip 44 to be turned on, and a blue light key for controlling the blue light LED chip 45 to be turned on.

In order to obtain solar energy more fully, in the present embodiment, the solar cell panel 2 is embedded in the top of the housing 1.

The above is only the embodiment of the present invention, and is not intended to limit the present invention, and all modifications, equivalent replacements or improvements made within the technical scope of the present invention should be included within the protection scope of the present invention.

Claims (10)

1. The utility model provides a multi-functional outdoor portable equipment, a serial communication port, including casing (1), it is equipped with solar cell panel (2) to inlay on casing (1), it is equipped with speaker (3), LED lamp plate (4) and button unit (5) to inlay on casing (1), be equipped with PCB board and rechargeable battery (12) in casing (1), be equipped with MCU controller (7), audio amplification module (8), audio playback module (9), bluetooth module (10) and charging circuit (11) on the PCB board, bluetooth module (10) audio playback module (9) button unit (5) with LED lamp plate (4) respectively electric connection in MCU controller (7), speaker (3) audio amplification module (8) with audio playback module (9) electric connection in proper order, solar cell panel (2) s, The charging circuit (11) and the rechargeable battery (12) are electrically connected in sequence, and the rechargeable battery (12) is used for supplying power to the PCB.

2. The multifunctional outdoor portable device according to claim 1, wherein a charging socket (6) is embedded in the housing (1), and the charging socket (6) is electrically connected to the charging circuit (11).

3. The multifunctional outdoor portable device according to claim 1, further comprising a handle (13), wherein the handle (13) is in an inverted U shape, the handle (13) is disposed across the two sides of the casing (1), and the two ends of the handle (13) are respectively rotatably engaged with the casing (1).

4. The multifunctional outdoor portable device according to claim 1, wherein a power switch (14) is embedded on the housing (1), and the power switch (14) is electrically connected with the PCB board.

5. The multifunctional outdoor portable device according to claim 1, wherein a power output socket (15) is embedded on the housing (1), and the power output socket (15) is electrically connected with the PCB board.

6. The multifunctional outdoor portable device according to claim 1, wherein a power indicator (16) is embedded on the housing (1), and the power indicator (16) is electrically connected to the PCB.

7. The multifunctional outdoor portable device according to claim 1, wherein the LED lamp panel (4) comprises a side casing (40), an LED substrate (41) and a transparent plate (42), the LED substrate (41) is provided with a plurality of white LED chips (43), a plurality of red LED chips (44) and a plurality of blue LED chips (45), the transparent plate (42) is formed with a plurality of concave lens portions (46), a plurality of first collimating lens portions (47) and a plurality of second collimating lens portions (48), the concave lens portions (46) are aligned with the white LED chips (43) one by one, the first collimating lens portions (47) are aligned with the red LED chips (44) one by one, and the second collimating lens portions (48) are aligned with the blue LED chips (45) one by one.

8. The multi-functional outdoor portable device according to claim 7, wherein the white LED chips (43), the red LED chips (44), and the blue LED chips (45) are staggered on the LED substrate (41).

9. The multifunctional outdoor portable device according to claim 7, wherein said key unit (5) includes a white key for controlling the lighting of said white LED chip (43), a red key for controlling the lighting of said red LED chip (44), and a blue key for controlling the lighting of said blue LED chip (45).

10. The multifunctional outdoor portable device according to claim 1, characterized in that the solar panel (2) is embedded on top of the housing (1).
