CN215068875U

CN215068875U - Specimen preparation platform

Info

Publication number: CN215068875U
Application number: CN202121434544.0U
Authority: CN
Inventors: 黄春祥
Original assignee: Zhangjiagang Hualing Environmental Educational Equipment Factory
Current assignee: Zhangjiagang Hualing Environmental Educational Equipment Factory
Priority date: 2021-06-25
Filing date: 2021-06-25
Publication date: 2021-12-07
Anticipated expiration: 2031-06-25

Abstract

The utility model relates to a specimen preparation platform, including vertically running through the exhaust system who locates the inside one end of rack and the tissue reducing mechanism who is used for handling the abandonment tissue, tissue reducing mechanism establishes at the inside other end of rack, tissue reducing mechanism top intercommunication is connected with the washing pond of embedding on the rack surface, the storage chamber that is used for the storing is still offered to the rack upper surface, the processing mesa swing joint that the reservation tank and at least two blocks of hugging closely from top to bottom that the inner wall symmetry was offered is passed through in the storage chamber. This sample preparation platform, among the exhaust system suction fan pass through during tuber pipe inhales air cleaner with the peculiar smell, become to clean air after filtering and discharge to the air in, eliminated the uncomfortable sense of staff processing sample in-process, put into rubbing crusher with abandonment tissue from the drain through the setting of organizing reducing mechanism, in through the pipeline outflow to outside pipeline after the breakage, reduced the jam condition that directly discharges the appearance, need not with the help of other crushing equipment.

Description

Specimen preparation platform

[ technical field ] A method for producing a semiconductor device

The utility model relates to a medical science experiment or teaching equipment field, concretely relates to specimen preparation platform.

[ background of the invention ]

The cadaver specimen is the most important experiment and teaching material in medical colleges and universities, and is mainly used for pathological tissue section, material taking, sample reserving and the like in pathological laboratories of hospitals, pathological laboratories and medical universities.

Most of current sample preparation platforms have rack and mesa to constitute, in the in-process of preparation sample, can inhale the smell of soaking the used formalin solution of sample with the sample closely contact, formalin solution has the volatile smell of strong amazing eye mask and respiratory organ, work has great influence to staff's mind and body under such environment for a long time, and the great piece waste tissue that produces in the sample preparation process can't directly wash into and wash the pond, need discharge the problem with the help of outside crushing apparatus after smashing. Aiming at the problems, the novel design is carried out on the basis of the original specimen preparation platform.

[ Utility model ] content

For solving the problem, an object of the utility model is to provide a specimen preparation platform, the in-process of current specimen preparation platform in the preparation sample has been solved, can inhale the smell of soaking the used formalin solution of sample with the closely contact of sample, formalin solution has the volatile smell of strong amazing eye membrane and respiratory organ, there is great influence to staff's mind and body for a long time working under such environment, and the unable direct wash-in of great piece discarded tissue that produces in the specimen preparation process washs the pond, need smash the problem of back emission again with the help of outside crushing apparatus.

In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a specimen preparation platform, includes the vertical exhaust system who runs through the inside one end of locating the rack and is used for handling the tissue reducing mechanism of abandonment tissue, tissue reducing mechanism establishes the other end in the rack is inside, tissue reducing mechanism top intercommunication is connected with the washing pond of embedding on the rack surface, the storage chamber that is used for the storing is still offered to the rack upper surface, the processing mesa swing joint that hugs closely about reserve tank and at least two that the storage chamber was seted up through the inner wall symmetry.

The utility model provides a specimen preparation platform further sets up to: the exhaust system comprises an air pipe, a suction fan and an air filter, wherein the suction fan is communicated with an air outlet below the air pipe, and the air filter is communicated and connected with an air outlet end of the suction fan.

The utility model provides a specimen preparation platform further sets up to: the tissue crushing device comprises a crusher and pipelines fixed at the discharge end and the feeding end of the crusher.

The utility model provides a specimen preparation platform further sets up to: the treatment table surface is connected with the adjacent wall surface of the storage cavity in a sliding manner.

The utility model provides a specimen preparation platform further sets up to: the rack, the treatment table board and the cleaning pool are all made of stainless steel materials, and a cleaning spray head is fixed on the cleaning pool.

Compared with the prior art, the utility model discloses following beneficial effect has:

(1) this sample preparation platform, through among the exhaust system suction fan through the tuber pipe with peculiar smell suction air filter, become after the filtration during clean air discharges to the air, eliminated the uncomfortable sense of staff processing sample in-process.

(2) The specimen preparation table is characterized in that waste tissues are placed into a crusher from a sewage discharge port through the arrangement of the tissue crushing device, are crushed by the motor and the blade, and finally flow out of an external pipeline through the pipeline, so that the blocking condition caused by direct discharge is reduced; after the specimen is processed, the processing table top is wiped and disinfected by a cleaning spray head.

[ description of the drawings ]

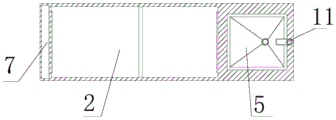

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic view of the structure of the treatment table of the present invention;

fig. 3 is a schematic view of the connection structure of the air draft system and the rack of the present invention.

In the figure: 1. a rack; 2. processing the table top; 3. reserving a groove; 4. a storage chamber; 5. a cleaning tank; 6. a tissue disruption device; 7. an air draft system; 8. an air duct; 9. a suction fan; 10. an air filter; 11. and cleaning the spray head.

[ detailed description ] embodiments

A specimen preparation station of the present invention is described in further detail below with reference to specific embodiments.

As shown in fig. 1-3, the utility model provides a technical solution: the utility model provides a specimen preparation platform, including vertically running through the exhaust system 7 of locating 1 inside one end of rack and the tissue reducing mechanism 6 that is used for handling the abandonment tissue, tissue reducing mechanism 6 is established at 1 inside other end of rack, and tissue reducing mechanism 6 top intercommunication is connected with the embedding and washs 5 on rack 1 surface, and storage chamber 4 that is used for the storing is still offered to rack 1 upper surface, and storage chamber 4 is through the 2 swing joint of processing mesa that 3 and two piece at least hug closely from top to bottom of reservation tank that the inner wall symmetry was seted up.

Exhaust system 7 includes the suction fan 9 of

tuber pipe

8 and 8 below air outlets intercommunication of tuber pipe, still includes air cleaner 10 that 9 air-out ends of suction fan communicate and connect, and among the exhaust system 7 suction fan 9 through 8 with peculiar smell suction air cleaner 10 of tuber pipe, become the clean air after filtering and discharge to the air in, eliminated the uncomfortable sense of staff's processing sample in-process.

Tissue reducing mechanism 6 includes the rubbing crusher and fixes the pipeline at rubbing crusher discharge end and pan feeding end, and the staff of being convenient for directly puts in dumped sample tissue, need not with the help of other breaker of outside.

Handle mesa 2 and the adjacent wall sliding connection in storage chamber 4, can accomodate the sample of making, conveniently take out.

Rack 1, processing mesa 2 and washing pond 5 are stainless steel, wash and be fixed with on the pond 5 and wash shower nozzle 11, are convenient for wash the device wholly, need not to carry and wash water and clean the preparation platform, convenient and practical, and stainless steel is difficult for breeding bacterium and rust stain.

The utility model discloses a theory of operation is: the method comprises the following steps of placing a sample to be manufactured on a processing table board 2, starting an air draft system 7 connected with an external power supply through a switch, sucking peculiar smell into an air filter 10 through an air pipe 8 by a suction fan 9 in the air draft system 7, filtering the peculiar smell into clean air, discharging the clean air into the air, reducing discomfort of workers in the sample processing process, placing waste local sample tissues into a cleaning pool 5 after the processing is finished, enabling the tissues to enter a crusher of a tissue crushing device 6 through a sewage discharge outlet, crushing the tissues through a motor and a blade, and finally discharging the crushed tissues into an external pipeline through the pipeline, so that the blocking condition caused by direct discharge is reduced; after the specimen is processed, the cleaning nozzle 11 is used to wipe and sterilize the processing table 2, which is the working principle of the specimen preparation table, and the details not described in the present specification are well known to those skilled in the art.

The above-mentioned embodiments are merely illustrative of the principles and effects of the present invention, and some embodiments may be used, and are not intended to limit the present invention; it should be noted that, for those skilled in the art, without departing from the inventive concept, several variations and modifications can be made, which are within the scope of the present invention.

Claims

1. The utility model provides a specimen preparation platform, includes vertically runs through the exhaust system who locates the inside one end of rack and is used for handling the tissue reducing mechanism of abandonment tissue, its characterized in that: the tissue crushing device is arranged at the other end inside the rack, a cleaning pool embedded into the surface of the rack is connected to the upper portion of the tissue crushing device in a communicating mode, a storage cavity used for storing is further formed in the upper surface of the rack, and the storage cavity is movably connected with at least two processing table boards which are tightly attached to each other from top to bottom through a preformed groove formed in the inner wall in a symmetrical mode.

2. The specimen preparation stage of claim 1, wherein: the exhaust system comprises an air pipe, a suction fan and an air filter, wherein the suction fan is communicated with an air outlet below the air pipe, and the air filter is communicated and connected with an air outlet end of the suction fan.

3. The specimen preparation stage of claim 1, wherein: the tissue crushing device comprises a crusher and pipelines fixed at the discharge end and the feeding end of the crusher.

4. The specimen preparation stage of claim 1, wherein: the treatment table surface is connected with the adjacent wall surface of the storage cavity in a sliding manner.

5. The specimen preparation stage of claim 1, wherein: the rack, the treatment table board and the cleaning pool are all made of stainless steel materials, and a cleaning spray head is fixed on the cleaning pool.
