本实用新型公开了一种手机盖板生产用除尘设备，包括机架，机架上表面设置有传送带，传送带上表面设置有手机盖板，机架两端上表面设置有支架，支架上端设置有顶板，顶板中部底端设置有吸尘板，吸尘板上端设置有联接杆，联接杆远离吸尘板的一端设置有滑块，滑块内部贯穿设置有丝杆，顶板内部设置有滑槽，支架外侧设置有集尘盒，支架远离集尘盒的一侧设置有弧形槽，弧形槽内部设置有转杆；该一种手机盖板生产用除尘设备通过设置吸尘板、吸风机、吸风管道与滤孔，可以达到增强装置对手机盖板的除尘效果；通过设置滑块、丝杆、集尘盒、刮板与转杆，可以达到实现自动清灰，减轻了工作人员频繁清理堆积灰尘的麻烦。
The utility model discloses a dust removal device for the production of mobile phone covers, which comprises a rack, a conveyor belt is arranged on the upper surface of the rack, a mobile phone cover is arranged on the upper surface of the conveyor belt, brackets are arranged on the upper surfaces of both ends of the rack, and the upper ends of the brackets are arranged with The top plate, the bottom end of the middle part of the top plate is provided with a dust-absorbing plate, the upper end of the dust-absorbing plate is provided with a connecting rod, the end of the connecting rod away from the dust-absorbing plate is provided with a slider, the inside of the slider is provided with a screw rod, and the inside of the top plate is provided with a chute, A dust collecting box is arranged on the outer side of the bracket, an arc groove is arranged on the side away from the dust collecting box of the bracket, and a rotating rod is arranged inside the arc groove; The suction duct and filter hole can enhance the dust removal effect of the device on the mobile phone cover; by setting the slider, the screw, the dust box, the scraper and the rotating rod, the automatic dust removal can be achieved, which reduces the frequent cleaning of the staff. The hassle of accumulating dust.
Description
Technical Field
The utility model relates to a cell-phone apron production facility technical field specifically is a dust collecting equipment is used in cell-phone apron production.
Background
With the popularization of mobile phones, the frequency of using the mobile phones by people is increasing, the mobile phone cover plate is a glass layer on the surface of a touch screen, the mobile phone cover plate needs to be cut into a fixed size in the production process, a lot of dust particles can be remained on the processed mobile phone cover plate, subsequent processing operation is difficult to carry out if dust removal cleaning is not carried out, and the mobile phone cover plate on a conveyor belt is usually directly subjected to dust removal after cutting in order to accelerate the production effect of the mobile phone cover plate.
The prior art has the following defects or problems:
1. most of the existing dust removing equipment for producing the mobile phone cover plate adopts a dust collection method to intensively adsorb dust on the mobile phone cover plate, but the adsorption effect of wind power dust collection is limited, so that dust with larger mass or stubborn dust is difficult to remove, and the condition of insufficient and thorough dust removal is caused;
2. dust collecting equipment is used in current cell-phone apron production absorbs the back to the dust, needs frequent clearance to straining the dirt structure to prevent that the dust from piling up, increase the clearance burden for the staff.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's weak point, provide a dust collecting equipment is used in the production of cell-phone apron to solve the problem that proposes in the background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a dust collecting equipment is used in cell-phone apron production, includes the frame, the frame upper surface is provided with the conveyer belt, the conveyer belt upper surface is provided with the cell-phone apron, frame both ends upper surface is provided with the support, the support upper end is provided with the roof, roof middle part bottom is provided with the dust absorption board, the dust absorption board upper end is provided with the connecting rod, the one end that the dust absorption board was kept away from to the connecting rod is provided with the slider, the inside lead screw that runs through of slider, the inside spout that is provided with of roof, the support outside is provided with the dust collection box, one side that the dust collection box was kept away from to the support is provided with the arc wall, the inside bull stick that is provided with of arc wall, the bull stick top is provided with the scraper blade, the cavity in the inside dust absorption board is provided with the filtration pore, dust absorption board bottom runs through and is provided with the suction fan.
As the utility model discloses an optimal technical scheme, the hookup rod both ends respectively with dust absorption board, slider fixed connection, the inside thread groove that runs through of slider is provided with, slider quantity is two sets of, slider horizontal slip in the spout.
As the utility model discloses an optimal technical scheme, the lead screw comprises two sets of screw thread opposite direction's lead screw integral type, the lead screw runs through the slider through the thread groove, lead screw one end is provided with the motor, the lead screw rotates with the slider to be connected.
As an optimal technical scheme of the utility model, dust absorption board quantity is two sets of, the dust absorption board material is conductive metal, high voltage direct current's positive negative pole is connected respectively to two sets of dust absorption boards.
As the utility model discloses a preferred technical scheme, suction fan one side is provided with the aspiration channel, the suction fan communicates with each other with the cavity cell through the aspiration channel, the filtration pore runs through dust absorption board bottom, the cavity cell communicates with each other with the external world through the filtration pore.
As the utility model discloses an preferred technical scheme, the bull stick material is magnetism and inhales the metal, the bull stick middle part is ninety degrees and buckles, bull stick top and scraper blade fixed connection, the bull stick bottom is provided with the round pin axle, the round pin axle runs through the bull stick, the bull stick is connected through round pin axle and support rotation.
As the utility model discloses a preferred technical scheme, one side that the support is close to the bull stick upper end is provided with the electro-magnet, one side that the electro-magnet is close to the bull stick is provided with the spring, the spring both ends respectively with electro-magnet, bull stick fixed connection.
Compared with the prior art, the utility model provides a dust collecting equipment is used in production of cell-phone apron possesses following beneficial effect:
1. according to the dust removal equipment for the production of the mobile phone cover plate, the dust collection plate, the suction fan, the suction pipeline and the filter hole are arranged, the suction fan is started to suck air in the hollow groove through the suction pipeline, so that dust on the mobile phone cover plate is sucked by the dust collection plate, the dust is filtered by the filter hole and attached to the bottom of the dust collection plate, the two groups of dust collection plates are respectively connected with the positive pole and the negative pole of high-voltage direct current, an electrostatic electric field is formed on the dust collection plate, the dust collection plate can fully adsorb the residual dust on the mobile phone cover plate, and the dust removal effect of the device on the mobile phone cover plate is greatly enhanced;
2. the dust removal equipment for the production of the mobile phone cover plate is provided with a sliding block, a screw rod, a dust collection box, a scraper plate and a rotating rod, when the dust collection plate collects dust for a period of time, a large amount of dust is attached to the bottom of the dust collection plate, the screw rod is driven to rotate by a motor, the sliding block is driven to slide in a sliding groove by the rotation of the screw rod, the sliding block drives two groups of dust collection plates to move reversely by a connecting rod due to opposite thread directions on two ends of the screw rod, the dust collection plates move to the inside of the dust collection box, high-voltage direct current in the dust collection plates is cut off at the moment, partial dust at the bottom of the dust collection plates falls into the inside of the dust collection box under the influence of gravity, an electromagnet is controlled to be switched on, the rotating rod of the electromagnet adsorbs the rotating rod, the rotating rod rotates around a pin shaft to be in a vertical state, the top end of the scraper plate and the bottom of the dust collection plates are on the same horizontal line, the motor is driven to rotate reversely, the bottom of the dust collection plates rubs against the scraper plate in the process of resetting and moving, the dust collection box, thereby realizing automatic ash removal and reducing the trouble of frequent cleaning of accumulated dust by workers.
Drawings

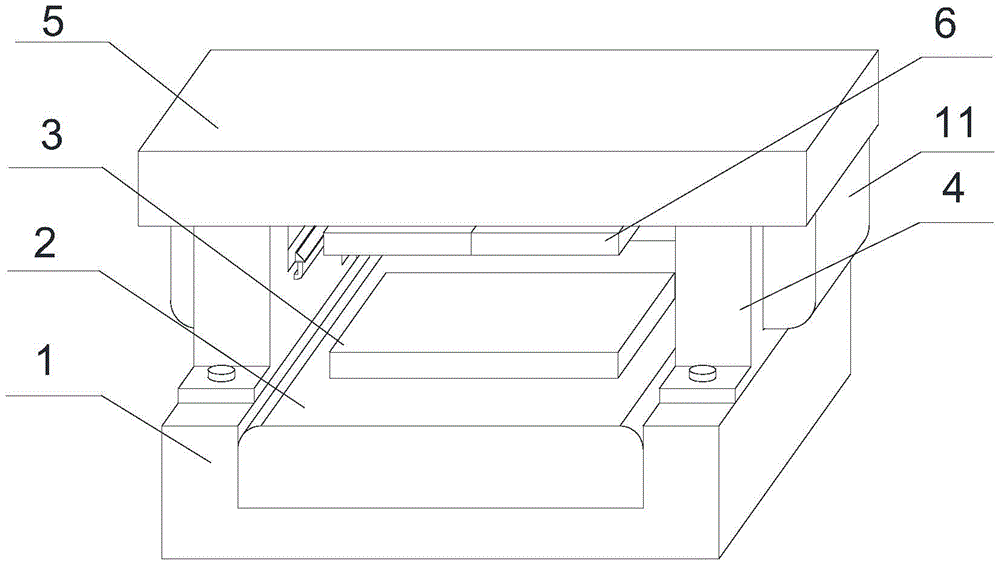

FIG. 1 is a schematic view of the whole structure of the present invention;
FIG. 2 is a schematic cross-sectional view of the inner part of the structure of the present invention;
FIG. 3 is a schematic view of the structure of the present invention;
fig. 4 is a schematic view of the internal structure of the dust-collecting plate of the present invention.
In the figure: 1. a frame; 2. a conveyor belt; 3. a mobile phone cover plate; 4. a support; 5. a top plate; 6. a dust collection plate; 7. a coupling rod; 8. a slider; 9. a screw rod; 10. a chute; 11. a dust collecting box; 12. an arc-shaped slot; 13. a rotating rod; 14. a squeegee; 15. a hollow groove; 16. filtering holes; 17. a suction fan; 18. an air suction pipeline; 19. an electromagnet; 20. a spring; 21. a pin shaft; 22. an electric motor.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, in this embodiment: the utility model provides a dust collecting equipment is used in cell-phone apron production, which comprises a frame 1, 1 upper surface of frame is provided with conveyer belt 2, 2 upper surfaces of conveyer belt are provided with cell- phone apron 3, 1 both ends upper surface of frame is provided with support 4, 4 upper ends of support are provided with roof 5, 5 middle part bottoms of roof are provided with dust absorption plate 6, 6 upper ends of dust absorption plate are provided with connecting rod 7, connecting rod 7 keeps away from the one end of dust absorption plate 6 and is provided with slider 8, 8 inside lead screws 9 that run through of slider, 5 inside spouts 10 that are provided with of roof, the support 4 outside is provided with dust collection box 11, one side that the support 4 kept away from dust collection box 11 is provided with arc wall 12, 12 inside is provided with bull stick 13, 13 top of bull stick is provided with scraper blade 14, 6 inside hollow 15 that is provided with of dust absorption plate, 6 bottom runs through and is provided with filtration pore 16, 6 upper ends of dust absorption plate are provided with suction fan 17.
In the embodiment, two ends of the connecting rod 7 are respectively fixedly connected with the dust collection plate 6 and the slide blocks 8 and are used for connecting the slide blocks 8 with the dust collection plate 6, thread grooves are formed in the slide blocks 8 in a penetrating mode, so that the lead screws 9 can penetrate through the slide blocks 8 conveniently, the number of the slide blocks 8 is two, the slide blocks 8 horizontally slide in the slide grooves 10, and the dust collection plate 6 can be driven to move through the connecting rod 7 conveniently; the screw rod 9 is formed by integrating two groups of screw rods 9 with opposite thread directions and is used for driving the two groups of dust collecting plates 6 to move reversely, the screw rod 9 penetrates through the sliding block 8 through a thread groove, one end of the screw rod 9 is provided with a motor 22, the screw rod 9 is driven to rotate by the motor 22, the screw rod 9 is rotationally connected with the sliding block 8, and the sliding block 8 is driven to move by the rotation of the screw rod 9; the number of the dust collection plates 6 is two, the dust collection plates 6 are made of conductive metal and are convenient to electrify the interior of the dust collection plates 6, and the two groups of dust collection plates 6 are respectively connected with the positive pole and the negative pole of high-voltage direct current to form an electrostatic electric field on the dust collection plates 6 so as to realize electrostatic adsorption on dust on the mobile phone cover plate 3; an air suction pipeline 18 is arranged on one side of the suction fan 17, the suction fan 17 is communicated with the hollow groove 15 through the air suction pipeline 18 and is used for sucking air in the hollow groove 15, the filtering hole 16 penetrates through the bottom of the dust collection plate 6 and is used for filtering dust and preventing the dust from entering the dust collection plate 6, and the hollow groove 15 is communicated with the outside through the filtering hole 16 so that the dust collection plate 6 can conveniently suck dust on the mobile phone cover plate 3; the rotating rod 13 is made of magnetically attractable metal, so that the electromagnet 19 can conveniently adsorb the rotating rod 13, the rotating rod 13 is driven to rotate, the middle of the rotating rod 13 is bent by ninety degrees, the top end of the rotating rod 13 is fixedly connected with the scraper 14, the bottom of the dust collection plate 6 is subjected to dust removal by the scraper 14, the bottom end of the rotating rod 13 is provided with a pin shaft 21, the pin shaft 21 penetrates through the rotating rod 13, the rotating rod 13 is rotatably connected with the bracket 4 through the pin shaft 21, the dust collection plate 6 can conveniently extend into the dust collection box 11, and dust on the dust collection plate 6 can be scraped into the dust collection box 11; one side of the bracket 4 close to the upper end of the rotating rod 13 is provided with an electromagnet 19 for adsorbing the rotating rod 13 and driving the rotating rod 13 to rotate to a vertical state, one side of the electromagnet 19 close to the rotating rod 13 is provided with a spring 20, and two ends of the spring 20 are respectively fixedly connected with the electromagnet 19 and the rotating rod 13 and are used for pushing the rotating rod 13 to rotate and reset.
The utility model discloses a theory of operation and use flow: a user firstly utilizes the conveying belt 2 to drive the mobile phone cover plate 3 to convey, by starting the suction fan 17, when the mobile phone cover plate 3 passes through the bottom of the dust absorption plate 6, the suction fan 17 sucks air in the hollow groove 15 through the suction pipeline 18, so that the dust absorption plate 6 sucks dust on the mobile phone cover plate 3, the dust is filtered through the filter holes 16 and attached to the bottom of the dust absorption plate 6, two groups of dust absorption plates 6 are respectively connected with the positive pole and the negative pole of high-voltage direct current, an electrostatic electric field is formed on the dust absorption plate 6, the dust absorption plate 6 fully absorbs the dust remained on the mobile phone cover plate 3, the dust removal effect of the device on the mobile phone cover plate 3 is greatly enhanced, after the dust absorption plate 6 absorbs dust for a period of time, a large amount of dust is attached to the bottom of the dust absorption plate 6, the screw rod 9 is driven to rotate by the motor 22, the screw rod 9 rotates to drive the slide block 8 to slide in the sliding groove 10, and the directions of screw rods 9 are opposite, therefore, the sliding block 8 drives the two groups of dust collection plates 6 to move reversely through the connecting rod 7, the dust collection plates 6 move into the dust collection box 11, high-voltage direct current in the dust collection plates 6 is cut off at the moment, partial dust at the bottom of the dust collection plates 6 falls into the dust collection box 11 under the influence of gravity, the electromagnet 19 is controlled to be switched on, the rotating rod 13 of the electromagnet 19 is adsorbed, the rotating rod 13 rotates around the pin shaft 21 to be in a vertical state, the top ends of the scraping plates 14 and the bottom of the dust collection plates 6 are located on the same horizontal line at the moment, the motor 22 is driven to rotate reversely, the bottom of the dust collection plates 6 in the resetting and moving process is rubbed with the scraping plates 14, the dust at the bottom of the dust collection plates 6 is scraped and falls into the dust collection box 11 by the scraping plates 14, automatic dust cleaning is achieved, and the trouble that workers frequently clean accumulated dust is relieved.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (7)
1. The utility model provides a dust collecting equipment is used in production of cell-phone apron which characterized in that: comprises a frame (1), a conveyor belt (2) is arranged on the upper surface of the frame (1), a mobile phone cover plate (3) is arranged on the upper surface of the conveyor belt (2), supports (4) are arranged on the upper surfaces of two ends of the frame (1), a top plate (5) is arranged on the upper ends of the supports (4), a dust suction plate (6) is arranged at the bottom end of the middle part of the top plate (5), a connecting rod (7) is arranged on the upper end of the dust suction plate (6), a sliding block (8) is arranged at one end, away from the dust suction plate (6), of the connecting rod (7), a lead screw (9) is arranged in the sliding block (8) in a penetrating manner, a sliding groove (10) is arranged in the top plate (5), a dust collection box (11) is arranged on the outer side of the frame (4), an arc-shaped groove (12) is arranged on one side, away from the dust collection box (11), a rotating rod (13) is arranged in the arc-shaped groove (12), the dust collection device is characterized in that a scraper (14) is arranged at the top end of the rotating rod (13), a hollow groove (15) is formed in the dust collection plate (6), a filter hole (16) penetrates through the bottom of the dust collection plate (6), and a suction fan (17) is arranged at the upper end of the dust collection plate (6).
2. The mobile phone cover plate production dust removal equipment of claim 1, wherein: the two ends of the connecting rod (7) are fixedly connected with the dust collection plate (6) and the sliding block (8) respectively, threaded grooves are formed in the sliding block (8) in a penetrating mode, the sliding blocks (8) are two in number, and the sliding blocks (8) horizontally slide in the sliding grooves (10).
3. The mobile phone cover plate production dust removal equipment of claim 1, wherein: the lead screw (9) is formed by two sets of lead screws (9) in opposite thread directions in an integrated mode, the lead screws (9) penetrate through the sliding blocks (8) through thread grooves, one ends of the lead screws (9) are provided with motors (22), and the lead screws (9) are rotatably connected with the sliding blocks (8).
4. The mobile phone cover plate production dust removal equipment of claim 1, wherein: the number of the dust absorption plates (6) is two, the dust absorption plates (6) are made of conductive metal, and the two groups of dust absorption plates (6) are respectively connected with the positive pole and the negative pole of the high-voltage direct current.
5. The mobile phone cover plate production dust removal equipment of claim 1, wherein: suction pipe (18) are arranged on one side of the suction fan (17), the suction fan (17) is communicated with the hollow groove (15) through the suction pipe (18), the filtering hole (16) penetrates through the bottom of the dust collection plate (6), and the hollow groove (15) is communicated with the outside through the filtering hole (16).
6. The mobile phone cover plate production dust removal equipment of claim 1, wherein: but bull stick (13) material is magnetism and inhales the metal, bull stick (13) middle part is ninety degrees buckles, bull stick (13) top and scraper blade (14) fixed connection, bull stick (13) bottom is provided with round pin axle (21), round pin axle (21) run through bull stick (13), bull stick (13) are connected through round pin axle (21) and support (4) rotation.
7. The mobile phone cover plate production dust removal equipment of claim 1, wherein: an electromagnet (19) is arranged on one side, close to the upper end of the rotating rod (13), of the support (4), a spring (20) is arranged on one side, close to the rotating rod (13), of the electromagnet (19), and two ends of the spring (20) are fixedly connected with the electromagnet (19) and the rotating rod (13) respectively.
