Domestic small-size agalloch eaglewood milling machine

Technical Field

The utility model relates to a coarse cereals grinding equipment technical field specifically is a domestic small-size agalloch eaglewood milling machine.

Background

Domestic milling machine is usually to place some five cereals in the milling machine, carries out abrasive treatment through smashing grinding device with the particulate matter, grinds the likepowder thing of department at last, and along with the development of society, domestic milling machine uses more and more extensively.

Present domestic milling machine is when polishing the use to the five cereals, and the crocus is inefficient, and the crocus effect is comparatively not good, and the material that leads to after grinding has more particulate matter, causes the waste of material, and edible taste is not good, greatly reduced this domestic small-size agalloch eaglewood milling machine's practicality.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a domestic small-size agalloch eaglewood milling machine to provide current domestic milling machine crocus inefficiency and the comparatively not good problem of crocus effect in solving above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: a domestic small-size agalloch eaglewood milling machine, includes the crocus case, the top of crocus case is provided with the feed inlet, and the bottom of crocus case is provided with the discharge gate, and the motor is installed to one side of crocus case, the output of motor rotates and is connected with first conical tooth, and one side of first conical tooth rotates and is connected with first gear, and the one end of first gear rotates and is connected with the second gear, one side of first gear and second gear rotates respectively and is connected with first grinding roller and second grinding roller, and the bottom meshing of first gear is connected with second conical tooth, and the bottom of second conical tooth is connected with the spliced pole, the bottom of spliced pole is provided with third conical tooth, and one side meshing of third conical tooth is connected with fourth conical tooth, one side of fourth conical tooth rotates and is connected with the rotation post, and the rotation post runs through to the inside of crocus case, run through to the inside rotation post middle-end of crocus incasement portion and be provided with the connecting plate, and the outer wall of connecting plate has cup jointed the rotation piece to the top of rotating the piece is rotated and is connected with the connection box, the top of connection box is provided with the sleeve, and telescopic inner wall has cup jointed the fixed column, and the top of fixed column is provided with the filter screen, the both sides fixedly connected with slider of filter screen, and the inner wall sliding connection of slider and spout to the spout is located the inner wall of crocus case.

Preferably, the inside spout inner wall of crocus case and the outer wall phase-match of slider, and the inner wall of crocus case is provided with antiseized layer.

Preferably, the first conical tooth and the second conical tooth are meshed and connected with each other, and the third conical tooth and the fourth conical tooth at the bottom end of the second conical tooth are meshed and connected with each other.

Preferably, the first gear and the second gear are meshed with each other, the surfaces of the first grinding roller and the second grinding roller on one side of the first gear and one side of the second gear are in contact, and the inner sides of the first grinding roller and the second grinding roller are both provided with a heating layer.

Preferably, the rotating part rotationally connected with the inner side of the connecting plate is I-shaped, and the connecting frame at the top end of the rotating part is concave.

Preferably, the inner wall of the sleeve is matched with the outer wall of the fixing column, and the top end of the fixing column is located in the middle of the bottom end of the filter screen.

Compared with the prior art, the beneficial effects of the utility model are that: this domestic small-size agalloch eaglewood milling machine:

1. the motor drives the first conical teeth to rotate, so that the first gear is driven to rotate, the second gear is driven to rotate, the first grinding roller and the second grinding roller are in rotating contact, and the input materials are extruded and ground, so that the grinding efficiency is high, the operation is simple, and the use is convenient;

2. drive the spliced pole through first toper tooth and rotate, make third toper tooth produce the rotation, third toper tooth rotates and orders about fourth toper tooth to the drive rotates the post and rotates, rotates the piece this moment and reciprocates in the inboard of splice box, and the fixed column reciprocates at the sleeve inner wall, reciprocates until driving the filter screen, and the slider reciprocates at the spout inner wall simultaneously, sieves the processing to the material after grinding, has further improved the crocus quality of material.

Drawings

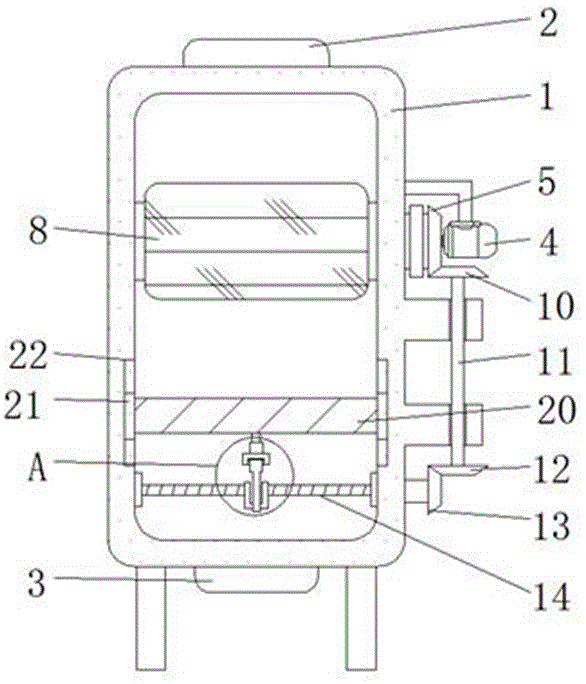

FIG. 1 is a schematic view of the internal structure of the milling box of the present invention;

FIG. 2 is an enlarged schematic view of point A of FIG. 1 according to the present invention;

FIG. 3 is a schematic view of the connection structure of the grinding roller and the transmission mechanism of the present invention;

fig. 4 is a schematic view of the structure of the grinding roller of the present invention.

In the figure: 1. a milling box; 2. a feed inlet; 3. a discharge port; 4. a motor; 5. a first conical tooth; 6. a first gear; 7. a second gear; 8. a first grinding roller; 9. a second grinding roller; 10. a second tapered tooth; 11. connecting columns; 12. a third tapered tooth; 13. a fourth conical tooth; 14. rotating the column; 15. a connecting plate; 16. a rotating member; 17. a connecting frame; 18. a sleeve; 19. fixing a column; 20. filtering with a screen; 21. a slider; 22. a chute.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a household small agilawood flour mill comprises a flour milling box 1, wherein the top end of the flour milling box 1 is provided with a feed inlet 2, the bottom end of the flour milling box 1 is provided with a discharge outlet 3, one side of the flour milling box 1 is provided with a motor 4, the output end of the motor 4 is rotatably connected with a first conical tooth 5, one side of the first conical tooth 5 is rotatably connected with a first gear 6, one end of the first gear 6 is rotatably connected with a second gear 7, one sides of the first gear 6 and the second gear 7 are respectively rotatably connected with a first grinding roller 8 and a second grinding roller 9, the bottom end of the first gear 6 is meshed with a second conical tooth 10, the bottom end of the second conical tooth 10 is connected with a connecting column 11, the bottom end of the connecting column 11 is provided with a third conical tooth 12, one side of the third conical tooth 12 is meshed with a fourth conical tooth 13, one side of the fourth conical tooth 13 is rotatably connected with a rotating column 14, and rotate the inside that post 14 runs through to crocus box 1, it is provided with connecting plate 15 to run through to the inside 14 middle-ends of rotation post of crocus box 1, and the outer wall of connecting plate 15 has cup jointed and has rotated piece 16, and the top that rotates piece 16 rotates and is connected with linking frame 17, the top of linking frame 17 is provided with sleeve 18, and fixed column 19 has been cup jointed to sleeve 18's inner wall, and fixed column 19's top is provided with filter screen 20, filter screen 20's both sides fixedly connected with slider 21, and slider 21 and spout 22's inner wall sliding connection, and spout 22 is located crocus box 1's inner wall.

The inside spout 22 inner wall of crocus box 1 and the outer wall phase-match of slider 21 can effectively make slider 21 reciprocate at the inner wall of spout 22, and the inner wall of crocus box 1 is provided with antiseized layer, prevents that the material adhesion is difficult for handling at crocus box 1 inner wall after long-time the use, leads to the material extravagant.

The first conical tooth 5 and the second conical tooth 10 are meshed with each other and connected with each other, the third conical tooth 12 and the fourth conical tooth 13 at the bottom end of the second conical tooth 10 are meshed with each other and connected with each other, the first conical tooth 5 is driven to rotate through a motor, the second conical tooth 10 is driven to rotate, the third conical tooth 12 is driven to rotate by the second conical tooth 10, and therefore the fourth conical tooth 13 is driven to rotate.

First gear 6 and second gear 7 intermeshing are connected, be convenient for first gear 6 drive second gear 7 and rotate, effectively drive first grinding roller 8 and second grinding roller 9 and rotate, and the first grinding roller 8 and the second grinding roller 9 surface of first gear 6 and second gear 7 one side contact, can extrude the material of carrying, and the inboard of first grinding roller 8 and second grinding roller 9 all is provided with the zone of heating, can strengthen the efficiency of grinding when using.

The rotating part 16 rotatably connected to the inner side of the connecting plate 15 is in an i shape, and the connecting frame 17 at the top end of the rotating part 16 is in a concave shape, so that the rotating part 16 can effectively rotate on the inner side of the connecting plate 15 and the inner side of the connecting frame 17 under the rotation of the rotating column 14.

The inner wall of sleeve 18 matches each other with the outer wall of fixed column 19, is convenient for make fixed column 19 reciprocate at the inner wall of sleeve 18, and the top of fixed column 19 is located the bottom intermediate position department of filter screen 20, and the reciprocating of fixed column 19 steadily drives both sides slider 21 of filter screen 20 and reciprocates in spout 22.

The working principle is as follows: according to the figures 1 and 2, firstly, coarse cereals to be milled are placed into a milling box 1 through a feeding hole 2, a motor 4 is started, the motor 4 drives a first conical tooth 5 to rotate, a first gear 6 and a second gear 7 rotate, a first grinding roller 8 and a second grinding roller 9 rotate, and input materials are extruded and ground;

according to fig. 1 and 2, the ground material falls onto the screen 20, the first conical tooth 5 simultaneously drives the connecting column 11 to rotate, so that the third conical tooth 12 and the fourth conical tooth 13 rotate, thereby driving the rotary column 14 to rotate in the interior of the milling box 1, the rotary column 14 rotates to drive the connecting plates 15 to move, since the bottom end of the rotary piece 16 is located at the middle-lower end position between the connecting plates 15, when the connecting plate 15 rotates, the rotating piece 16 is driven to rotate, the rotating piece 16 drives the connecting frame 17 to move up and down when rotating, so that the sleeve 18 moves up and down on the outer wall of the fixing post 19, and when the sleeve 18 moves to the uppermost position, at this time, the sleeve 18 touches the filter screen 20, and drives the filter screen 20 to move up and down, and at the same time as the filter screen 20 moves, the slide 21 moves up and down on the inner wall of the chute 22, effectively screening the ground material, and the content not described in detail in this specification is well known to those skilled in the art.

It is to be understood that the terms "central," "longitudinal," "lateral," "front," "rear," "left," "right," "vertical," "horizontal," "top," "bottom," "inner," "outer," and the like are used in the orientations and positional relationships indicated in the drawings for the purpose of convenience and simplicity of description, and are not intended to indicate or imply that the referenced devices or elements must be in a particular orientation, constructed and operated in a particular orientation, and are not to be construed as limiting the scope of the present invention.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a domestic small-size agalloch eaglewood milling machine, includes crocus case (1), its characterized in that: the top of milling box (1) is provided with feed inlet (2), and the bottom of milling box (1) is provided with discharge gate (3), and motor (4) is installed to one side of milling box (1), the output of motor (4) rotates and is connected with first toper tooth (5), and one side of first toper tooth (5) rotates and is connected with first gear (6), and the one end of first gear (6) rotates and is connected with second gear (7), one side of first gear (6) and second gear (7) rotates respectively and is connected with first grinding roller (8) and second grinding roller (9), and the bottom meshing of first gear (6) is connected with second toper tooth (10), and the bottom of second toper tooth (10) is connected with spliced pole (11), the bottom of spliced pole (11) is provided with third toper tooth (12), and one side meshing of third toper tooth (12) is connected with fourth toper tooth (13), one side of fourth toper tooth (13) is rotated and is connected with rotation post (14), and rotates the inside that post (14) runs through to crocus box (1), it is provided with connecting plate (15) to run through to inside rotation post (14) middle-end of crocus box (1), and the outer wall of connecting plate (15) has cup jointed and has rotated piece (16), and the top of rotating piece (16) is rotated and is connected with linking frame (17), the top of linking frame (17) is provided with sleeve (18), and the inner wall of sleeve (18) has cup jointed fixed column (19), and the top of fixed column (19) is provided with filter screen (20), the both sides fixedly connected with slider (21) of filter screen (20), and the inner wall sliding connection of slider (21) and spout (22) to spout (22) are located the inner wall of crocus box (1).

2. A domestic small agilawood flour mill according to claim 1, characterized in that: the inside spout (22) inner wall of crocus box (1) and the outer wall phase-match of slider (21), and the inner wall of crocus box (1) is provided with antiseized layer.

3. A domestic small agilawood flour mill according to claim 1, characterized in that: the first conical tooth (5) and the second conical tooth (10) are meshed and connected with each other, and the third conical tooth (12) and the fourth conical tooth (13) at the bottom end of the second conical tooth (10) are meshed and connected with each other.

4. A domestic small agilawood flour mill according to claim 1, characterized in that: first gear (6) and second gear (7) intermeshing are connected, and first grinding roller (8) and second grinding roller (9) surface contact of first gear (6) and second gear (7) one side to the inboard of first grinding roller (8) and second grinding roller (9) all is provided with the zone of heating.

5. A domestic small agilawood flour mill according to claim 1, characterized in that: the rotating part (16) rotatably connected with the inner side of the connecting plate (15) is arranged in an I shape, and the connecting frame (17) at the top end of the rotating part (16) is arranged in a concave shape.

6. A domestic small agilawood flour mill according to claim 1, characterized in that: the inner wall of the sleeve (18) is matched with the outer wall of the fixing column (19), and the top end of the fixing column (19) is located at the middle position of the bottom end of the filter screen (20).
