Abstract
本实用新型公开了一种保留灌肠用灌肠管，包括灌肠管本体，灌肠管本体靠近闭合端一端的周侧设置有灌药口，灌肠管本体的周侧设置有若干个环形气囊，灌肠管本体内设置有多个充气通道，灌肠管本体远离闭合端的一端设置有多个分充气接头，充气接头内设置有使得空气单向进入的单向进气结构。本实用新型具有以下优点和效果：通过在灌肠管本体靠近闭合端处设置有多个环形气囊，其中一个环形气囊处于灌药口靠近闭合端的一侧，其余的环形气囊处于灌药口远离闭合端的一侧，此时选择两个位于灌药口的环形气囊注入空气后抵紧在患者的患处，使得从灌药口灌入的药物不会从两个环形气囊之间流出，提高密封性，以提高药物保留时效，患者依从性更高。
The utility model discloses an enema tube for retention enema, which comprises an enema tube body, an enema tube body is provided with an enema port on the peripheral side of one end close to a closed end, a plurality of annular airbags are arranged on the peripheral side of the enema tube body, and the enema tube body is provided with an enema tube. A plurality of inflatable channels are arranged in the inside, and a plurality of sub-inflatable joints are arranged at one end of the enema tube body away from the closed end, and a unidirectional air intake structure is arranged in the inflatable joint to allow air to enter in one direction. The utility model has the following advantages and effects: the enema tube body is provided with a plurality of annular airbags near the closed end, one of the annular airbags is located on the side of the drug filling port close to the closed end, and the other annular airbags are located at the side of the drug filling port away from the closed end. On one side, choose two annular airbags located at the filling port to inject air and then press against the affected part of the patient, so that the medicine injected from the filling port will not flow out from between the two annular airbags, improving the sealing performance, so as to improve the sealing performance. Improve drug retention time and improve patient compliance.
Description
Technical Field
The utility model relates to the field of medical equipment, in particular to keep enema tube for enema.
Background
The traditional retention enema usually adopts the mode of anal canal insertion and slow dropping of infusion hanging bottles. In the past, the anal canal is replaced by a catheter or a sputum suction tube, and a patient is ordered to be kept for more than 1 hour by lifting the hip so as to be beneficial to keeping and absorbing the liquid medicine and adjust the lying position according to the pathological change part.
However, in the process of retention enema, the patient is difficult to keep the position for a long time, so that the liquid medicine is easy to flow out from the anus, and the retention and absorption of the liquid medicine are affected.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a remain enema pipe for enema is equipped with the annular gasbag of being no less than two through the tail end at enema pipe, after reacing pathological change position, pours into the air and fills annular gasbag, pours into the medicine again, makes the enema airtight relatively to improve the medicine and remain the ageing, patient compliance is higher.
The above technical purpose of the present invention can be achieved by the following technical solutions: the utility model provides a remain enema tube for enema, includes the enema tube body, enema tube body one end is the closed end, the enema tube body is close to the week side of closed end one end and is provided with the enema mouth, week side of enema tube body is provided with a plurality of annular gasbag, one of them annular gasbag is in the one side that the enema mouth is close to the closed end, all the other annular gasbag is in the one side that the closed end was kept away from to the enema mouth, this internal a plurality of communicating and along the inflation channel of its length direction extension with a plurality of annular gasbags respectively that are provided with of enema tube, the one end that the closed end was kept away from to the enema tube body is provided with a plurality of respectively with the communicating inflation joint of a plurality of inflation channels, be provided with the one-way structure of admitting air that makes the one-way entering of air in the inflation joint.
The utility model discloses a further set up to: the annular air bag is in a football shape after being inflated and expanded.
The utility model discloses a further set up to: the one end of enema tube body far away from the closed end is provided with a plurality of inflatable hoses that are communicated with the inflatable channel respectively, the inflatable joint is connected to the one end of inflatable hose far away from the enema tube body, and the one-way air inlet structure is a one-way valve arranged in the inflatable joint.
The utility model discloses a further set up to: the inflation connector comprises a first connector connected to the inflation hose and a second connector which is internally provided with a one-way valve and is in threaded connection with the first connector.
To sum up, the utility model discloses following beneficial effect has:
1. the plurality of annular air bags are arranged at the position, close to the closed end, of the enema tube body, one annular air bag is positioned at one side, close to the closed end, of the medicine filling port, the other annular air bags are positioned at one side, far away from the closed end, of the medicine filling port, and at the moment, two annular air bags positioned at the medicine filling port are selected to inject air and then are tightly propped against the affected part of a patient, so that medicine filled from the medicine filling port cannot flow out from the space between the two annular air bags, the sealing property is improved, the medicine retention time is improved, and the compliance of the patient is higher; meanwhile, the unidirectional air inlet structure in the inflation joint can prevent air in the annular air bag from being discharged; after the enema tube is used, the air in the annular air bag is discharged by shearing the inflation connector, so that the enema tube can be conveniently taken out;
2. the annular air bag is in a football shape after being inflated, so that the contact tightness with the affected part of a patient is improved, and the medicine leakage is further prevented;
3. the arrangement of the inflation hose can separate a plurality of inflation joints, so that the inflation joints are conveniently inflated; the one-way air inlet structure is the check valve that sets up in inflating the joint, and it is including connecting the first joint on aerifing the hose, built-in second joint that has check valve and threaded connection on the first joint to inflate the joint, takes off the second joint this moment after, can realize discharging the air in the annular gasbag to conveniently take out the enema pipe.
Drawings

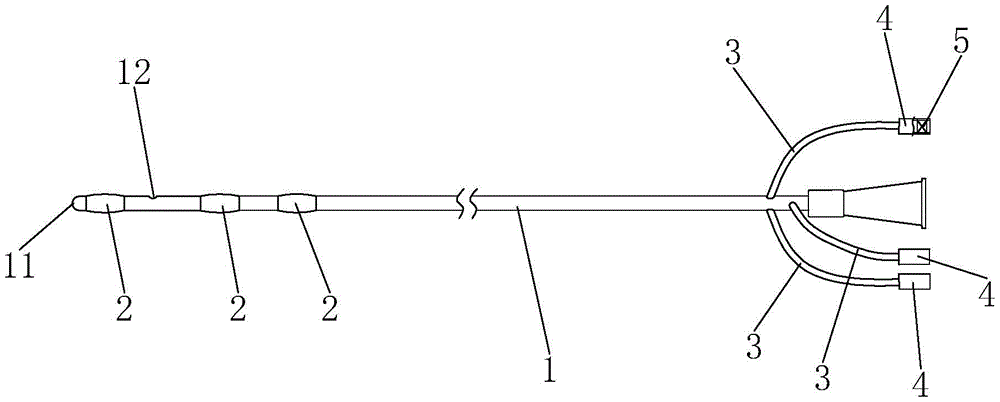

FIG. 1 is a schematic structural view of example 1;
FIG. 2 is a partial structural sectional view in embodiment 1 for embodying an inflation passage (not shown by a hatching) communicating with two of the annular bladders;
FIG. 3 is a partial structural view of embodiment 1, for embodying an inflation passage communicating with the remaining one of the annular bladders;
fig. 4 is a partial structural view of embodiment 2.
Reference numerals: 1. an enema tube body; 11. a closed end; 12. a medicine filling opening; 2. an annular air bag; 3. an inflation channel; 4. an inflation joint; 41. a first joint; 42. a second joint; 5. a one-way air intake structure; 6. an inflation hose.
Detailed Description
The present invention will be described in further detail with reference to the accompanying drawings.
Example 1: the utility model provides a keep enema tube for enema, as shown in fig. 1, includes enema tube body 1, enema tube body 1 one end is closed end 11, and enema tube body 1 is provided with enema mouth 12 near the week side of closed end 11 one end.
As shown in fig. 1, three annular air bags 2 are arranged on the periphery of the enema tube body 1, the annular air bags 2 are made of rubber materials, one annular air bag 2 is located on one side of the medicine filling port 12 close to the closed end 11, and the other two annular air bags 2 are located on one side of the medicine filling port 12 far away from the closed end 11. The annular balloon 2 takes on a football shape after inflation.
As shown in fig. 1 to 3, a plurality of inflation channels 3 which are respectively communicated with the plurality of annular airbags 2 and extend along the length direction are arranged in the enema tube body 1, a plurality of inflation hoses 6 which are respectively communicated with the plurality of inflation channels 3 are arranged at one end of the enema tube body 1 far away from the closed end 11, inflation joints 4 are respectively connected to the inflation hoses 6, a one-way air inlet structure 5 which enables air to enter in a one-way mode is arranged in the inflation joints 4, and the one-way air inlet structure 5 is a one-way valve arranged in the inflation joints 4.
The implementation effect is as follows: a plurality of annular air bags 2 are arranged on the enema tube body 1 close to the closed end 11, one annular air bag 2 is positioned on one side of the medicine filling port 12 close to the closed end 11, the other annular air bags 2 are positioned on one side of the medicine filling port 12 far away from the closed end 11, at the moment, two annular air bags 2 positioned on the medicine filling port 12 are selected to be filled with air and then are tightly propped against the affected part of a patient, so that the medicine filled from the medicine filling port 12 cannot flow out from between the two annular air bags 2, the sealing performance is improved, the medicine retention time is improved, and the compliance of the patient is higher; meanwhile, the unidirectional air inlet structure 5 in the inflation joint 4 can prevent the air in the annular air bag 2 from being discharged; and after the use, the air in the annular air bag 2 is discharged by cutting off the inflating joint 4, so that the enema tube can be conveniently taken out. The annular air bag 2 is in a football shape after being inflated, so that the contact tightness with the affected part of a patient is improved, and the medicine leakage is further prevented.
Example 2: an enema tube for retention enema, as shown in fig. 4, is different from embodiment 1 in that an air charging connector 4 includes a first connector 41 connected to an air charging hose 6, and a second connector 42 having a check valve built therein and screwed to the first connector 41.
The implementation effect is as follows: the inflation connector 4 comprises a first connector 41 connected to the inflation hose 6 and a second connector 42 which is provided with a one-way valve inside and is in threaded connection with the first connector 41, and at the moment, after the second connector 42 is taken down, air in the annular air bag 2 can be discharged, so that the enema tube can be taken out conveniently.
The present embodiment is only for explaining the present invention, and it is not limited to the present invention, and those skilled in the art can make modifications to the present embodiment without inventive contribution as required after reading the present specification, but all of them are protected by patent laws within the scope of the claims of the present invention.
Claims (4)
1. The utility model provides a keep enema tube for enema, includes enema tube body (1), enema tube body (1) one end is closed end (11), enema tube body (1) is close to week side of closed end (11) one end and is provided with enema mouth (12), its characterized in that: the utility model discloses an enema tube, including enema tube body (1), enema tube body (1) and annular air bag, including enema tube body (1) and annular air bag (2), the week side of enema tube body (1) is provided with a plurality of annular air bag (2), one of them annular air bag (2) are in one side that enema mouth (12) are close to closed end (11), all the other annular air bag (2) are in one side that enema mouth (12) kept away from closed end (11), be provided with a plurality of respectively with a plurality of annular air bag (2) communicate with each other and along inflation channel (3) that its length direction extends in enema tube body (1), the one end that enema tube body (1) kept away from closed end (11) is provided with a plurality of respectively with a plurality of inflation joint (4) that communicate with each other of inflation channel (3), be provided with in inflation joint (4) and make the one-way air inlet structure (5) of the one-way entering of air.
2. An enema tube for retention enema according to claim 1, wherein: the annular air bag (2) is in a football shape after being inflated and expanded.
3. An enema tube for retention enema according to claim 1, wherein: the one end that enema tube body (1) kept away from closed end (11) is provided with a plurality of respectively with aerify communicating air hose (6) of passageway (3), the one end of inflating hose (6) keeping away from enema tube body (1) is connected in inflation joint (4), one-way air inlet structure (5) are the check valve of setting in inflation joint (4).
4. An enema tube for retention enema according to claim 3, wherein: the inflation joint (4) comprises a first joint (41) connected to the inflation hose (6) and a second joint (42) which is provided with a one-way valve inside and is connected to the first joint (41) in a threaded manner.
