Abstract

The utility model discloses an improved finger-ring flip type glove restraint, belonging to the field of medical equipment, comprising finger-less gloves, a hard plastic backing plate, a body position cushion and a flip cloth cover; the flip cloth cover, the hard plastic The backing plate, the postural cushion and the fingerless gloves are arranged in order from bottom to top; one side of the hard plastic backing plate is fixedly connected with one side of the postural cushion, and one side of the fingerless gloves is connected to the postural position The other side of the soft pad is fixedly connected; the middle part of the side of the body position soft pad connected with the fingerless glove is raised upwards; one end of the flip cloth cover is provided with a finger cover groove, and one end of the open end of the finger cover groove is provided. The side is connected with the other side of the hard plastic backing board, and the other side of the flip cloth cover is detachably connected with the hard plastic backing board. The utility model can not only help to observe the blood supply of the patient's fingertips, but also help the patient's palm to maintain the functional position, and more importantly, to prevent the patient from extubating the tube with the fingers or the palm, so as to achieve effective restraint.

Description

Improved finger ring flip type glove restraint device

Technical Field

The utility model relates to the technical field of medical equipment, especially, relate to an improvement dew indicates ring flip formula gloves restraint ware.

Background

In clinical work, critical patients often keep an artificial airway, a stomach tube, a urinary catheter and the like for treatment, and often do not resist or even pull out the catheter autonomously when the consciousness and the restlessness of the patients are unclear due to the discomfort of the kept-in pipeline. In order to ensure that the patient can smoothly complete the treatment and nursing operations, the hand is often restrained by a restraint strap so as to prevent the patient from independently drawing the tube. Therefore, many restless patients can restrain the wrist and the hand at the same time, but if the wrist is repeatedly fixed by using the restraint belts and the restraint gloves, the patient feels uncomfortable and the appearance is not beautiful. In addition, the existing restraining gloves are generally of two types, one is a whole palm package, and the fingers of the patient cannot move, but the condition of the nail bed end of the patient cannot be observed conveniently. In addition, the palm part of the restraint glove used at present is a flat plate type, and the palm of the patient cannot keep a functional position; or the functional position can be kept, but the palm extubation of the patient cannot be prevented.

Disclosure of Invention

The utility model provides an improvement dew indicates ring flip formula gloves restraint ware both can do benefit to the observation patient and indicate the end blood circulation condition, can do benefit to the patient palm again and keep the functional position, and more importantly prevents that the patient from utilizing finger or palm extubation, reaches effectual restraint.

In order to realize the purpose, the utility model discloses a technical scheme be:

an improved mitt restraint device with a finger ring and a flip cover comprises mitts, a hard plastic cushion plate, a body position soft cushion and a flip cloth cover; the flip cloth cover, the hard plastic cushion plate, the body position cushion and the mitt are sequentially arranged from bottom to top; one surface of the hard plastic cushion plate is fixedly connected with one surface of the body position soft cushion, and one surface of the mitt is fixedly connected with the other surface of the body position soft cushion; the middle part of one side of the body position soft pad connected with the mitt is raised upwards; one end of the flip cloth cover is provided with a finger sleeve groove, one side of the opening end of the finger sleeve groove is connected with the other side of the hard plastic backing plate, and the other side of the flip cloth cover is detachably connected with the hard plastic backing plate.

Further, the mitt comprises a palm portion and five mitt-type finger loops; the five finger-exposed finger ring sleeves are fixedly connected with the palm part; the edge of position cushion with the edge of hard plastic backing plate flushes, five it indicates that the ring cover is close to reveal to indicate the formula palm portion one end with palm portion all with position cushion fixed connection.

Furthermore, the finger-exposed type finger ring sleeves are all made of elastic cotton cloth.

Furthermore, one end of the palm part, which is far away from the finger-exposed type finger ring sleeve, is also provided with two restraining belts.

Furthermore, the body position soft cushion comprises a cloth sleeve, a silica gel cushion and a sponge soft cushion; the cloth cover is provided with three layers of pockets, namely an upper layer pocket, a middle layer pocket and a lower layer pocket; the hard plastic cushion plate is embedded in the lower layer pocket, the sponge cushion is embedded in the middle layer pocket, and the silica gel cushion is embedded in the upper layer pocket; the upper pocket is positioned in the middle of the cloth cover.

Further, the silica gel pad is a semi-ellipsoidal structure.

The utility model has the advantages that:

1) the hand of the patient is worn in the finger-exposed glove, the hard plastic backing plate prevents the palm from bending to be in a holding position, and the patient is prevented from drawing a tube by using the fingers or the palm, so that effective restriction is achieved; the mitt is beneficial to observing the blood circulation condition of the finger tip of the patient; the middle part of the body position soft cushion is upwards convex, so that the palm of the patient can keep a functional position according with the curvature of the palm of the human body; the flip cloth cover can be folded, so that the flip cloth cover is sleeved on the finger of the patient to provide warm keeping for the exposed finger;

2) the finger-exposed finger ring sleeves are all made of elastic cotton cloth, have good elasticity, are convenient for the fingers of a patient to wear, and can move slightly after being worn;

3) the restraint strap can fasten the wrist of the patient, so that the mitt is more firmly worn;

4) the soft touch of the silica gel pad is soft, so that the hand of the patient is held more comfortably, and the palm of the patient is assisted to keep a functional position.

Drawings

The following detailed description of embodiments of the invention is provided in conjunction with the accompanying drawings, in which:

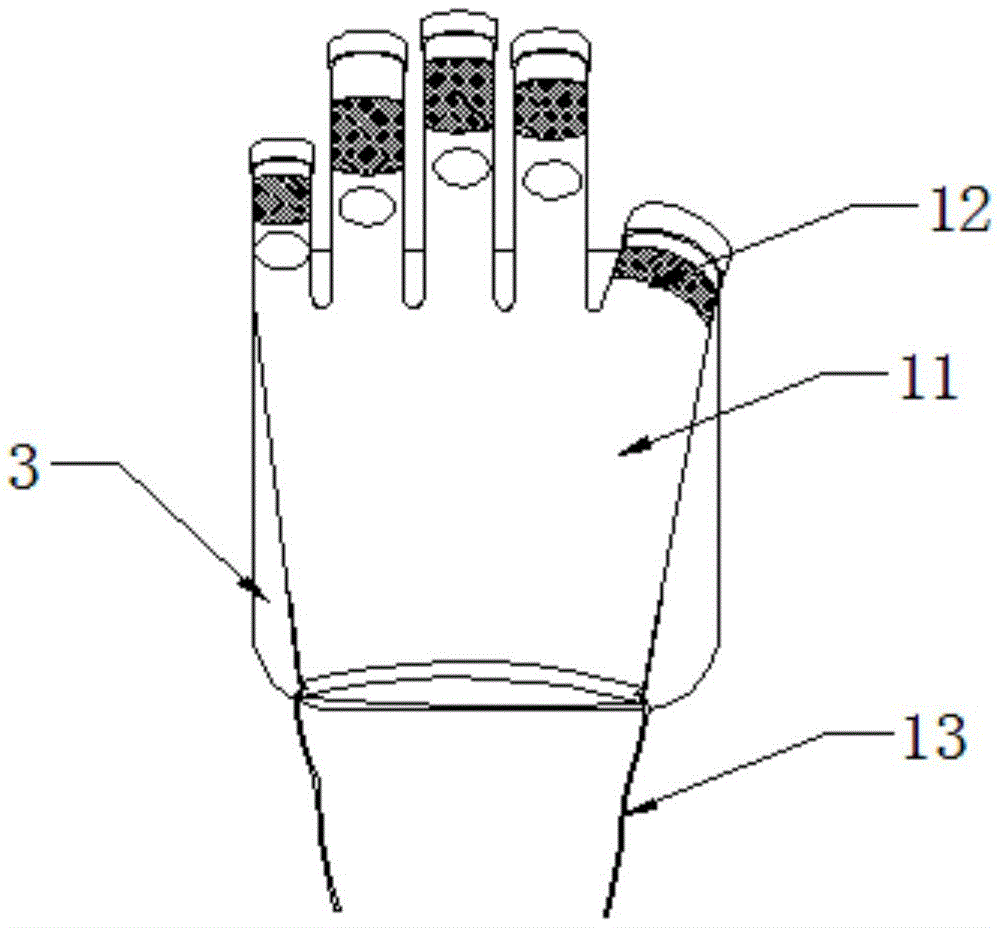

fig. 1 is a schematic structural view of the present invention;

FIG. 2 is a schematic side view of the present invention;

fig. 3 is a schematic structural view of the utility model when a flip cloth cover is sleeved;

FIG. 4 is a schematic structural view of the middle body position cushion of the present invention;

the attached drawings are as follows:

1-mitt, 2-hard plastic backing plate,

3-a body position soft cushion, 4-a flip cover cloth sleeve,

11-palm part, 12-finger-exposed finger ring sleeve,

13-a restraining belt, 31-a silica gel pad,

32-sponge cushion.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may also be present. When a component is referred to as being "connected" to another component, it can be directly connected to the other component or intervening components may also be present. When a component is referred to as being "disposed on" another component, it can be directly on the other component or there can be intervening components, and when a component is referred to as being "disposed in the middle," it is not just disposed in the middle, so long as it is not disposed at both ends, but rather is within the scope of the middle. The terms "vertical," "horizontal," "left," "right," and the like as used herein are for illustrative purposes only.

Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs. The terminology used in the description of the invention herein is for the purpose of describing particular embodiments only and is not intended to be limiting of the invention. As used herein, the term "and/or" includes any and all combinations of one or more of the associated listed items.

Referring to fig. 1 to 4, an improved mitt restraint device with a finger ring and a flip cover comprises a mitt 1, a hard plastic cushion plate 2, a body position cushion 3 and a flip cloth cover 4; the flip cloth cover 4, the hard plastic cushion plate 2, the body position cushion 3 and the mitt 1 are sequentially arranged from bottom to top; one surface of the hard plastic cushion plate 2 is fixedly connected with one surface of the body position cushion 3, and one surface of the mitt 1 is fixedly connected with the other surface of the body position cushion 3; the middle part of one side of the body position soft pad 3 connected with the mitt 1 is raised upwards; one end of the flip cloth cover 4 is provided with a finger sleeve groove, one side of the opening end of the finger sleeve groove is connected with the other side of the hard plastic backing plate 2, and the other side of the flip cloth cover 4 is detachably connected with the hard plastic backing plate 2. Specifically, the mitt 1 is fixedly connected to the body position cushion 3 by sewing; the hand of the patient is worn in the mitt 1, the hard plastic backing plate 2 prevents the palm from bending to be in a holding position, and the patient is prevented from drawing the tube by grabbing the tube with the fingers or the palm, so that effective restriction is achieved; the mitt 1 is beneficial to observing the blood circulation condition of the finger tip of a patient; the middle part of the body position soft cushion 3 protrudes upwards to cater to the curvature of the palm of the human body, so that the palm of the patient keeps a functional position; the flip cloth cover 4 can be folded, so that the flip cloth cover 4 is sleeved on the finger of the patient to provide warm keeping for the exposed finger.

Referring to fig. 1, the mitt 1 includes a palm portion 11 and five mitt rings 12; the five finger-exposed finger ring sleeves 12 are fixedly connected with the palm part 11; the edge of position cushion 3 with the edge of hard plastic backing plate 2 flushes, five it indicates that ring cover 12 is close to reveal the formula palm portion 11 one end with palm portion 11 all with 3 fixed connection of position cushion. The finger-exposed finger ring sleeves 12 are all made of elastic cotton cloth. Specifically, five finger-exposed finger sleeves 12 are fixedly connected with the palm portion 11 by sewing. The finger-exposed finger ring sleeve 12 is made of elastic cotton cloth and has good elasticity, so that the finger ring sleeve is convenient for a patient to wear by fingers and also convenient for the patient to slightly move the fingers, and is favorable for relieving the fatigue of the hands of the patient.

As shown in fig. 1, two restraining belts 13 are further disposed at an end of the palm portion 11 away from the finger-exposed finger ring sleeve 12. The restraining strap 13 can be tightened around the wrist of the patient to secure the mitt 1.

Referring to fig. 4, the body position cushion 3 includes a cloth cover, a silica gel cushion 31 and a sponge cushion 32; the cloth cover is provided with three layers of pockets, namely an upper layer pocket, a middle layer pocket and a lower layer pocket; the hard plastic backing plate 2 is embedded in the lower layer pocket, the sponge cushion 32 is embedded in the middle layer pocket, and the silica gel cushion 31 is embedded in the upper layer pocket; the upper pocket is positioned in the middle of the cloth cover. The silica gel pad 31 is of a semi-ellipsoidal structure. Specifically, one side of the flip cloth cover 4 is fixed below the hard plastic backing plate 2 in a sewing mode, and the other side of the flip cloth cover 4 is detachably connected with the cloth cover through buttons; the silica gel pad 31 touch is soft, and the patient hand is held more comfortably, assists the patient palm to keep the functional position.

The above embodiments are only used for illustrating the technical solutions of the present invention and are not limited thereto, and any modification or equivalent replacement that does not depart from the spirit and scope of the present invention should be covered by the scope of the technical solutions of the present invention.

Claims

1. An improved fingerstall-turning type glove restraint device for finger rings is characterized by comprising fingerstall gloves, a hard plastic cushion plate, a body position soft cushion and a turning cloth cover; the flip cloth cover, the hard plastic cushion plate, the body position cushion and the mitt are sequentially arranged from bottom to top; one surface of the hard plastic cushion plate is fixedly connected with one surface of the body position soft cushion, and one surface of the mitt is fixedly connected with the other surface of the body position soft cushion; the middle part of one side of the body position soft pad connected with the mitt is raised upwards; one end of the flip cloth cover is provided with a finger sleeve groove, one side of the opening end of the finger sleeve groove is connected with the other side of the hard plastic backing plate, and the other side of the flip cloth cover is detachably connected with the hard plastic backing plate.

2. The improved mitt-finger ring-flip glove restraint of claim 1, wherein the mitt comprises a palm portion and five mitt-finger rings; the five finger-exposed finger ring sleeves are fixedly connected with the palm part; the edge of position cushion with the edge of hard plastic backing plate flushes, five it indicates that the ring cover is close to reveal to indicate the formula palm portion one end with palm portion all with position cushion fixed connection.

3. The improved mitt ring-cover-type glove restraint device as claimed in claim 2, wherein the mitt ring is made of elastic cotton cloth.

4. The improved mitt-finger ring-flip type glove restraint device according to claim 2, wherein two restraining straps are further provided at the end of the palm portion away from the mitt-finger ring.

5. The improved mitt restraint with finger rings and flip cover according to claim 2, wherein the body position cushion comprises a cloth cover, a silica gel cushion and a sponge cushion; the cloth cover is provided with three layers of pockets, namely an upper layer pocket, a middle layer pocket and a lower layer pocket; the hard plastic cushion plate is embedded in the lower layer pocket, the sponge cushion is embedded in the middle layer pocket, and the silica gel cushion is embedded in the upper layer pocket; the upper pocket is positioned in the middle of the cloth cover.

6. The improved mitt ring and flip type glove restraint device according to claim 5, wherein the silicone pad is in a semi-ellipsoidal structure.
