CN215014612U

CN215014612U - Showing stand for indoor design

Info

Publication number: CN215014612U
Application number: CN202120622867.6U
Authority: CN
Inventors: 何光耀; 陶琛珉
Original assignee: Zhejiang Pinfan Culture Media Co ltd
Current assignee: Jinan Shiyi Decoration Engineering Co.,Ltd.
Priority date: 2021-03-26
Filing date: 2021-03-26
Publication date: 2021-12-07
Anticipated expiration: 2031-03-26

Abstract

The utility model discloses a display stand for interior design, which relates to the technical field of interior design and aims to solve the problem that the existing display stand is inconvenient to fix and place display boards of different sizes. The top end of the body is rotatably connected with a connecting rod, the connecting rod is slidably connected with a slider, the connecting rod is slidably connected with a positioning piece, the front end of the slider is fixedly connected with a support piece, the support piece is slidably connected with a pair of fixed pieces, and the support piece slides on the A sliding component is connected, the bottom of the sliding component is threadedly connected with an adjusting bolt, a telescopic rod is arranged on the top surface of the connecting rod, and a knob 1 is arranged on the upper end side wall of the connecting rod, and the lower end of the connecting rod rotates between the side wall of the frame body A support rod is connected, and by adjusting the distance between the fixing pieces and the distance between the fixing piece and the stopper, the display stand is convenient to fix and place display boards of different sizes, thereby improving the applicability of the display stand.

Description

Showing stand for indoor design

Technical Field

The utility model relates to an indoor decoration technical field, more specifically say, it relates to a show shelf for indoor decoration.

Background

The indoor design is that according to the use property, the environment and the corresponding standard of the building, the material technical means and the building design principle are applied to create the indoor environment which has reasonable functions and meets the requirements of people on material and mental life, the space environment has use value and meets the corresponding functional requirements, meanwhile, the mental factors such as historical veins, architectural style, environmental atmosphere and the like are reflected, and the purpose of creating the indoor environment meeting the requirements of people on material and mental life is definitely taken as the indoor design.

In the in-process of carrying out indoor decoration, need draw the scheme of design on the drawing, need put in some platforms after the picture manuscript is accomplished, can demonstrate it, a series of operations such as modification, consequently, the show shelf need be used, the picture manuscript show mainly adopts show board and plate holder to fix or directly paste on the show board, present show shelf is manifold, there is different show boards according to different designs, the show board size that corresponding needs were placed also is different, there is not convenient for fix the problem of placing to the show board of equidimension not, the suitability is lower.

Therefore, a new solution is needed to solve this problem.

SUMMERY OF THE UTILITY MODEL

The utility model discloses an aim at just providing a show shelf for indoor decoration in order to solve foretell problem, the distance between two mountings and the distance between mounting and the dog are adjusted to the accessible for this show shelf is convenient for fix the not show board of equidimension and places.

The above technical purpose of the present invention can be achieved by the following technical solutions: a display stand for indoor design comprises a stand body, the top end of the stand body is rotatably connected with a connecting rod, the connecting rod is connected with a sliding block in a sliding way, a positioning piece used for positioning the sliding block is arranged on the connecting rod, the front end of the sliding block is fixedly connected with a supporting piece, the top surface of the supporting piece is provided with a first sliding groove, a fixing piece is connected in the first sliding groove in a sliding manner, a sliding assembly which penetrates through the fixing piece and is used for positioning the fixing piece is connected on the supporting piece in a sliding manner, the bottom of the sliding component is in threaded connection with an adjusting bolt used for abutting against the bottom surface of the fixing piece, the top surface of the connecting rod is provided with a second sliding groove, a telescopic rod is arranged in the second sliding groove, a stop block is fixedly connected to the top end of the telescopic rod, a first knob for adjusting the telescopic rod is arranged on the side wall of the upper end of the connecting rod, the support body is connected with an adjusting component in a sliding mode, and a supporting rod is rotatably connected between the lower end of the connecting rod and the adjusting component.

By adopting the technical scheme, the fixing pieces and the sliding fixing pieces are arranged, so that the fixing pieces slide in the first sliding groove in opposite directions or in reverse directions, after the distance between the fixing pieces is adjusted, by arranging the adjusting bolt, the adjusting bolt is rotated and is abutted against the fixing piece, so that the fixing piece can be positioned, the height of the sliding block or the height of the telescopic rod is adjusted according to the height of the display board so as to enable the distance between the stop block and the fixing piece to be suitable for the height of the display board, by arranging the supporting rod, the connecting rod can be supported, the stability of the connecting rod in use is improved, when will place the not show board of equidimension, just can be through the height of adjusting the distance between the mounting and slider and telescopic link to fix the not show board of equidimension and place, improve the suitability of show shelf.

The utility model discloses further set up to: the sliding assembly comprises an upper limiting piece, a sliding rod and a lower limiting piece, wherein the sliding rod is fixedly connected with the upper limiting piece and penetrates through the fixing piece and the supporting piece, the lower limiting piece is fixedly connected to the lower end of the sliding rod and abutted to the bottom surface of the supporting piece, the accommodating groove is formed in the fixing piece, and the upper limiting piece is attached to the bottom surface of the accommodating groove.

Through adopting above-mentioned technical scheme, will with the last spacing piece of holding tank laminating and with the lower spacing piece of support piece bottom surface butt together fixed through the slide bar, can carry on spacingly to the mounting like this, be favorable to the mounting to slide in spout one, through setting up the holding tank, be convenient for hold the show board, also play spacing effect to the show board simultaneously, improve the stability that the show board was placed on the support body.

The utility model discloses further set up to: the bottom surface of spout one and the bottom surface of holding tank have all been seted up logical groove, the slide bar with lead to groove sliding connection.

Through adopting above-mentioned technical scheme, through setting up logical groove, the slide bar when leading to the inslot and sliding, leads to the groove and also can play spacing effect to the slide bar, is favorable to the slip of slip subassembly to convenient to use person adjusts the mounting to the position of being convenient for place the show board.

The utility model discloses further set up to: two the equal fixedly connected with stopper of one end that the mounting was carried on the back mutually.

Through adopting above-mentioned technical scheme, through setting up the stopper, when placing the show board on the mounting, can play spacing effect to the show board, improve the stability that the show board was placed.

The utility model discloses further set up to: the side wall of the positioning piece is provided with a clamping groove used for clamping the rear end of the sliding block, one side of the positioning piece, which is close to the frame body, is provided with an embedded groove communicated with the clamping groove, and the inner wall of the embedded groove is attached to the peripheral wall of the connecting rod.

Through adopting above-mentioned technical scheme, through setting up the draw-in groove, be convenient for with setting element joint to the slider on, can improve the result of use of setting element like this, through setting up the caulking groove, the connecting rod embedding of being convenient for can improve the location effect of setting element to the slider like this through the area of contact of increase connecting rod and setting element.

The utility model discloses further set up to: the rear end of the sliding block is provided with an adjusting screw hole, the side wall of the positioning piece is provided with a through hole corresponding to the adjusting screw hole, and a butterfly bolt used for being in threaded connection with the adjusting screw hole is arranged in the through hole.

Through adopting above-mentioned technical scheme, adjust screw and through-hole through setting up, when fixing a position the slider, alright through screwing up butterfly bolt for the slider can be fixed a position on the connecting rod steadily.

The utility model discloses further set up to: the bottom end of the telescopic rod is fixedly connected with an annular block which is in sliding connection with the second sliding groove, and the opening of the second sliding groove is fixedly connected with a limiting ring which is used for limiting the annular block.

Through adopting above-mentioned technical scheme, through setting up the annular piece, the perisporium of annular piece is all the time with the lateral wall butt of spout two, is favorable to the slip of telescopic link like this, and the rethread sets up the spacing ring, just can carry on spacingly to the telescopic link lower extreme.

The utility model discloses further set up to: the adjusting component comprises a buckle attached to the peripheral wall of the frame body and a connecting piece connected with the buckle through a second knob, and the side face of the connecting piece is fixedly connected with a hinged seat hinged to the lower end of the supporting rod.

Through adopting above-mentioned technical scheme, adjust the angle that forms between connecting rod and the support body, fix link joint and connection piece to knob two again to be convenient for adjust the connecting rod to the angle that is suitable for people to watch the show board.

To sum up, the utility model discloses following beneficial effect has:

through setting up the mounting, sliding fixing spare, make the mounting carry out the slip in one in the spout or the reverse slip, after adjusting the distance between the mounting, through setting up adjusting bolt, rotate adjusting bolt and support tight mounting, can play the effect of location like this to the mounting, highly adjust the height of slider or the height of telescopic link according to the height of show board, so that make the distance between dog and the mounting be suitable for the height of show board, through setting up the bracing piece, can play the effect of support like this to the connecting rod, stability when improving the connecting rod and using, when will placing the show board of equidimension not, just can be through adjusting the distance between the mounting and the height of slider and telescopic link, so that fix the not show board of equidimension and place, the suitability of improvement show shelf.

Drawings

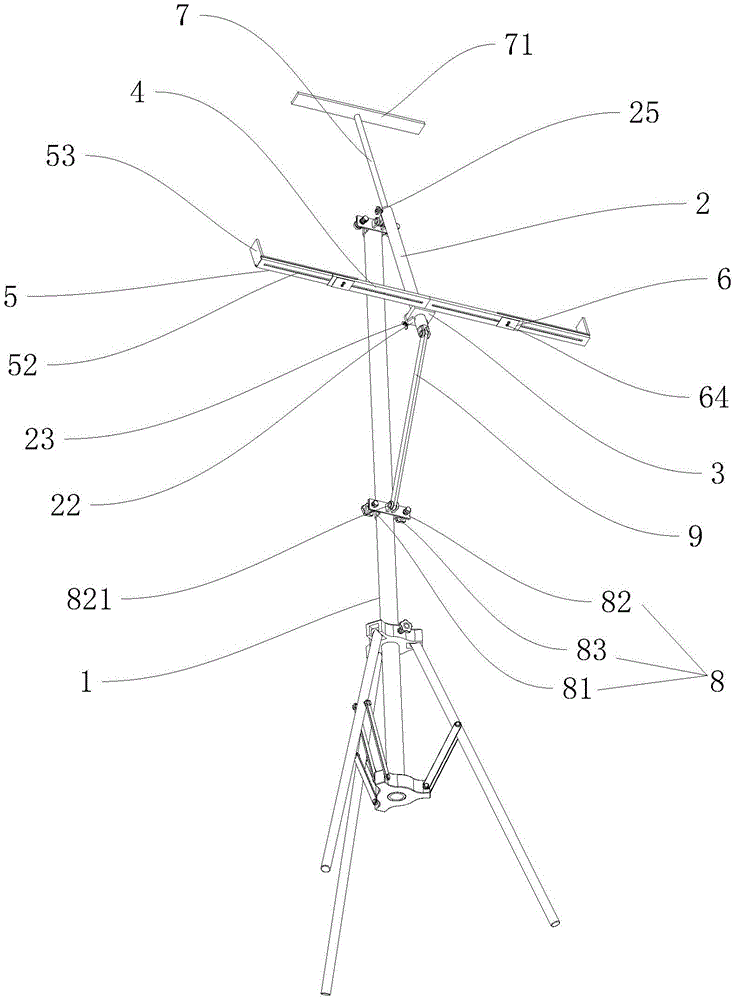

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is a schematic structural view of the sliding assembly of the present invention;

FIG. 3 is a schematic structural view of a support member according to the present invention;

fig. 4 is a schematic structural view of the fixing member of the present invention;

fig. 5 is a sectional view of the middle connecting rod and the telescopic rod of the present invention;

FIG. 6 is a schematic structural view of the slider of the present invention;

fig. 7 is a schematic structural view of the positioning member of the present invention.

Reference numerals: 1. a frame body; 2. a connecting rod; 21. a second chute; 22. a positioning member; 221. caulking grooves; 222. a card slot; 223. a through hole; 23. a butterfly bolt; 24. a limiting ring; 25. a first knob; 3. a slider; 31. adjusting the screw hole; 4. a support member; 41. a first sliding chute; 5. a fixing member; 51. accommodating grooves; 52. a through groove; 53. a limiting block; 6. a sliding assembly; 61. an upper limiting sheet; 62. a slide bar; 63. a lower limiting sheet; 64. adjusting the bolt; 7. a telescopic rod; 71. a stopper; 72. a ring block; 8. an adjustment assembly; 81. looping; 82. connecting sheets; 821. a hinged seat; 83. a second knob; 9. a support rod.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

A display stand for indoor design, refer to fig. 1, fig. 2, fig. 3, fig. 4, fig. 5 and fig. 6, comprises a stand body 1, a connecting rod 2 is rotatably connected to the top end of the stand body 1, a sliding block 3 is slidably connected to the connecting rod 2, a positioning part 22 for positioning the sliding block 3 is arranged on the connecting rod 2, a supporting part 4 is fixedly connected to the front end of the sliding block 3, a first sliding groove 41 is formed in the top surface of the supporting part 4, a fixing part 5 for supporting a display board is slidably connected to the first sliding groove 41, a sliding component 6 which penetrates through the fixing part 5 and is used for positioning the fixing part 5 is slidably connected to the supporting part 4, after the distance between the two fixing parts 5 is adjusted, the fixing part 5 can be positioned through the sliding component 6, the using effect of the fixing part 5 is improved, an adjusting bolt 64 for abutting against the bottom surface of the fixing part 5 is threadedly connected to the bottom surface of the sliding component 6, and a second sliding groove 21 is formed in the top surface of the connecting rod 2, two 21 sliding connection in the spout have adjustable telescopic link 7, the top fixedly connected with dog 71 of telescopic link 7, the upper end lateral wall of connecting rod 2 is equipped with one 25 of knob that is used for adjusting telescopic link 7, sliding connection has adjusting part 8 on the support body 1, it is connected with the bracing piece 9 that is used for supporting connecting rod 2 to rotate between the lower extreme of connecting rod 2 and the adjusting part 8, through such structure setting, can be through adjusting the distance between two mounting 5 and through the distance between adjusting block 3 and dog 71, make the show shelf can fix the show board of placing variation in size, thereby improve the suitability of show shelf.

Referring to fig. 1, 2, 3 and 4, the sliding assembly 6 includes an upper limiting sheet 61, a sliding rod 62 fixedly connected to the upper limiting sheet 61 and penetrating through the fixing member 5 and the supporting member 4, and a lower limiting sheet 63 fixedly connected to a lower end of the sliding rod 62 and abutting against a bottom surface of the supporting member 4, an adjusting bolt 64 is in threaded connection with the lower limiting sheet 63, the fixing member 5 and the supporting member 4 are located between a gap formed by the upper limiting sheet 61 and the lower limiting sheet 63, the display board is placed on the fixing member 5 after adjustment, the fixing member 5 and the supporting member 4 are abutted by the adjusting bolt 64, so that the fixing member 5 can be positioned at a position suitable for placing the display board, the fixing member 5 is provided with an accommodating groove 51 for accommodating the display board, the upper limiting sheet 61 is abutted against the bottom surface of the accommodating groove 51, the bottom surface of the first sliding groove 41 and the bottom surface of the accommodating groove 51 are both provided with a through groove 52, the sliding rod 62 is slidably connected with the through groove 52, the equal fixedly connected with in one end that two mountings 5 carried on the back mutually just is to show spacing stopper 53 of board lateral wall butt and to show.

Referring to fig. 1, 5, 6 and 7, a clamping groove 222 for clamping the rear end of the slider 3 is formed in the side wall of the positioning member 22, an embedding groove 221 for embedding the connecting rod 2 and communicating with the clamping groove 222 is formed in one side of the positioning member 22 close to the frame body 1, so that the contact area between the positioning member 22 and the connecting rod 2 is increased, the using effect of the positioning piece 22 can be improved, the inner wall of the caulking groove 221 is attached to the peripheral wall of the connecting rod 2, the adjusting screw hole 31 is formed in the rear end of the sliding block 3, the through hole 223 corresponding to the adjusting screw hole 31 is formed in the side wall of the positioning piece 22, the butterfly bolt 23 is arranged in the through hole 223, the butterfly bolt 23 is adjusted, the butterfly bolt 23 rotates into the adjusting screw hole 31 along with the butterfly bolt 23, the abutting effect between the connecting rod 2 and the caulking groove 221 can be increased, the bottom end of the telescopic rod 7 is fixedly connected with the annular block 72 in sliding connection with the sliding groove two 21, and the limiting ring 24 used for limiting the annular block 72 is fixedly connected to the opening of the sliding groove two 21.

Referring to fig. 1, the adjusting assembly 8 includes a ring 81 attached to the circumferential wall of the frame body 1, and a connecting piece 82 connected to the ring 81 through a second knob 83, the side surface of the connecting piece 82 is fixedly connected to a hinge base 821 hinged to the lower end of the supporting rod 9, and the ring 81 is loosened to prevent the ring 81 and the connecting piece 82 from being abutted, so that the height of the supporting rod 9 can be conveniently adjusted, and the connecting rod 2 can be conveniently adjusted to an angle at which people can watch the display board.

The working principle is as follows: when the showing stand is used, the distance between the two fixing parts 5 is adjusted firstly, the fixing parts 5 slide along the first sliding grooves 41, when the limiting blocks 53 on the two fixing parts 5 are abutted to the two side walls of the showing board respectively, the adjusting bolts 64 can be screwed tightly, in the process, the supporting parts 4 and the fixing parts 5 are abutted to each other, the adjusting bolts 64 are screwed continuously until the adjusting bolts 64 do not rotate any more, so that the fixing parts 5 can be positioned, then the positions of the sliding blocks 3 on the connecting rods 2 are adjusted, in the adjusting process, when the distance between the fixing parts 5 and the stopping blocks 71 is suitable for the height of the showing board, the butterfly bolts 23 can be adjusted through abutting the positioning parts 22 and the connecting rods 2, through the adjusting steps, a user can conveniently fix and place the showing boards with different sizes, and therefore the application effect of the showing stand is improved.

It is above only the utility model discloses a preferred embodiment, the utility model discloses a scope of protection does not only confine above-mentioned embodiment, the all belongs to the utility model discloses a technical scheme under the thinking all belongs to the utility model discloses a scope of protection. It should be noted that, for those skilled in the art, various modifications and decorations can be made without departing from the principle of the present invention, and these modifications and decorations should also be regarded as the protection scope of the present invention.

Claims

1. A display stand for interior design, comprising a stand body (1), characterized in that: the top end of the stand body (1) is rotatably connected with a connecting rod (2), and the connecting rod (2) is slidably connected with a connecting rod (2). A slider (3), the connecting rod (2) is provided with a positioning member (22) for positioning the slider (3), a support member (4) is fixedly connected to the front end of the slider (3), and the A sliding slot one (41) is opened on the top surface of the supporting member (4), a fixing member (5) is slidably connected in the sliding slot 1 (41), and a penetrating fixing member (5) is slidably connected to the supporting member (4). A sliding assembly (6) for positioning the fixing member (5), the bottom of the sliding assembly (6) is threadedly connected with an adjusting bolt (64) for abutting with the bottom surface of the fixing member (5), so A second chute (21) is provided on the top surface of the connecting rod (2), a telescopic rod (7) is arranged in the second chute (21), and a stopper is fixedly connected to the top of the telescopic rod (7). (71), the upper end side wall of the connecting rod (2) is provided with a knob one (25) for adjusting the telescopic rod (7), and the frame body (1) is slidably connected with an adjusting assembly (8), the A support rod (9) is rotatably connected between the lower end of the connecting rod (2) and the adjusting assembly (8).

2. A display stand for interior design according to claim 1, characterized in that: the sliding assembly (6) comprises an upper limit piece (61), which is fixedly connected with the upper limit piece (61) and penetrates through the fixing piece (61). 5) and the sliding rod (62) of the supporting member (4) and the lower limit piece (63) fixedly connected to the lower end of the sliding rod (62) and abutting with the bottom surface of the supporting member (4), on the fixing member (5) An accommodating groove (51) is opened, and the upper limit piece (61) is fitted with the bottom surface of the accommodating groove (51).

3. A display stand for interior design according to claim 2, characterized in that: the bottom surface of the first chute (41) and the bottom surface of the accommodating groove (51) are provided with a through groove (52). The sliding rod (62) is slidably connected with the through groove (52).

4 . The display stand for interior design according to claim 1 , wherein the opposite ends of the two fixing members ( 5 ) are fixedly connected to the limiting block ( 53 ). 5 .

5. A display stand for interior design according to claim 1, characterized in that: the side wall of the positioning member (22) is provided with a slot (222) for the rear end of the slider (3) to be inserted into, An inserting groove (221) communicated with the clamping groove (222) is formed on the side of the positioning member (22) close to the frame body (1), and the inner wall of the inserting groove (221) is in contact with the peripheral wall of the connecting rod (2). combine.

6. A display stand for interior design according to claim 1, characterized in that: the rear end of the sliding block (3) is provided with an adjusting screw hole (31), and the side wall of the positioning member (22) is provided with an adjusting screw hole (31). A through hole (223) corresponding to the adjustment screw hole (31) is opened on the upper part, and a butterfly bolt (23) for screw connection with the adjustment screw hole (31) is arranged in the through hole (223).

7. A display stand for interior design according to claim 1, characterized in that: the bottom end of the telescopic rod (7) is fixedly connected with an annular block (72) slidingly connected with the second chute (21), A limit ring (24) for limiting the position of the annular block (72) is fixedly connected to the opening of the second chute (21).

8 . The display stand for interior design according to claim 1 , wherein the adjustment component ( 8 ) comprises a ring buckle ( 81 ) fitted with the peripheral wall of the frame body ( 1 ), and a ring buckle ( 81 ). 9 . ) A connecting piece (82) connected by the second knob (83), the side surface of the connecting piece (82) is fixedly connected with a hinge seat (821) for hinged connection with the lower end of the support rod (9).
