Abstract

The utility model provides a hospital gown with an anti-extraction tube structure, which comprises a hospital gown top, first fixing straps are sewn on both sides of the inner side of the bottom end of the patient gown upper, and the bottom ends of the two first fixing straps are both A first buttonhole is fixedly installed, a first button is fixedly installed on the outer side of the top of the patient suit at the relative position of the first buttonhole, cardigan sleeves are sewn on both sides of the top of the top of the patient suit jacket, and the inner tops of the two cardigan sleeves are installed with Several second buttonholes, the beneficial effect of the utility model is: through the first buttonholes, the first buttonholes, the second buttonholes and the second buttonholes, the drainage bag or drainage tube is fastened and carried by the patient during activities. To prevent the drainage tube from being pulled out from the patient's body, the drainage tube can be installed by snapping the cardigan sleeve through the cooperation of the set third buttonhole and several third buttons, and at the same time, the drainage tube can be installed through the set sub-velcro and mother Velcro. The mutual cooperation is convenient for the nursing staff to expose the needle to the patient's arm on a daily basis.

Description

Patient clothing with anti-pull tube structure

Technical Field

The utility model belongs to the technical field of the medical treatment, concretely relates to patient clothing with prevent tube drawing structure.

Technical Field

Generally, the hospital can uniformly distribute the patient clothing for the inpatient, and the use of the patient clothing is beneficial to reducing exogenous infection and identification of the patient and facilitating the implementation of treatment and nursing operations. Most of the patient gowns used clinically at present are simple in design and uniform in style. In actual drainage or puncture treatment and nursing, the patient often need place drainage bag and drag on the specially designed removal frame, could move about, and this kind of drainage area fixed mode causes inconvenience to patient's action, and the sleeve and the jacket of traditional patient clothing all are the integration simultaneously, and the patient is when carrying out the puncture, is not convenient for expose the arm and increases nurse personnel's the work degree of difficulty.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a patient clothing with anti-drawing tube structure is unable to fix drainage device at the current patient clothing of solution, and the patient is at the in-process of activity, and drainage tube is easy not to go out from patient's is internal, and the patient is not convenient for expose the arm when pricking simultaneously and increases nurse personnel's the work degree of difficulty technical problem.

In order to achieve the above purpose, the utility model provides a following technical scheme: the utility model provides a patient clothing with anti-pulling tube structure, includes the patient clothing jacket, first fixed band has been made up on the inboard both sides in patient clothing jacket bottom, two the equal fixed mounting in bottom of first fixed band has first button hole, the patient clothing jacket outside fixed mounting of first button hole relative position department has first button, the cardigan sleeve has been made up to the both sides at patient clothing jacket top, two a plurality of second button hole, a plurality of are installed on the inboard top of cardigan sleeve the bottom of second button hole has been made up sub-magic subsides, the bottom fixed mounting in the cardigan sleeve outside has the second button hole of a plurality of and second button hole one-to-one, the top and the cardigan sleeve surface of second button are made up and are connected with female magic subsides.

As a preferred, the bottom of patient clothing jacket is provided with patient clothing trousers, the second fixed band has been made up to patient clothing trousers's positive top both sides, two a plurality of third button is installed in proper order to the top from the top down of second fixed band, the third button hole is installed to the bottom of second fixed band.

Preferably, a tightening rope is inserted into one end of each of the two cardigan sleeves.

As a preferred aspect of the utility model, the inner side of the cardigan sleeve is sewed with a bacteria removing layer.

Compared with the prior art, the utility model has the advantages that:

1) through the first button hole that sets up, first button, second button hole and second button patient when moving about, carry out the lock to drainage bag or drainage tube and fix and carry, prevent that the drainage tube from extracting from patient's is internal, through the third button hole that sets up and the mutually supporting of a plurality of third button hole for carry out block installation drainage tube to the sweater sleeve, the while is convenient for the nursing staff daily to expose the needle to patient's arm through mutually supporting that the son magic subsides that set up and the subsides of mother magic.

2) The drainage tubes in the sleeves of the sweater are fixed through the arranged tightening ropes, so that the patient can be conveniently treated in daily activities.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the principles of the invention. In the drawings:

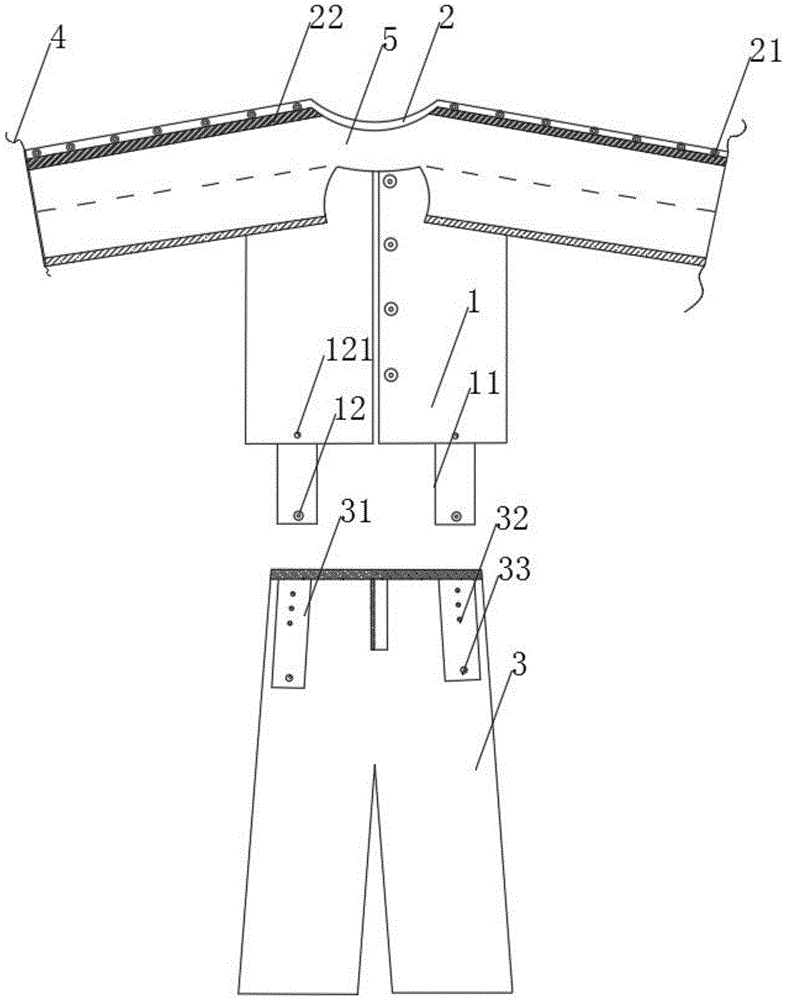

fig. 1 is a schematic structural view of the present invention;

fig. 2 is a back structural diagram of the jacket of the patient gown of the present invention.

In the figure: 1. a patient gown jacket; 11. a first securing strap; 12. a first grommet; 121. a first button; 2. cardigan sleeves; 21. a second grommet; 22. a sub-magic tape; 23. a second button; 24. female magic tape; 3. patient gowns trousers; 31. a second securing strap; 32. a third button; 33. a third grommet; 4. tightening the rope; 5. and (4) a sterilization layer.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-2, the present invention provides the following technical solutions: the utility model provides a patient clothing with anti-pulling tube structure, including patient clothing jacket 1, first fixed band 11 has been made up on the inboard both sides in patient clothing jacket 1 bottom, the equal fixed mounting in bottom of two first fixed bands 11 has first button hole 12, 1 outside fixed mounting of patient clothing jacket 1 of first button hole 12 relative position department has first button 121, cardigan sleeve 2 has been made up to the both sides at patient clothing jacket 1 top, a plurality of second button hole 21 is installed on 2 inboard tops of two cardigan sleeves, sub-magic subsides 22 have been made up to the bottom of a plurality of second button hole 21, the bottom fixed mounting in cardigan sleeve 2 outsides has a plurality of and the second button hole 21 one-to-one second button hole 23, the top of second button hole 23 is made up with 2 surfaces of cardigan sleeve and is connected with female magic subsides 24.

During the specific use, in-process that daily patient drainage was used, drainage bag is usually together with the drainage tube through on the first buttonhole 12 lock on the first fixed band 11 to first button 121, carry drainage bag or drainage tube fixedly, prevent that the drainage tube from extracting from patient's is internal, patient is usually when pricking needle or drainage tube are placed, need pass patient's coat-sleeve fast or fix the pipeline on the sleeve, paste 22 and paste 24 can be quick opening shirt sleeve 2 through son magic usually, it is fixed to install the pipeline through the second buttonhole 21 that sets up and second button 23, make things convenient for drainage or prick the needle.

The bottom of patient clothing jacket 1 is provided with patient clothing trousers 3, and second fixed band 31 has been made up to the positive top both sides of patient clothing trousers 3, and a plurality of third button 32 is installed from the top down in proper order to the top of two second fixed bands 31, and third button hole 33 is installed to the bottom of second fixed band 31.

During specific use, the second fixing band 31 at the top of the trousers 3 of the patient clothes is convenient for carrying the drainage tube or the drainage bag of the patient, and the third button hole 33 and one of the third button buttons 32 suitable for fixing on the second fixing band 31 are used for fixing the drainage bag or the drainage tube according to the size of the drainage bag or the size of the pipeline, so that the carrying activity of the patient is convenient, and the needle head of the drainage tube is prevented from being pulled out from the body of the patient.

One end of each of the two cardigan sleeves 2 is inserted and connected with a tightening rope 4.

When the sweater sleeve is used specifically, the tightening ropes 4 arranged at the two ends of the sweater sleeve 2 are convenient for tightening the cuffs, fix the pipelines inside the cuffs and play a role in keeping warm.

The inner side of the cardigan sleeve 2 is sewed with a degerming layer 5.

When the medical nursing bed is used specifically, the sterilization layer 5 is arranged to prevent a patient from being infected by bacteria, and the rehabilitation rate is improved.

The working principle is as follows: in the application in reality, be convenient for fix drainage bag or drainage tube to the patient through first fixed band 11 and the second fixed band 31 that set up, it is fixed with third button hole 33 lock can be according to the demand of drainage through the third button 32 of a plurality of on the second fixed band 31, make patient portable drainage device go out, paste or tear each other through the son magic subsides 22 and the mother magic subsides 24 that set up on two blouses sleeve 2, make things convenient for the nursing staff to open and shut blouses sleeve 2, prick the needle to the patient, the lock of third button 32 and third button hole 33 is installed fixedly to the drainage tube simultaneously, it is internal to prevent that drainage syringe needle patient from extracting, reduce the nursing work degree of difficulty.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and equivalents may be made without departing from the spirit and scope of the invention.

Claims

1. A patient clothing with an anti-pull-out tube structure comprises a patient clothing jacket (1) and is characterized in that, two sides of the inner side of the bottom end of the patient clothing jacket (1) are sewn with first fixing belts (11), the bottom ends of the two first fixing belts (11) are fixedly provided with first buttonholes (12), a first button (121) is fixedly arranged on the outer side of the jacket (1) of the patient clothing at the position corresponding to the first button hole (12), the two sides of the top of the jacket (1) of the hospital gown are sewn with the cardigan sleeves (2), the top ends of the inner sides of the two cardigan sleeves (2) are provided with a plurality of second button holes (21), the bottom ends of the second button holes (21) are sewn with the sub magic tapes (22), a plurality of second button buttons (23) which are in one-to-one correspondence with the second button holes (21) are fixedly arranged at the bottom end of the outer side of the sweater sleeve (2), the top of the second button (23) and the surface of the sleeve (2) are sewed and connected with female magic tapes (24).

2. The patient clothing with the anti-pull-out structure as claimed in claim 1, wherein: the utility model discloses a hospital gown, including patient gown jacket (1), patient gown trousers (3) are provided with in the bottom of patient gown jacket (1), second fixed band (31) have been made up to the positive top both sides of patient gown trousers (3), two a plurality of third button (32) are installed in proper order from the top down in the top of second fixed band (31), third button hole (33) are installed to the bottom of second fixed band (31).

3. The patient clothing with the anti-pull-out structure as claimed in claim 2, wherein: one end of each of the two cardigan sleeves (2) is connected with a tightening rope (4) in an inserting way.

4. The patient clothing with the anti-pull-out structure as claimed in claim 1, wherein: the inner side of the cardigan sleeve (2) is sewed with a degerming layer (5).
