Abstract
The utility model provides a cleaning device for electrical processing, which comprises a cleaning box and a water storage tank, wherein the left end surface of the cleaning box is fixed with a motor, the motor output shaft is fixedly connected with a screw rod, a clamping component is movably connected on the screw rod, a workpiece is fixed at the lower end of the clamping component, a plurality of groups of fixed rods are symmetrically arranged on the bottom surface inside the cleaning box, a shunt pipe is arranged between each group of fixed rods, a plurality of spray heads are arranged at the upper end of the shunt pipe, a plurality of supporting plates are fixed on the lower end surface of the cleaning box, the water storage tank is fixed between the supporting plates, a drain pipe is arranged on the bottom surface of the cleaning box, the drain pipe penetrates through the upper end of the water storage tank and is communicated with the inner cavity of the water storage tank, a filter screen is arranged between the water storage tank, the lower end of the water storage tank is provided with a water outlet, the water outlet is connected with a water inlet pipe of the water pump, the water outlet pipe of the water pump is fixedly connected with a conveying pipe, the conveying pipe is fixedly connected with the shunt pipe, the utility model discloses simple structure, the cleaning performance is good, has reached water resource reuse's purpose.
Description
Technical Field
The utility model relates to a technical field of electrical machining specifically is a belt cleaning device for electrical machining.
Background
Electricity is the general name in subject or engineering fields such as the production, transmission, distribution, use and electrician's equipment of electric energy make, in the course of working, needs to carry out effectual cleaning to the machined part after processing, current patent application no: 201921552504.9, the power distribution box comprises a box body, the inside bottom of box is provided with the catch basin, the lateral wall of box is provided with the motor, one side that the inside of box is located the motor is provided with the second threaded rod, the top that the inside of box is located the second threaded rod is provided with the second guide bar, the both sides that are located the second threaded rod on the box are provided with first seat of rotating, be provided with chucking device on second threaded rod and the second guide bar, the inside of box is provided with adjusting device, adjusting device's top is provided with the fixed plate. The utility model discloses a height of shower nozzle can be adjusted to adjusting device's hydraulic stem for the shower nozzle is aligned with the work piece by the centre gripping, thereby can be abundant wash the work piece, can carry out the chucking to different work pieces through the chucking device, and it is more firm to guarantee the work piece centre gripping simultaneously, but this utility model can not be to having washed water reuse, the water waste resource has the limitation.
SUMMERY OF THE UTILITY MODEL
The utility model mainly provides a belt cleaning device for electrical machining for solve the technical problem who proposes among the above-mentioned background art.
The utility model provides a technical scheme that above-mentioned technical problem adopted does:
a cleaning device for electric processing comprises a cleaning box and a water storage tank, wherein a motor is fixed on the left end face of the cleaning box, a screw rod is fixedly connected with an output shaft of the motor, a clamping assembly is movably connected on the screw rod, a workpiece is fixed at the lower end of the clamping assembly, a plurality of groups of fixing rods are symmetrically arranged on the bottom surface inside the cleaning box, a flow dividing pipe is arranged between the fixing rods of each group, a plurality of spray heads are arranged at the upper end of the flow dividing pipe, a plurality of supporting plates are fixed on the lower end face of the cleaning box, the water storage tank is fixed between the supporting plates, a water discharging pipe is arranged on the bottom surface of the cleaning box, the water discharging pipe penetrates through the upper end of the water storage tank and is communicated with an inner cavity of the water storage tank, a water outlet is arranged at the lower end face of the water storage tank, a water pump is arranged on the lower end face of the water storage tank, the water outlet is connected with a water inlet pipe of the water pump, the conveyer pipe with shunt tubes fixed connection has realized the cyclic utilization of water, the water economy resource.
Further, the clamping assembly comprises a movable seat, the movable seat is movably connected with the lead screw, a fixed plate is fixed on the lower end face of the movable seat, a sliding groove is formed in the movable seat, a movable plate is movably connected with the sliding groove, and the movable plate is matched with the fixed plate to facilitate cleaning of workpieces.
Furthermore, a spring is arranged in the sliding groove, and two ends of the spring are respectively connected with the sliding groove and the movable plate to provide elasticity and facilitate clamping of a workpiece.
Furthermore, a filter screen is fixedly installed in the water storage tank to filter water in the water storage tank.
Furthermore, a reinforcing plate is formed on the left end face of the cleaning box one day, and the motor is installed on the upper end face of the reinforcing plate and used for fixing the motor and starting the fixing function.
Furthermore, the front end of the cleaning box is provided with the sealing plate, so that the workpiece is convenient to take and place, and the sealing effect is achieved.
Furthermore, a plurality of handles are symmetrically arranged on the sealing plate, so that the sealing plate can be opened conveniently.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model collects the water in the cleaning tank through the water storage tank, the water is filtered by the filter screen and then is conveyed to the spray head by the water pump to clean the workpiece, thereby realizing the reuse of water resources and achieving the purpose of saving water resources; furthermore, the workpiece is clamped between the movable plate and the fixed plate through the spring and the movable plate, and the workpiece is made to run in a reciprocating mode through the screw rod, so that comprehensive cleaning is achieved.
The present invention will be explained in detail with reference to the drawings and specific embodiments.
Drawings

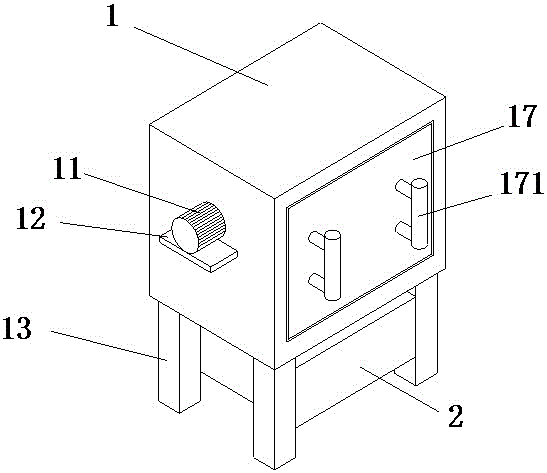

Fig. 1 is a schematic front structural view of the present invention;
fig. 2 is a schematic view of the back structure of the present invention;
fig. 3 is a front view of the structure of the present invention;
fig. 4 is a structural side view of the present invention;
fig. 5 is a schematic view of the clamping assembly of the present invention.
In the figure: 1. a cleaning tank; 11. a motor; 111. a screw rod; 12. a reinforcing plate; 13. a support plate; 14. a clamping assembly; 141. a movable seat; 142. a fixing plate; 143. a chute; 144. a spring; 145. a movable plate; 15. fixing the rod; 151. a shunt tube; 151a, a spray head; 16. a drain pipe; 17. a sealing plate; 171. a handle; 2. a water storage tank; 21. a filter screen; 22. a water pump; 221. a delivery pipe; 3. and (5) processing the workpiece.
Detailed Description
In order to facilitate understanding of the present invention, the present invention will be described more fully with reference to the accompanying drawings, in which several embodiments of the present invention are shown, but the present invention can be implemented in different forms, and is not limited to the embodiments described in the text, but rather, these embodiments are provided to make the disclosure of the present invention more thorough and comprehensive.
It will be understood that when an element is referred to as being "secured to" another element, it can be directly on the other element or intervening elements may be present, and when an element is referred to as being "connected" to another element, it can be directly connected to the other element or intervening elements may also be present, as the terms "vertical", "horizontal", "left", "right" and the like are used herein for descriptive purposes only.
Unless defined otherwise, all technical and scientific terms used herein have the same meaning as commonly understood by one of ordinary skill in the art to which this invention belongs, and the use of the term knowledge in the specification of the present invention is for the purpose of describing particular embodiments and is not intended to limit the present invention, and the term "and/or" as used herein includes any and all combinations of one or more of the associated listed items.
Please refer to fig. 1-5 in greater detail, a cleaning device for electrical processing comprises a cleaning tank 1 and a water storage tank 2, wherein a motor 11 is fixed on the left end surface of the cleaning tank 1, an output shaft of the motor 11 is fixedly connected with a screw 111, a clamping assembly 14 is movably connected on the screw 111, a workpiece 3 is fixed on the lower end of the clamping assembly 14, a plurality of groups of fixing rods 15 are symmetrically arranged on the bottom surface of the interior of the cleaning tank 1, a shunt tube 151 is arranged between each group of fixing rods 15, a plurality of spray heads 151a are arranged on the upper end of the shunt tube 151, a plurality of support plates 13 are fixed on the lower end surface of the cleaning tank 1, the water storage tank 2 is fixed between the support plates 13, a drain pipe 16 is arranged on the bottom surface of the cleaning tank 1, the drain pipe 16 penetrates through the upper end of the water storage tank 2 and is communicated with the inner cavity of the water storage tank 2, a water outlet is arranged on the lower end surface of the water storage tank 2, a water pump 22 is arranged on the lower end surface of the water storage tank 2, the delivery port with water pump 22's water inlet pipe connects, water pump 22's outlet pipe fixedly connected with conveyer pipe 221, conveyer pipe 221 with shunt tubes 151 fixed connection.
Please refer to fig. 1 to 5 again, the clamping assembly 14 includes a movable seat 141, the movable seat 141 is movably connected to the screw rod 111, a fixed plate 142 is fixed on a lower end surface of the movable seat 141, the movable seat 141 is provided with a sliding slot 143, the sliding slot 143 is movably connected to a movable plate 145, the movable plate 145 is matched with the fixed plate 142, a spring 144 is arranged in the sliding slot 143, and two ends of the spring 144 are respectively connected to the sliding slot 143 and the movable plate 145.
Please refer to fig. 1-5, a filter screen 21 is fixedly installed in the water storage tank 2.
Referring to fig. 1-5 again, a reinforcing plate 12 is formed on the left end surface of the cleaning tank 1 one day, and the motor 11 is mounted on the upper end surface of the reinforcing plate 12.
Referring to fig. 1-5 again, a sealing plate 17 is mounted at the front end of the cleaning tank 1, and a plurality of handles 171 are symmetrically mounted on the sealing plate 17.
The utility model discloses a concrete operation as follows:
starting the motor 11, wherein the motor 11 rotates forward to drive the screw rod 111 to rotate sequentially, so that the movable seat 141 moves leftwards, the motor 11 rotates backward to drive the screw rod 111 to rotate anticlockwise, so that the movable seat 141 moves rightwards, and simultaneously, the water pump 22 is started, the water pump 22 pumps water from the water storage tank 2, then the water is conveyed to the diversion pipe 151 from the delivery pipe 221, and then the water is sprayed out from the spray head 151a to clean the workpiece 3; the cleaned water is drained from the drain pipe 16 into the water storage tank 2, and then is filtered by the filter screen 21, and then is conveyed from the water pump 22 into the cleaning tank 1 again, so that the water resource is recycled.
The present invention has been described above with reference to the accompanying drawings, and it is obvious that the present invention is not limited by the above-mentioned manner, if the method and the technical solution of the present invention are adopted, the present invention can be directly applied to other occasions without substantial improvement, and the present invention is within the protection scope of the present invention.
Claims (7)
1. The cleaning device for electric machining comprises a cleaning box (1) and a water storage tank (2), and is characterized in that a motor (11) is fixed on the left end face of the cleaning box (1), a screw rod (111) is fixedly connected to an output shaft of the motor (11), a clamping assembly (14) is movably connected to the screw rod (111), a workpiece (3) is fixed at the lower end of the clamping assembly (14), a plurality of groups of fixing rods (15) are symmetrically installed on the bottom surface inside the cleaning box (1), a shunt pipe (151) is installed between every group of fixing rods (15), a plurality of spray heads (151 a) are installed at the upper end of the shunt pipe (151), a plurality of support plates (13) are fixed on the lower end face of the cleaning box (1), the water storage tank (2) is fixed between the support plates (13), a drain pipe (16) is arranged on the bottom surface of the cleaning box (1), the drain pipe (16) penetrates through the upper end of the water storage tank (2) and is communicated with the inner cavity of the water storage tank (2), storage water tank (2) lower extreme is equipped with the delivery port, water pump (22) are installed to the terminal surface under storage water tank (2), the delivery port with advance water piping connection of water pump (22), the outlet pipe fixedly connected with conveyer pipe (221) of water pump (22), conveyer pipe (221) with shunt tubes (151) fixed connection.
2. The cleaning device for electric processing according to claim 1, wherein the clamping assembly (14) comprises a movable seat (141), the movable seat (141) is movably connected with the screw rod (111), a fixed plate (142) is fixed on a lower end surface of the movable seat (141), the movable seat (141) is provided with a sliding groove (143), the sliding groove (143) is movably connected with a movable plate (145), and the movable plate (145) is matched with the fixed plate (142).
3. The cleaning device for electric processing according to claim 2, wherein a spring (144) is disposed in the sliding groove (143), and both ends of the spring (144) are respectively connected to the sliding groove (143) and the movable plate (145).
4. The cleaning device for electric processing according to claim 1, wherein a filter screen (21) is fixedly installed in the water storage tank (2).
5. The cleaning device for electric processing according to claim 1, wherein a reinforcing plate (12) is formed on the left end face of the cleaning tank (1) one day, and the motor (11) is mounted on the upper end face of the reinforcing plate (12).
6. The cleaning apparatus for electric machining according to claim 1, wherein a sealing plate (17) is attached to a front end of the cleaning tank (1).
7. The cleaning apparatus for electric working according to claim 6, wherein a plurality of handles (171) are symmetrically mounted on the sealing plate (17).
