CN214969253U - Multi-functional nursing device of reminding regularly of using medicine of liver transplantation patient postoperative - Google Patents
Multi-functional nursing device of reminding regularly of using medicine of liver transplantation patient postoperative Download PDFInfo
- Publication number
- CN214969253U CN214969253U CN202023167224.1U CN202023167224U CN214969253U CN 214969253 U CN214969253 U CN 214969253U CN 202023167224 U CN202023167224 U CN 202023167224U CN 214969253 U CN214969253 U CN 214969253U
- Authority
- CN
- China
- Prior art keywords
- medicine
- shell
- controller
- storage box
- patient
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Medical Preparation Storing Or Oral Administration Devices (AREA)
Abstract
本实用新型公开的属于电子产品技术领域，具体为一种肝移植患者术后多功能用药定时提醒护理装置，包括外壳，所述外壳内侧壁左右两侧螺接有多个滑轨，所述自动出药组件包括储药盒、磁块、弹簧和电磁锁，所述监测组件包括控制器、警报器和人体皮肤感应器，所述外壳内设置所述防护组件，控制器控制警报器在相应时间内进行报警，提醒患者及时服药，当患者拿起该用药提醒装置时，人体皮肤感应器将接受的信息传输至控制器，控制器根据不同药物存放的位置，打开相应的储药盒，控制器控制电磁锁断电，在弹簧恢复弹力后，使得储药盒推出外壳外，患者只需手动打开滑盖便可服用药物，避免了患者出现服药顺序错误的情况出现。
The utility model disclosed by the utility model belongs to the technical field of electronic products, in particular to a multi-functional medication timing reminder and nursing device for postoperative liver transplant patients, which comprises a casing. The medicine dispensing assembly includes a medicine storage box, a magnetic block, a spring and an electromagnetic lock, the monitoring assembly includes a controller, an alarm and a human skin sensor, the protective assembly is arranged in the casing, and the controller controls the alarm at a corresponding time An alarm will be set inside to remind the patient to take the medicine in time. When the patient picks up the medicine reminder device, the human skin sensor will transmit the received information to the controller. The controller will open the corresponding medicine storage box according to the location of different medicines. The electromagnetic lock is controlled to be powered off, and after the spring recovers the elastic force, the medicine storage box is pushed out of the outer casing, and the patient only needs to manually open the slide cover to take the medicine, avoiding the situation that the patient takes the medicine in the wrong order.
Description
Technical Field
The utility model relates to an electronic product technical field specifically is a multi-functional nursing device of reminding of using medicine of liver transplantation patient postoperative.
Background
Liver transplantation operation: the operation of replacing the diseased liver with the healthy liver is used for treating diseases such as acute liver failure, primary liver cancer and the like, the oral administration of the patient is particularly multiple after the liver transplantation operation, particularly, the administration of an immunosuppressant is very important, and a timing reminding device for the administration is required.
The existing medicine-taking timing reminding device can only remind a patient at regular time, medicines which can not be accurately reminded to the patient to take are specifically the same, and for some patients with older ages, poor memory is easy to make mistakes, the existing medicine-taking timing reminding device is lack of a protection structure for the medicines, the medicines are easy to deteriorate due to reasons such as dampness, the applicability is poor, and therefore the multifunctional medicine-taking timing reminding nursing device for the liver transplantation patient after operation needs to be researched and developed.
SUMMERY OF THE UTILITY MODEL
This section is for the purpose of summarizing some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this section and in the abstract of the specification and the title of the application to avoid obscuring the purpose of this section, the abstract of the specification and the title of the application, and such simplifications or omissions are not intended to limit the scope of the invention.
The utility model discloses in view of the problem that exists among the current timing reminding device that uses medicine, provided.
Therefore, the utility model aims at providing a multi-functional nursing device that reminds with medicine of liver transplantation patient postoperative can solve current timing reminding device that uses medicine and only can regularly remind the patient, the medicine that unable accurate suggestion patient took, specifically which kind is, to some older patients, memory is not good easy to make mistakes, and current timing reminding device that uses medicine lacks the protective structure to the medicine, lead to the medicine rotten because of reasons such as weing easily, the relatively poor problem of suitability.
For solving the technical problem, according to the utility model discloses an aspect, the utility model provides a following technical scheme:
a multifunctional medicine-taking timing reminding nursing device used after liver transplantation patient operation comprises a shell, an automatic medicine-discharging assembly, a monitoring assembly and a protection assembly, wherein the left side and the right side of the inner side wall of the shell are in threaded connection with a plurality of slide rails, the inner side wall of the shell is provided with the automatic medicine-discharging assembly, the automatic medicine-discharging assembly comprises a medicine storage box, a magnetic block, a spring and an electromagnetic lock, the slide rails are in sliding connection with the medicine storage box, the central position of the right side wall of the medicine storage box is fixedly connected with the magnetic block, the right side wall of the magnetic block is provided with the spring, the electromagnetic lock is installed on the right side of the inner side wall of the shell, the other end of the spring is connected with the electromagnetic lock, the monitoring assembly comprises a controller, an alarm and a human skin sensor, the controller is installed on the right end of the top of the outer side wall of the shell, the alarm is installed on the right end of the top of the outer side wall of the shell, and is located on the right side of the controller, the human skin inductor is arranged in the front side wall of the shell, and the protective component is arranged in the shell.
As a liver transplantation patient postoperative is multi-functional reminds nursing device's an optimal scheme with medicine timing, wherein: the protective component comprises a heat preservation layer and a drying layer, the heat preservation layer is installed in the shell, and the drying layer is arranged at the bottom of the outer side wall of the heat preservation layer.
As a liver transplantation patient postoperative is multi-functional reminds nursing device's an optimal scheme with medicine timing, wherein: the top of the left side and the right side of the inner side wall of the medicine storage box is provided with a sliding chute and a sliding cover in sliding connection.
As a liver transplantation patient postoperative is multi-functional reminds nursing device's an optimal scheme with medicine timing, wherein: the electromagnetic lock, the alarm and the human skin sensor are electrically connected with the controller.
As a liver transplantation patient postoperative is multi-functional reminds nursing device's an optimal scheme with medicine timing, wherein: the slide rail install in the shell inside wall left and right sides, it is a plurality of the slide rail is followed shell inside wall left and right sides from the top down is linear equidistance and arranges the setting.
Compared with the prior art, the beneficial effects of the utility model are that: the alarm is controlled by the controller to alarm within a corresponding time to remind a patient to take medicine in time, when the patient takes the medicine taking reminding device, the human skin sensor transmits received information to the controller, the controller opens the corresponding medicine storage box according to the positions where different medicines are stored, the controller controls the power of the electromagnetic lock to be cut off, after the spring recovers elasticity, the medicine storage box is pushed out of the shell, the patient can take the medicines only by manually opening the sliding cover, the phenomenon that the patient takes medicine in wrong order is avoided, the patient is more intelligently reminded to take the medicine, meanwhile, the medicine taking reminding device is prevented from being opened under the condition that the patient does not know to cause the loss of the medicines, the arranged heat insulation layer can keep a certain temperature in the medicine storage box, great temperature change is avoided, the medicine property loss of some medicines with specific temperature requirements is prevented, and the best medicine effect is not achieved, the drying layer can keep dry in the medicine storage box, prevents that the medicine from damaging after weing, causes unnecessary trouble.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the present invention will be described in detail with reference to the accompanying drawings and detailed embodiments, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor. Wherein:

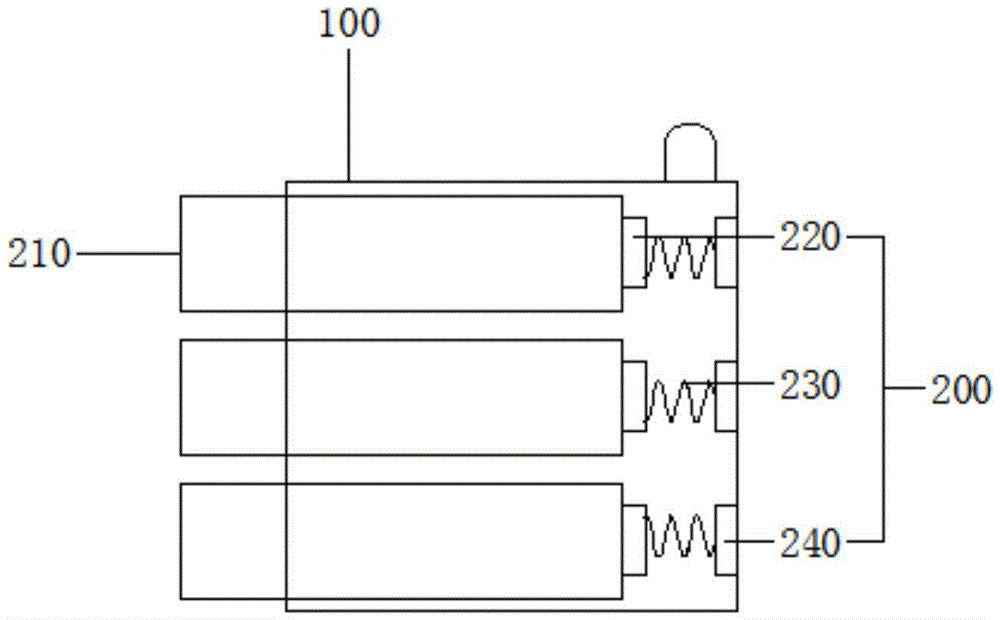

FIG. 1 is a schematic view of the internal structure of the present invention;
FIG. 2 is a schematic side view of the present invention;
FIG. 3 is a schematic structural view of the drug storage box of the present invention;
fig. 4 is a schematic view of a part of the structure of the present invention.
In the figure, a shell 100, a slide rail 110, an automatic medicine discharging component 200, a medicine storage box 210, a sliding cover 211, a magnetic block 220, a spring 230, an electromagnetic lock 240, a monitoring device 300, a controller 310, an alarm 320, a human skin sensor 330, a protective component 400, an insulating layer 410 and a drying layer 420.
Detailed Description
In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, but the present invention may be implemented in other ways than those specifically described herein, and one skilled in the art may similarly generalize the present invention without departing from the spirit of the present invention, and therefore the present invention is not limited to the specific embodiments disclosed below.
Next, the present invention will be described in detail with reference to the schematic drawings, and in the detailed description of the embodiments of the present invention, for convenience of explanation, the sectional view showing the device structure will not be enlarged partially according to the general scale, and the schematic drawings are only examples, and should not limit the scope of the present invention. In addition, the three-dimensional dimensions of length, width and depth should be included in the actual fabrication.
In order to make the objects, technical solutions and advantages of the present invention clearer, embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.
The utility model provides a following technical scheme: the utility model provides a multi-functional regularly reminding nursing device of using medicine of liver transplantation patient postoperative, in the use, report to the police in corresponding time through controller control siren, remind the patient in time to take medicine, when the patient takes up this reminding device of using medicine, human skin inductor is with the information transmission to the controller of accepting, the position that the controller was deposited according to different medicines, open corresponding drug storage box, controller control electromagnetic lock outage, after the spring resumes elasticity, make drug storage box release the shell outside, the patient only need manually open the sliding closure alright take medicine, the condition of having avoided the patient to appear taking medicine order mistake, more intelligent warning patient uses medicine.
Referring to fig. 1 to 4, a housing 100, an automatic medicine dispensing assembly 200, a monitoring assembly 300, and a protective assembly 400;
referring to fig. 1 and fig. 2 again, six slide rails 110 are respectively screwed on the left and right sides of the inner side wall of the housing 100, the six slide rails 110 are arranged along the left and right sides of the inner side wall of the housing 100 in a linear and equidistant manner from top to bottom, and the slide rails 110 enable the medicine storage box 210 to be slidably connected to the inner side wall of the housing 100, so that the medicine can be taken out;
referring to fig. 1 and 2 again, the inner side wall of the housing 100 is provided with an automatic medicine discharging assembly 200, the automatic medicine discharging assembly 200 includes medicine storage boxes 210, magnetic blocks 220, springs 230 and electromagnetic locks 240, specifically, the six sliding rails 110 are slidably connected with the medicine storage boxes 210, the number of the medicine storage boxes 210 is six, the medicine storage boxes are used for storing medicines in different categories, sliding grooves (not shown in the figures) are formed in the top portions of the left side and the right side of the inner side wall of the medicine storage boxes 210, sliding covers 211 and sliding covers 211 are slidably connected with the sliding covers 211 and are used for protecting the medicines in the medicine storage boxes 210, the magnetic blocks 220 are screwed in the center of the right side wall of the medicine storage boxes 210, the springs 230 are fastened to the right side wall of the magnetic blocks 220, the electromagnetic locks 240 are screwed to the right side of the inner side wall of the housing 100, the other ends of the springs 230 are connected with the electromagnetic locks 240, the electromagnetic locks 240 are electrically connected with the controller 310, when the medicine taking time arrives, the controller 310 opens the corresponding medicine storage boxes 210 according to the positions where different medicines are stored, the controller 310 controls the electromagnetic lock 240 to be powered off, after the spring 240 recovers the elastic force, the medicine storage box 210 is pushed out of the shell 100, and a patient can take the medicine only by manually opening the sliding cover 211, so that the condition that the medicine taking sequence of the patient is wrong is avoided;
referring to fig. 2 again, the monitoring assembly 300 includes a controller 310, an alarm 320 and a human skin sensor 330, specifically, the controller 310 is installed at the right end of the top of the outer sidewall of the housing 100 in an embedded manner, the alarm 320 is screwed to the right end of the top of the outer sidewall of the housing 100, the alarm 320 is located at the right side of the controller 310, the human skin sensor 330 is installed in the front sidewall of the housing 100 in an embedded manner, the alarm 320 and the human skin sensor 330 are electrically connected to the controller 310, the controller 310 controls the alarm 320 to alarm at a corresponding time to remind the patient to take medicine in time, when the patient takes the medicine taking reminding device, the human skin sensor 330 transmits the received information to the controller 310, and at this time, the controller 310 controls the medicine storage box 210 to be pushed out of the housing 100 to remind the patient of taking medicine more intelligently, and meanwhile, the medicine taking reminding device can be prevented from being opened under the condition that the patient does not know, leading to loss of the drug;
referring to fig. 1 and 4 again, a protective assembly 400 is arranged in the casing 100, the protective assembly 400 includes an insulating layer 410 and a drying layer 420, specifically, the insulating layer 410 is clamped in the casing 100, the drying layer 420 is clamped at the bottom of the outer side wall of the insulating layer 410, the drying layer 420 is a drying agent filling layer, the arranged insulating layer 410 can keep a certain temperature in the medicine storage box 210, no great temperature change occurs, the medicine with a specific temperature requirement is prevented from losing, the best medicine effect can not be achieved, the drying layer 420 can keep the inside of the medicine storage box 210 dry, and unnecessary troubles caused by damage of the medicine after being wetted are prevented;
the working principle is as follows: in the using process of the utility model, the alarm 320 is controlled by the controller 310 to alarm within a corresponding time to remind the patient to take medicine in time, when the patient takes up the medicine-taking reminding device, the human skin sensor 330 transmits the received information to the controller 310, the controller 310 opens the corresponding medicine storage box 210 according to the positions where different medicines are stored, the controller 310 controls the electromagnetic lock 240 to be powered off, after the spring 240 recovers the elasticity, the medicine storage box 210 is pushed out of the shell 100, the patient can take the medicines only by manually opening the sliding cover 211, the occurrence of wrong medicine-taking sequence of the patient is avoided, the patient is reminded of taking the medicine more intelligently, meanwhile, the medicine-taking reminding device can be prevented from being opened under the condition that the patient does not know, the medicines are lost, the arranged heat-insulating layer 410 can keep a certain temperature in the medicine storage box 210, and no great temperature change exists, the drying layer 420 can keep the inside of the medicine storage box 210 dry, and prevent unnecessary troubles caused by damage of the medicine after being wetted.
While the invention has been described above with reference to an embodiment, various modifications may be made and equivalents may be substituted for elements thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features of the disclosed embodiments of the present invention can be used in any combination with each other, and the non-exhaustive description of these combinations in this specification is merely for the sake of brevity and resource conservation. Therefore, it is intended that the invention not be limited to the particular embodiments disclosed, but that the invention will include all embodiments falling within the scope of the appended claims.
Claims (5)
1. The utility model provides a multi-functional nursing device of reminding of using medicine of liver transplantation patient postoperative which characterized in that: the automatic medicine discharging device comprises a shell (100), an automatic medicine discharging assembly (200), a monitoring assembly (300) and a protection assembly (400), wherein the left side and the right side of the inner side wall of the shell (100) are in threaded connection with a plurality of sliding rails (110), the inner side wall of the shell (100) is provided with the automatic medicine discharging assembly (200), the automatic medicine discharging assembly (200) comprises a medicine storage box (210), a magnetic block (220), a spring (230) and an electromagnetic lock (240), the sliding rails (110) are connected with the medicine storage box (210), the central position of the right side wall of the medicine storage box (210) is fixedly connected with the magnetic block (220), the right side wall of the magnetic block (220) is provided with the spring (230), the electromagnetic lock (240) is installed on the right side of the inner side wall of the shell (100), the other end of the spring (230) is connected with the electromagnetic lock (240), the monitoring assembly (300) comprises a controller (310), an alarm (320) and a human skin inductor (330), the controller (310) is installed to shell (100) lateral wall top right-hand member, install shell (100) lateral wall top right-hand member siren (320), just siren (320) are located controller (310) right side, set up in shell (100) preceding lateral wall human skin inductor (330), set up in shell (100) protection component (400).
2. The multifunctional postoperative medicine timed reminding nursing device for the liver transplantation patients according to claim 1, characterized in that: the protective component (400) comprises an insulating layer (410) and a drying layer (420), the insulating layer (410) is installed in the shell (100), and the drying layer (420) is arranged at the bottom of the outer side wall of the insulating layer (410).
3. The multifunctional postoperative medicine timed reminding nursing device for the liver transplantation patients according to claim 1, characterized in that: the top of the left side and the right side of the inner side wall of the medicine storage box (210) is provided with sliding grooves in sliding connection with sliding covers (211).
4. The multifunctional postoperative medicine timed reminding nursing device for the liver transplantation patients according to claim 1, characterized in that: the electromagnetic lock (240), the alarm (320) and the human body skin sensor (330) are electrically connected with the controller (310).
5. The multifunctional postoperative medicine timed reminding nursing device for the liver transplantation patients according to claim 1, characterized in that: slide rail (110) install in shell (100) inside wall left and right sides, it is a plurality of slide rail (110) are followed shell (100) inside wall left and right sides from the top down is linear equidistance and arranges the setting.
