The full-automatic hydraulic control slow-closing check water pump outlet valve comprises a valve body, a valve rod, a valve tail bearing, a large valve plate, a small valve plate, a controller valve body, a controller safety valve, an oil injection valve and an exhaust valve. A flow passing groove, a throttling groove and a transition groove are distributed on the controller cover plate; the inner cavity of the controller is divided into two identical chambers by two partition plates, and the two chambers are divided into a first oil chamber and a second oil chamber by two blades respectively. The large valve plate is hung on the valve rod and is positioned by a shaft shoulder of the valve rod and a valve neck positioning sleeve; the small valve plate is fixed on the valve rod. One end of the valve rod is connected with the valve tail bearing, and the other end of the valve rod is connected with the rotating shaft of the controller. The small valve plate is opened through the water outlet pressure impact of the water pump, so that the small valve plate drives the valve rod, and the valve rod drives the rotating shaft of the controller to rotate; the rotation of the rotating shaft of the controller realizes the slow opening and fast closing and slow closing actions of the small valve plate. The invention does not need external power drive in the process of controlling the opening and closing of the valve, and has the advantages of energy saving, environmental protection, wide applicability and convenient maintenance.
Description
Technical Field
The utility model relates to a hydraulic pump control valve, especially a full-automatic bivalve plate liquid accuse slow-closing check water pump outlet valve.
Background
The more advanced hydraulic water pump control valve in the market at present has the advantages of being driven by the pressure of pipe network medium, not using electricity, not using other external power and the like, and is accepted by the majority of users. However, such valves also suffer from the following disadvantages: in the existing hydraulic water pump control valve, before a water pump is started, because the back of the valve is provided with water pressure, the back pressure of the valve acts on the whole valve plate, and the water pressure at the outlet of the water pump can only open the valve if being larger than the back pressure of the valve, so that the following conditions can be caused. Firstly, the back pressure is too large due to the high water head behind the valve, so that the valve cannot be opened; if the valve is opened, the load on the water pump is increased; secondly, because the outlet backpressure of the water pump is large, the output power of the motor is increased, the starting current of the motor is increased, and the motor control part is probably tripped due to the overlarge starting current of the motor, so that the motor cannot be started to protect the motor. Thirdly, because the big valve plate hangs on the valve rod, when the big valve plate closes the valve body sealing surface, under the effect of water pressure, can automatic alignment sealed face the best position close valve, sealed effect is not good.
In the existing double-valve-plate butterfly valve, a large valve plate is fixed on a valve rod, a small valve plate is hung on the valve rod, and the small valve plate is opened by the action of external power; if the external power of the switch of the small valve plate is provided by the medium in the pipeline, the medium flowing in the pipeline is not clean, and the impurities in the medium are deposited and accumulated after long-term use, so that the upper cavity and the lower cavity of the cylinder are blocked, and the valve cannot be opened or closed; if the medium in the pipeline is corrosive, the valve can not be opened and closed due to corrosion of the medium by some internal parts in the cylinder; even if the medium in the pipe is clean water, the membrane chamber and the membrane itself may deposit a layer of scale due to long-term use, which also affects the opening and closing of the valve.
Disclosure of Invention
The invention aims to solve the technical problem of providing a full-automatic hydraulic control slow-closing check water pump outlet valve which is energy-saving, environment-friendly, wide in applicability and convenient to maintain.
The technical scheme adopted for solving the problems is that the full-automatic hydraulic control slow-closing check water pump outlet valve comprises a valve body, a valve rod, a valve tail bearing, a controller safety valve, an oil injection valve and an exhaust valve, wherein a flow passing groove, a throttling groove and a transition groove are distributed on a controller cover plate; the inner cavity of the controller is divided into two identical chambers by two partition plates, the two chambers are divided into a first oil cavity and a second oil cavity by two blades respectively, the valve plate comprises a large valve plate and a small valve plate, the large valve plate is hung on the valve rod, and the large valve plate is positioned by a shaft shoulder and a valve neck positioning sleeve of the valve rod; the small valve plate is fixed on the valve rod and connected with the controller through the valve rod, one end of the valve rod is assembled in the valve tail bearing, the other end of the valve rod is assembled in the controller rotating shaft, and the end part of the valve rod extending out of the controller rotating shaft is provided with the weight rod.
The valve rod axis deviates from the center of the valve plate and the center of the valve body at the same time, the sealing section of the valve plate is an ellipse, one side of the sealing surface of the valve plate is inclined to the center line of the body, and the other side of the sealing surface of the valve plate is parallel to the center line of the body; the valve rod is provided with a limiting pin which determines the opening limit position of the large valve plate; the valve plate automatically adjusts the sealing of the valve at the closing limit position of the large valve plate.
The rotary axis of the valve seat and the axis of the valve body channel form a certain angle, so that the conical axis of the sealing surface of the valve plate is inclined to the cylindrical axis of the valve body, the sealing section of the valve plate is elliptical, one side of the sealing surface of the valve plate is inclined to the center line of the valve body, and the other side of the sealing surface of the valve plate is parallel to the center line of the valve body. The three-eccentric seal is characterized in that the seal structure is fundamentally changed, the position seal is not performed any more, but the torsion seal is performed, namely the seal effect is achieved not by the elastic deformation of the valve seat but by the pressure of the contact surface of the valve seat and the valve plate, and the seal effect of the valve is good because the pressure of the contact surface is in direct proportion to the pressure of a medium; meanwhile, the valve plate can automatically adjust the sealing of the valve. The small valve plate is connected with the controller through the valve rod, and the slow opening, the fast opening and the fast closing of the small valve plate are achieved.
Two sides of the rotating shaft of the controller are divided into two chambers; along with the different rotating positions of the controller, the flow rates of hydraulic oil in the cavities are different, the rotating speeds of rotating shafts of the controller are different, and therefore the slow opening, fast opening and fast closing and slow closing of the small valve plate are achieved. When the water pump is started, the back pressure of the valve acts. When the water pump stops, the large valve plate is quickly closed under the action of the gravity of the large valve plate.
Drawings
FIG. 1 is a front view of the structure of the present invention (fully closed valve);
FIG. 2 is a side view of the structure of the present invention;
FIG. 3 is a schematic view of a controller rotor structure according to the present invention;
FIG. 4 is a view of the position of the rotor when the valve of the present invention is fully open;
FIG. 5 is a diagram of the limit position of the switching shaft of the valve speed switch of the present invention;

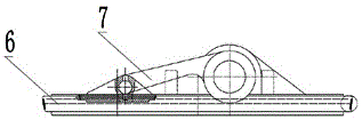

FIG. 6 is a front view of the construction of the small valve plate and the large valve plate;
FIG. 7 is a side view of the structure of the small valve plate and the large valve plate.
In the figure: 1 valve end cover, 2 valve rod, 3 valve tail bearing, 4 valve body, 5 big valve plate full-open limit pin,
6 large valve plates, 7 small valve plates, 8 small valve plate positioning pins, 9 large valve plate positioning sleeves, 10 valve rod guide sleeves, 11 controllers, 12 controller safety valves, 13 controller regulating valves, 14 controller rotating shafts, 15 oil injection valves, 16 controller cover plates, 17 weight rods, 18 weight blocks, 19 exhaust valves, 20 overflow grooves, 21 throttle grooves, 22 overflow grooves, 23 second oil chambers and 24 first oil chambers.
Detailed Description
The present invention will be further explained with reference to the accompanying drawings.
Referring to fig. 1, the fully automatic hydraulic control slow-closing check water pump outlet valve comprises a valve body 4, a valve rod 2, a valve tail bearing 3, a controller safety valve 12, an oil injection valve 15 and an exhaust valve 19, wherein a flow passing groove 20, a throttling groove 21 and a transition groove 22 are distributed on a controller cover plate 16; the inner cavity of the controller is divided into two identical chambers by two partition plates, the two chambers are divided into a first oil chamber 24 and a second oil chamber 23 by two blades respectively, the valve plate comprises a large valve plate 6 and a small valve plate 7, the large valve plate 6 is hung on the valve rod 2, and the large valve plate is positioned by a shaft shoulder of the valve rod and a valve neck positioning sleeve 9; the small valve plate 7 is fixed on the valve rod 2 and is connected with the controller 11 through the valve rod, one end of the valve rod 2 is assembled in the valve tail bearing 3, the other end of the valve rod is assembled in the controller rotating shaft 14, and the end part of the valve rod extending out of the controller rotating shaft is provided with a weight rod 17. The rotation of the controller rotating shaft 14 realizes the slow opening and fast closing and slow closing actions of the small valve plate 7.
The valve body is a three-eccentric hard sealing structure, and a limit pin 5 is fixed on the valve rod; the limit position of the large valve plate when the large valve plate is opened is determined by the limit pin 5, and the small valve plate 7 is connected with the controller through the valve rod, so that the slow opening, fast opening and fast closing of the small valve plate are realized. The three-eccentric seal is characterized in that the seal structure is fundamentally changed, the position seal is not performed any more, but the torsion seal is performed, namely the seal is realized by the pressure of the contact surface of the valve seat and the valve plate instead of the elastic deformation of the valve seat, and the seal effect of the valve is good because the pressure of the contact surface is in direct proportion to the pressure of a medium. And the rotation axis of the valve seat and the axis of the valve body passage form an angle.
The large valve plate 6 is fitted in the cast valve body and is suspended from the valve stem 2. The small valve plate 7 is fixed on the valve rod 2 through a fixing pin, the valve rod 2 is assembled in the valve body and supported on the valve body through a valve tail bearing and a valve rod guide sleeve, and the valve tail bearing and the valve rod guide sleeve 10 can reduce friction force of the valve rod in the process of opening and closing the valve and reduce abrasion of the valve rod 2 in the working process. One end of the valve rod is connected with a rotating shaft of the controller through a flat key, and the end part of the other end of the valve rod is hung outside the controller and is provided with a weight rod 17.
The working principle of the valve is as follows:
firstly, opening the valve, the valve opening is divided into two processes, namely slow opening and fast opening.
1. When the water pump is started, because the input current of the water pump motor is small, the rotating speed of the water pump is slow, the pressure of the water pump outlet is low, but due to the action of backpressure, the water at the water pump outlet can only overcome the backpressure of the small valve plate to open the small valve plate, the small valve plate is fixed on the valve rod, the small valve plate drives the valve rod to slowly rotate under the action of water pressure, the valve rod is connected with a rotating shaft of the controller through a flat key, as can be seen from the graph 3 and the graph 5, between the full-closed position of the valve and the limit position of the switching of the fast and slow switch of the valve, the valve cover 1 is provided with an oil groove, hydraulic oil flowing from the second oil cavity 24 to the first oil cavity 23 can only flow through the regulating valve, so the process is slow, and the process is the slow opening process of the valve.
2. Quick opening of the small quick-opening valve plate: when the blade of the rotating shaft passes through the limit position, two channels are arranged for hydraulic oil flowing from the second oil chamber to the first oil chamber; one through the regulating valve 13 and the other through the overflow channel 20 in the cover plate of the control, the latter being essential because the resistance of the hydraulic oil in this way is reduced, causing the valve stem 2 to rotate rapidly, bringing the small valve plate 7 to the fully open position (see fig. 4).
The big valve plate is opened soon: after the water pump is started for a period of time, because the small valve plate is opened to reduce partial back pressure, the output power of the water pump motor is slowly increased, the outlet pressure of the water pump is also increased at the same time, and the large valve plate can be quickly opened. The process can protect the water pump motor and ensure the normal work of the water pump.
Secondly, closing the valve: the valve closing is divided into two processes, namely, fast closing and slow closing.
1. Fast switch
Quick closing of a large valve plate: when the pump is stopped, the large valve plate 6 is hung on the valve rod 2, and when the water pump stops running, the large valve plate 6 is quickly closed under the action of self gravity and water head pressure; when the large valve plate is closed to the sealing surface of the valve body, the valve can be closed by automatically aligning the optimal position of the sealing surface under the action of water pressure, and the sealing effect is good.
Quick closing of the small valve plate: when the pump is stopped, the small valve plate 7 drives the valve rod 2 to rapidly rotate under the auxiliary action of the heavy hammer 17, so that the small valve plate is rapidly closed; this process is a quick closing process of the valve.
2. Slow switch
When the rotor blade of the control is rotated to the extreme position of the valve fast-slow switching, this process is relatively slow until the small valve plate is fully closed, since the hydraulic oil flowing from the first oil chamber to the second oil chamber can only be done through the regulating valve 13.
Claims (2)
1. The full-automatic hydraulic control slow-closing check water pump outlet valve comprises a valve body (4), a valve rod (2), a valve tail bearing (3), a controller safety valve (12), an oil injection valve (15) and an exhaust valve (19), wherein a flow passing groove (20), a throttling groove (21) and a transition groove (22) are distributed on a controller cover plate (16); controller (11) inner chamber separates into two the same cavities through two baffles, and first oil pocket (24) and second oil pocket (23), its characterized in that are separated into respectively to two cavities by two blades: the valve plate comprises a large valve plate (6) and a small valve plate (7), the large valve plate (6) is hung on the valve rod (2), and the large valve plate (6) is positioned through a shaft shoulder of the valve rod (2) and a valve neck positioning sleeve (9); the small valve plate (7) is fixed on the valve rod (2) and is connected with the controller (11) through the valve rod, one end of the valve rod (2) is assembled in the valve tail bearing (3), the other end of the valve rod (2) is assembled in the controller rotating shaft (14), and the valve rod (2) extends out of the end part of the controller rotating shaft and is provided with a weight rod (17).
2. The fully automatic hydraulic control slow-closing check water pump outlet valve of claim 1, which is characterized in that: the large valve plate (6) is a triple eccentric hard sealing structure, the axis of the valve rod (2) deviates from the center of the valve plate and the center of the valve body at the same time, the sealing section of the valve plate is an ellipse, one side of the sealing surface of the valve plate is inclined to the center line of the body, and the other side of the sealing surface of the valve plate is parallel to the center line of the body; a limiting pin (5) is arranged on the valve rod, and the limiting pin (5) determines the opening limit position of the large valve plate; the valve plate automatically adjusts the sealing of the valve at the closing limit position of the large valve plate.
