Abstract
本实用新型公开了一种具有通风效果的绿色建筑节能墙体，包括外墙本体，所述外墙本体内部开设有安装槽，所述内防护墙外侧固定连接有连接块，所述内防护墙内部固定连接有防水层，所述外墙本体内部开设有进风孔，所述外墙本体内部固定连接有电动推杆，所述除尘网下侧固定连接有风机，所述雾化机构外侧固定连接有雾化喷头。该具有通风效果的绿色建筑节能墙体，通过对紧固螺钉进行拆卸，可以使内防护墙从外墙本体内部脱落，起到便于拆卸的效果，风机可以将风从进风孔中经过除尘网和第一过滤网过滤后从出风孔中吹出，进一步起到通风效果，在雨天雨水可以进入蓄水箱中，利用供水泵从雾化喷头喷出，从而起到循环利用水资源以及确保其室内的保湿效果。
The utility model discloses a green building energy-saving wall body with ventilation effect, comprising an outer wall body, an installation groove is formed inside the outer wall body, a connecting block is fixedly connected to the outer side of the inner protection wall, and the inner protection wall is A waterproof layer is fixedly connected inside, an air inlet hole is opened inside the outer wall body, an electric push rod is fixedly connected inside the outer wall body, a fan is fixedly connected to the lower side of the dust removal net, and the outside of the atomizing mechanism is fixed Connected with atomizing nozzle. The green building energy-saving wall with ventilation effect can make the inner protective wall fall off from the interior of the outer wall body by disassembling the fastening screws, which has the effect of facilitating disassembly, and the fan can pass the air from the air inlet hole through the dust net After being filtered with the first filter, it is blown out from the air outlet, which further has a ventilation effect. In rainy days, the rainwater can enter the water storage tank and be sprayed from the atomizing nozzle by the water supply pump, so as to recycle the water resources and ensure its safety. Indoor moisturizing effect.
Description
Technical Field
The utility model relates to a green building technical field specifically is a green building energy-saving wall body with ventilation effect.
Background
The green building is a high-quality building which saves resources, protects the environment, reduces pollution, provides healthy, applicable and efficient use space for people and furthest realizes harmonious symbiosis between people and nature in the whole life cycle.
The existing wall body is single in structure, the moisturizing and ventilating effects cannot be achieved according to the needs of people, rainwater cannot be collected and utilized in rainy days, the green and energy-saving effects cannot be achieved, and the existing wall body is difficult to disassemble when in need of maintenance, so that the existing wall body is inconvenient to maintain.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a green building energy-saving wall body with ventilation effect to solve the problem that the current wall body that proposes in the above-mentioned background art does not moisturize and ventilation effect.
In order to achieve the above object, the utility model provides a following technical scheme: a green building energy-saving wall body with a ventilation effect comprises an outer wall body, wherein a mounting groove is formed in the outer wall body, an inner protection wall is detachably connected in the mounting groove, a connecting block is fixedly connected to the outer side of the inner protection wall, a fastening screw is detachably connected to the outer side of the connecting block, a connecting groove is formed in the outer wall body, a concave sealing block is fixedly connected in the connecting groove, a waterproof layer is fixedly connected in the inner protection wall, a positioning block is movably connected in the outer wall body, a return spring is fixedly installed in the positioning block, a positioning groove is formed in the inner protection wall, an air inlet hole is formed in the outer wall body, an electric push rod is fixedly connected in the outer wall body, a sealing baffle is fixedly connected to the outer side of the electric push rod, a movable groove is formed in the outer wall body, an air channel is formed in the outer wall body, and the interior of the air duct is fixedly connected with a dust removing net, the lower side of the dust removing net is fixedly connected with a fan, the lower side of the fan is fixedly connected with a first filter screen, an air outlet hole is arranged in the inner protective wall, a water receiving plate is fixedly connected to the outer side of the outer wall body, a water inlet groove is arranged in the outer wall body, and the outer side of the water inlet groove is fixedly connected with an impurity blocking net, the lower side of the water inlet groove is fixedly connected with a water guide plate, a water inlet pipe is fixedly connected with the lower side of the water guide plate, a second filter screen is fixedly connected inside the water inlet pipe, a water storage tank is fixedly connected with the lower side of the water inlet pipe, and the outer side of the water storage tank is fixedly connected with a water supply pump, the outer side of the water supply pump is fixedly connected with a water outlet pipe, and the outer side of the water outlet pipe is fixedly connected with an atomizing mechanism, the outer side of the atomizing mechanism is fixedly connected with an atomizing nozzle, the water storage tank is fixedly connected with a drain pipe at the lower side, and an electromagnetic valve is fixedly arranged at the outer side of the drain pipe.
Preferably, the outer wall body is internally provided with a sound insulation board, and the connecting block is matched with the connecting groove.
Preferably, a screw hole is formed in the connecting block, and the fastening screw is matched with the concave sealing block.
Preferably, the positioning block is clamped with the positioning groove, and the air inlet hole and the air outlet hole are consistent in specification.
Preferably, the movable groove is internally provided with a limiting block, and the outer side of the movable groove is provided with a waterproof partition plate.
Preferably, the lower terminal surface of intake chamber is higher than the up end of water receiving board, and atomizer is the equidistance and distributes in the atomizing mechanism outside.
Compared with the prior art, the beneficial effects of the utility model are that: this green building energy-saving wall body with ventilation effect, can dismantle through the fastening screw that can dismantle the connection to the connecting block outside, can make interior protective wall outside fixed connection's connecting block drop from the inside spread groove of seting up of outer wall body, thereby play convenient to detach's effect, dust removal net below side fixed connection's fan can blow off the inside exhaust vent of seting up of interior protective wall after dust removal net and first filter screen filter with wind from the inside fresh air inlet that sets up of outer wall body, thereby play ventilation effect, rainwater can follow the intake antrum and get into in the cistern in the rainy day, thereby utilize the working shaft to make water from the atomizer blowout, play cyclic utilization water resource and ensured indoor moisturizing effect when needing.
Drawings

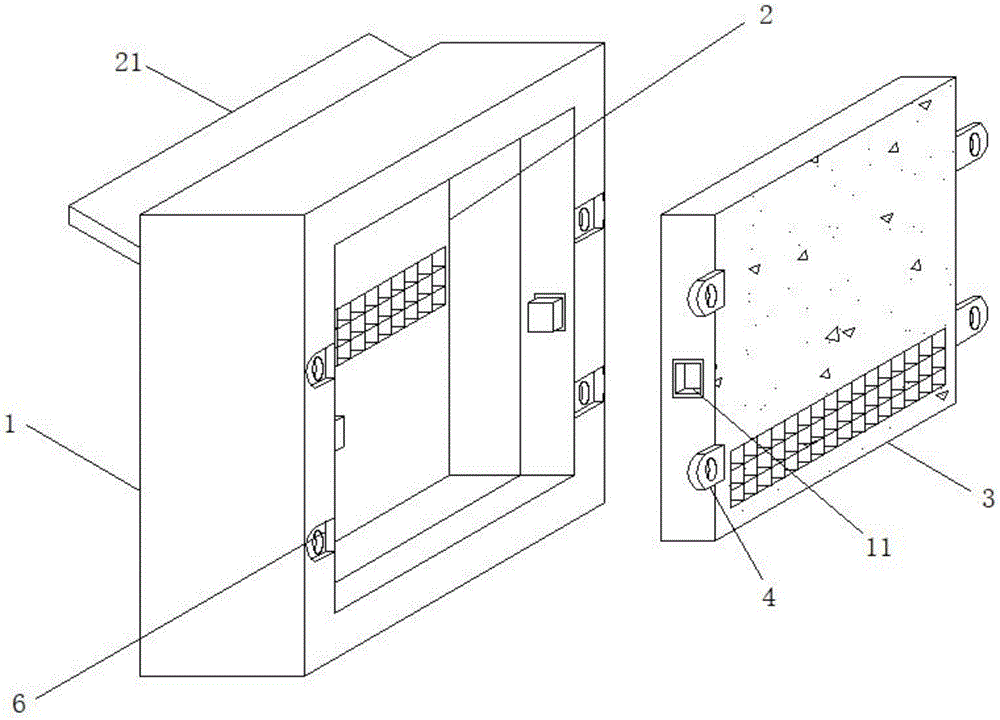

FIG. 1 is a schematic view of the inner protective wall of the present invention;
FIG. 2 is a schematic view of the front cross-section structure of the present invention;
FIG. 3 is a schematic side sectional view of the present invention;
fig. 4 is an enlarged schematic structural diagram of the utility model a.
In the figure: 1. an exterior wall body; 2. mounting grooves; 3. an inner protective wall; 4. connecting blocks; 5. fastening screws; 6. connecting grooves; 7. a concave sealing block; 8. a waterproof layer; 9. positioning blocks; 10. a return spring; 11. positioning a groove; 12. an air inlet hole; 13. an electric push rod; 14. sealing the baffle; 15. a movable groove; 16. an air duct; 17. a dust removal net; 18. a fan; 19. a first filter screen; 20. an air outlet; 21. a water receiving plate; 22. a water inlet groove; 23. an impurity blocking net; 24. a water guide plate; 25. a water inlet pipe; 26. a second filter screen; 27. a water storage tank; 28. a water supply pump; 29. a water outlet pipe; 30. an atomization mechanism; 31. an atomizing spray head; 32. a drain pipe; 33. an electromagnetic valve.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a green building energy-saving wall body with a ventilation effect comprises an outer wall body 1, wherein a mounting groove 2 is formed in the outer wall body 1, an inner protective wall 3 is detachably connected in the mounting groove 2, a connecting block 4 is fixedly connected to the outer side of the inner protective wall 3, a fastening screw 5 is detachably connected to the outer side of the connecting block 4, a connecting groove 6 is formed in the outer wall body 1, a concave sealing block 7 is fixedly connected in the connecting groove 6, a waterproof layer 8 is fixedly connected in the inner protective wall 3, a positioning block 9 is movably connected in the outer wall body 1, a return spring 10 is fixedly installed in the positioning block 9, a positioning groove 11 is formed in the inner protective wall 3, an air inlet hole 12 is formed in the outer wall body 1, an electric push rod 13 is fixedly connected in the outer wall body 1, a sealing baffle 14 is fixedly connected to the outer side of the electric push rod 13, and a movable groove 15 is formed in the outer wall body 1, an air duct 16 is arranged inside the outer wall body 1, a dust removing net 17 is fixedly connected inside the air duct 16, a fan 18 is fixedly connected to the lower side of the dust removing net 17, a first filter screen 19 is fixedly connected to the lower side of the fan 18, an air outlet 20 is arranged inside the inner protective wall 3, a water receiving plate 21 is fixedly connected to the outer side of the outer wall body 1, a water inlet groove 22 is arranged inside the outer wall body 1, an impurity blocking net 23 is fixedly connected to the outer side of the water inlet groove 22, a water guide plate 24 is fixedly connected to the lower side of the water guide plate 24, a water inlet pipe 25 is fixedly connected to the lower side of the water guide plate 24, a second filter screen 26 is fixedly connected inside the water inlet pipe 25, a water storage tank 27 is fixedly connected to the lower side of the water inlet pipe 25, a water supply pump 28 is fixedly connected to the outer side of the water storage tank 27, a water outlet pipe 29 is fixedly connected to the outer side of the water supply pump 28, an atomizing mechanism 30 is fixedly connected to the outer side of the water outlet pipe 29, and an atomizing nozzle 31 is fixedly connected to the outer side of the atomizing mechanism 30, a drain pipe 32 is fixedly connected to the lower side of the water storage tank 27, and an electromagnetic valve 33 is fixedly installed on the outer side of the drain pipe 32.
Further, the inside acoustic celotex board that is equipped with of outer wall body 1, and connecting block 4 and spread groove 6 agree with mutually, and the acoustic celotex board has certain syllable-dividing effect.
Furthermore, a screw hole is formed in the connecting block 4, the fastening screw 5 is matched with the concave sealing block 7, and the inner protective wall 3 can be conveniently detached through the fastening screw 5.
Furthermore, the positioning block 9 is clamped with the positioning groove 11, the air inlet hole 12 and the air outlet hole 20 are in the same specification, and the air inlet hole 12 and the air outlet hole 20 can play a role in circulating ventilation.
Further, the movable groove 15 is internally provided with a limiting block, and the outer side of the movable groove 15 is provided with a waterproof partition plate, so that a waterproof effect is further achieved.
Further, the lower terminal surface of intake chamber 22 is higher than the up end of water receiving plate 21, and atomizer 31 is the equidistance in the atomizing mechanism 30 outside and distributes, and atomizer 31 can play the effect of moisturizing.
The working principle is as follows: the interior of the outer wall body 1 is provided with a mounting groove 2, the interior of the mounting groove 2 is detachably connected with an inner protection wall 3, the outer side of the inner protection wall 3 is fixedly connected with a connecting block 4, the outer side of the connecting block 4 is detachably connected with a fastening screw 5, the interior of the outer wall body 1 is provided with a connecting groove 6, the interior of the connecting groove 6 is fixedly connected with a concave sealing block 7, the interior of the inner protection wall 3 is fixedly connected with a waterproof layer 8, the interior of the outer wall body 1 is movably connected with a positioning block 9, the interior of the positioning block 9 is fixedly provided with a return spring 10, the interior of the inner protection wall 3 is provided with a positioning groove 11, the connecting block 4 can fall off from the connecting groove 6 by dismounting the fastening screw 5, so that the effect of convenient dismounting is achieved, the air inlet hole 12 is formed in the outer wall body 1, the interior of the outer wall body 1 is fixedly connected with an electric push rod 13, and the outer side of the electric push rod 13 is fixedly connected with a sealing baffle plate 14, the outer wall body 1 is internally provided with a movable groove 15, a sealing baffle 14 can shield an air inlet hole 12 through an electric push rod 13 when ventilation is not needed, the outer wall body 1 is internally provided with an air duct 16, a dust removing net 17 is fixedly connected inside the air duct 16, the lower side of the dust removing net 17 is fixedly connected with a fan 18, the lower side of the fan 18 is fixedly connected with a first filter screen 19, the inner protective wall 3 is internally provided with an air outlet hole 20, the fan 18 can filter air from the air inlet hole 12 through the dust removing net 17 and the first filter screen 19 and then blow out from the air outlet hole 20 arranged inside the inner protective wall 3, so that ventilation effect is achieved, the outer side of the outer wall body 1 is fixedly connected with a water receiving plate 21, the inner side of the outer wall body 1 is provided with a water inlet groove 22, the outer side of the water inlet groove 22 is fixedly connected with an impurity blocking net 23, the lower side of the water inlet groove 22 is fixedly connected with a water guide plate 24, and the lower side of the water guide plate 24 is fixedly connected with a water inlet pipe 25, and the inside fixedly connected with second filter screen 26 of inlet tube 25, inlet tube 25 downside fixedly connected with water storage tank 27, and the fixedly connected with feed pump 28 in the water storage tank 27 outside, the fixedly connected with outlet pipe 29 in the feed pump 28 outside, and the fixedly connected with atomizing mechanism 30 in the outlet pipe 29 outside, atomizing mechanism 30 outside fixedly connected with atomizer 31, water storage tank 27 downside fixedly connected with drain pipe 32, and the outside fixedly mounted of drain pipe 32 has solenoid valve 33, can follow intake chamber 22 in the rainwater, thereby utilize feed pump 28 to make water from atomizer 31 blowout, play cyclic utilization water resource and ensured indoor moisturizing effect when needing.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides an energy-conserving wall body of green building with ventilation effect, includes outer wall body, its characterized in that: the interior of the outer wall body is provided with a mounting groove, the interior of the mounting groove is detachably connected with an inner protection wall, the outer side of the inner protection wall is fixedly connected with a connecting block, the outer side of the connecting block is detachably connected with a fastening screw, the interior of the outer wall body is provided with a connecting groove, the interior of the connecting groove is fixedly connected with a concave sealing block, the interior of the inner protection wall is fixedly connected with a waterproof layer, the interior of the outer wall body is movably connected with a positioning block, the interior of the positioning block is fixedly provided with a return spring, the interior of the inner protection wall is provided with a positioning groove, the interior of the outer wall body is provided with an air inlet hole, the interior of the outer wall body is fixedly connected with an electric push rod, the outer side of the electric push rod is fixedly connected with a sealing baffle plate, the interior of the outer wall body is provided with a movable groove, the interior of the outer wall body is provided with an air channel, the interior of the air channel is fixedly connected with a dust removal net, and the lower side of the dust removal net is fixedly connected with a fan, and the first filter screen of fan downside fixedly connected with, the inside exhaust vent of having seted up of interior protecting wall, outer wall body outside fixedly connected with water collector, the inside intake chamber of having seted up of outer wall body, and intake chamber outside fixedly connected with impurity keeps off the net, intake chamber downside fixedly connected with water deflector, and water deflector downside fixedly connected with inlet tube, and the inside fixedly connected with second filter screen of inlet tube, inlet tube downside fixedly connected with water storage box, and water storage box outside fixedly connected with feed pump, feed pump outside fixedly connected with outlet pipe, and outlet pipe outside fixedly connected with atomizing mechanism, atomizing mechanism outside fixedly connected with atomizer, water storage box downside fixedly connected with drain pipe, and the drain pipe outside fixed mounting has the solenoid valve.
2. The energy-saving wall body with the ventilation effect for the green building, which is disclosed by claim 1, is characterized in that: the interior of the outer wall body is provided with a sound insulation board, and the connecting block is matched with the connecting groove.
3. The energy-saving wall body with the ventilation effect for the green building, which is disclosed by claim 1, is characterized in that: the connecting block is internally provided with a screw hole, and the fastening screw is matched with the concave sealing block.
4. The energy-saving wall body with the ventilation effect for the green building, which is disclosed by claim 1, is characterized in that: the locating piece and the locating groove are clamped, and the air inlet hole and the air outlet hole are consistent in specification.
5. The energy-saving wall body with the ventilation effect for the green building, which is disclosed by claim 1, is characterized in that: the movable groove is internally provided with a limiting block, and the outer side of the movable groove is provided with a waterproof partition board.
6. The energy-saving wall body with the ventilation effect for the green building, which is disclosed by claim 1, is characterized in that: the lower terminal surface of intake chamber is higher than the up end of water receiving board, and atomizer is the equidistance and distributes in the atomizing mechanism outside.
