The present application relates to the field of steel strand processing equipment, and in particular to an adjustable winder, comprising a base, a support frame, a first clamping member, and a second clamping member. A lifting device is arranged inside the support frame, including a first clamping member. A lead screw, a second lead screw and a drive assembly, the first lead screw is vertically penetrated in the first clamping member, the second lead screw is vertically penetrated in the second clamping member, and the driving assembly is used to drive the first lead screw The lead screw and the second lead screw rotate at the same time. When installing the winding roller, the drive assembly is required to drive the first lead screw and the second lead screw to rotate at the same time, so that the first clamping piece and the second clamping piece are lowered at the same time, and the winding The roller is located between the first lead screw and the second lead screw. The first clamp and the second clamp clamp the take-up roller and then rise synchronously to raise the take-up roller, reducing the need for staff to carry and rewind. The phenomenon of rolling rolls reduces the workload.

Description

Adjustable winding machine

Technical Field

The application relates to the field of steel strand processing equipment, in particular to an adjustable winding machine.

Background

The steel strand wires need to use the rolling machine to roll after processing, installs the rolling cylinder on the rolling machine, and the rolling machine drive rolling cylinder rotates, twines the steel strand wires on the rolling cylinder.

The Chinese utility model patent with the current publication number of CN208856663U discloses a copper-coated steel strand winding device, which comprises a winding roller, wherein the winding roller comprises a roller body, the roller body is hollow, two ends of the roller body are fixedly connected with a roller baffle, a through hole is arranged in the middle of the roller baffle, a connecting sleeve is arranged in the through hole and is connected with a connecting rod, and the end part of the connecting rod is connected with a servo motor; the connecting rod is supported on the base through a supporting mechanism, the supporting mechanism comprises a supporting frame, the connecting rod penetrates through the supporting frame, a bearing is fixed on the supporting frame, the bearing is sleeved on the connecting rod, a sliding plate is arranged at the bottom of the supporting frame, a sliding groove is formed in the surface of the base, the sliding plate is located in the base, and the supporting frame penetrates through the sliding groove; the bottom of the sliding plate is provided with a horizontal moving mechanism for controlling the rolling roller to move, and a roller driving pressing-stopping mechanism fixedly connected with the connecting sleeve is arranged in the roller body.

To the correlation technique among the above-mentioned, the inventor thinks that, the steel strand wires need dismantle after the winding is accomplished on the take-up roller surface and get off to change newly, need carry it to the support frame when the installation take-up roller on, comparatively hard.

SUMMERY OF THE UTILITY MODEL

In order to reduce the phenomenon that winding drum installation is comparatively hard, this application provides a rolling machine with adjustable.

The application provides a rolling machine with adjustable adopts following technical scheme:

the utility model provides a rolling machine with adjustable, includes base, support frame, first holder, second holder and controlling means, the support frame is installed in the base side, first holder and second holder symmetry set up on the support frame and be close to each other, controlling means installs in the support frame side for drive rolling cylinder rotates and carries out the rolling to steel strand wires, the inside elevating gear that is provided with of support frame, elevating gear includes first lead screw, second lead screw and drive assembly, first lead screw is worn to establish inside first holder along vertical direction, the second lead screw is worn to establish inside the second holder along vertical direction, first lead screw and second lead screw all are connected with drive assembly, drive assembly is used for driving first lead screw and second lead screw and rotates simultaneously.

By adopting the technical scheme, when the winding roller is installed, the driving assembly is required to drive the first lead screw and the second lead screw to rotate simultaneously, so that the first clamping piece and the second clamping piece descend simultaneously, the winding roller is positioned between the first lead screw and the second lead screw, the first clamping piece and the second clamping piece clamp the winding roller and then ascend synchronously, the winding roller is lifted, and the phenomenon that a worker is required to carry the winding roller is reduced; because first holder and second holder go up and down simultaneously, consequently the height of first holder and second holder is unanimous all the time, reduces the phenomenon that takes place the skew in the winding cylinder installation that first holder and second holder height difference lead to.

Optionally, the drive assembly includes dwang, initiative bevel gear, driven bevel gear and driving motor, the equal coaxial fixedly connected with driven bevel gear of one end that the base was kept away from to first lead screw and second lead screw, the dwang sets up in the support frame along the horizontal direction, coaxial fixedly connected with initiative bevel gear on the dwang, initiative bevel gear and driven bevel gear meshing, driving motor's output shaft and axis of rotation key-type connection.

Through adopting above-mentioned technical scheme, the motor can drive the axis of rotation and rotate for drive bevel gear rotates, and drive bevel gear can drive the driven bevel gear rotation of first lead screw and second lead screw tip, and then makes first lead screw and second lead screw rotate simultaneously.

Optionally, a guide plate is connected to the first clamping piece, a guide groove is formed in the guide plate in the direction parallel to the first lead screw, a limiting rod perpendicular to the direction of the lead screw is mounted on the supporting frame, and the limiting rod penetrates through the guide groove.

By adopting the technical scheme, the limiting rod moves downwards in the guide groove when the first clamping piece slides downwards, and the limiting rod stops sliding when moving to the edge of the guide groove, so that the phenomenon that the first clamping piece and the second clamping piece descend too much is reduced, the first clamping piece and the second clamping piece can be positioned at the circle center of the winding roller, and the winding roller can be conveniently installed between the first clamping piece and the second clamping piece by a worker.

Optionally, a sliding groove is formed in the support frame along a position parallel to the guide groove, the limiting rod is connected with the sliding groove in a sliding mode, a positioning bolt is installed on one side, close to the sliding groove, of the limiting rod, and the positioning bolt penetrates through the limiting rod to abut against the bottom of the sliding groove.

Through adopting above-mentioned technical scheme, the gag lever post can slide from top to bottom in the spout, and adjusting distance is high on ground, and positioning bolt passes gag lever post and spout bottom butt, fixes the position of gag lever post. The staff can adjust the height of gag lever post according to the size of rolling cylinder for when the gag lever post contacts with the lateral wall on the guide way, first holder and second holder are located the centre of a circle department of rolling cylinder bottom surface just.

Optionally, the second clamping member is movable away from the first clamping member.

Through adopting above-mentioned technical scheme, when the installation rolling cylinder, the centre of a circle department that first holder and second holder need insert the rolling cylinder bottom surface presss from both sides the rolling cylinder tightly, and when the second holder moved to the direction of keeping away from first holder, the distance between first holder and the second holder was greater than the length of rolling cylinder, and the staff of being convenient for places the rolling cylinder between first holder and second holder.

Optionally, the second clamping piece comprises a clamping body and a sliding piece, a mounting groove is formed in the clamping body in the direction perpendicular to the lead screw, the sliding piece is connected with the mounting groove in a sliding mode, a mounting plate is arranged at one end, away from the first clamping piece, of the sliding piece, and the mounting plate is connected with the clamping body through a fixing bolt.

Through adopting above-mentioned technical scheme, the staff dismantles the back with fixing bolt on the mounting panel, can remove the slider to the direction of keeping away from first holder, increases the distance between first holder and the slider, removes the slider to the direction that is close to first holder again when the rolling cylinder removes to reasonable position department for the slider supports tight rolling cylinder.

Optionally, the winder may slide in a direction parallel to the winding drum.

Through adopting above-mentioned technical scheme, the steel strand wires are piled up at rolling cylinder one end easily at the rolling in-process, and the uneven phenomenon of steel strand wires winding appears on rolling cylinder, and rolling cylinder's space can not obtain make full use of, and the rolling machine can slide in the direction parallel with rolling cylinder, can remove the rolling machine when rolling cylinder wherein the steel strand wires of one end winding are more for the steel strand wires are twined at the rolling cylinder other end.

Optionally, a plurality of hydraulic cylinders are arranged on two sides of the base, and the end parts of telescopic rods of the plurality of hydraulic cylinders are abutted to the base; the hydraulic cylinders on the two sides of the base move simultaneously, and the stretching directions are opposite.

Through adopting above-mentioned technical scheme, the purpose that sets up the pneumatic cylinder can promote the rolling machine and slide when the pneumatic cylinder is extended. Because the hydraulic cylinders on the two sides of the base move simultaneously and the stretching directions are opposite, when the hydraulic cylinder close to one side of the first clamping piece stretches, the hydraulic cylinder on the other side shrinks, and the winding machine slides in the direction far away from the first clamping piece; when the hydraulic cylinder close to one side of the second clamping piece extends, the hydraulic cylinder on the other side contracts, and the winding machine slides in the direction far away from the second clamping piece.

Optionally, one side of the base, which is close to the ground, is provided with a sliding rail parallel to the rolling roller, one side of the base, which is close to the sliding rail, is provided with a pulley, and the pulley is connected with the sliding rail in a sliding manner.

Through adopting above-mentioned technical scheme, the rolling machine has the rolling cylinder quality of steel strand wires heavier with the winding, and the resistance that receives at the slip in-process is great, and pulley and slide rail can reduce the resistance that the rolling machine slip in-process received.

In summary, the present application includes at least one of the following beneficial technical effects:

1. the first clamping piece and the second clamping piece can be lifted synchronously, so that the phenomenon that workers carry the winding roller is reduced, and the phenomenon that the winding roller deviates in the installation process is also reduced;

2. the second clamping piece can slide towards the direction far away from the first clamping piece, the distance between the first clamping piece and the second clamping piece is changed, and the winding roller is convenient to mount;

3. the winder can slide along the direction parallel to the winding roller, and the phenomenon that the steel strand is wound too much at one end of the winding roller is reduced.

Drawings

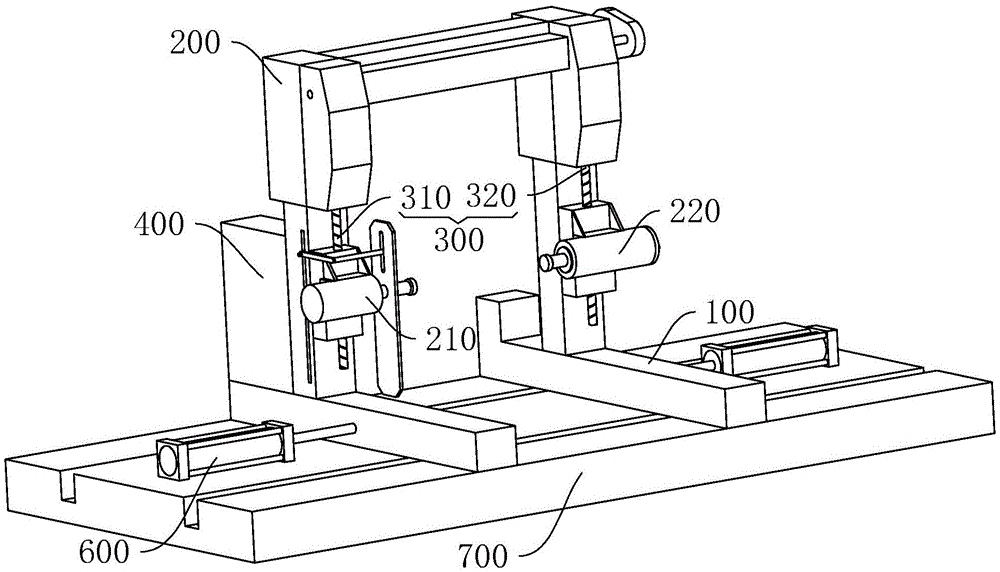

FIG. 1 is a schematic diagram of the overall structure of an embodiment of the present application;

FIG. 2 is an exploded view of the embodiment of the present application at the slide rail;

FIG. 3 is an exploded view of the drive assembly of the embodiment of the present application;

FIG. 4 is an exploded view at A in FIG. 3;

fig. 5 is an exploded view at the second clamping member in the embodiment of the present application.

Description of reference numerals: 100. a base; 110. a pulley; 200. a support frame; 210. a first clamping member; 220. a second clamping member; 221. a clamping body; 222. a slider; 2211. mounting grooves; 2221. mounting a plate; 223. fixing the bolt; 300. a lifting device; 310. a first lead screw; 320. a second lead screw; 330. a drive assembly; 331. rotating the rod; 332. a drive bevel gear; 333. a driven bevel gear; 334. a motor; 400. a control device; 500. a guide plate; 510. a guide groove; 520. a limiting rod; 530. a chute; 531. positioning the bolt; 600. a hydraulic cylinder; 700. a slide rail.

Detailed Description

The present application is described in further detail below with reference to figures 1-5.

The embodiment of the application discloses rolling machine with adjustable. Referring to fig. 1 and 2, the winding machine includes a base 100, a support frame 200 is installed on one side of the base 100 away from the ground, a first clamping member 210 and a second clamping member 220 are respectively installed on two side surfaces of the support frame 200 close to each other, and when a steel strand is wound, a winding drum needs to be installed between the first clamping member 210 and the second clamping member 220. The control device 400 is further installed on the side face of the support frame 200, and the control device 400 can drive the first clamping piece 210 and the second clamping piece 220 to drive the rolling roller to rotate so as to roll the steel strand.

In order to reduce the phenomenon that the steel strand is wound too much at one end of the winding roller, the winding machine can reciprocate along the length direction of the winding roller. The both sides of base 100 all are connected with pneumatic cylinder 600, and pneumatic cylinder 600 can promote the rolling machine and slide, and the left and right sides of base 100 respectively is connected with a pneumatic cylinder 600 in this application embodiment, and two pneumatic cylinders 600 motion state about opposite, when one of them side pneumatic cylinder 600 extension is that opposite side pneumatic cylinder 600 shortens. The pulley 110 is installed on one side, close to the ground, of the base 100, the sliding rail 700 parallel to the length direction of the winding roller is arranged below the winding machine, and the pulley 110 is connected with the sliding rail 700 in a sliding mode, so that the resistance of the winding machine in the sliding process can be reduced.

When the winding drum is installed, the heights of the first clamping piece 210 and the second clamping piece 220 need to be reduced firstly, so that the lifting device 300 is further installed at the supporting frame 200, the lifting device 300 comprises a first lead screw 310 vertically penetrating through the first clamping piece 210 and a second lead screw 320 vertically penetrating through the second clamping piece 220, the first clamping piece 210 slides up and down in the vertical direction when the first lead screw 310 rotates, and the second clamping piece 220 slides up and down in the vertical direction when the second lead screw 320 rotates.

Referring to fig. 1 and 3, in order to reduce the deviation of the two ends of the winding drum during installation, the first clamping member 210 and the second clamping member 220 need to be lifted and lowered synchronously, so the lifting device 300 further includes a driving assembly 330, the driving assembly 330 includes a rotating rod 331 horizontally penetrating through the supporting frame 200, two driving bevel gears 332 coaxially and fixedly connected with the rotating rod 331, and a motor 334 driving the rotating rod 331 to rotate, and when the motor 334 is started, the rotating rod 331 rotates, so that the driving bevel gear 332 rotates. The driving assembly 330 further includes two driven bevel gears 333, one end of the first lead screw 310 and one end of the second lead screw 320 far away from the base 100 are respectively and fixedly connected with one driven bevel gear 333 in a coaxial manner, the driving bevel gear 332 is engaged with the driven bevel gear 333, and the driving bevel gear 332 can drive the driven bevel gear 333 to rotate, so as to drive the first lead screw 310 and the second lead screw 320 to synchronously rotate.

Referring to fig. 3 and 4, in order to reduce the phenomenon that the displacement lengths of the first clamping member 210 and the second clamping member 220 are too large, a guide plate 500 is fixedly connected to the first clamping member 210, a guide groove 510 is formed in the guide plate 500, and the direction of the guide groove 510 is parallel to the direction of the first lead screw 310. The guide groove 510 is provided with a limiting rod 520, the guide plate 500 moves when the first clamping member 210 moves, and when the limiting rod 520 contacts with the side wall of the guide groove 510, the movement of the first clamping member 210 is limited.

A sliding groove 530 is formed in the supporting frame 200 along a direction parallel to the guide groove 510, and one end of the limiting rod 520 away from the guide plate 500 is slidably connected to the sliding groove 530 and is fixed in position by a positioning bolt 531. The staff can adjust the height of gag lever post 520 and use positioning bolt 531 to pass gag lever post 520 and the bottom butt of spout 530, reduces the phenomenon that gag lever post 520 automatic slippage.

Referring to fig. 5, the second clamping member 220 includes a clamping body 221 having a mounting groove 2211, and a sliding member 222, wherein the mounting groove 2211 is perpendicular to the second lead screw 320, and the sliding member 222 is slidably connected to the mounting groove 2211. One side of the sliding member 222, which is far away from the supporting frame 200, is fixedly connected with a mounting plate 2221, a plurality of threaded holes are formed in positions corresponding to the mounting plate 2221 and the clamping body 221, and fixing bolts 223 are inserted into the threaded holes, so that the sliding member 222 and the clamping body 221 are connected into a whole. Changing the position of the slider 222 can change the distance between the first clamp 210 and the second clamp 220.

The implementation principle of the adjustable winding machine in the embodiment of the application is as follows: when the winding machine is used for winding the steel strand, a worker firstly needs to change the height of the limiting rod 520 from the ground according to the size of the winding drum, so that when the limiting rod 520 is in contact with the side wall of the guide groove 510, the first clamping piece 210 and the second clamping piece 220 are just located at the circle center of the bottom surface of the winding drum. Then the motor 334 is started, the rotating shaft starts to rotate under the action of the motor 334, so that the driving bevel gear 332 rotates, the driving bevel gear 332 can drive the driven bevel gear 333 to rotate, the first lead screw and the second lead screw 320 rotate synchronously, the first clamping piece 210 and the second clamping piece 220 can descend synchronously when the first lead screw and the second lead screw 320 rotate synchronously, and stop when the first lead screw and the second lead screw fall down to the side wall of the guide groove 510, at the moment, the winding roller can be installed between the first clamping piece 210 and the second clamping piece 220, the phenomenon that workers carry the winding roller to the high place is reduced, and the phenomenon that the end part of the winding roller deviates in the installation process is also reduced.

The motor 334 is started again, so that the motor 334 rotates in the opposite direction, the first clamping piece 210 and the second clamping piece 220 synchronously ascend, and the winding roller is far away from the ground. Starting the control device 400, the control device 400 can drive the first clamping piece 210 and the second clamping piece 220 to drive the winding drum to rotate, so that the steel strand is wound on the surface of the winding drum. The hydraulic cylinder 600 on the left side of the base 100 stretches at a constant speed, and the hydraulic cylinder 600 on the right side of the base 100 is opposite to the hydraulic cylinder 600 on the left side in motion state, so that the winding machine reciprocates along the direction parallel to the length direction of the winding roller, and steel strands are uniformly wound on the winding roller.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.

Claims

1. The utility model provides a rolling machine with adjustable, includes base (100), support frame (200), first holder (210), second holder (220) and controlling means (400), the side is installed on base (100) in support frame (200), first holder (210) and second holder (220) symmetry set up on support frame (200) and are close to each other, controlling means (400) are installed in support frame (200) side for drive rolling cylinder rotates and carries out the rolling, its characterized in that to steel strand wires: the inside elevating gear (300) that is provided with of support frame (200), elevating gear (300) include first lead screw (310), second lead screw (320) and drive assembly (330), first lead screw (310) wear to establish inside first holder (210) along vertical direction, second lead screw (320) wear to establish inside second holder (220) along vertical direction, first lead screw (310) and second lead screw (320) all are connected with drive assembly (330), drive assembly (330) are used for driving first lead screw (310) and second lead screw (320) and rotate simultaneously.

2. An adjustable winder as claimed in claim 1, characterised in that: drive assembly (330) includes dwang (331), drive bevel gear (332), driven bevel gear (333) and motor (334), the equal coaxial fixedly connected with driven bevel gear (333) of one end that base (100) were kept away from to first lead screw (310) and second lead screw (320), dwang (331) sets up in support frame (200) along the horizontal direction, coaxial fixedly connected with drive bevel gear (332) on dwang (331), drive bevel gear (332) and driven bevel gear (333) meshing, the output shaft and the rotary shaft key-type connection of motor (334).

3. An adjustable winder as claimed in claim 2, characterised in that: be connected with deflector (500) on first holder (210), guide way (510) have been seted up along the direction parallel with first lead screw (310) on deflector (500), install on support frame (200) and lead screw direction vertically gag lever post (520), gag lever post (520) are passed in guide way (510).

4. An adjustable winder as claimed in claim 3, characterised in that: a sliding groove (530) is formed in the support frame (200) along the position parallel to the guide groove (510), the limiting rod (520) is connected with the sliding groove (530) in a sliding mode, a positioning bolt (531) is installed on one side, close to the sliding groove (530), of the limiting rod (520), and the positioning bolt (531) penetrates through the limiting rod (520) to abut against the bottom of the sliding groove (530).

5. An adjustable winder as claimed in claim 4, characterised in that: the second clamping member (220) is movable in a direction away from the first clamping member (210).

6. An adjustable winder as claimed in claim 5, characterised in that: the second clamping piece (220) comprises a clamping body (221) and a sliding piece (222), a mounting groove (2211) is formed in the clamping body (221) in the direction perpendicular to the lead screw, the sliding piece (222) is connected with the mounting groove (2211) in a sliding mode, a mounting plate (2221) is arranged at one end, away from the first clamping piece (210), of the sliding piece (222), and the mounting plate (2221) is connected with the clamping body (221) through a fixing bolt (223).

7. An adjustable winder as claimed in claim 6, characterised in that: the winder can slide along the direction parallel to the winding roller.

8. An adjustable winder as claimed in claim 7, characterised in that: a plurality of hydraulic cylinders (600) are arranged on two sides of the base (100), and the end parts of telescopic rods of the hydraulic cylinders (600) are abutted to the base (100); the hydraulic cylinders (600) on the two sides of the base (100) move simultaneously, and the extension directions are opposite.

9. An adjustable winder as claimed in claim 8, characterised in that: base (100) are close to ground one side and are provided with slide rail (700) parallel with the rolling cylinder, base (100) are close to slide rail (700) one side and install pulley (110), pulley (110) and slide rail (700) sliding connection.
