CN214928101U - Integrated printing die slitting device - Google Patents

Abstract

The utility model discloses an integrated printing die slitting device, including printing assembly, cross cutting subassembly and slitting subassembly, printing assembly, cross cutting subassembly, slitting subassembly set gradually, cross cutting subassembly and slitting subassembly set up on the horizontal plate, the fixed mount that is provided with below the horizontal plate, still be provided with the leveling roller of two horizontal settings on the mounting bracket, the cross cutting subassembly includes the die-cutting rule that a plurality of longitudinal intervals evenly distributed, the die-cutting rule is fixed to be set up on the mounting panel, the mounting panel is driven by the driving pump to move along the vertical direction, the driving pump is fixed with the horizontal plate, slitting device includes the slitting sword, the slitting sword is fixed to be set up above the horizontal plate, the blade of slitting sword is perpendicular to leveling roller; the advantage is through the cooperation that printing assembly, cross cutting subassembly and divide the strip subassembly can realize the automatic production printing of label, improves production efficiency and saves the cost of labor. The slitting knife is fixedly arranged on the horizontal plate, synchronous cutting of label paper can be achieved through the fixed slitting knife, and production efficiency is improved.

Description

Integrated printing die slitting device

Technical Field

The utility model particularly relates to an integration printing mould segmentation strip device.

Background

The widespread use of labels and the continued development of label varieties has naturally driven the development of label printing technology. Label printing covers all printing modes such as flat, convex, concave, net and the like. The label is mostly made by the steps of printing, die cutting, slitting, rolling and the like. However, the existing printing, die cutting, slitting and roll material are mostly separated steps, the automation degree is low, and manual cooperation is usually required to realize continuous production. And the existing slitting device can tear when cutting to make the cutting uneven, so that a printing die slitting device with high automation degree and good cutting effect is needed.

SUMMERY OF THE UTILITY MODEL

The utility model discloses the technical problem that will solve is: the utility model provides a full-automatic production can be realized to degree of automation height, the better integration printing die slitting device of cutting effect.

The utility model provides a technical scheme that above-mentioned technical problem adopted does: an integrated printing die slitting device comprises a printing assembly, wherein the printing assembly is arranged on the upper end face of a mounting rack, the printing assembly further comprises a die cutting assembly and a slitting assembly, the printing assembly, the die cutting assembly and the slitting assembly are sequentially arranged, the die cutting assembly and the slitting assembly are arranged on a horizontal plate, a fixing frame is fixedly arranged below the horizontal plate, two leveling rollers which are horizontally arranged are further arranged on the mounting rack, the axes of the two leveling rollers are positioned on the same vertical face and are mutually pressed close to each other, the die cutting assembly comprises a plurality of die cutting knives which are uniformly distributed at longitudinal intervals, the die cutting knives are fixedly arranged on a mounting plate, the mounting plate is driven by a driving pump to move along the vertical direction, the driving pump is fixed with the horizontal plate, the slitting device comprises a slitting knife, the slitting knife is fixedly arranged above the horizontal plate, the cutting edge of the slitting knife is vertical to the leveling roller.

Furthermore, the die cutting assembly comprises a first fixed shell, the first fixed shell is fixed with the horizontal plate, transmission holes are formed in the front side face and the rear side face of the first fixed shell, 2 driving pumps are arranged in the first fixed shell, the two driving pumps are arranged along the length direction of the first fixed shell, and the telescopic shaft of each driving pump is fixed with the mounting plate.

Furthermore, the mounting plate is fixedly provided with a limiting part, and the side wall of the first fixing shell is provided with a limiting groove corresponding to the limiting part.

Furthermore, the horizontal plate is provided with a groove corresponding to the die-cutting rule; has the advantages that; the arrangement of the groove is convenient for the positioning and installation of the cutter and the cutting of materials by the cutter.

Furthermore, the slitting assembly comprises a second fixing shell, the second fixing shell is fixed with the horizontal plate, the slitting knife is fixed with the second fixing shell, the horizontal plate is provided with a knife hole corresponding to the slitting knife, and the slitting knife extends into the knife hole.

Furthermore, the mounting plate is provided with an angle blade, the angle blade is composed of angle steel with a cutting edge at the end part, and the angle blade is opposite to and corresponds to the strips; the advantage lies in, the setting of angle sword can realize pressing in advance cutting to the label coiled material before the slitting knife cuts, cuts out the edge of a horn shape in advance on the route of slitting, the cutting of the slitting knife in the rear of being convenient for.

Furthermore, the fixed frame is also provided with a coiled material assembly, the coiled material assembly comprises two oppositely arranged support frames, the support frames are fixed with the fixed frame, a rotatable coiled material shaft is arranged between the two support frames, the coiled material shaft is fixedly sleeved outside the rotating shaft, the rotating shaft is horizontally and rotatably arranged between the two support frames, and the rotating shaft is driven by a motor to rotate; the advantage lies in, can realize the coiling rotation of label paper through setting up of the coiled material axle that sets up and axis of rotation, improves automated production efficiency.

Furthermore, 3 coiled material shafts are arranged between the two support frames, and a separating ring is arranged between the coiled material shafts; the label paper after being stripped can be uniformly wound on the coiled material shaft by the aid of the cutting rings, and deviation is prevented.

Compared with the prior art, the utility model has the advantages that can realize the automatic production printing of label through the cooperation of printing module, cross cutting subassembly and slitting subassembly, improve production efficiency and save the cost of labor. Through the leveling roller that sets up, the leveling of the label paper after printing can be realized, and the deviation prevention correction is carried out simultaneously, so that the reliability of the label paper die cutting is improved. And simultaneously the utility model discloses the fixed setting of slitting sword that sets up is on the horizontal plate, can realize the synchronous cutting of label paper through fixed slitting sword, improves production efficiency.

Drawings

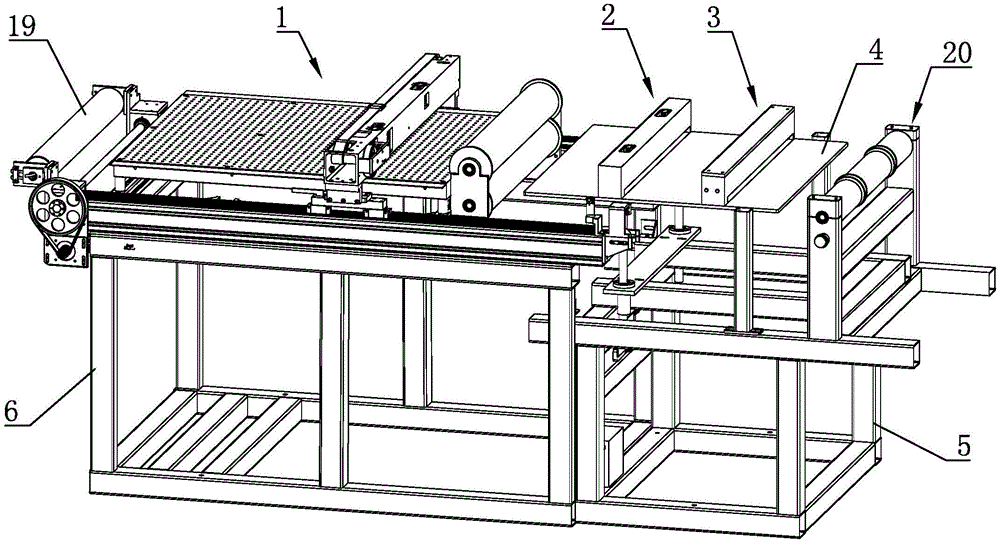

Fig. 1 is a schematic view of the overall structure of the present invention;

FIG. 2 is a schematic cross-sectional view of the die cutting assembly of the present invention;

fig. 3 is a schematic view of the installation position of the die-cutting rule of the present invention;

fig. 4 is a schematic view of a cut mark after the label roll of the present invention is cut;

FIG. 5 is a schematic cross-sectional view of the slitting assembly of the present invention;

fig. 6 is a schematic sectional view of the coil assembly according to the present invention.

Detailed Description

The present invention will be described in further detail with reference to the following embodiments.

An integrated printing die slitting device comprises a printing component 1, wherein the printing component 1 is arranged on the upper end surface of a mounting frame 6, the integrated printing die slitting device also comprises a die cutting component 2, a slitting component 3, the printing component 1 and the die cutting component 2, the slitting subassembly 3 sets gradually, cutting subassembly 2 sets up on horizontal plate 4 with slitting subassembly 3, the fixed mount 5 that is provided with in horizontal plate 4 below, still be provided with the leveling roller 7 that two levels set up on mounting bracket 6, the axis of two leveling rollers 7 is located same vertical face and presses close to each other, cutting subassembly 2 includes a plurality of longitudinal separation evenly distributed's die-cutting rule 8, die-cutting rule 8 is fixed to be set up on mounting panel 21, mounting panel 21 is driven by driving pump 9 and is removed along vertical direction, driving pump 9 is fixed mutually with horizontal plate 4, the slitting device includes slitting sword 10, slitting sword 10 is fixed to be set up in the top of horizontal plate 4, the blade perpendicular to of slitting sword 10 levels roller 7.

Above-mentioned cross cutting subassembly 2 includes first set casing 11, and first set casing 11 is fixed mutually with horizontal plate 4, and transmission hole 12 has all been seted up to the front and back both sides face of first set casing 11, is equipped with 2 driving pump 9 in the first set casing 11, and two driving pump 9 set up along the length direction of first set casing 11, and driving pump 9's telescopic shaft is fixed mutually with mounting panel 21. The mounting plate 21 is fixedly provided with a limiting member 13, and the side wall of the first fixing shell 11 is provided with a limiting groove 14 corresponding to the limiting member 13. While the horizontal plate 4 is provided with a groove 15 corresponding to the die-cutting rule 8.

The slitting assembly 3 comprises a second fixing shell 16, the second fixing shell 16 is fixed with the horizontal plate 4, the slitting knife 10 is fixed with the second fixing shell 16, the horizontal plate 4 is provided with a knife hole 17 corresponding to the slitting knife 10, and the slitting knife 10 extends into the knife hole 17. The mounting plate 21 is also provided with an angle blade 18, the angle blade 18 is formed by angle steel with a cutting edge at the end part, and the angle blade 18 is opposite to the strips; the advantage is that the angle blade 18 can realize the advance press cutting of the label coiled material before the slitting knife 10 cuts, and the angle blade is pre-cut on the slitting path, so that the rear slitting knife 10 can conveniently cut.

The fixed frame 5 is further provided with a coiled material assembly 20, the coiled material assembly 20 is positioned behind the slitting assembly 3, the coiled material assembly 20 comprises two support frames 23 which are oppositely arranged, the support frames 23 are fixed with the fixed frame 5, a rotatable coiled material shaft 22 is arranged between the two support frames 23, the coiled material shaft 22 is fixedly sleeved on the outer side of a rotating shaft 24, the rotating shaft 24 is horizontally and rotatably arranged between the two support frames 23, and the rotating shaft 24 is driven by a motor to rotate; the label paper can be wound and rotated by arranging the coil material shaft 22 and the rotating shaft 24, and the automatic production efficiency is improved. 3 coiled material shafts 22 are arranged between the two support frames 23, and separating rings are arranged between the coiled material shafts 22; the arrangement of the cutting ring 25 can realize that the label paper after being stripped is uniformly wound on the coil shaft 22, and the offset is prevented.

The utility model discloses an operating process, the conveying roller 19 through the setting of 1 the place ahead of printing subassembly carries the label coiled material to current label printing device to carrying to cross cutting subassembly 2 through leveling roller 7 that will print the completion, the vertical removal of driving pump 9 drive mounting panel 21 in the cross cutting subassembly 2, thereby making 8 pressure cutting materials of die-cutting rule form the cut mark, angle sword 18 can form the cut mark of angle in advance simultaneously. The label material then continues to move to the slitting assembly 3, is slit into strips by the slitting knife 10 provided in the slitting assembly 3, and is wound up by the coil assembly 20.

The above-described embodiments are only preferred embodiments of the present invention, and the description thereof is specific and detailed, but not to be construed as limiting the scope of the present invention. It should be noted that, for those skilled in the art, without departing from the spirit of the present invention, several changes and modifications can be made, which are within the scope of the present invention.

Claims (8)

1. The utility model provides an integration printing mould slitting device, includes the printing subassembly, the printing subassembly set up the up end at the mounting bracket, its characterized in that still includes cross cutting subassembly and slitting subassembly, printing subassembly, cross cutting subassembly, slitting subassembly set gradually, cross cutting subassembly and slitting subassembly set up on the horizontal plate, horizontal plate below fixed be provided with the mount, the mounting bracket on still be provided with the leveling roller of two level settings, the axis of two leveling rollers is located same vertical face and presses close to each other, the cross cutting subassembly include a plurality of vertical interval evenly distributed's die-cutting knife, the die-cutting knife fixed set up on the mounting panel, the mounting panel remove along vertical direction by the driving pump drive, the driving pump fixed with the horizontal plate, the slitting device include the slitting sword, the slitting sword fixed set up in the top of horizontal plate, the cutting edge of the slitting knife is vertical to the leveling roller.

2. The integrated printing die slitting device according to claim 1, wherein the die cutting assembly comprises a first fixing shell, the first fixing shell is fixed to the horizontal plate, transmission holes are formed in the front side surface and the rear side surface of the first fixing shell, 2 driving pumps are arranged in the first fixing shell, the two driving pumps are arranged in the length direction of the first fixing shell, and a telescopic shaft of each driving pump is fixed to the mounting plate.

3. The integrated printing die slitting device according to claim 2, wherein the mounting plate is fixedly provided with a limiting member, and a limiting groove corresponding to the limiting member is formed in a side wall of the first fixing housing.

4. The apparatus according to claim 1, wherein the horizontal plate is provided with a groove corresponding to the die-cutting blade.

5. The device according to claim 1, wherein the slitting assembly comprises a second fixing housing, the second fixing housing is fixed to the horizontal plate, the slitting knife is fixed to the second fixing housing, the horizontal plate is provided with a knife hole corresponding to the slitting knife, and the slitting knife extends into the knife hole.

6. The device according to claim 5, wherein the mounting plate is provided with a corner edge, the corner edge is formed by an angle steel with a cutting edge at the end, and the corner edge is opposite to the strips.

7. The device according to claim 1, wherein the holder further comprises a coil assembly, the coil assembly comprises two opposite supporting frames, the supporting frames are fixed to the holder, a rotatable coil shaft is disposed between the two supporting frames, the coil shaft is fixedly sleeved outside the rotating shaft, the rotating shaft is horizontally rotatably disposed between the two supporting frames, and the rotating shaft is driven by a motor to rotate.

8. The apparatus according to claim 7, wherein 3 bobbins are disposed between the two supports, and a spacer ring is disposed between the bobbins.
