Abstract
本实用新型涉及一种用于移印机上的机械式墨杯锁紧装置，包括移印机、移印台、机械式墨杯组件，机械式墨杯组件由基座组件、墨杯锁紧装置组成；所述基座组件包括上基座、下基座和连接上基座与下基座的连接板；墨杯锁紧装置包括安装在连接板两侧的力臂和安装在上基座的调整固定块；调整固定块一侧设有可移动的拉簧固定板，力臂与拉簧固定板之间设有拉簧；连接板对应力臂朝上一端处设有固定片，固定片上设有可转动的直纹把手，所述直纹把手包括手杆和连接手杆的偏心圆板，所述偏心圆板与力臂内侧相接触。本实用新型适用性强,无需另采用气体作为动力源，节能高效，采用拉力可调设计,使得拉力更加均匀,同时防止拉簧长期拉扯的损耗。
The utility model relates to a mechanical ink cup locking device used on a pad printing machine, comprising a pad printing machine, a pad printing table and a mechanical ink cup assembly. The mechanical ink cup assembly is composed of a base assembly and an ink cup locking device The base assembly includes an upper base, a lower base and a connecting plate connecting the upper base and the lower base; the ink cup locking device includes a force arm installed on both sides of the connecting plate and an adjustment plate installed on the upper base Fixed block; one side of the adjustment fixed block is provided with a movable tension spring fixing plate, and a tension spring is arranged between the force arm and the tension spring fixing plate; the connecting plate is provided with a fixing piece at the upper end of the stress arm, and the fixing piece is provided with A rotatable ruled handle, the ruled handle includes a handle bar and an eccentric circular plate connecting the handle bar, the eccentric circular plate is in contact with the inner side of the lever arm. The utility model has strong applicability, does not need to use another gas as a power source, is energy-saving and high-efficiency, and adopts an adjustable tension design, so that the tension is more uniform, and at the same time, the long-term pulling loss of the tension spring is prevented.
Description
Technical Field
The utility model relates to a bat printing machine technical field especially relates to a mechanical type ink cup locking device for on bat printing machine.
Background
The pad printing machine is a kind of printing equipment, and is applicable to plastic cement, toy, glass, metal, ceramic, electronic and IC sealing, etc. Pad printing is an indirect gravure printing technology, which is a main method for printing and decorating the surfaces of various objects at present, mainly a printing device for printing products by adhering printing patterns through a deformable printing head, is widely applied to printing processing of plastics, toys, glass, metal, ceramics, electronics and the like, has a better using effect, and gradually improves the printing requirements along with the continuous development of the society, but the existing pad printing machine cannot meet the requirements of people, so the pad printing machine which is more convenient to use is needed, the ink box needs to be frequently replaced to ensure the printing progress when a large number of patterns are pad printed on the existing pad printing machine, most of the existing devices for fixing ink cups adopt pneumatic structures, but most of the existing production sites are not designed with devices for generating compressed gas, so the ink box needs to be replaced manually in a detachable manner, time and labor are wasted, and equipment for producing compressed air is required to be additionally installed when the pneumatic structure is used, so that the production cost is increased.
Disclosure of Invention
The utility model discloses its aim at provides a mechanical type china ink cup locking device for on bat printing machine, the suitability is strong, need not to adopt in addition that gaseous as the power supply, and is energy-conserving high-efficient, adopts the adjustable design of pulling force for the pulling force is more even, prevents the loss that the extension spring was dragged for a long time simultaneously.
The technical scheme is that the mechanical ink cup locking device for the pad printing machine comprises the pad printing machine, a pad printing table arranged on the pad printing machine and a mechanical ink cup assembly arranged on the pad printing table, wherein the mechanical ink cup assembly consists of a base assembly and an ink cup locking device arranged on the base assembly; the base component comprises an upper base, a lower base and a connecting plate for connecting the upper base and the lower base; the ink cup locking device comprises force arms arranged on two sides of the connecting plate and an adjusting fixing block arranged on the upper base; a movable tension spring fixing plate is arranged on one side of the adjusting fixing block, and a tension spring is arranged between the force arm and the tension spring fixing plate; the connecting plate corresponds arm of force department of a force and is equipped with the stationary blade up, be equipped with rotatable straight line handle on the stationary blade, straight line handle includes the handspike and the eccentric plectane of connecting the handspike, eccentric plectane contacts with the inboard of the arm of force.
Furthermore, in order to ensure the normal rotation of the force arm, the force arm is arranged on the connecting plate through a bearing.
Furthermore, in order to ensure that the tension of the spring can be adjusted, an adjusting screw for adjusting the tension spring fixing plate is arranged on the adjusting fixing block.
Furthermore, in order to ensure the pressing and releasing of the force arm on the ink box, the downward end of the force arm is provided with a driving plate and a fixed plate; the driving plate is arranged on a positioning column arranged at one end of the force arm and is fixed through a long screw arranged on the fixing plate.
Furthermore, in order to ensure that the tension of the tension spring acts on the force arm, one end of the tension spring is connected to the force arm, and the other end of the tension spring is connected to a bolt arranged on the tension spring fixing plate.
Further, an ink cup is arranged on the lower base.
Further, in order to ensure the stability of the ink box during printing, a positioning pin is arranged at the contact position of the driving plate and the ink cup.
Compared with the prior art the utility model discloses following beneficial effect has: the invention relates to a mechanical ink cup locking device used on a pad printing machine, which comprises: the design of the tension spring pulling force arm is adopted, the device is suitable for a working environment without high-pressure gas, the applicability is strong, and energy is saved; 2. the ink cup can be adapted to ink cups with various diameter specifications and is matched with printing schemes with different sizes for use; 3. the tension adjusting device has the advantages that tension is more uniform due to the adoption of the tension adjusting design, and meanwhile, the loss caused by long-term pulling of the tension spring is prevented.
Drawings
The present invention will be described in detail with reference to the accompanying drawings.

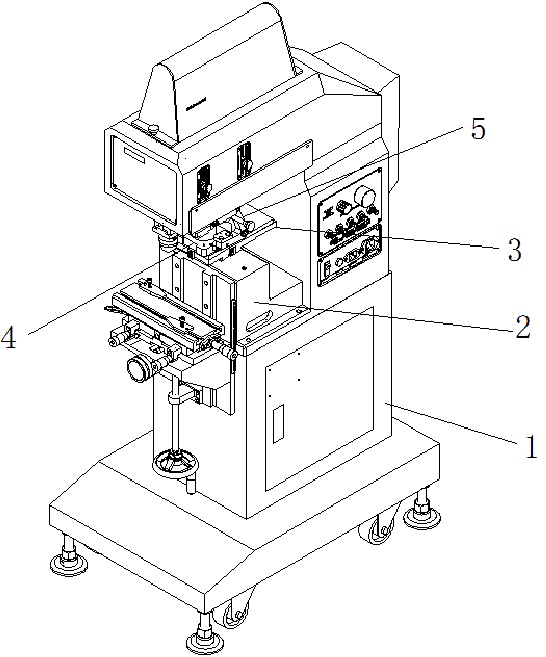

FIG. 1 is a perspective view of a mechanical ink cup locking device for a pad printing machine according to the present invention;
fig. 2 is a schematic structural view of an ink cup locking device of a mechanical ink cup locking device for a pad printing machine, which is used for mounting an ink cup with a diameter of 60;
FIG. 3 is a structural diagram of an ink cup locking device of a mechanical ink cup locking device for a pad printing machine, which is used for installing 90 ink cups in diameter;
fig. 4 is a front view of a mechanical ink cup assembly of a mechanical ink cup locking device for use on a pad printing machine.
In the figure: the ink cup printing machine comprises a pad printing machine-1, a pad printing table-2, a mechanical ink cup assembly-3, a base assembly-4, an upper base-41, a lower base-42, a connecting plate-43, an ink cup locking device-5, a force arm-51, a driving plate-511, a fixing plate-512, a positioning column-513, a long screw-514, an adjusting fixing block-52, an adjusting screw-521, a tension spring fixing plate-53, a bolt-531, a fixing piece-54, a bearing-55, a tension spring-6, a straight-line handle-7, a hand lever-71, an eccentric circular plate-72, an ink cup-8 and a positioning pin-9.
Detailed Description
The mechanical ink cup locking device for the pad printing machine of the present invention is further described with reference to the accompanying drawings:
1-4, the mechanical ink cup locking device for the pad printing machine comprises a pad printing machine 1, a pad printing table 2 arranged on the pad printing machine 1 and a mechanical ink cup assembly 3 arranged on the pad printing table 2, wherein the mechanical ink cup assembly 3 consists of a base assembly 4 and an ink cup locking device 5 arranged on the base assembly 4; the base component 4 comprises an upper base 41, a lower base 42 and a connecting plate 43 connecting the upper base 41 and the lower base 42, and an ink cup 8 is arranged on the lower base 42; the ink cup locking device 5 comprises force arms 51 arranged at two sides of the connecting plate 43 and an adjusting fixed block 52 arranged on the upper base 41; a movable tension spring fixing plate 53 is arranged on one side of the adjusting fixing block 52, and a tension spring 6 is arranged between the force arm 51 and the tension spring fixing plate 53; the connecting plate 43 is provided with a fixing plate 54 corresponding to the upward end of the force arm 51, the fixing plate 54 is provided with a rotatable straight-line handle 7, the straight-line handle 7 comprises a hand lever 71 and an eccentric circular plate 72 connected with the hand lever 71, the eccentric circular plate 72 is in contact with the inner side of the force arm 51, when the connecting hand lever is used for rotating the eccentric circular plate 72, the eccentric circular plate 72 pushes against the force arm 51 to rotate, and the force arm 51 rotates around the bearing 55.
To ensure the arm rotates normally, the arm 51 is mounted on the connecting plate 43 via a bearing 55.
In order to ensure that the tension of the spring can be adjusted, the adjusting fixing block 52 is provided with an adjusting screw 521 for adjusting the tension spring fixing plate 53, the distance of the tension spring fixing plate 53 can be adjusted through the adjusting screw 521, and the tension uniformity of the spring 6 is ensured.
As shown in fig. 2 and 3, in order to ensure the pressing and releasing of the ink cartridge by the force arms at two sides, the downward end of the force arm 51 is provided with a driving plate 511 and a fixed plate 512; the positioning column 513 is arranged at the downward end of the force arm 51 and used for installing the driving plate 511 and fixing the driving plate 511 through a long screw 514 arranged on the fixing plate 512, the positioning column 513 can also be used for pressing the ink cup after the ink cup with the diameter of 90 is installed when the driving plate 511 is not installed, a positioning pin 9 is arranged at the contact position of the driving plate 511 and the ink cup 8, and the positioning pin 9 can ensure that the ink cup 8 is tightly pressed when the force arm 51 is pressed downwards, so that the ink cup cannot move, and the printing accuracy is ensured.
In order to ensure that the tension of the tension spring acts on the force arm, one end of the tension spring 6 is connected with the force arm 51, and the other end is connected with a bolt 531 arranged on the tension spring fixing plate 53.
The action principle is as follows: the mechanical ink cup locking device 5 is suitable for the pad printing machine 1 under the working condition of no compressed air. When in adjustment, firstly, the straight-line handle 7 is rotated, and the ink cup group is put in; the ink cup can be pressed tightly by loosening the straight-line handle 7; the straight handle 7 is rotated without loosening, and the ink cup is taken out.
To accommodate different sized print images, the mechanical ink cup assembly 3 can accommodate both diameter 60 and diameter 90 sized ink cups 8 to accommodate different sized print images. When the driving block 511 and the fixing plate 512 are not installed on the force arm 51, the ink cup fixing device is suitable for an ink cup with the diameter of 90, the positioning column 513 on the force arm 51 can press the ink cup 8 to prevent the ink cup from moving, when the driving block 511 and the fixing plate 512 are installed and used on the force arm 51, the ink cup fixing device can be suitable for an ink cup with the diameter of 60, and the driving block 511 is installed on the positioning column 513 and is fixed through the long screw 514.
In order to prevent errors in the tension of the two sides, the tension-adjustable design of the tension spring 6 is added, and the position of the tension spring fixing plate 53 can be adjusted by rotating a screw on the adjusting fixing block 52, so that the effect of adjusting the tension of the tension spring 6 is achieved. Effectively prevents the tension change caused by the length error of the tension spring 6 and the loss of long-term pulling.
The utility model adopts the design of the tension spring tension force arm, is suitable for the working environment without high pressure gas, has strong applicability and saves energy; the ink cup with the diameter 60 and the diameter 90 can be matched, and the ink cup is matched with printing patterns with different sizes; the tension adjusting device has the advantages that tension is more uniform due to the adoption of the tension adjusting design, and meanwhile, the loss caused by long-term pulling of the tension spring is prevented.
While one embodiment of the present invention has been described in detail, the description is only a preferred embodiment of the present invention, and should not be considered as limiting the scope of the present invention. All the equivalent changes and improvements made according to the application scope of the present invention should still fall within the patent coverage of the present invention.
Claims (7)
1. The utility model provides a mechanical type ink cup locking device for on bat printing machine, includes bat printing machine, installs the bat printing platform on the bat printing machine and installs the mechanical type ink cup subassembly on the bat printing platform which characterized in that: the mechanical ink cup assembly consists of a base assembly and an ink cup locking device arranged on the base assembly; the base component comprises an upper base, a lower base and a connecting plate for connecting the upper base and the lower base; the ink cup locking device comprises force arms arranged on two sides of the connecting plate and an adjusting fixing block arranged on the upper base; a movable tension spring fixing plate is arranged on one side of the adjusting fixing block, and a tension spring is arranged between the force arm and the tension spring fixing plate; the connecting plate corresponds arm of force department of a force and is equipped with the stationary blade up, be equipped with rotatable straight line handle on the stationary blade, straight line handle includes the handspike and the eccentric plectane of connecting the handspike, eccentric plectane contacts with the inboard of the arm of force.
2. A mechanical ink cup locking device for use on pad printing machines as claimed in claim 1, wherein: the force arm is arranged on the connecting plate through a bearing.
3. A mechanical ink cup locking device for use on pad printing machines as claimed in claim 1, wherein: and the adjusting fixing block is provided with an adjusting screw for adjusting the tension spring fixing plate.
4. A mechanical ink cup locking device for use on pad printing machines as claimed in claim 1, wherein: the downward end of the force arm is provided with a driving plate and a fixed plate; the driving plate is arranged on a positioning column arranged at one end of the force arm and is fixed through a long screw arranged on the fixing plate.
5. A mechanical ink cup locking device for use on pad printing machines as claimed in claim 1, wherein: one end of the tension spring is connected to the force arm, and the other end of the tension spring is connected to a bolt arranged on the tension spring fixing plate.
6. A mechanical ink cup locking device for use on pad printing machines as claimed in claim 1, wherein: and an ink cup is arranged on the lower base.
7. The mechanical ink cup locking device for pad printing machine as claimed in claim 4, wherein: and a positioning pin is arranged at the contact position of the driving plate and the ink cup.
