Abstract
本实用新型公开了一种基于注塑模具加工的固定装置，涉及注塑模具技术领域。本实用新型包括底座，底座上设有一凹槽；凹槽内壁四面均螺纹连接有第一螺纹杆，第一螺纹杆的一端转动连接有夹具组件，夹具组件滑动连接在凹槽内；夹具组件包括一对滑块，两滑块之间通过一连接杆固定连接，滑块侧面固定连接有第一压块，连接杆上固定连接一“┌”型结构的连接板，连接板上螺纹连接有第二螺纹杆；第二螺纹杆下端转动连接一压板。本实用新型通过在凹槽内连接有四个夹具组件，使得该固定装置可对不同大小的注塑模具进行固定，且注塑模具安装拆卸方便。
The utility model discloses a fixing device based on injection mold processing, which relates to the technical field of injection molds. The utility model comprises a base, the base is provided with a groove; the inner wall of the groove is threadedly connected with a first threaded rod, one end of the first threaded rod is rotatably connected with a clamp assembly, and the clamp assembly is slidably connected in the groove; the clamp assembly includes A pair of sliders, the two sliders are fixedly connected by a connecting rod, the side of the slider is fixedly connected with a first pressing block, the connecting rod is fixedly connected with a connecting plate with a "┌" structure, and the connecting plate is threadedly connected with a first pressing block. Two threaded rods; the lower end of the second threaded rod is rotatably connected to a pressing plate. In the utility model, four clamp components are connected in the groove, so that the fixing device can fix injection moulds of different sizes, and the installation and disassembly of the injection mould is convenient.
Description
Technical Field
The utility model belongs to the technical field of injection mold, especially, relate to a fixing device based on injection mold processing.
Background
An injection mold is a tool for producing plastic products; the injection mold fixing device is also a tool for endowing a plastic product with a complete structure and accurate size, and when the injection mold is fixed, the injection mold is generally fixed by adopting the injection mold fixing device.
The traditional injection mold fixing device is generally customized according to the size of an injection mold, and the injection molds with different sizes and specifications need to be customized with fixing devices with different sizes, so that the application range of the traditional mold fixing device is limited; in addition, when an injection mold with a small volume is fixed, bolts are generally used for fixing, and the installation and the disassembly are troublesome.
Disclosure of Invention
An object of the utility model is to provide a fixing device based on injection mold processing, through be equipped with the recess on the base, the recess in-connection has four anchor clamps subassemblies to be fixed to injection mold, has solved the problem that current injection mold application range is limited, the dismantlement is complicated.
In order to solve the technical problem, the utility model discloses a realize through following technical scheme:
the utility model relates to a fixing device based on injection mold processing, which comprises a base, wherein a groove is arranged on the base; the four sides of the inner wall of the groove are in threaded connection with first threaded rods, one end of each first threaded rod is rotatably connected with a clamp assembly, and the clamp assemblies are connected in the groove in a sliding mode; the clamp assembly comprises a pair of sliding blocks, the sliding blocks are connected to the bottom of the groove in a sliding mode, the two sliding blocks are fixedly connected through a connecting rod, a first pressing block is fixedly connected to the side face of each sliding block, a connecting plate of a gamma type structure is fixedly connected to the connecting rod, and a second threaded rod is connected to the connecting plate in a threaded mode; the lower end of the second threaded rod is rotatably connected with a pressing plate, a pair of rod bodies are fixedly connected to the lower surfaces of the two ends of the pressing plate, and a second pressing block is fixedly connected to the lower end of each rod body.
Further, the base side fixedly connected with mounting panel, be equipped with the mounting hole on the mounting panel.
Further, the inner wall of the groove is fixedly connected with a threaded sleeve, and the first threaded rod is in threaded connection with the threaded sleeve.
Furthermore, the bottom of the groove is provided with a sliding groove in sliding connection with the sliding block.
Furthermore, the connecting rod is fixedly connected with a connecting sleeve which is rotatably connected with one end of the first threaded rod.
Furthermore, the lower surface of the connecting plate is fixedly connected with a guide rod, and the pressing plate is fixedly connected with a guide block movably connected with the guide rod.
The utility model discloses following beneficial effect has:
the utility model discloses a be equipped with a recess on the base, be connected with four anchor clamps subassemblies in the recess, fix injection mold for this fixing device can fix the injection mold of equidimension not, and the injection mold installation dismantles the convenience.
Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

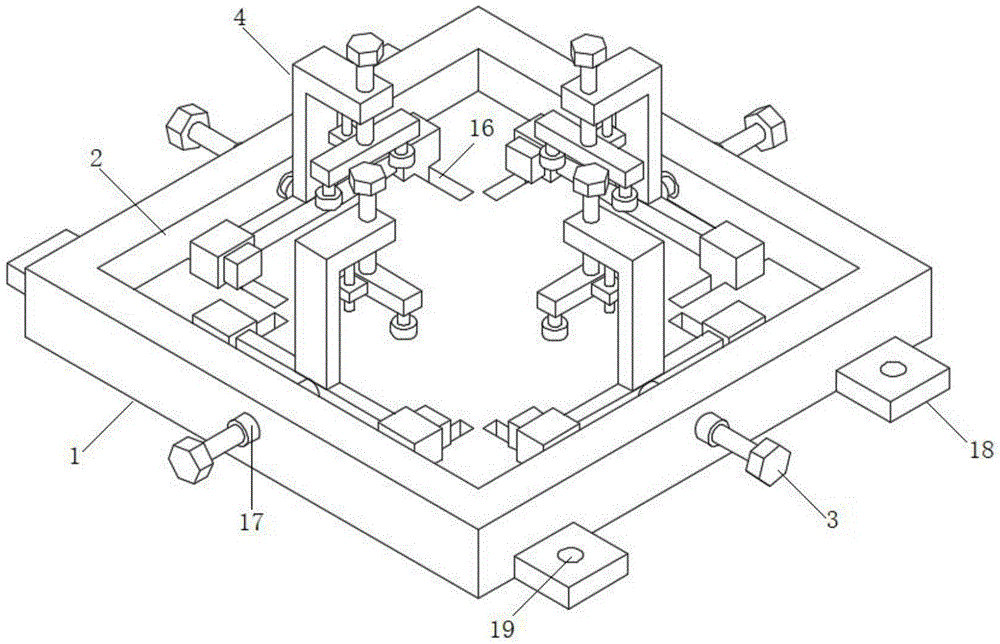

Fig. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic top view of FIG. 1;
FIG. 3 is a schematic view of a clamp assembly;
in the drawings, the components represented by the respective reference numerals are listed below:
1-base, 2-groove, 3-first threaded rod, 4-clamp component, 5-connecting rod, 6-sliding block, 7-first pressing block, 8-connecting sleeve, 9-connecting plate, 10-second threaded rod, 11-pressing plate, 12-rod body, 13-second pressing block, 14-guide rod, 15-guide block, 16-sliding groove, 17-threaded sleeve, 18-mounting plate and 19-mounting hole.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "inner wall", "upper", "lower", "four sides", "top", "middle", "one end", "inner", and the like indicate positional or positional relationships for convenience of description only and to simplify the description, and do not indicate or imply that the components or elements referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Referring to fig. 1-3, the present invention relates to a fixing device based on injection mold processing, which comprises a base 1, wherein a groove 2 is formed on the base 1, and an injection mold is fixed in the groove; equal threaded connection in 2 inner walls four sides of recess has first threaded rod 3, and the one end of first threaded rod 3 is rotated and is connected with anchor clamps subassembly 4, and four anchor clamps subassemblies 4 sliding connection rotate first threaded rod 3 and can drive anchor clamps subassembly 4 and remove in the recess in recess 2 to it is fixed to injection mold.
Referring to fig. 3, the clamp assembly 4 includes a pair of sliding blocks 6, the sliding blocks 6 are slidably connected to the bottom of the groove 2, the two sliding blocks 6 are fixedly connected through a connecting rod 5, a first pressing block 7 is fixedly connected to a side surface of the sliding block 6, the first pressing block 7 presses a side surface of the injection mold, a connecting plate 9 with a rectangular structure is fixedly connected to the connecting rod 5, and a second threaded rod 10 is connected to the connecting plate 9 in a threaded manner; the lower end of the second threaded rod 10 is rotatably connected with a pressing plate 11, the lower surfaces of two ends of the pressing plate 11 are fixedly connected with a pair of rod bodies 12, the lower end of each rod body 12 is fixedly connected with a second pressing block 13, the second pressing blocks 13 are pressed on the upper surface of the injection mold, and the second pressing blocks 13 can be driven to compress the injection mold by rotating the second threaded rod 10.
Preferably, in order to facilitate the installation of the base 1, the side surface of the base 1 is fixedly connected with an installation plate 18, and the installation plate 18 is provided with an installation hole 19.
Preferably, the inner wall of the groove 2 is fixedly connected with a threaded sleeve 17, and the first threaded rod 3 is in threaded connection with the threaded sleeve 17.
Preferably, the bottom of the groove 2 is provided with a sliding groove 16 which is connected with the sliding block 6 in a sliding way.
Preferably, in order to facilitate the first threaded rod 3 to drive the clamp assembly 4 to move, the connecting rod 5 is fixedly connected with a connecting sleeve 8 which is rotatably connected with one end of the first threaded rod 3.
Preferably, in order to enable the second threaded rod 10 to drive the pressing plate 11 to descend, a guide rod 14 is fixedly connected to the lower surface of the connecting plate 9, and a guide block 15 movably connected with the guide rod 14 is fixedly connected to the pressing plate 11.
One specific application of this embodiment is: the utility model discloses during the use, injection mold places in recess 2, rotates every first threaded rod 3 and drives four anchor clamps subassemblies 4 and fix injection mold all directions, then rotates second threaded rod 10 and drives second briquetting 13 and compress tightly the injection mold upper surface to it is fixed with injection mold.
In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.
The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.
