Abstract

The utility model discloses a novel adjustable paper mechanism of cutting, including the backup pad, the backup pad is provided with two and parallel relatively, and the upper portion on left side backup pad right side is rotated through the bearing spare and is connected with first dwang, and the lower part on left side backup pad right side is rotated through the bearing spare and is connected with the second dwang, the utility model relates to a technical field is cut to the paper. This novel adjustable paper mechanism of cutting, through first dwang and second dwang slip cup jointed a plurality of cylinder and a cutting section of thick bamboo, and use U type seat and bending plate to connect, when the product of another kind of model is produced to needs, only need twist the bolt and make it break away from with the slide bar mutually, then the distance of cylinder about direct slip U type seat is adjusted, can just can solve the cutting requirement of all paper class cards on the market through this setting under the condition that need not change the cutter, the application range of product has greatly been improved, holistic practicality has been strengthened, market demand has been satisfied.

Description

Novel adjustable paper mechanism of cutting

Technical Field

The utility model relates to a technical field is cut to the paper, specifically is a novel adjustable paper mechanism of cutting.

Background

The paper splitting machine is a paper processing device which splits and rewinds wide web into coiled materials with different widths and diameters, and is widely used in the paper processing field or mechanical equipment after preprinting. The raw material is cut into a plurality of independent units, the working principle is that the raw material is fixed at one end of a discharging shaft on the discharging device, a magnetic powder tension controller is arranged at one end of the discharging shaft to keep the tension required by the raw material constant, the raw material is pulled by a pair of rubber rollers and is cut into a plurality of pieces by a blade, and the traction rubber rollers and a material receiving shaft are driven by a main motor to synchronously operate so as to achieve the purposes of traction material feeding and finished product material receiving.

In the life of reality, the appearance of cutting machine has brought the facility for people, made things convenient for people to the exquisite cutting of paper, but along with the increase of live time, the defect has also appeared gradually to traditional paper cutter, all cut the paper through its inside cutter of cutting like paper cutting machine, but the card cutting machine all is fixed cutter in current market paper cutting machine, if change a product must change rather than corresponding cutting die, the application range of machine has been reduced greatly, and change the cutter every time and all need wholly dismantle the paper cutter, it is unusual loaded down with trivial details to operate, often change the cutter and also make the manufacturing cost of producer suffer the rising.

SUMMERY OF THE UTILITY MODEL

The utility model provides a not enough to prior art, the utility model provides a novel adjustable paper mechanism of cutting has solved the inside cutter of current market paper cutting machine and all is fixed, changes a product and must change the cutting die immediately, and the operation is too loaded down with trivial details, has influenced the application range of machine greatly, has improved the problem of cost.

In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a novel adjustable paper slitting mechanism comprises supporting plates, wherein the supporting plates are provided with two parallel opposite sides, the upper part of the right side of the supporting plate at the left side is rotatably connected with a first rotating rod through a bearing part, the lower part of the right side of the supporting plate at the left side is rotatably connected with a second rotating rod through a bearing part, the right ends of the first rotating rod and the second rotating rod both penetrate through the right side supporting plate and extend to the right side of the supporting plate, a limiting clamping strip is fixedly connected between one side of the first rotating rod opposite to the second rotating rod and between the two supporting plates, the front part and the rear part between the two supporting plates are both fixedly connected with sliding rods below the second rotating rod, a U-shaped seat is sleeved between the two sliding rods in a sliding manner, a plurality of U-shaped seats are arranged, jacks penetrating through the front part and the rear part of the left side of the U-shaped seat are respectively arranged, a roller matched with the limiting clamping strip is sleeved on the surface of the second rotating rod in a sliding manner, the surface of the roller is rotatably connected to the inner side of the U-shaped seat through a bearing piece.

Preferably, the front side fixedly connected with bent plate at U type seat top, the surperficial slip cup joint of first rotation pole has cut a section of thick bamboo with cylinder cooperation use, and the quantity of cutting a section of thick bamboo is the same with the cylinder, the surface of cutting a section of thick bamboo is connected in the inboard of bent plate through bearing spare rotation, the equal fixedly connected with annular blade in both sides on cutting a section of thick bamboo surface.

Preferably, the front part and the rear part of the bottom of the U-shaped seat are both provided with threaded holes penetrating into the jacks, the inner threads of the threaded holes are connected with bolts, and the bottom ends of the bolts extend to the lower part of the U-shaped seat.

Preferably, one end of the bolt extending to the lower part of the U-shaped seat is fixedly connected with a screwing cover.

Preferably, the first rotating rod and the second rotating rod extend to the gear which is meshed with each other and fixedly connected with one end of the right side of the supporting plate.

Advantageous effects

The utility model provides a novel adjustable paper mechanism of cutting. Compared with the prior art, the method has the following beneficial effects:

(1) this novel adjustable paper mechanism of cutting, through sliding to cup joint a plurality of cylinder and a cutting section of thick bamboo with the second dwang at first dwang, and use U type seat and bending plate to connect, when the product of another kind of model is produced to needs, only need twist and move the bolt and make it break away from with the slide bar mutually, then the distance of cylinder about direct slip U type seat is adjusted, can just can solve the cutting requirement of all paper class cards on the market through this setting under the condition that need not change the cutter, the application range of product has greatly been improved, holistic practicality has been strengthened, market demand has been satisfied.

(2) This novel adjustable paper mechanism of cutting comes to adjust U type seat through using the slide bar for the cutter need not carry out whole dismantlements to equipment when adjusting, and the operation is extremely simple, has made things convenient for people's use, and the cost is also comparatively cheap simultaneously, can realize a tractor serves several purposes more can, has effectively improved the functionality of equipment.

Drawings

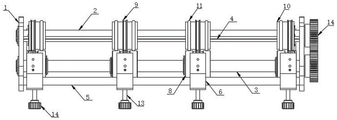

FIG. 1 is a schematic structural view of the present invention;

FIG. 2 is a bottom view of the support plate, slide bar and cutting cylinder arrangement of the present invention;

FIG. 3 is a rear view of the structure of the support plate, the U-shaped seat and the cutting cylinder of the present invention;

fig. 4 is a side view of the internal structure of the U-shaped seat of the present invention.

In the figure: 1. a support plate; 2. a first rotating lever; 3. a second rotating lever; 4. limiting clamping strips; 5. a slide bar; 6. a U-shaped seat; 7. a jack; 8. a drum; 9. a curved plate; 10. cutting the cylinder; 11. an annular blade; 12. a threaded hole; 13. a bolt; 14. screwing a cover; 15. a gear.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-4, the present invention provides a technical solution: a novel adjustable paper cutting mechanism comprises a supporting plate 1, wherein two supporting plates 1 are arranged and are parallel and opposite, the upper part of the right side of the left supporting plate 1 is rotatably connected with a first rotating rod 2 through a bearing part, the lower part of the right side of the left supporting plate 1 is rotatably connected with a second rotating rod 3 through a bearing part, the second rotating rod 3 is driven by a servo motor, the right ends of the first rotating rod 2 and the second rotating rod 3 both penetrate through the right supporting plate 1 and extend to the right side of the supporting plate 1, one side, opposite to the first rotating rod 2 and the second rotating rod 3, of the first rotating rod 2 and the second rotating rod 3 is positioned between the two supporting plates 1, limiting clamping strips 4 are fixedly connected, sliding rods 5 are fixedly connected between the front part and the rear part of the two supporting plates 1 and positioned below the second rotating rod 3, a U-shaped seat 6 is sleeved between the two sliding rods 5 in a sliding manner, a plurality of U-shaped seats 6 are arranged, inserting holes 7 penetrating to the right side are formed in the front part and the left part of the U-shaped seat 6, the surperficial slip of second dwang 3 cup jointed with spacing card strip 4 cylinder 8 that cooperatees and use, the surface of cylinder 8 passes through the bearing spare and rotates the inboard of connecting in U type seat 6, the front side fixedly connected with curved plate 9 at U type seat 6 top, the surperficial slip of first dwang 2 cup joints with the cutting section of thick bamboo 10 that cooperatees and use with cylinder 8, and the quantity of cutting section of thick bamboo 10 is the same with cylinder 8, the surface of cutting section of thick bamboo 10 passes through the bearing spare and rotates the inboard of connecting in curved plate 9, the equal fixedly connected with annular blade 11 in both sides on cutting section of thick bamboo 10 surface, the screw hole 12 that runs through to jack 7 inside is all seted up to the front portion and the rear portion of U type seat 6 bottom, the internal thread of screw hole 12 is connected with bolt 13, the bottom of bolt 13 extends to the below of U type seat 6, bolt 13 extends to the one end fixedly connected with screw cap 14 below U type seat 6, the equal fixedly connected with gear 15 that the one end on first dwang 2 and second dwang 3 extend to backup pad 1 right side .

And those not described in detail in this specification are well within the skill of those in the art.

When the cutting machine is used, the second rotating rod 3 is driven to rotate through the motor, the first rotating rod 2 can be driven to rotate together through meshing of the gear 15, the roller 8 and the cutting cylinder 10 rotate at the same speed under the limiting effect of the limiting clamping strip 4, the paper board is placed from the roller 8 and the cutting cylinder 10 at the moment, the paper board moves forwards under the driving effect of the roller 8 and is cut off under the effect of the annular blade 11, when a cutting product is replaced, only the screw cap 14 needs to be screwed, the bolt 13 is pushed out from the threaded hole 12 and separated from the sliding rod 5, the U-shaped seat 6 can be moved to adjust the distance between the left roller 8 and the right roller 8, the cutting machine is convenient to use for cutting, and after the adjustment is completed, the screw cap 14 is screwed again to enable the bolt 13 to tightly push the sliding rod 5, the U-shaped seat 6 is fixed, and the cutting can be performed at the moment.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a novel adjustable paper mechanism of cutting, includes backup pad (1), backup pad (1) is provided with two and parallel relative, its characterized in that: the left side the upper portion on backup pad (1) right side is rotated through the bearing spare and is connected with first dwang (2), the left side the lower part on backup pad (1) right side is rotated through the bearing spare and is connected with second dwang (3), the right-hand member of first dwang (2) and second dwang (3) all runs through right side backup pad (1) and extends to the right side of backup pad (1), one side that first dwang (2) and second dwang (3) are relative just is located between two backup pads (1) and all fixedly connected with spacing card strip (4), two anterior and rear portion between backup pad (1) just are located the below of second dwang (3) and all fixedly connected with slide bar (5), two slide between slide bar (5) and have cup jointed U type seat (6) in the slip, and U type seat (6) are provided with a plurality of, jack (7) that runs through to the right side have all been seted up to left anterior and rear portion of U type seat (6), the surface of the second rotating rod (3) is sleeved with a roller (8) matched with the limiting clamping strip (4) in a sliding mode, and the surface of the roller (8) is connected to the inner side of the U-shaped seat (6) in a rotating mode through a bearing piece.

2. The novel adjustable slitting paper mechanism of claim 1, characterized in that: the front side fixedly connected with bent plate (9) at U type seat (6) top, the surperficial slip of first rotation pole (2) is cup jointed and is cooperateed cutting section of thick bamboo (10) of using with cylinder (8), and the quantity of cutting section of thick bamboo (10) is the same with cylinder (8), the surface of cutting section of thick bamboo (10) is passed through bearing spare and is rotated and connect in the inboard of bent plate (9), the equal fixedly connected with annular blade (11) in both sides on cutting section of thick bamboo (10) surface.

3. The novel adjustable slitting paper mechanism of claim 1, characterized in that: the front portion and the rear portion of the bottom of the U-shaped seat (6) are provided with threaded holes (12) penetrating into the insertion holes (7), the inner threads of the threaded holes (12) are connected with bolts (13), and the bottom ends of the bolts (13) extend to the lower portion of the U-shaped seat (6).

4. The novel adjustable slitting paper mechanism of claim 3, characterized in that: and one end of the bolt (13) extending to the lower part of the U-shaped seat (6) is fixedly connected with a screw cap (14).

5. The novel adjustable slitting paper mechanism of claim 1, characterized in that: first dwang (2) and second dwang (3) extend to the equal fixedly connected with intermeshing's of one end on backup pad (1) right side gear (15).
