Abstract
本实用新型公开了一种高效率搅拌污染土的回收利用装置，属于土壤修复技术领域，包括箱体，所述箱体的侧表面固定连接有进料管，所述箱体的上表面固定连接有电机，所述电机的输出轴延伸至箱体的内部并固定连接有转轴，所述转轴的外表面固定连接有打磨轮，所述箱体的内侧壁固定连接有磨盘，所述打磨轮的侧表面固定连接有连接杆，所述连接杆远离打磨轮的一端固定连接有刮板，所述磨盘的底部开设有下料孔。本实用新型，通过设置打磨轮、磨盘，便于将颗粒较大的土壤进行研磨，保证所有的土壤都能被均匀地搅拌，打磨轮的侧表面通过连接杆固定连接有刮板，用于将进料管处的土壤推走，避免土壤堆积在一起，影响进料管下料。
The utility model discloses a recycling device for stirring polluted soil with high efficiency, which belongs to the technical field of soil remediation. There is a motor, the output shaft of the motor extends to the inside of the box body and is fixedly connected with a rotating shaft, the outer surface of the rotating shaft is fixedly connected with a grinding wheel, the inner side wall of the box body is fixedly connected with a grinding disc, and the grinding wheel is fixedly connected. A connecting rod is fixedly connected to the side surface, and a scraper is fixedly connected to one end of the connecting rod away from the grinding wheel, and a blanking hole is opened at the bottom of the grinding disc. In the utility model, by setting the grinding wheel and the grinding disc, it is convenient to grind the soil with larger particles, so as to ensure that all the soil can be stirred evenly. The soil at the feeding pipe is pushed away to avoid soil accumulation and affecting the feeding of the feeding pipe.
Description
Technical Field
The utility model relates to a soil restoration technical field specifically is a high efficiency stirring pollutes recycle device of soil.
Background
The soil is a layer of loose substances on the earth surface, which is a necessary factor for plant growth, and harmful substances are accumulated in the soil for a long time along with the use of chemical fertilizers and chemical pesticides and the random discharge of various sewage, sludge and organic wastes, so that the soil is seriously polluted and cannot meet the growth of plants, therefore, the soil needs to be repaired and recycled, and the current soil pollution treatment equipment usually adopts a stirring and leaching method to repair the soil.
Among the prior art, the patent that application number is CN201911026498.8 has applied for a recycle device who pollutes soil, the device drives the rotation of second pivot through motor work to drive third flabellum and second flabellum and rotate, carry out the stirring in different position to the contaminated soil in the box, make the contaminated soil stirring in the box more even, compare with prior art, stirring efficiency has obvious improvement, when soil granule is great, do not set up rubbing crusher and construct, thereby lead to the unable complete stirring of partial soil.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a recycle device of high efficiency stirring contaminated soil to solve the problem that proposes in the above-mentioned background art.
In order to solve the technical problem, the utility model provides a following technical scheme: the automatic feeding device comprises a box body, wherein a feeding pipe is fixedly connected to the side surface of the box body, a motor is fixedly connected to the upper surface of the box body, an output shaft of the motor extends into the box body and is fixedly connected with a rotating shaft, a polishing wheel is fixedly connected to the outer surface of the rotating shaft, a grinding disc is fixedly connected to the inner side wall of the box body, a connecting rod is fixedly connected to the side surface of the polishing wheel, a scraping plate is fixedly connected to one end, away from the polishing wheel, of the connecting rod, and a discharging hole is formed in the bottom of the grinding disc;
the box body is characterized in that a fixed frame is movably connected inside the side wall of the box body, two mounting grooves are formed in the fixed frame, a filter screen plate is detachably connected inside each mounting groove, and a push block is fixedly connected to the lower surface of the filter screen plate;
the interior bottom fixedly connected with second magnetic path of mounting groove, filter screen plate's first magnetic path of lower fixed surface connected with, the through-hole has been seted up to the inside of fixed frame and between being located two mounting grooves, the inside detachable connection of through-hole has the locating pin, fixed frame is located the equal fixedly connected with limiting plate in the outside both sides of box.
As a further description of the above technical solution:
the motor is kept away from in the pivot one end extends to the below and the fixedly connected with push pedal of mill, the surface of pivot just is located the below fixedly connected with stirring leaf of the wheel of polishing.
As a further description of the above technical solution:
the outer surface of pivot just is located fixedly connected with spiral leaf between grinding wheel and the stirring leaf to spiral leaf is located the inside in unloading hole.
As a further description of the above technical solution:
the inside wall of box and the below that is located the mill are provided with the inlet tube, the lower surface of inlet tube is provided with a plurality of shower nozzles, the one end that the shower nozzle was kept away from to the inlet tube extends to the outside of box.
As a further description of the above technical solution:
the side surface of box just is located the opposite one side of inlet pipe and is provided with the discharging pipe to the upper surface of discharging pipe and fixed frame is in same high setting.
As a further description of the above technical solution:
the interior bottom of box is provided with the drain pipe, the lower fixed surface of box is connected with the supporting leg.
As a further description of the above technical solution:
one side of the grinding wheel close to the grinding disc is arc-shaped, and the grinding wheel is matched with the grinding disc.
As a further description of the above technical solution:
the quantity of scraper blade is provided with a plurality ofly to the scraper blade is in same high setting with the minimum of inlet pipe.
As a further description of the above technical solution:
the push plate is attached to the filter screen plate, and the filter screen plate is matched with the mounting groove.
As a further description of the above technical solution:
the first magnetic block is matched with the second magnetic block, and the filter screen plate is fixed with the mounting groove through the first magnetic block and the second magnetic block.
1. Compared with the prior art, the utility model discloses the beneficial effect who reaches is: through setting up wheel, the mill of polishing, be convenient for grind the great soil of granule, guarantee that all soil can both be stirred uniformly, the side surface of wheel of polishing passes through connecting rod fixedly connected with scraper blade for push away the soil of inlet pipe department, avoid soil to pile up together, influence the inlet pipe unloading.
2. Compared with the prior art, the utility model discloses the beneficial effect who reaches is: the fixing frame is movably connected inside the side wall of the box body, the two mounting grooves are formed in the fixing frame, the filter screen plates are arranged in the mounting grooves, the filter screen plates which are damaged in the working process can be conveniently replaced, and the filter screen plate is beneficial to improving the working efficiency.
3. Compared with the prior art, the utility model discloses the beneficial effect who reaches is: through setting up first magnetic path, second magnetic path to first magnetic path uses with the cooperation of second magnetic path, and will filter the otter board and fix in the mounting groove, avoids filtering the otter board and drop from the mounting groove at the in-process that uses, and inserts the locating pin in the through-hole, is used for fixing fixed frame, avoids rocking after taking place among the process of work.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention. In the drawings:

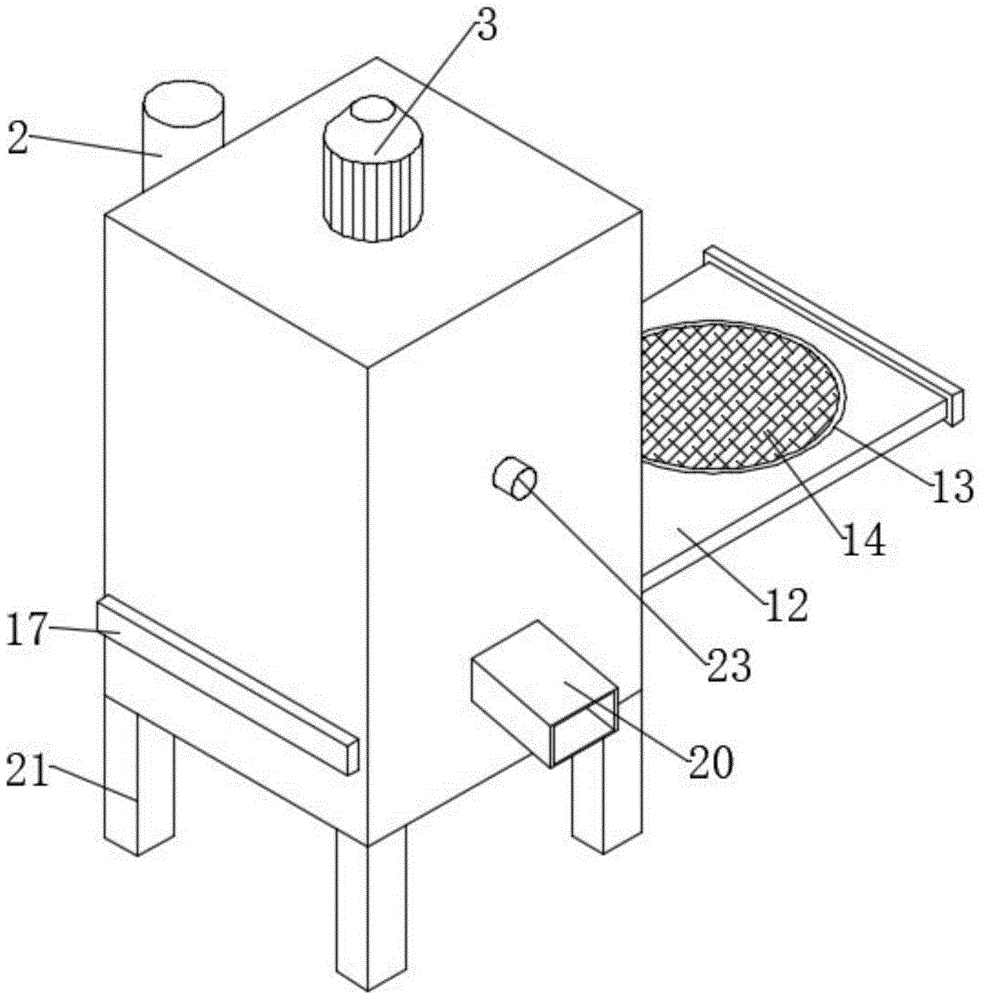

FIG. 1 is a schematic view of the external structure of a recycling device for efficiently stirring contaminated soil according to the present invention;
FIG. 2 is a schematic view of the internal structure of a recycling device for efficiently stirring contaminated soil according to the present invention;
fig. 3 is a schematic structural diagram of a in fig. 2 according to the present invention;
FIG. 4 is a schematic view of a part of the structure of a recycling device for efficiently stirring contaminated soil of the present invention;
FIG. 5 is a top view of a fixing frame of the recycling device for efficiently stirring contaminated soil of the present invention;
in the figure: 1. a box body; 2. a feed pipe; 3. a motor; 4. a rotating shaft; 5. grinding the wheel; 6. a connecting rod; 7. a squeegee; 8. a grinding disc; 9. helical leaves; 10. stirring blades; 11. pushing the plate; 12. a fixing frame; 13. mounting grooves; 14. a filter screen plate; 15. a push block; 16. positioning pins; 17. a limiting plate; 18. a first magnetic block; 19. a second magnetic block; 20. a discharge pipe; 21. supporting legs; 22. a drain pipe; 23. a water inlet pipe; 24. a spray head; 25. a through hole; 26. and (7) discharging holes.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: comprises a box body 1, a feeding pipe 2 is fixedly connected to the side surface of the box body 1, a motor 3 is fixedly connected to the upper surface of the box body 1 and used for driving a rotating shaft 4 to rotate, a polishing wheel 5 is driven by the rotating shaft 4, a spiral blade 9, a stirring blade 10 and a push plate 11 rotate, an output shaft of the motor 3 extends into the box body 1 and is fixedly connected with the rotating shaft 4, a polishing wheel 5 is fixedly connected to the outer surface of the rotating shaft 4 and is matched with a grinding disc 8 for use through the polishing wheel 5 and the grinding disc 8, large soil is conveniently ground, the stirring blade 10 is favorable for fully stirring the soil, one side of the polishing wheel 5 close to the grinding disc 8 is arc-shaped, the polishing wheel 5 is matched with the grinding disc 8, a grinding disc 8 is fixedly connected to the inner side wall of the box body 1, a connecting rod 6 is fixedly connected to the side surface of the polishing wheel 5, and a scraper 7 is fixedly connected to one end of the connecting rod 6 far away from the polishing wheel 5, the device is used for pushing away soil at the position of the feeding pipe 2 and avoiding the influence of soil accumulation on the feeding of the feeding pipe 2, a plurality of scraping plates 7 are arranged, the scraping plates 7 and the lowest part of the feeding pipe 2 are arranged at the same height, and the bottom of the grinding disc 8 is provided with a feeding hole 26, so that ground soil can fall down conveniently and can be stirred;
the inner part of the side wall of the box body 1 is movably connected with a fixed frame 12, the damaged filter screen plate 14 is replaced by moving the fixed frame 12, the device does not need to be stopped in the process, the device can be replaced in the working process, the working efficiency is improved, the sealing performance between the fixed frame 12 and the box body 1 is good, two mounting grooves 13 are formed in the fixed frame 12, the filter screen plate 14 is detachably connected in the mounting grooves 13, and the lower surface of the filter screen plate 14 is fixedly connected with a push block 15 for detaching the filter screen plate 14 from the fixed frame 12;
the inner bottom of the mounting groove 13 is fixedly connected with a second magnetic block 19, the first magnetic block 18 and the second magnetic block 19 are arranged, the first magnetic block 18 and the second magnetic block 19 are matched for use, the filter screen plate 14 is fixed in the mounting groove 13, the filter screen plate 14 is prevented from falling off from the mounting groove 13 in the using process, the lower surface of the filter screen plate 14 is fixedly connected with the first magnetic block 18, the first magnetic block 18 is matched with the second magnetic block 19, the filter screen plate 14 is fixed with the mounting groove 13 through the first magnetic block 18 and the second magnetic block 19, a through hole 25 is formed in the fixing frame 12 and positioned between the two mounting grooves 13, the fixing frame 12 is fixed by inserting the positioning pin 16 into the through hole 25, the phenomenon that the fixing frame 12 shakes after working is avoided, the detachable positioning pin 16 is connected to the inside of the through hole 25, and the two sides of the fixing frame 12, which are positioned outside the box body 1, are fixedly connected with limiting plates 17, facilitating accurate movement of the screen 14 to the exact centre of the cabinet 1.
One end of the rotating shaft 4, which is far away from the motor 3, extends to the lower part of the grinding disc 8 and is fixedly connected with a push plate 11, the push plate 11 is used for pushing the stirred soil to a discharging pipe 20 and discharging the soil, the push plate 11 is attached to a filter screen plate 14, the filter screen plate 14 is matched with the mounting groove 13, the outer surface of the rotating shaft 4 is fixedly connected with a stirring blade 10, which is positioned below the grinding wheel 5, the outer surface of the rotating shaft 4 is fixedly connected with a spiral blade 9, which is positioned between the grinding wheel 5 and the stirring blade 10, and is used for preventing the blanking hole 26 from being blocked, and the spiral blade 9 is positioned inside the blanking hole 26, a water inlet pipe 23 is arranged on the inner side wall of the box body 1 and below the grinding disc 8, a plurality of spray heads 24 are arranged on the lower surface of the water inlet pipe 23, one end of the water inlet pipe 23, which is far away from the spray heads 24, extends to the outer part of the box body 1, a discharging pipe 20 is arranged on the side surface of the box body 1 and on the opposite side of the feeding pipe 2, and the discharging pipe 20 and the upper surface of the fixing frame 12 are arranged at the same height, the inner bottom of the box body 1 is provided with a drain pipe 22, and the lower surface of the box body 1 is fixedly connected with a supporting leg 21.
The utility model discloses a theory of operation: when the device is used, a worker pours polluted soil into the box body 1 from the feeding pipe 2, then the rotating shaft 4 is driven to rotate through the motor 3, a large piece of soil is ground through the grinding wheel 5 and the grinding disc 8, meanwhile, the soil at the position of the feeding pipe 2 is pushed away through the scraper 7, the situation that the soil is accumulated together to influence the feeding of the feeding pipe 2 is avoided, the ground soil falls onto the filter screen plate 14 through the feeding hole 26, then bacterium liquid and hot water are sequentially conveyed into the spray head 24 through the water inlet pipe 23, the polluted soil in the box body 1 is sprayed through the spray head 24, meanwhile, the stirring is carried out through the stirring blade 10, after the stirring is finished, the stirred soil is pushed to the discharging pipe 20 through the push plate 11 and is discharged, when the filter screen plate 14 is damaged, the new filter screen plate 14 is pushed into the box body 1 through the push fixing frame 12, and the damaged filter screen plate 14 is pushed out, through the limiting plate 17, the filter screen plate 14 is conveniently moved to the center position of the box body 1, then the positioning pin 16 is inserted into the through hole 25, the fixing frame 12 is fixed, then the filter screen plate 14 is detached from the fixing frame 12 through the push block 15, through the arrangement of the first magnetic block 18 and the second magnetic block 19, the first magnetic block 18 and the second magnetic block 19 are matched for use, the filter screen plate 14 is fixed in the mounting groove 13, and the filter screen plate 14 is prevented from falling off from the mounting groove 13 in the using process.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (10)
