Three-layer coating multifunctional compound machine

Technical Field

The utility model relates to a coating field, in particular to multi-functional compounding machine of three-layer coating.

Background

The coating machine is mainly used for the surface coating process production of films, paper and the like, the coating machine coats a layer of glue, paint or printing ink and the like with specific functions on a coiled base material, the base material is dried and then wound, the special multifunctional coating head is adopted, the surface coating production in various forms can be realized, the winding and unwinding of the coating machine are all provided with full-speed automatic film receiving mechanisms, and the PLC program tension is controlled in a closed loop manner automatically.

In the coating process, a plurality of processes are often required, so that various production equipment is often required to be used for processing in coating production, multiple stations are required for processing, and the working efficiency is low and the production efficiency is influenced.

SUMMERY OF THE UTILITY MODEL

To the problem mentioned in the background art, the utility model aims at providing a multi-functional compounding machine of three-layer coating to solve the problem mentioned in the background art.

The above technical purpose of the present invention can be achieved by the following technical solutions:

a three-layer coating multifunctional compound machine comprises a horizontal line, wherein a compound stripping mechanism is fixedly arranged on the right side of the upper end of the horizontal line, a coating compound mechanism is fixedly arranged on the left side of the upper end of the horizontal line, and the compound stripping mechanism is movably connected with the coating compound mechanism;

the composite stripping mechanism comprises a composite material unreeling assembly, a first composite assembly, a substrate recovery assembly and a first coating unreeling assembly, wherein the first composite assembly is fixedly arranged on the right side of the upper end of a ground level, the composite material unreeling assembly is in transmission connection with the first composite assembly, the substrate recovery assembly is in transmission connection with the composite material unreeling assembly through the first composite assembly, the first coating unreeling assembly is movably connected with the first composite assembly, and the first coating unreeling assembly is in transmission connection with the coating composite mechanism through the first composite assembly;

the coating composite mechanism comprises a second coating unreeling component, a second composite component and a rolling component, the second composite component is fixedly mounted on the left side of the upper end of a ground level line, the second coating unreeling component is in transmission connection with the second composite component, the second coating unreeling component is in transmission connection with the rolling component through the second composite component, and the first composite component is in transmission connection with the rolling component through the second composite component.

Through adopting above-mentioned technical scheme, can carry out first layer coating work through compound peeling means, retrieve the subassembly through the substrate and can drive combined material and unreel the subassembly and carry out the blowing work, through and drive first coating through first composite assembly and unreel the subassembly and carry out the blowing work, thereby carry out first layer coating work, can carry out coating work through coating composite means, can drive second coating through second composite assembly and unreel the subassembly and carry out the blowing work, and make it carry out coating work with the material that first composite assembly processed the completion through second composite assembly, the material that will coat through rolling subassembly is collected at last.

The preferred, first compound subassembly includes first compound grudging post, first link, support frame, first compound guide pulley, first compound deflector roll, first positioning roller and first squeeze roll, first compound grudging post fixed mounting is on the upper end right side of horizon line, first link fixed connection is in the upper end of first compound grudging post lateral wall, support frame fixed connection is in the one end of first link, first compound guide pulley fixed mounting is respectively in the inside of first compound grudging post, first link and support frame, first compound deflector roll fixed mounting is in the lateral wall of first compound grudging post, first positioning roller fixed mounting is in the inside upper end of first compound grudging post, first squeeze roll fixed mounting is at the inside lower extreme of first compound grudging post, first squeeze roll and first positioning roller swing joint.

Through adopting above-mentioned technical scheme, can play the effect of support through first compound grudging post, first link and support frame, can play the effect of guide material through first compound guide pulley, can drive first coating through first compound deflector roll and unreel the subassembly and carry out the blowing work to make the material carry out the coating work through first registration roller and first squeeze roll.

Preferably, the composite material unreeling assembly comprises a composite material box, a composite material roller, a composite material guide wheel and a substrate material, the composite material box is fixedly installed on the right side of the upper end of the horizon, the composite material roller is fixedly installed inside the composite material box, the substrate material is wound on the outer wall of the composite material roller, the composite material guide wheel is fixedly installed at the bottom of the composite material box, the substrate material is wound with the first composite guide wheel through the composite material guide wheel, and the substrate material is wound with the first positioning roller through the first composite guide wheel.

By adopting the technical scheme, the composite material roller and the composite material guide wheel can be fixed through the composite material box, and the substrate material is guided through the composite material guide wheel and the first composite guide wheel, so that one end of the substrate material can be wound and connected with the first positioning roller, and coating work can be performed.

Preferably, the substrate recycling assembly comprises a substrate recycling box, a substrate recycling roller and a substrate recycling guide wheel, the substrate recycling box is fixedly installed on the right side of the upper end of the horizon, the substrate recycling roller is fixedly installed inside the substrate recycling box, the substrate recycling guide wheel is fixedly installed inside the substrate recycling box, one end of the substrate material is in winding connection with the first composite guide wheel through a first positioning roller, one end of the substrate material is in winding connection with the substrate recycling guide wheel through the first composite guide wheel, and one end of the substrate material is in winding connection with the substrate recycling roller through the substrate recycling guide wheel.

Through adopting above-mentioned technical scheme, can fix the position of substrate recovery roller and substrate recovery guide pulley through the substrate collection box, the waste material that the coating produced retrieves the guide pulley guide through first compound guide pulley and substrate to make the substrate recovery roller can collect the waste material.

Preferably, the first coating unreeling assembly comprises a first coating material box, a first coating material roller, a first coating guide wheel and first cloth, the first coating material box is fixedly mounted on the right side of the upper end of the horizon line, the first coating material roller is fixedly mounted inside the first coating material box, the first cloth is wound on the outer wall of the first coating material roller, the first coating guide wheel is fixedly mounted inside the first coating material box, the first cloth is wound on the outer wall of the first composite guide wheel through the first coating guide wheel, the first cloth is wound on the outer wall of the first extrusion roller through the first composite guide wheel, the first cloth is attached to the substrate material, and the first cloth is in transmission connection with the second composite assembly through the first extrusion roller.

Through adopting above-mentioned technical scheme, can fix the position of first coating material roller and first coating guide pulley through first coating material case, can drive first cloth through first compound deflector roll and remove, first cloth is through with first squeeze roll round-trip to make first registration roller and first squeeze roll can extrude substrate material and first cloth, thereby accomplish coating work.

Preferably, the second composite assembly comprises a second composite vertical frame, a second composite guide roller, a second positioning roller, a second extrusion roller, a second composite guide roller and a second connecting frame, the second composite vertical frame is fixedly arranged at the left side of the upper end of the horizon, the second composite guide roller is fixedly arranged on the side wall of the second composite vertical frame, the second positioning roller is fixedly arranged at the upper end in the second composite vertical frame, the second extrusion roller is fixedly arranged at the lower end in the second composite vertical frame, the second connecting frame is fixedly connected with the lower end of the side wall of the second composite vertical frame, the second composite guide wheel is respectively and fixedly arranged in the second composite vertical frame and the second connecting frame, one end of the first cloth is in winding connection with the second positioning roller through a first extrusion roller in winding connection, one end of the first cloth is in winding connection with the second composite guide wheel through the second positioning roller, and one end of the first cloth is in transmission connection with the winding assembly through the second composite guide wheel.

Through adopting above-mentioned technical scheme, can play the effect of fixed position through the compound grudging post of second and second link to can drive the second coating through the compound deflector roll of second and unreel the subassembly and carry out the blowing work, make it carry out coating work through second registration roller, second squeeze roll and first cloth, can be connected the material and the rolling subassembly transmission that the coating was accomplished through the compound deflector roll of second.

Preferably, the second coating unwinding assembly comprises a second coating material box, a second coating material roller, a second coating guide wheel and a second cloth, the second coating material box is fixedly installed on the left side of the upper end of the horizon, the second coating material roller is fixedly installed inside the second coating material box, the second coating guide wheel is fixedly installed inside the second coating material box, the second cloth is wound on the outer wall of the second coating material roller, one end of the second cloth is wound with the second composite guide wheel through the second coating guide wheel, one end of the second cloth is wound with the second extrusion roller through the second composite guide wheel, the second cloth is connected with the first cloth in a bonding mode, one end of the second cloth is wound with the second coating guide wheel through the extrusion roller, and one end of the second cloth is in transmission connection with the winding assembly through the second coating guide wheel.

Through adopting above-mentioned technical scheme, can fix the position of second coating material roller and second coating guide pulley through second coating material case, can drive the second cloth through the compound deflector roll of second and remove for second cloth and second squeeze roll round-trip, thereby the second cloth carries out coating work through second registration roller, second squeeze roll and first cloth.

Preferably, the winding assembly comprises a winding box, a winding roller and a winding guide wheel, the winding box is fixedly installed on the left side of the upper end of the ground level, the winding roller is fixedly installed inside the winding box, the winding guide wheel is fixedly installed inside the winding box, and one ends of the first cloth and the second cloth are wound and connected with the winding roller through the winding guide wheel.

By adopting the technical scheme, the positions of the winding roller and the winding guide wheel can be fixed through the winding box cover, and the material which is coated can be guided to be wound with the winding roller through the second composite guide wheel and the winding guide wheel, so that the material which is coated can be collected by the winding roller.

To sum up, the utility model discloses mainly have following beneficial effect:

the coating machine comprises a substrate recovery assembly, a first coating unwinding assembly, a second coating unwinding assembly, a first composite assembly, a second composite assembly, a winding assembly and a composite stripping mechanism, wherein the substrate recovery assembly is arranged on the substrate recovery assembly;

secondly, the first composite vertical frame, the first connecting frame and the supporting frame can play a supporting role, the first composite guide wheel can play a role of guiding materials, the first coating unreeling assembly can be driven to carry out emptying work through the first composite guide wheel, the materials can be coated through the first positioning roller and the first extrusion roller, the positions of the composite roller and the composite guide wheel can be fixed through the composite material box, the position of the substrate material can be guided through the composite guide wheel and the first composite guide wheel, one end of the substrate material can be connected with the first positioning roller in a winding way, coating work can be carried out, the positions of the substrate recovery roller and the substrate recovery guide wheel can be fixed through the substrate recovery box, waste materials generated by coating are guided through the first composite guide wheel and the substrate recovery guide wheel, the substrate recovery roller can collect the waste materials, the positions of the first coating material roller and the first coating guide wheel can be fixed through the first coating material box, the first cloth can be driven to move through the first composite guide roller and is in winding connection with the first extrusion roller, so that the first positioning roller and the first extrusion roller can extrude the substrate material and the first cloth, and coating work is finished;

thirdly, the second composite vertical frame and the second connecting frame can play a role of fixing the position, and the second coating and unreeling assembly can be driven to carry out the material discharging work through the second composite guide roller, so that the second coating and unreeling assembly can carry out the coating work with the first cloth through the second positioning roller and the second extrusion roller, the coated material can be in transmission connection with the winding component through the second composite guide wheel, the positions of the second coating material roller and the second coating guide wheel can be fixed through the second coating material box, the second cloth can be driven to move through the second composite guide roller, so that the second cloth is connected with the second extrusion roller in a winding way, so that the second cloth can be coated with the first cloth through the second positioning roller and the second extrusion roller, the positions of the winding roller and the winding guide wheel can be fixed through the winding box cover, the material which is coated can be guided to be wound and connected with the winding roller through the second composite guide wheel and the winding guide wheel, so that the winding roller can collect the material which is coated.

Drawings

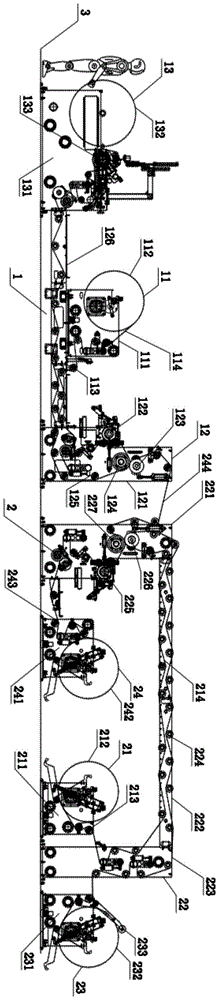

Fig. 1 is a schematic structural diagram of the present invention.

Reference numerals: 1. a coating and compounding mechanism; 11. a second coating and unwinding assembly; 111. a second coating material tank; 112. a second coating material roll; 113. a second coating guide wheel; 114. a second cloth; 12. a second composite component; 121. a second composite vertical frame; 122. a second composite guide roller; 123. a second positioning roller; 124. A second squeeze roll; 125. a second composite guide wheel; 126. a second link frame; 13. a winding component; 131. A rolling box; 132. a wind-up roll; 133. winding guide wheels; 2. a composite stripping mechanism; 21. the composite material unreeling assembly; 211. a composite material tank; 212. a composite roll; 213. a composite guide wheel; 214. A substrate material; 22. a first composite component; 221. a first composite vertical frame; 222. a first connecting frame; 223. A support frame; 224. a first compound guide wheel; 225. a first composite guide roller; 226. a first positioning roller; 227. A first squeeze roll; 23. a substrate recovery assembly; 231. a substrate recovery box; 232. a substrate recovery roller; 233. A substrate recovery guide wheel; 24. a first coating and unwinding assembly; 241. a first coating material tank; 242. a first coating material roller; 243. a first coating guide wheel; 244. a first cloth; 3. the horizon line.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Examples

Referring to fig. 1, a three-layer coating multifunctional compound machine comprises a horizontal line 3, wherein a compound stripping mechanism 2 is fixedly mounted on the right side of the upper end of the horizontal line 3, a coating compound mechanism 1 is fixedly mounted on the left side of the upper end of the horizontal line 3, and the compound stripping mechanism 2 is movably connected with the coating compound mechanism 1;

the composite peeling mechanism 2 comprises a composite material unreeling assembly 21, a first composite assembly 22, a substrate recycling assembly 23 and a first coating unreeling assembly 24, the first composite assembly 22 is fixedly installed on the right side of the upper end of the ground level 3, the composite material unreeling assembly 21 is in transmission connection with the first composite assembly 22, the substrate recycling assembly 23 is in transmission connection with the composite material unreeling assembly 21 through the first composite assembly 22, the first coating unreeling assembly 24 is movably connected with the first composite assembly 22, and the first coating unreeling assembly 24 is in transmission connection with the coating composite mechanism 1 through the first composite assembly 22;

the coating and compounding mechanism 1 comprises a second coating and unreeling component 11, a second compounding component 12 and a reeling component 13, wherein the second compounding component 12 is fixedly installed on the left side of the upper end of the ground level 3, the second coating and unreeling component 11 is in transmission connection with the second compounding component 12, the second coating and unreeling component 11 is in transmission connection with the reeling component 13 through the second compounding component 12, and the first compounding component 22 is in transmission connection with the reeling component 13 through the second compounding component 12; can carry out first layer coating work through compound peeling means 2, retrieve subassembly 23 through the substrate and can drive combined material and unreel subassembly 21 and carry out the blowing work, through and drive first coating through first compound subassembly 22 and unreel subassembly 24 and carry out the blowing work, thereby carry out first layer coating work, can carry out coating work through coating combined mechanism 1, can drive second coating through second compound subassembly 12 and unreel subassembly 11 and carry out the blowing work, and make it carry out coating work with the material that first compound subassembly 22 processed the completion through second compound subassembly 12, the material that will coat the completion is collected through rolling subassembly 13 at last.

Referring to fig. 1, for the purpose of completing the first coating work; the first composite assembly 22 comprises a first composite vertical frame 221, a first connecting frame 222, a supporting frame 223, a first composite guide wheel 224, a first composite guide roller 225, a first positioning roller 226 and a first extrusion roller 227, the first composite vertical frame 221 is fixedly installed at the right side of the upper end of the ground level 3, the first connecting frame 222 is fixedly connected to the upper end of the side wall of the first composite vertical frame 221, the supporting frame 223 is fixedly connected to one end of the first connecting frame 222, the first composite guide wheel 224 is respectively and fixedly installed inside the first composite vertical frame 221, the first connecting frame 222 and the supporting frame 223, the first composite guide roller 225 is fixedly installed on a side wall of the first composite vertical frame 221, the first positioning roller 226 is fixedly installed on an upper end inside the first composite vertical frame 221, the first extrusion roll 227 is fixedly installed at the lower end inside the first composite vertical frame 221, and the first extrusion roll 227 is movably connected with the first positioning roll 226; the composite material unreeling assembly 21 comprises a composite material box 211, a composite material roller 212, a composite material guide wheel 213 and a substrate material 214, wherein the composite material box 211 is fixedly installed at the right side of the upper end of the ground level 3, the composite material roller 212 is fixedly installed inside the composite material box 211, the substrate material 214 is wound on the outer wall of the composite material roller 212, the composite material guide wheel 213 is fixedly installed at the bottom of the composite material box 211, the substrate material 214 is wound on a first composite guide wheel 224 through the composite material guide wheel 213, and the substrate material 214 is wound on a first positioning roller 226 through the first composite guide wheel 224; the substrate recycling assembly 23 comprises a substrate recycling box 231, a substrate recycling roller 232 and a substrate recycling guide wheel 233, wherein the substrate recycling box 231 is fixedly arranged at the right side of the upper end of the horizon 3, the substrate recycling roller 232 is fixedly arranged in the substrate recycling box 231, the substrate recycling guide wheel 233 is fixedly arranged in the substrate recycling box 231, one end of the substrate material 214 is in winding connection with a first composite guide wheel 224 through a first positioning roller 226, one end of the substrate material 214 is in winding connection with the substrate recycling guide wheel 233 through the first composite guide wheel 224, and one end of the substrate material 214 is in winding connection with the substrate recycling roller 232 through the substrate recycling guide wheel 233; the first coating unwinding assembly 24 includes a first coating material box 241, a first coating material roller 242, a first coating guide wheel 243 and a first cloth 244, the first coating material box 241 is fixedly installed at the right side of the upper end of the ground line 3, the first coating material roller 242 is fixedly installed inside the first coating material box 241, the first cloth 244 is wound around the outer wall of the first coating material roller 242, the first coating guide wheel 243 is fixedly installed inside the first coating material box 241, the first cloth 244 is wound around the outer wall of the first composite guide wheel 225 through the first coating guide wheel 243, the first cloth 244 is wound around the outer wall of the first pressing roller 227 through the first composite guide roller 225, the first cloth 244 is attached to the substrate material 214, and the first cloth 244 is in transmission connection with the second composite assembly 12 through the wound first pressing roller 227; the first composite vertical frame 221, the first connecting frame 222 and the supporting frame 223 can play a supporting role, the first composite guide wheel 224 can play a role of guiding materials, the first coating and unreeling assembly 24 can be driven by the first composite guide roller 225 to carry out emptying work, the materials can be coated by the first positioning roller 226 and the first squeezing roller 227, the positions of the composite material roller 212 and the composite material guide wheel 213 can be fixed by the composite material box 211, the position of the substrate material 214 is guided by the composite material guide wheel 213 and the first composite guide wheel 224, so that one end of the substrate material 214 can be in winding connection with the first positioning roller 226, the coating work can be carried out, the positions of the substrate recovery roller 232 and the substrate recovery guide wheel 233 can be fixed by the substrate recovery box 231, waste materials generated by the coating guide wheel are guided by the first composite guide wheel 224 and the substrate recovery guide wheel 233, therefore, the substrate recovery roller 232 can collect waste materials, the positions of the first coating material roller 242 and the first coating guide wheel 243 can be fixed through the first coating material box 241, the first cloth 244 can be driven to move through the first composite guide roller 225, the first cloth 244 is in winding connection with the first squeezing roller 227, and therefore the substrate material 214 and the first cloth 244 can be squeezed by the first positioning roller 226 and the first squeezing roller 227, and coating work is completed.

Referring to fig. 1, for the purpose of completing the subsequent coating work; the second composite assembly 12 includes a second composite vertical frame 121, a second composite guide roller 122, a second positioning roller 123, a second squeeze roller 124, a second composite guide wheel 125 and a second connecting frame 126, the second composite vertical frame 121 is fixedly installed at the left side of the upper end of the horizon 3, the second composite guide roller 122 is fixedly installed at the side wall of the second composite vertical frame 121, the second positioning roller 123 is fixedly installed at the upper end inside the second composite vertical frame 121, the second squeeze roller 124 is fixedly installed at the lower end inside the second composite vertical frame 121, the second connecting frame 126 is fixedly connected at the lower end of the side wall of the second composite vertical frame 121, the second composite guide wheels 125 are respectively fixedly installed inside the second composite vertical frame 121 and the second connecting frame 126, one end of the first cloth 244 is connected with the second positioning roller 123 by winding the first squeeze roller 227, one end of the first cloth 244 is connected with the second composite guide wheel 125 by winding the second positioning roller 123, one end of the first cloth 244 is in transmission connection with the winding component 13 through a second composite guide wheel 125; the second coating unwinding assembly 11 includes a second coating material tank 111, a second coating material roller 112, a second coating guide wheel 113 and a second cloth 114, the second coating material tank 111 is fixedly installed at the left side of the upper end of the ground line 3, the second coating material roll 112 is fixedly installed inside the second coating material tank 111, the second coating guide roller 113 is fixedly installed inside the second coating material tank 111, the second cloth 114 is wound around the outer wall of the second coating material roll 112, one end of the second cloth 114 is wound with the second composite guide roller 122 through the second coating guide roller 113, one end of the second cloth 114 is wound around a second pressing roll 124 via a second composite guide roll 122, the second cloth 114 is attached to the first cloth 244, one end of the second cloth 114 is wound around the second coating guide wheel 113 via a pressing roller, one end of the second cloth 114 is in transmission connection with the winding component 13 through a second coating guide wheel 113; the winding assembly 13 comprises a winding box 131, a winding roller 132 and a winding guide wheel 133, the winding box 131 is fixedly installed at the left side of the upper end of the ground level 3, the winding roller 132 is fixedly installed inside the winding box 131, the winding guide wheel 133 is fixedly installed inside the winding box 131, and one ends of the first cloth 244 and the second cloth 114 are wound and connected with the winding roller 132 through the winding guide wheel 133; the second composite vertical frame 121 and the second connecting frame 126 can play a role of fixing positions, the second composite guide roller 122 can drive the second coating and unwinding assembly 11 to discharge materials, so that the materials can be coated on the first cloth 244 through the second positioning roller 123 and the second pressing roller 124, the coated materials can be in transmission connection with the winding assembly 13 through the second composite guide roller 125, the positions of the second coating material roller 112 and the second coating guide roller 113 can be fixed through the second coating material box 111, the second cloth 114 can be driven to move through the second composite guide roller 122, so that the second cloth 114 and the second pressing roller 124 are wound and connected, the second cloth 114 can be coated on the first cloth 244 through the second positioning roller 123 and the second pressing roller 124, the positions of the winding roller 132 and the winding guide roller 133 can be fixed through the winding box 131, and the coated materials can be guided to wind and connect the winding roller 132 through the second composite guide roller 125 and the winding guide roller 133, so that the wind-up roll 132 can collect the coated material.

The use principle and the advantages are as follows: the first layer of coating work can be carried out through the composite stripping mechanism 2, a substrate material can be used when soft materials such as TPU and the like are produced, the substrate recovery assembly is stopped when no substrate material exists, the composite material unreeling assembly 21 can be driven to carry out the emptying work through the substrate recovery assembly 23, the first coating unreeling assembly 24 is driven to carry out the emptying work through the first composite assembly 22, so that the first layer of coating work is carried out, the first composite vertical frame 221, the first connecting frame 222 and the supporting frame 223 can play a supporting role, the first composite guide wheel 224 can play a role in guiding materials, the first coating unreeling assembly 24 can be driven to carry out the emptying work through the first composite guide wheel 225, the gluing work can be carried out through the first composite guide wheel 225, the materials can be subjected to the composite work through the first positioning roller 226 and the first extrusion roller 227, the positions of the composite material roller 212 and the composite material guide wheel 213 can be fixed through the composite material box 211, the position of the substrate material 214 is guided by the composite guide wheel 213 and the first composite guide wheel 224, so that one end of the substrate material 214 can be connected with the first positioning roller 226 in a winding way, so that the coating work can be performed, the positions of the substrate recovery roller 232 and the substrate recovery guide wheel 233 can be fixed by the substrate recovery box 231, waste materials generated by coating are guided by the first composite guide wheel 224 and the substrate recovery guide wheel 233, so that the substrate recovery roller 232 can collect the waste materials, the positions of the first coating material roller 242 and the first coating guide wheel 243 can be fixed by the first coating material box 241, the first cloth 244 can be driven to move by the first composite guide roller 225, the first cloth 244 is connected with the first squeezing roller 227 in a winding way, so that the substrate material 214 and the first cloth 244 can be squeezed by the first positioning roller 226 and the first squeezing roller 227, so that the composite work can be completed, and the coating composite work can be performed by the coating composite mechanism 1, the second composite component 12 can drive the second coating and unwinding component 11 to perform a material discharging operation, the second composite component 12 can drive the second coating and unwinding component 11 to perform a coating operation with the material processed by the first composite component 22, the winding component 13 can collect the coated material, the second composite vertical frame 121 and the second connecting frame 126 can play a role of fixing positions, the second composite guide roller 122 can drive the second coating and unwinding component 11 to perform a material discharging operation, the second composite guide roller 122 can perform a gluing operation on the material, the material is driven to perform a composite operation with the first cloth 244 through the second positioning roller 123 and the second squeezing roller 124, the coated material can be driven to be connected with the winding component 13 through the second composite guide roller 125, the positions of the second coating material roller 112 and the second coating guide roller 113 can be fixed through the second coating material box 111, the second composite guide roller 122 can drive the second cloth 114 to move, make second cloth 114 and second squeeze roll 124 wraparound, thereby second cloth 114 passes through second positioning roller 123, second squeeze roll 124 carries out coating work with first cloth 244, can fix the position of wind-up roll 132 and rolling guide pulley 133 through rolling box 131 lid, can guide the material that the coating was accomplished and wrap-up roll 132 wraparound through second compound guide pulley 125 and rolling guide pulley 133, thereby make wind-up roll 132 can collect the material that the coating was accomplished, and the operation is simple and convenient, make the multistation close to the single-station, thereby save the manual work, promote work efficiency, and three-layer coating one shot forming, make the coating effect better.

Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims

1. The utility model provides a multi-functional compounding machine of three-layer coating, includes horizon line (3), its characterized in that: a composite stripping mechanism (2) is fixedly installed on the right side of the upper end of the horizontal line (3), a coating composite mechanism (1) is fixedly installed on the left side of the upper end of the horizontal line (3), and the composite stripping mechanism (2) is movably connected with the coating composite mechanism (1);

the composite peeling mechanism (2) comprises a composite material unreeling assembly (21), a first composite assembly (22), a substrate recycling assembly (23) and a first coating unreeling assembly (24), the first composite assembly (22) is fixedly installed on the right side of the upper end of the ground level line (3), the composite material unreeling assembly (21) is in transmission connection with the first composite assembly (22), the substrate recycling assembly (23) is in transmission connection with the composite material unreeling assembly (21) through the first composite assembly (22), the first coating unreeling assembly (24) is movably connected with the first composite assembly (22), and the first coating unreeling assembly (24) is in transmission connection with the coating composite mechanism (1) through the first composite assembly (22);

coating composite structure (1) includes that the second coating unreels subassembly (11), second composite component (12) and rolling component (13), second composite component (12) fixed mounting unreels the upper end left side in horizon line (3), the second coating unreels subassembly (11) and is connected with second composite component (12) transmission, the second coating unreels subassembly (11) and is connected with rolling component (13) transmission through second composite component (12), first composite component (22) are connected with rolling component (13) transmission through second composite component (12).

2. The multifunctional three-layer coating compound machine according to claim 1, characterized in that: the first composite assembly (22) comprises a first composite vertical frame (221), a first connecting frame (222), a supporting frame (223), a first composite guide wheel (224), a first composite guide roller (225), a first positioning roller (226) and a first extrusion roller (227), the first composite vertical frame (221) is fixedly installed on the right side of the upper end of the horizon line (3), the first connecting frame (222) is fixedly connected to the upper end of the side wall of the first composite vertical frame (221), the supporting frame (223) is fixedly connected to one end of the first connecting frame (222), the first composite guide wheel (224) is fixedly installed in the first composite vertical frame (221), the first connecting frame (222) and the supporting frame (223) respectively, the first composite guide roller (225) is fixedly installed on the side wall of the first composite vertical frame (221), and the first positioning roller (226) is fixedly installed at the upper end of the first composite vertical frame (221), the first extrusion roller (227) is fixedly installed at the lower end inside the first composite vertical frame (221), and the first extrusion roller (227) is movably connected with the first positioning roller (226).

3. The multifunctional three-layer coating compound machine according to claim 1, characterized in that: the composite material unreeling assembly (21) comprises a composite material box (211), a composite material roller (212), a composite material guide wheel (213) and a substrate material (214), wherein the composite material box (211) is fixedly installed on the right side of the upper end of a ground level (3), the composite material roller (212) is fixedly installed inside the composite material box (211), the substrate material (214) is in winding connection with the outer wall of the composite material roller (212), the composite material guide wheel (213) is fixedly installed at the bottom of the composite material box (211), the substrate material (214) is in winding connection with a first composite guide wheel (224) through the composite material guide wheel (213), and the substrate material (214) is in winding connection with a first positioning roller (226) through the first composite guide wheel (224).

4. The multifunctional three-layer coating compound machine according to claim 3, characterized in that: the substrate recovery assembly (23) comprises a substrate recovery box (231), a substrate recovery roller (232) and a substrate recovery guide wheel (233), the substrate recovery box (231) is fixedly installed on the right side of the upper end of the ground line (3), the substrate recovery roller (232) is fixedly installed inside the substrate recovery box (231), the substrate recovery guide wheel (233) is fixedly installed inside the substrate recovery box (231), one end of the substrate material (214) is in winding connection with the first composite guide wheel (224) through a first positioning roller (226), one end of the substrate material (214) is in winding connection with the substrate recovery guide wheel (233) through the first composite guide wheel (224), and one end of the substrate material (214) is in winding connection with the substrate recovery roller (232) through the substrate recovery guide wheel (233).

5. The multifunctional three-layer coating compound machine according to claim 1, characterized in that: the first coating unreeling assembly (24) comprises a first coating material box (241), a first coating material roller (242), a first coating guide wheel (243) and a first cloth (244), wherein the first coating material box (241) is fixedly arranged at the right side of the upper end of the ground line (3), the first coating material roller (242) is fixedly arranged inside the first coating material box (241), the first cloth (244) is wound on the outer wall of the first coating material roller (242), the first coating guide wheel (243) is fixedly arranged inside the first coating material box (241), the first cloth (244) is wound on the outer wall of the first composite guide roller (225) through the first coating guide wheel (243), the first cloth (244) is wound on the outer wall of the first extrusion roller (227) through the first composite guide roller (225), and the first cloth (244) is attached to the substrate material (214), the first cloth (244) is in transmission connection with the second composite component (12) by winding a first extrusion roller (227).

6. The multifunctional three-layer coating compound machine according to claim 5, characterized in that: the second composite assembly (12) comprises a second composite vertical frame (121), a second composite guide roller (122), a second positioning roller (123), a second extrusion roller (124), a second composite guide wheel (125) and a second connecting frame (126), the second composite vertical frame (121) is fixedly arranged on the left side of the upper end of the horizon (3), the second composite guide roller (122) is fixedly arranged on the side wall of the second composite vertical frame (121), the second positioning roller (123) is fixedly arranged on the upper end inside the second composite vertical frame (121), the second extrusion roller (124) is fixedly arranged on the lower end inside the second composite vertical frame (121), the second connecting frame (126) is fixedly connected to the lower end of the side wall of the second composite vertical frame (121), and the second composite guide wheel (125) is respectively and fixedly arranged inside the second composite vertical frame (121) and the second connecting frame (126), one end of the first cloth (244) is connected with the second positioning roller (123) in a winding mode through a first winding roller (227) in a winding mode, one end of the first cloth (244) is connected with the second composite guide wheel (125) in a winding mode through the second positioning roller (123), and one end of the first cloth (244) is in transmission connection with the winding assembly (13) through the second composite guide wheel (125).

7. The multifunctional three-layer coating compound machine according to claim 1, characterized in that: the second coating unreeling assembly (11) comprises a second coating material box (111), a second coating material roller (112), a second coating guide wheel (113) and a second cloth (114), the second coating material box (111) is fixedly installed on the left side of the upper end of the ground level line (3), the second coating material roller (112) is fixedly installed inside the second coating material box (111), the second coating guide wheel (113) is fixedly installed inside the second coating material box (111), the second cloth (114) is wound on the outer wall of the second coating material roller (112), one end of the second cloth (114) is wound with the second composite guide wheel (113), one end of the second cloth (114) is wound with the second composite guide wheel (122), one end of the second cloth (114) is wound with a second squeezing roller (124) through the second composite guide wheel (122), and the second cloth (114) is attached to the first cloth (244), one end of the second cloth (114) is connected with a second coating guide wheel (113) in a winding mode through a squeezing roller in a winding mode, and one end of the second cloth (114) is connected with the winding assembly (13) through the second coating guide wheel (113) in a transmission mode.

8. The multifunctional three-layer coating compound machine according to claim 5, characterized in that: the winding assembly (13) comprises a winding box (131), a winding roller (132) and a winding guide wheel (133), the winding box (131) is fixedly installed on the left side of the upper end of the ground line (3), the winding roller (132) is fixedly installed inside the winding box (131), the winding guide wheel (133) is fixedly installed inside the winding box (131), and one ends of the first cloth (244) and the second cloth (114) are wound and connected with the winding roller (132) through the winding guide wheel (133).
