CN214903633U

CN214903633U - An automatic water replenishing device for kimchi jars

Info

Publication number: CN214903633U
Application number: CN202120743720.2U
Authority: CN
Inventors: 尹洪; 朱婕; 王勇; 张伟; 朱士杰
Original assignee: SICHUAN DONGPO CHINESE KIMCHI INDUSTRIAL TECHNOLOGY RESEARCH INSTITUTE
Current assignee: SICHUAN DONGPO CHINESE KIMCHI INDUSTRIAL TECHNOLOGY RESEARCH INSTITUTE
Priority date: 2021-04-13
Filing date: 2021-04-13
Publication date: 2021-11-30
Anticipated expiration: 2031-04-13

Abstract

The utility model discloses an automatic water replenishing device for a pickle jar, which comprises a double-layer protective net and a water supply device. The double-layer protective net is set inside the altar. The material of the double-layer protective net is set to float material. The double-layer protective net includes a top net and a bottom net. There is a preset distance between the top net and the bottom net. The top net and the bottom net The inner side is connected by the inner plate, the inner plate is located on the outside of the jar cover, the top net and the bottom net are connected by the outer plate, and the top net is provided with a circle of floating plates; Rod, the top of the water supply pipe is connected to the water storage tank, the bottom of the water supply pipe is set as a water outlet, the floating plate is used to seal or open the water outlet, and the lifting rod is connected to the water storage tank. It not only realizes automatic water supply to the edge of the altar to ensure the sealing of the kimchi jar, but also prevents the water along the altar from being polluted by dust, mosquitoes, etc. The double-layer protective net can be cleaned regularly and reused repeatedly.

Description

Automatic water replenishing device for pickle jar

Technical Field

The utility model relates to a technical field of pickles preparation especially relates to a pickle jar automatic water supply device.

Background

In the process of preparing the pickled vegetables, a pickled vegetable jar is often used, the vegetables and seasonings are sequentially put into the pickled vegetable jar, then the jar cover is covered, water is used for sealing, and the pickled vegetables are prepared through fermentation for a period of time. Because the fermentation time is long, water at the edge of the pickle jar is easy to evaporate, water needs to be added to the jar edge continuously, otherwise, the pickle jar is poor in sealing property, so that the pickle is deteriorated, the prior art adopts a mode of adding water periodically manually, wastes time and labor, or adopts a mode of supplying water electrically, and wastes resources; in addition, the jar is directly exposed to the air along with the water for a long time, so that the jar is easily polluted by absorbing dust or mosquitoes in the air, and further the quality of the pickle is possibly polluted.

SUMMERY OF THE UTILITY MODEL

For solving prior art not enough, the utility model provides an automatic moisturizing device of pickle jar through the cooperation of double-deck protection network with the delivery pipe, not only realizes supplying water along automatic for the jar, guarantees the leakproofness of pickle jar, can also prevent that the jar from receiving the pollution of dust, mosquito etc. along water, and double-deck protection network can regularly wash, and repetitive cycle uses.

In order to realize the purpose of the utility model, the following scheme is proposed:

the automatic water replenishing device for the pickle jar is applied to the jar edge of the pickle jar, the pickle jar further comprises a jar cover and a jar body, and the automatic water replenishing device comprises a double-layer protective net and a water supply device.

The double-layer protective net is arranged in the jar edge, the double-layer protective net is made of floating materials, the double-layer protective net comprises a top net and a bottom net, a preset space is arranged between the top net and the bottom net, the inner sides of the top net and the bottom net are connected through an inner plate, the inner plate is arranged on the outer side of the jar cover, the outer sides of the top net and the bottom net are connected through an outer plate, and the top net is provided with a circle of floating plates;

the water supply device is arranged above the pickle jar and comprises a water supply pipe, a water storage tank and a lifting rod, the water storage tank is connected to the top of the water supply pipe, the bottom of the water supply pipe is provided with a water outlet, the floating plate is used for sealing or opening the water outlet, and the lifting rod is connected with the water storage tank.

Furthermore, the water supply pipe is arranged in a ring shape, and the annular water outlet is matched with the floating plate.

Further, the floating plate is provided with a circle of groove, and the groove is used for being matched with the annular water outlet.

Further, the inner plate and the outer plate are both arranged to be net-shaped.

Further, the floating plate is located at the joint of the top net and the inner plate.

Furthermore, the size of the double-layer protective net is matched with the jar edge, the inner plate is tightly attached to the jar cover, and the outer plate is tightly attached to the inner wall of the jar edge.

The beneficial effects of the utility model reside in that:

1. through the cooperation of double-deck protection network and delivery pipe, not only can realize not only guaranteeing the leakproofness of pickle jar for jar edge automatic water supply, save artifical watered time cost and physical cost, can also prevent that the jar from receiving the pollution of dust, mosquito etc. along water, double-deck protection network also can regularly wash, and repetitive cycle uses.

2. Be equipped with the interval of predetermineeing between top net and the end net, set up to the material of floating because of the material of double-deck protection network, so end net floats in jar along the aquatic, and top net is located jar above along the water, does not contact water, and the effect of protection casing is not only played to top net, prevents that dust, mosquito from polluting jar along water, and top net is equipped with the round and floats the board moreover, floats the board and is not netted, utilizes the lift of floating the board to control the switching of delivery port, and is energy-concerving and environment-protective.

3. The delivery pipe sets up to ring shape, and annular delivery port and floating board phase-match, annular delivery port not only go out water evenly, and it is little to go out the water bore moreover, can form the siphon effect, and rivers slowly flow into the altar edge from the delivery pipe, prevent to splash everywhere when rivers whereabouts, and it is little to be favorable to promoting sealed effect to go out the water bore in addition.

Drawings

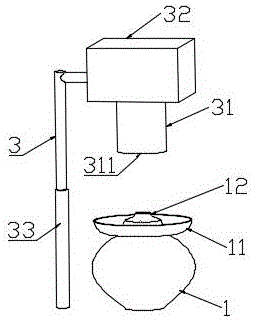

FIG. 1 is a structural diagram of a water replenishing device and a pickle jar in an embodiment of the present invention;

fig. 2 is a matching structure diagram of the floating plate and the water supply pipe according to the embodiment of the present invention;

fig. 3 is a structural diagram of a double-layer protective screening according to an embodiment of the present invention.

Detailed Description

As shown in fig. 1-3, the pickle jar 1 comprises a jar edge 11, a jar cover 12 and a jar body 13, and in order to automatically replenish water to the jar edge 11, the sealing effect is ensured, and meanwhile, the water on the jar edge 11 is prevented from being polluted by dust, mosquitoes and the like, the embodiment provides an automatic water replenishing device for the pickle jar, which comprises a double-layer protective net 2 and a water supply device 3.

Specifically, the double-layer protection net 2 is arranged in the jar edge 11, the material of the double-layer protection net 2 is set to be a floating material, after water is added into the jar edge 11, the double-layer protection net 2 can float in the jar edge 11, as shown in fig. 3, in the embodiment, the double-layer protection net 2 is set to be an annular cylinder, the double-layer protection net 2 comprises a top net 21 and a bottom net 22, the inner sides of the top net 21 and the bottom net 22 are connected through an inner plate 23, the inner plate 23 is located on the outer side of the jar cover 12, the outer sides of the top net 21 and the bottom net 22 are connected through an outer plate 24, the pressure is prevented from being different, the inner plate 23 and the outer plate 24 are both set to be netted, and therefore the water flow circulation is guaranteed.

Specifically, the water supply device 3 is arranged above the pickle jar 1, the water supply device 3 comprises a water supply pipe 31, a water storage tank 32 and a lifting rod 33, the water supply pipe 31 is connected with the water storage tank 32 at the top, the bottom of the water supply pipe 31 is provided with a water outlet 311, the lifting rod 33 is connected with the water storage tank 32, and the power source of the lifting rod 33 can be an air cylinder or an oil cylinder.

Through above mode, be equipped with between top net 21 and the end net 22 and predetermine the interval, the material because of double-deck protection network 2 sets up to the material that floats, so end net 22 floats in the jar along 11 aquatic, top net 21 is located the jar along 11 water tops, and not contact water, top net 21 not only plays the effect of protection casing, prevent the dust, mosquito pollutes the jar along 11 water, and top net 21 is equipped with round floating plate 25, floating plate 25 is not netted, when floating plate 25 hugs closely delivery port 311, delivery port 311 is sealed.

More specifically, the water supply pipe 31 is circular, the annular water outlet 311 is matched with the floating plate 25, the water outlet 311 is uniform in water outlet and small in water outlet aperture, a siphon effect can be formed, water flows into the jar edge 11 slowly from the water supply pipe 31, and the small water outlet aperture is favorable for improving the sealing effect.

More specifically, when the floating plate 25 is tightly attached to the water outlet 311, in order to further improve the sealing effect of the floating plate 25, the floating plate 25 is provided with a circle of groove 251, and the groove 251 is matched with the annular water outlet 311.

More specifically, the floating plate 25 is located at the junction of the top net 21 and the inner plate 23, thus effectively preventing water from splashing out when the water flows out of the water supply pipe 31.

More specifically, in order to completely prevent the water on the jar edge 11 from being polluted, the size of the double-layer protective net 2 is matched with the jar edge 11, the double-layer protective net 2 has certain strength while having floatability, and a certain shape is maintained, so that the inner plate 23 can be tightly attached to the jar cover 12, and the outer plate 24 is tightly attached to the inner wall of the jar edge 11.

When the water storage tank is used, the water valve of the water storage tank 32 is closed, and then the water storage tank 32 is filled with water for standby; after a jar cover 12 is covered on a pickle jar 1 by a conventional method, a double-layer protective net 2 is placed in a jar edge 11, and a top net 21 is upward, namely, the surface with a floating plate 25 is upward; then the lifting rod 33 is lowered to a proper position, at which the water supply pipe 31 is positioned above the floating plate 25; then the water valve of the water storage tank 32 is opened, and water starts to flow downwards from the water supply pipe 31 into the jar edge 11; the buoyancy of the double-layer protective net 2 gradually increases and then slowly rises, and when the groove 251 is matched with the annular water outlet 311, the water supply pipe 31 is closed and does not discharge water; after a period of time, the water in the jar edge 11 is partially evaporated, the double-layer protective net 2 descends due to smaller buoyancy, the water outlet 311 is exposed again, the water in the water storage tank 32 flows into the jar edge 11 again, and the process is repeated until the preparation of the pickle is finished; and finally, closing a water valve of the water storage tank 32, lifting the lifting rod 33 for next use, and cleaning the double-layer protective screening 2 regularly for repeated recycling.

The above embodiments are only used for illustrating the technical ideas and features of the present invention, and do not represent the only or limiting of the present invention. It should be understood by those skilled in the art that various changes and equivalent substitutions made herein may be made without departing from the scope of the invention as defined by the appended claims.

Claims

1. An automatic water replenishing device for a pickle jar is applied to a jar edge (11) of the pickle jar (1), the pickle jar (1) further comprises a jar cover (12) and a jar body (13), and the automatic water replenishing device is characterized by comprising a double-layer protective screen (2) and a water supply device (3);

the double-layer protective net (2) is arranged in the jar edge (11), the double-layer protective net (2) is made of floating materials, the double-layer protective net (2) comprises a top net (21) and a bottom net (22), a preset distance is arranged between the top net (21) and the bottom net (22), the inner sides of the top net (21) and the bottom net (22) are connected through an inner plate (23), the inner plate (23) is positioned on the outer side of the jar cover (12), the outer sides of the top net (21) and the bottom net (22) are connected through an outer plate (24), and the top net (21) is provided with a circle of floating plate (25);

the pickle jar is characterized in that the water supply device (3) is arranged above the pickle jar (1), the water supply device (3) comprises a water supply pipe (31), a water storage tank (32) and a lifting rod (33), the top of the water supply pipe (31) is connected with the water storage tank (32), the bottom of the water supply pipe (31) is provided with a water outlet (311), the floating plate (25) is used for sealing or opening the water outlet (311), and the lifting rod (33) is connected with the water storage tank (32).

2. The automatic water replenishing device for the pickle jar according to claim 1, wherein the water supply pipe (31) is arranged in a circular ring shape, and the annular water outlet (311) is matched with the floating plate (25).

3. The automatic water replenishing device for pickle jar according to claim 2, wherein the floating plate (25) is provided with a circle of groove (251), and the groove (251) is used for matching the annular water outlet (311).

4. The automatic water replenishing device for the pickle jar according to claim 1, wherein the inner plate (23) and the outer plate (24) are both provided with a net shape.

5. The automatic water replenishing device for the pickle jar according to claim 1, wherein the floating plate (25) is located at the connection of the top net (21) and the inner plate (23).

6. The automatic water replenishing device for the pickle jar according to claim 1, 4 or 5, wherein the size of the double-layer protective screen (2) is matched with the jar edge (11), the inner plate (23) is tightly attached to the jar cover (12), and the outer plate (24) is tightly attached to the inner wall of the jar edge (11).
