Abstract
本实用新型提供一种小型体质检查站用体质综合测试台结构，将体重测量部件卡接在框架内，体重测量部件不会随意跑动，增加了体质综合测试台的稳定性，且在框架上固定有盖板，保证整个测试台表面为平面结构，在盖板上覆盖防护垫，为塑胶地垫的防护垫能够起到防滑、缓冲作用，保护使用者避免受伤，框架、盖板、防护垫还可保护体重测量部件，另外使用此种方式装配形成的体质综合测试台可直接拿取现有体重秤使用，不仅不会增加生产成本，当体重测量传感器故障时也只需将防护垫、盖板掀起就能将体重测量部件取出维修，无需整机拆除，检修方便。
The utility model provides a structure of a comprehensive physical fitness test bench for a small physical fitness examination station. The body weight measuring component is clamped in the frame, and the weight measuring component does not run at will, which increases the stability of the comprehensive physical fitness testing bench. A cover plate is fixed to ensure that the entire surface of the test bench is a flat structure. The cover plate is covered with protective pads. The protective pads are plastic floor mats, which can play anti-slip and buffer functions to protect users from injury. Frame, cover, protective pad It can also protect the weight measurement components. In addition, the comprehensive physical fitness test bench assembled in this way can be directly used with the existing weight scale, which not only does not increase the production cost, but also only needs to replace the protective pad and cover when the weight measurement sensor fails. The weight measuring part can be taken out for maintenance by lifting, without dismantling the whole machine, and the maintenance is convenient.
Description
Technical Field
The utility model relates to a body-building apparatus technical field especially relates to a small-size physique integrated test platform structure for physical examination station.
Background
Along with the continuous improvement of living standards of people, health problems are concerned more and more, therefore, physiological parameters of a human body are required to be tested to know the health condition of the human body, a small-sized physique inspection station is a device with different physique test modules, can be used for selecting, testing and training professionals and ordinary people in the fields of sports, traffic, education, medicine and the like, a comprehensive physique test is also one of test items, can test the height, the weight, the body composition and the heart rate, a weight measuring part is required when measuring the weight, the existing weight measuring part is used for directly measuring the weight by using a weight scale, the weight measuring part is convenient to move and can be directly taken for use, but has poor fixing effect, a physical examination person can move after standing up and is inconvenient to use, and the existing weight measuring part is used for ensuring the stability, direct production integral type weight measurement platform is connected with small-size physique inspection station, but this kind of integral type weight measurement platform not only increases manufacturing cost, still needs the complete machine to demolish when weight measurement sensor trouble and overhauls, overhauls inconveniently.
Disclosure of Invention
According to the technical problem, the utility model provides a comprehensive physique test platform structure for a small physique inspection station, which is characterized by comprising a frame, a weight measuring part, a cover plate and a protective pad, wherein the weight measuring part is clamped in the frame, the cover plate is arranged on the frame, and the protective pad is covered on the cover plate;
the frame comprises an outer frame, a transverse rod, a longitudinal rod and a bottom rib, wherein the bottom rib is arranged in the outer frame, the transverse rod is transversely arranged in the outer frame, the longitudinal rod is longitudinally arranged on the outer frame, and the transverse rod and the longitudinal rod are both arranged on the upper side of the bottom rib; the number of the cross rods is 2, the number of the longitudinal rods is 2, a placing groove is formed by the 2 cross rods and the inner side of each longitudinal rod in a surrounding mode, and the weight measuring component is placed in the placing groove; the protection pad is provided with a positioning groove, the positioning groove vertically corresponds to the through groove, and the shape of the positioning groove is the same as the shape of the transverse section of the weight measurement component in the vertical direction.
The frame is formed by the quarter bend welding, the horizontal pole is the quarter bend, the vertical pole is the quarter bend, horizontal pole and frame welded connection, vertical pole both ends and horizontal pole welded connection.
The longitudinal rods comprise 2 inner rods and 2 outer rods, and the inner rods are respectively sleeved inside the left side and the right side of each outer rod; the outer end of the inner rod is provided with a fixed plate, the fixed plate is provided with a jackscrew, and the inner rod is connected with the cross rod through the jackscrew; the clamping plates are arranged at two ends of the cross rod, jackscrews are mounted on the clamping plates, and the cross rod is connected with the outer frame through the jackscrews.
The protection pad is a plastic ground mat, and the cover plate is a steel plate.
The cover plate is fixed on the frame through an anti-theft screw; the weight measuring part is connected with the cross rod and the longitudinal rod of the frame through bolts.
The utility model has the advantages that: the utility model discloses set up the frame outside the weight measurement part, and with the joint of weight measurement part in the frame, simultaneously after the frame is connected with small-size physique inspection station, the weight measurement part can not run at will, the stability of physique integrated test platform has been increased, and fix as the apron of steel sheet on the frame with anti-theft screw, guarantee that whole testboard surface is planar structure and simple to operate, later cover the protection pad on the apron, the protection pad for the plastic ground mat can play antiskid, cushioning effect, protect the user and avoid being injured, the physique integrated test platform that uses this kind of mode assembly to form can directly take current weight scale and use, not only can not increase manufacturing cost, also only need to lift protection pad, apron when the weight measurement sensor trouble and just can take out the weight measurement part maintenance, need not the complete machine and demolish, the maintenance is convenient;
the frame comprises an outer frame, a transverse rod, a longitudinal rod and a bottom rib, wherein the transverse rod, the longitudinal rod and the bottom rib are all arranged in the outer frame, the transverse rod and the longitudinal rod are rectangular tubes, the size is small, the production, the manufacture and the transportation are convenient, the bottom rib can support a weight measuring part, the transverse rod and the longitudinal rod surround to form a placing groove, the weight measuring part can be limited, and meanwhile, the weight measuring part is connected with the transverse rod and the longitudinal rod through bolts, so that the weight measuring part can be stably fixed in the frame; the cover plate is provided with through grooves corresponding to the weight measuring components up and down, and the protective pad is provided with positioning grooves corresponding to the through grooves up and down, so that the weight measuring components can be exposed, and the weight measuring result can be ensured.
When the outer frame, the transverse rods and the longitudinal rods are rectangular tubes and are connected with one another in a welding mode, the overall structure of the frame is stable; when the horizontal pole of this application passes through jackscrew and the frame is fixed, the vertical pole uses jackscrew and horizontal pole fixed, not only can not influence the structural stability of frame, and the size of its standing groove is still adjustable, applicable in the weight measurement part of different models.
Drawings

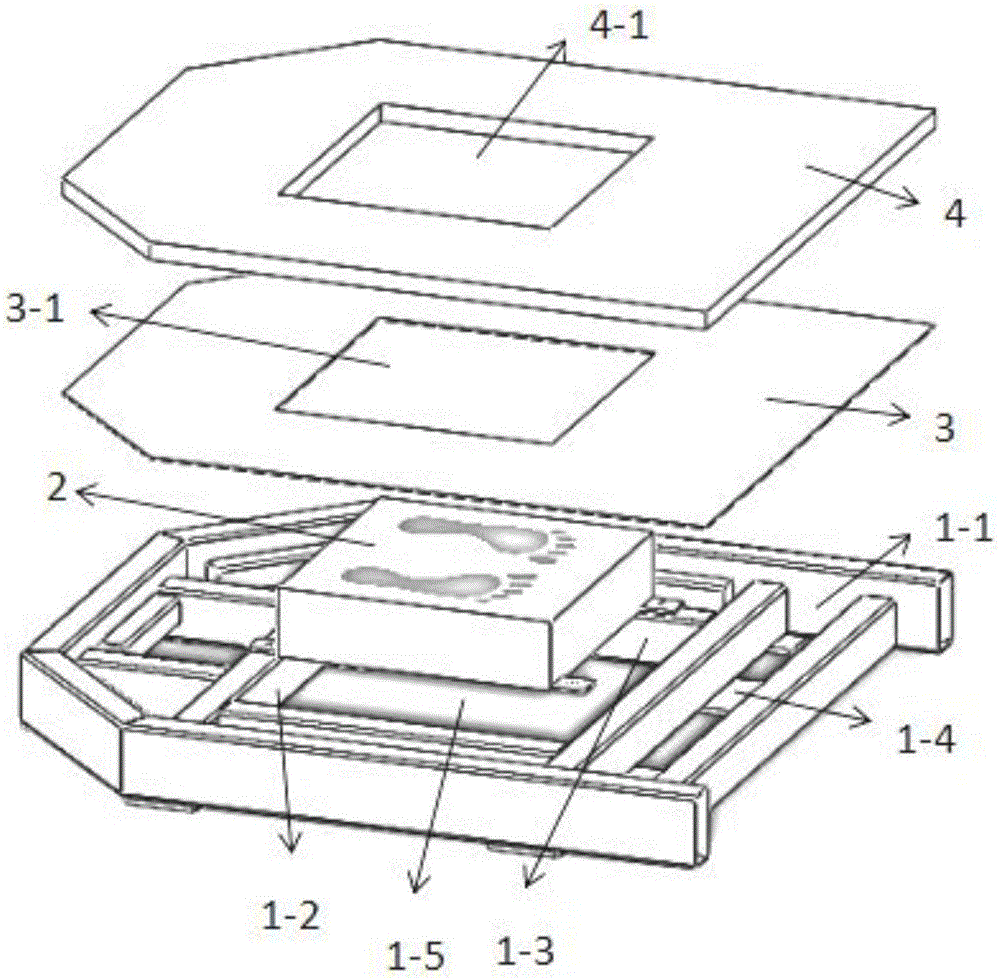

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is a top view of a frame according to a third embodiment of the present invention.
As shown in the figure: the weight measuring device comprises an outer frame 1-1, a cross rod 1-2, a clamping plate 1-2-1, a longitudinal rod 1-3, an inner rod 1-3-2, a fixing plate 1-3-1, an outer rod 1-3-3, a bottom rib 1-4, a placement groove 1-5, a weight measuring part 2, a cover plate 3-1, a through groove 3-1, a protective pad 4-1, a positioning groove 4-1 and a top thread 5.
Detailed Description
Example 1
The utility model provides a constitution comprehensive test board structure for a small constitution inspection station, which is characterized by comprising a frame, a weight measuring part 2, a cover plate 3 and a protective pad 4, wherein the weight measuring part 2 is clamped in the frame, the cover plate 3 is arranged on the frame, and the protective pad 4 is covered on the cover plate 3;
the frame comprises an outer frame 1-1, a cross rod 1-2, a longitudinal rod 1-3 and a bottom rib 1-4, wherein the bottom rib 1-4 is installed in the outer frame 1-1, the cross rod 1-2 is installed in the outer frame 1-1 in a transverse mode, the longitudinal rod 1-3 is installed on the outer frame 1-1 in a longitudinal mode, and the cross rod 1-2 and the longitudinal rod 1-3 are all arranged on the upper side of the bottom rib 1-4; 2 transverse rods 1-2, 2 longitudinal rods 1-3, 2 transverse rods 1-2 and the inner sides of the longitudinal rods 1-3 surround to form a placing groove 1-5, and the weight measuring part 2 is placed in the placing groove 1-5; the middle part of the cover plate 3 is provided with a through groove 3-1, the shape of the through groove 3-1 is the same as the shape of the transverse section of the weight measuring part 2 in the vertical direction, the through groove 3-1 is arranged above the weight measuring part 2, the protective pad 4 is provided with a positioning groove 4-1, the positioning groove 4-1 corresponds to the through groove 3-1 in the vertical direction, and the shape of the positioning groove 4-1 is the same as the shape of the transverse section of the weight measuring part 2 in the vertical direction.
The outer frame 1-1 is formed by welding rectangular pipes, the transverse rods 1-2 are rectangular pipes, the longitudinal rods 1-3 are rectangular pipes, the transverse rods 1-2 are welded with the outer frame 1-1, and two end portions of the longitudinal rods 1-3 are welded with the transverse rods 1-2.
The longitudinal rods 1-3 comprise inner rods 1-3-2 and outer rods 1-3-3, wherein 2 inner rods 1-3-2 are respectively sleeved inside the left side and the right side of the outer rods 1-3-3; the outer end of the inner rod 1-3-2 is provided with a fixing plate 1-3-1, a jackscrew 5 is arranged on the fixing plate 1-3-1, and the inner rod 1-3-2 is connected with the cross rod 1-2 through the jackscrew 5; two ends of the cross rod 1-2 are provided with clamping plates 1-2-1, the clamping plates 1-2-1 are provided with jackscrews 5, and the cross rod 1-2 is connected with the outer frame 1-1 through the jackscrews 5.
The protective pad 4 is a plastic floor mat, and the cover plate 3 is a steel plate.
The cover plate 3 is fixed on the frame through an anti-theft screw; the weight measuring part 2 is connected with the cross rods 1-2 and the longitudinal rods 1-3 of the frame through bolts.
Example 2
When the utility model is used, a rectangular tube is welded to form a frame, at the moment, the bottom rib 1-4, the cross bar 1-2 and the longitudinal bar 1-3 are fixed in the outer frame 1-1, meanwhile, the cross bar 1-2 and the longitudinal bar 1-3 surround to form a placement groove 1-5, the weight measuring component 2 is fixed on the frame by bolts, at the moment, the placement groove 1-5 can limit the weight measuring component 2, the bottom rib 1-4 can support the weight measuring component 2, and then the bottom rib 1-4 is covered by the cover plate 3 which is a steel plate, so as to ensure that the surface of the whole test bench is in a plane structure and fixed with the frame by anti-theft screws, at the moment, the through groove 3-1 corresponds to the weight measuring component 2, so that the weight measuring component 2 is exposed, then the cover plate 3 is covered by the protective pad 4, the protective pad 4 of the plastic ground mat can play the roles of anti-skid and buffering, and protect a user from being injured, meanwhile, the positioning groove 4-1 corresponds to the weight measuring component 2 up and down, so that the weight measuring component 2 can be exposed to ensure the weight measuring result, then the joint of the weight measuring component 2 is led to the end part of the outer frame 1-1 which is a rectangular tube, and then the frame carries the weight measuring component 2 to be connected with a small-sized physique inspection station.
Example 3
When the cross bar 1-2 is fixed with the outer frame 1-1 by using the jackscrew 5 and the longitudinal bar 1-3 is fixed with the cross bar 1-2 by using the jackscrew 5, the weight measuring part 2 is placed on the upper side of the bottom rib 1-4, then the cross bar 1-2 is adjusted along the front-back direction until the end surface of the inner side of 2 cross bars 1-2 is contacted with the weight measuring part 2, the jackscrew 5 on the clamping plate 1-2-1 of the cross bar 1-2 is screwed down to fix the cross bar 1-2 and the outer frame 1-1, when the cross bar 1-2 moves, 2 cross bars 1-2 press the longitudinal bar 1-3 along the inner side, the inner bar 1-3-2 and the outer bar 1-3-3 of the longitudinal bar 1-3 contract relatively, at the moment, the length of the longitudinal bar 1-3 is changed, then the longitudinal bar 1-3 moves along the left-right direction, after the end faces of the inner sides of the longitudinal rods 1-3 are in contact with the weight measuring parts 2, the jackscrews 5 on the fixing plates 1-3-1 of the longitudinal rods 1-3 are screwed tightly, so that the longitudinal rods 1-3 and the transverse rods 1-2 are fixed, and the size of the placing grooves 1-5 is adjusted at the moment, so that the weight measuring parts 2 can adapt to different models.
The basic principles and the main features of the invention and the advantages of the invention have been shown and described above. The utility model discloses each part that mentions is the common technique in prior art, and the technical personnel of this trade should understand, the utility model discloses do not receive the restriction of above-mentioned embodiment, the description only is the explanation in above-mentioned embodiment and the description the principle of the utility model, under the prerequisite that does not deviate from the spirit and the scope of the utility model, the utility model discloses still can have various changes and improvement, these changes and improvement all fall into the protection of claim the utility model is within the scope. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (6)
1. A structure of a comprehensive physique test platform for a small physique inspection station is characterized by comprising a frame, a weight measuring component, a cover plate and a protective pad, wherein the weight measuring component is clamped in the frame, the cover plate is mounted on the frame, and the protective pad is covered on the cover plate;
the frame comprises an outer frame, a transverse rod, a longitudinal rod and a bottom rib, wherein the bottom rib is arranged in the outer frame, the transverse rod is transversely arranged in the outer frame, the longitudinal rod is longitudinally arranged on the outer frame, and the transverse rod and the longitudinal rod are both arranged on the upper side of the bottom rib; the number of the cross rods is 2, the number of the longitudinal rods is 2, a placing groove is formed by the 2 cross rods and the inner side of each longitudinal rod in a surrounding mode, and the weight measuring component is placed in the placing groove;
the protection pad is provided with a positioning groove, the positioning groove vertically corresponds to the through groove, and the shape of the positioning groove is the same as the shape of the transverse section of the weight measurement component in the vertical direction.
2. The structure of the comprehensive test platform for constitutions in small-sized constitution inspection station according to claim 1, wherein said outer frame is formed by welding rectangular pipes, said cross bar is rectangular pipe, and said longitudinal bar is rectangular pipe.
3. The structure of the comprehensive test stand for physical constitution of a small-sized physical constitution examination station according to claim 2, wherein the cross bar is welded to the outer frame, and both ends of the vertical bar are welded to the cross bar.
4. The structure of the comprehensive test stand for constitutions of a small-sized constitution examination station according to claim 2, wherein said vertical rods comprise inner rods and outer rods, 2 of said inner rods are respectively sleeved inside the left and right sides of said outer rods; the outer end of the inner rod is provided with a fixed plate, the fixed plate is provided with a jackscrew, and the inner rod is connected with the cross rod through the jackscrew; the clamping plates are arranged at two ends of the cross rod, jackscrews are mounted on the clamping plates, and the cross rod is connected with the outer frame through the jackscrews.
5. The structure of the comprehensive test stand for physical constitution of small physical constitution examination station as claimed in claim 1, wherein said protective pad is a plastic floor mat and said cover plate is a steel plate.
6. The structure of the comprehensive test stand for physical constitution of a small-sized physical constitution examination station according to claim 1, wherein said cover plate is fixed to the frame by means of anti-theft screws; the weight measuring part is connected with the cross rod and the longitudinal rod of the frame through bolts.
