Abstract
本实用新型涉及干燥机技术领域，尤其涉及一种滚筒刮板干燥机用可调式刮板结构，解决了现有技术中手动调节需要暂停机器运转，较为麻烦，无法快速及时的对刮刀进行调整的问题。一种滚筒刮板干燥机用可调式刮板结构，包括滚筒，滚筒的一侧设置有刮板，刮板的底部一侧设置底座，底座的顶部通过圆板与刮板滑动连接，刮板远离滚筒的一端可拆卸连接有支架，支架的底部固定连接有与圆板顶部边缘处滑动连接的滑块，圆板的底部中心处设置有电机，电机的输出轴通过轴套贯穿圆板，电机的输出轴的延伸段的一侧传动连接有与滑块固定连接的连接杆。本实用新型应对不同厚度的物料，便于实现自动调节，省时省力，因此有效提高了生产效率。
The utility model relates to the technical field of dryers, in particular to an adjustable scraper structure for a drum scraper dryer, which solves the problem that manual adjustment in the prior art needs to suspend the operation of the machine, which is troublesome and cannot adjust the scraper quickly and in time. question. An adjustable scraper structure for a drum scraper dryer, comprising a drum, a scraper is arranged on one side of the drum, a base is arranged on the bottom side of the scraper, the top of the base is slidably connected with the scraper through a circular plate, and the scraper is far away from the One end of the drum is detachably connected with a bracket, the bottom of the bracket is fixedly connected with a slider that is slidably connected to the top edge of the circular plate, a motor is arranged at the bottom center of the circular plate, and the output shaft of the motor penetrates the circular plate through the shaft sleeve, and the motor One side of the extension section of the output shaft is drive-connected with a connecting rod that is fixedly connected with the sliding block. The utility model copes with materials of different thicknesses, facilitates automatic adjustment, saves time and effort, and thus effectively improves the production efficiency.
Description
Technical Field
The utility model relates to a desiccator technical field especially relates to a scraper blade structure with adjustable cylinder scraper blade desiccator is used.
Background
When the dryer is in operation, because the dependence of different materials on the cylinder of the dryer is different, when the cylinder adsorbs different materials, the thickness of the material layer of the materials on the cylinder is different, and therefore the angle and the contact force of the scraper blade and the cylinder are required to be adjusted to scrape all the materials as far as possible.
However, at present, the angle of the scraper is adjusted in a manual mode, however, the operation of the machine needs to be suspended in manual adjustment, which is troublesome, and the scraper cannot be adjusted quickly and timely, so that the efficiency of processing and production is reduced, and a large amount of energy is consumed in the moment of starting and stopping the machine, so that the energy is wasted due to frequent starting and stopping.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a scraper blade structure with adjustable cylinder scraper dryer is used has solved among the prior art manual regulation and has needed the machine operation of suspending, and is comparatively troublesome, the unable problem of in time carrying out the adjustment to the scraper fast.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the utility model provides a scraper blade structure with adjustable cylinder scraper blade drying machine, includes the cylinder, one side of cylinder is provided with the scraper blade, bottom one side of scraper blade sets up the base, plectane and scraper blade sliding connection are passed through at the top of base, the one end that the cylinder was kept away from to the scraper blade can be dismantled and be connected with the support, the bottom fixedly connected with of support and plectane top edge sliding connection's slider, the bottom center department of plectane is provided with the motor, the output shaft of motor runs through the plectane through the axle sleeve, one side transmission of the extension section of the output shaft of motor is connected with the connecting rod with slider fixed connection.
Preferably, the top edge of the circular plate is fixedly connected with a sliding rail which is arc-shaped in front view and is matched with the sliding block.
Preferably, four corners of the bottom of the circular plate are fixedly connected with upright columns fixedly connected with the base, and the bottom of the motor is fixedly connected with a mounting bracket fixedly connected with a bottom bolt of the circular plate.
Preferably, infrared sensor is installed to top one side of plectane, the internally mounted of installing support has the PLC controller, infrared sensor's output is connected with the input electricity of PLC controller, the output of PLC controller is connected with the input electricity of motor.
Preferably, the front view of support is L shape, one side bolt fixed connection of the vertical section of scraper blade and support, one side of scraper blade is provided with the clearance scraper with scraper blade looks adaptation, one side fixedly connected with a plurality of guide arm that runs through support horizontal segment one side that the clearance scraper is close to the support.
Preferably, the cylinder is installed at the center of one side of the horizontal section of the support, and the output end of the cylinder penetrates through the support and is fixedly connected with one side of the cleaning scraper.
The utility model discloses possess following beneficial effect at least:
according to the actual material thickness of cylinder outer wall, infrared sensor detects the thickness of cylinder lateral wall material, with signal transmission to PLC controller, PLC controller is according to material thickness control motor, open the motor, the output of motor passes through the connecting rod and drives the slider, support and scraper blade slide on the slide rail, because the orbit of slide rail is the arc so slide rail one end is close to the cylinder, the cylinder is kept away from to the other end, thereby the interval of adjustment scraper blade and cylinder outer wall, thereby the material to different thickness, when needs clear up the scraper blade, open the cylinder, the output of cylinder drives the clearance scraper and passes through the guide arm and slide on the support, clear up the remaining material on the scraper blade, it is simple and convenient, it is effectual and efficient to clear up, thereby be convenient for realize automatically regulated, time saving and labor saving, therefore, the production efficiency is effectively improved.
The utility model discloses still possess following beneficial effect:
through the setting of plectane, support, slider and motor, according to the actual material thickness of cylinder outer wall, open the motor, the output of motor passes through the connecting rod and drives slider, support and scraper blade and slide in the edge of plectane to the interval of adjustment scraper blade and cylinder outer wall, thereby the material of different thickness of reply is convenient for realize automatically regulated, and labour saving and time saving has consequently effectively improved production efficiency.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without any creative effort.

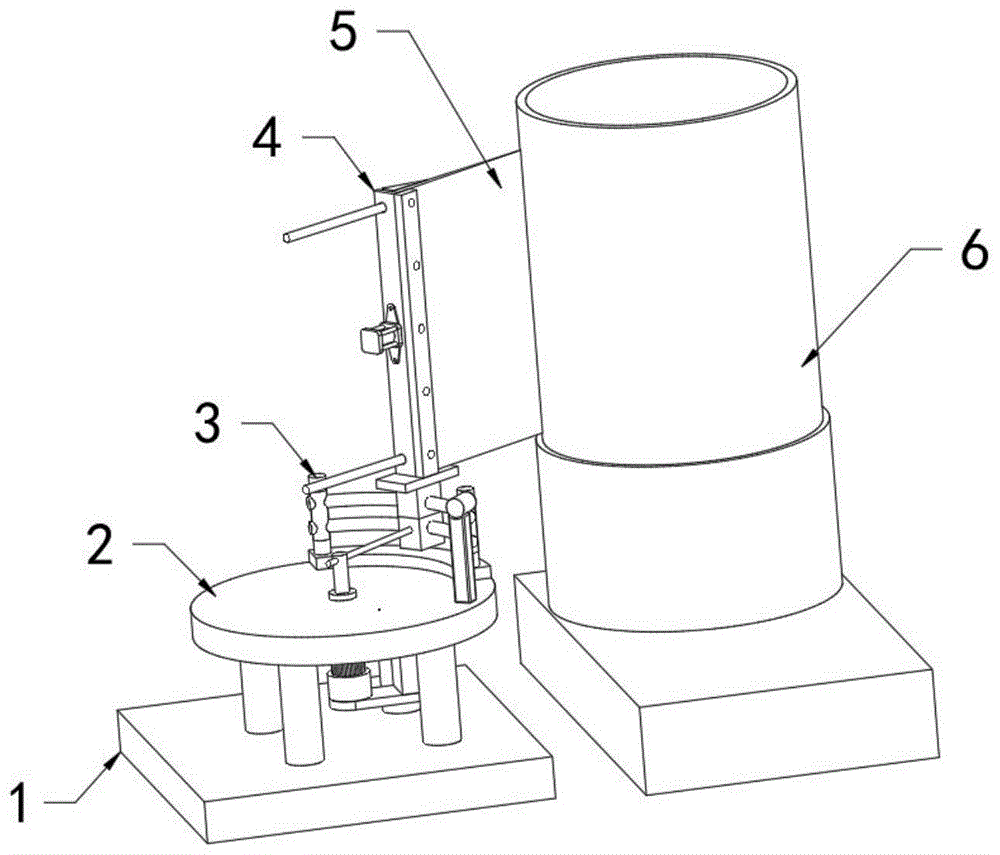

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the mounting bracket of the present invention;
fig. 3 is the structure schematic diagram of the cleaning scraper of the utility model.
In the figure: 1. a base; 2. a circular plate; 3. a slide rail; 4. a support; 5. a squeegee; 6. a drum; 7. a column; 8. an infrared sensor; 9. a connecting rod; 10. a slider; 11. mounting a bracket; 12. a motor; 13. cleaning a scraper; 14. a guide bar; 15. and a cylinder.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Referring to fig. 1-3, an adjustable scraper structure for a roller scraper dryer comprises a roller 6, a scraper 5 is arranged on one side of the roller 6, a base 1 is arranged on one side of the bottom of the scraper 5, the top of the base 1 is slidably connected with the scraper 5 through a circular plate 2, a support 4 is detachably connected to one end, far away from the roller 6, of the scraper 5, a slider 10 is fixedly connected to the bottom of the support 4 and slidably connected to the top edge of the circular plate 2, a motor 12 is arranged at the center of the bottom of the circular plate 2, an output shaft of the motor 12 penetrates through the circular plate 2 through a shaft sleeve, a connecting rod 9 is connected to one side of an extension section of the output shaft of the motor 12 in a transmission manner and is fixedly connected with the slider 10, specifically, the motor 12 is started according to the actual material thickness of the outer wall of the roller 6 through the arrangement of the circular plate 2, the support 4, the slider 10 and the motor 12, the output end of the motor 12 drives the slider 10 through the connecting rod 9, Support 4 and scraper blade 5 slide in the edge of plectane 2 to the interval of adjustment scraper blade 5 and 6 outer walls of cylinder, thereby the material of coping different thickness is convenient for realize automatically regulated, and labour saving and time saving has consequently effectively improved production efficiency.
The scheme has the following working processes:
according to the actual material thickness of the outer wall of the roller 6, the infrared sensor 8 detects the thickness of the material on the outer side wall of the roller 6, a signal is transmitted to the PLC controller, the PLC controller controls the motor 12 according to the material thickness, the motor 12 is started, the output end of the motor 12 drives the slider 10, the bracket 4 and the scraper 5 to slide on the slide rail 3 through the connecting rod 9, one end of the slide rail 3 is close to the roller 6 because the track of the slide rail 3 is arc-shaped, the other end of the slide rail 3 is far away from the roller 6, so that the distance between the scraper 5 and the outer wall of the roller 6 is adjusted, the materials with different thicknesses are dealt with, when the scraper 5 needs to be cleaned, the air cylinder 15 is started, the output end of the air cylinder 15 drives the cleaning scraper 13 to slide on the bracket 4 through the guide rod 14, the residual materials on the scraper 5 are cleaned, the cleaning is simple and convenient, the cleaning effect is good and high in efficiency, thereby being convenient to realize automatic adjustment, time and labor saving, therefore, the production efficiency is effectively improved.
According to the working process, the following steps are known:
through the setting of plectane 2, support 4, slider 10 and motor 12, according to the actual material thickness of the 6 outer walls of cylinder, open motor 12, the output of motor 12 passes through connecting rod 9 and drives slider 10, support 4 and scraper blade 5 and slide in the edge of plectane 2 to the interval of adjustment scraper blade 5 and the 6 outer walls of cylinder, thereby the material of different thickness is responded to, be convenient for realize automatically regulated, labour saving and time saving, consequently, production efficiency has effectively been improved.
Further, the top edge fixedly connected with main view of plectane 2 is the arc and with slide rail 3 of slider 10 looks adaptation, and is specific, through the setting of slide rail 3, the movement track of being convenient for is more stable, improves regulation efficiency.
Further, the equal fixedly connected with of four corners in bottom of plectane 2 and base 1 fixed connection's stand 7, the bottom fixedly connected with of motor 12 and plectane 2 bottom bolt fixed connection's installing support 11, it is specific, through the setting of installing support 11, improved the connection stability of motor 12, and the later stage of being convenient for is maintained the motor 12 dismouting.
Further, infrared sensor 8 is installed to top one side of plectane 2, the internally mounted of installing support 11 has the PLC controller, infrared sensor 8's output is connected with the input electricity of PLC controller, the output of PLC controller is connected with the input electricity of motor 12, specifically, through infrared sensor 8's setting, according to the actual material thickness of 6 outer walls of cylinder, infrared sensor 8 detects the thickness of 6 lateral wall materials of cylinder, with signal transmission to the PLC controller, the PLC controller is according to material thickness control motor 12.
Furthermore, the front view of the support 4 is L-shaped, the scraper 5 is fixedly connected with one side of the vertical section of the support 4 through a bolt, one side of the scraper 5 is provided with a cleaning scraper 13 matched with the scraper 5, and one side of the cleaning scraper 13 close to the support 4 is fixedly connected with a plurality of guide rods 14 penetrating through one side of the horizontal section of the support 4.
Further, cylinder 15 is installed at one side center department of the 4 horizontal segments of support, and one side fixed connection of support 4 and clearance scraper 13 is run through to the output of cylinder 15, and is concrete, through the setting of clearance scraper 13 and cylinder 15, when needs clear up scraper blade 5, open cylinder 15, and the output of cylinder 15 drives clearance scraper 13 and slides on support 4 through guide arm 14, clears up the remaining material on scraper blade 5, and is simple convenient, and it is effectual and efficient to clear up.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the principles of the present invention may be applied to any other embodiment without departing from the spirit and scope of the present invention. The scope of the invention is defined by the appended claims and equivalents thereof.
