Abstract

The utility model discloses a microbial fermentation lees fodder low temperature steam drying equipment relates to steam drying equipment technical field, including preceding base and back base, the top of preceding base and back base is fixed mounting respectively has rotary drum drive unit and unloading drive unit, one side fixed mounting of back base has steam engine unit, movable mounting has the rotary drum unit between rotary drum drive unit and the unloading drive unit, and the putty net among the unloading drive unit that this microbial fermentation lees fodder low temperature steam drying equipment established can realize the automatic unloading of stoving material under the condition that does not influence the steam fan and carry out the stoving operation, has also avoided the leakage of raw materials in the stoving process simultaneously.

Description

Low-temperature steam drying equipment for microbial fermentation of vinasse feed
Technical Field
The utility model relates to a steam drying equipment technical field specifically is a little biological fermentation lees fodder low temperature steam drying equipment.
Background
The steam dryer utilizes heat emitted by a steam radiator according to the principle of heat exchange and a heat cycle process generated by continuous air suction of an air suction fan to ensure that materials in a rotary drum are continuously turned over positively and negatively in the rotary drum to be gradually dried, and the low-temperature steam drying application in production and life is more and more extensive.
However, in the prior art, the low-temperature steam drying equipment is complex in the blanking process after the raw materials are dried due to the arrangement of the fan and the rotary drum, a large amount of manpower is wasted to carry out blanking, and the working efficiency is reduced.
SUMMERY OF THE UTILITY MODEL
Not enough to prior art, the utility model provides a little biological fermentation lees fodder low temperature steam drying equipment has solved the complicated inconvenient problem of unloading process.
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: a low-temperature steam drying device for a microbial fermentation vinasse feed comprises a front base and a rear base, wherein a rotary drum driving unit and a blanking driving unit are fixedly mounted above the front base and the rear base respectively, a steam engine unit is fixedly mounted on one side of the rear base, and a rotary drum unit is movably mounted between the rotary drum driving unit and the blanking driving unit;
the rotary drum driving unit comprises a first fixing frame, one side of the first fixing frame is fixedly connected with a rotary drum motor, and a first rotary drum outer bearing is fixedly connected between the first fixing frame and the rotary drum unit;
the blanking driving unit comprises a second fixing frame, a blanking motor is fixedly connected to one side of the second fixing frame, the blanking motor is rotatably connected with a rotating shaft, a second rotating drum outer bearing is fixedly connected between the second fixing frame and the rotating drum unit, a blanking net bearing is in threaded connection with the outer side of the rotating shaft, and a blanking net is fixedly connected to the outer side of the blanking net bearing.
Furthermore, the steam engine unit comprises a steam fan, the left side and the right side above the steam fan are respectively and fixedly connected with an air inlet pipe and an air outlet pipe, the air inlet pipe and the air outlet pipe work simultaneously, and the air inlet amount is the same as the air outlet amount.
Further, the rotary drum unit comprises a storage drum, the storage drum is close to a feed inlet fixedly connected to the upper side of one side of the blanking driving unit, and is close to a discharge outlet fixedly connected to the lower side of one side of the rotary drum driving unit.
Further, the inboard fixed mounting of second mount has a storage section of thick bamboo closing cap, the storage section of thick bamboo closing cap does not rotate when axis of rotation and storage section of thick bamboo rotate, just air-supply line and play tuber pipe run through fixed connection in the downside of storage section of thick bamboo closing cap.
Furthermore, the first rotary drum outer bearing and the second rotary drum outer bearing are rotatably connected with the storage drum, and when the rotary drum motor drives the storage drum to rotate, the first rotary drum outer bearing and the second rotary drum outer bearing cannot rotate.
Furthermore, a plurality of through holes are formed in the surface of the blocking net, the through holes are smaller than the raw materials, the circumference of the blocking net is the same as the inner wall of the storage cylinder, and when the storage cylinder rotates, the blocking net cannot rotate.
Advantageous effects
The utility model provides a little biological fermentation lees fodder low temperature steam drying equipment. Compared with the prior art, the method has the following beneficial effects:
1. the utility model provides a microbial fermentation lees fodder low temperature steam drying equipment, through the unloading drive unit of storage cylinder one side fixed mounting, rotate by motor drive pivot can concentrate the raw materials after drying and push in the discharge gate of storage cylinder below, realize automatic unloading.
2. The utility model provides a microbial fermentation lees fodder low temperature steam drying equipment, through rotary drum drive unit and unloading drive unit's separately setting, can not influence each other when the stoving during operation at the rotary drum unit, and because the through-hole that putty net surface was seted up for steam fan can fully pass in and out the storage section of thick bamboo at the during operation steam.
Drawings
FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is an exploded view of the present invention;

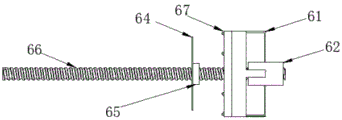

fig. 3 is a front view of the discharging driving unit of the present invention;
FIG. 4 is a front view of the present invention;
fig. 5 is a sectional view taken along line a-a of fig. 4 according to the present invention.
In the figure: 1. a front base; 2. a rear base; 3. a steam engine unit; 31. a steam fan; 32. an air inlet pipe; 33. an air outlet pipe; 4. a drum driving unit; 41. a first fixing frame; 42. a drum motor; 43. a first drum outer bearing; 5. a drum unit; 51. a storage cylinder; 52. a feed inlet; 53. a discharge port; 6. a blanking driving unit; 61. a second fixing frame; 62. a blanking motor; 63. sealing the storage cylinder; 64. a blocking net; 65. a putty mesh bearing; 66. a rotating shaft; 67. a second drum outer bearing.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a low-temperature steam drying device for a microbial fermentation vinasse feed comprises a front base 1 and a rear base 2, wherein a rotary drum driving unit 4 and a blanking driving unit 6 are respectively and fixedly arranged above the front base 1 and the rear base 2, a steam engine unit 3 is fixedly arranged on one side of the rear base 2, a rotary drum unit 5 is movably arranged between the rotary drum driving unit 4 and the blanking driving unit 6, the rotary drum driving unit 4 comprises a first fixing frame 41, a rotary drum motor 42 is fixedly connected to one side of the first fixing frame 41, a first rotary drum outer bearing 43 is fixedly connected between the first fixing frame 41 and the rotary drum unit 5, the blanking driving unit 6 comprises a second fixing frame 61, a blanking motor 62 is fixedly connected to one side of the second fixing frame 61, a rotating shaft 66 is rotatably connected to the blanking motor 62, and a second rotary drum outer bearing 67 is fixedly connected between the second fixing frame 61 and the rotary drum unit 5, the outer side of the rotating shaft 66 is in threaded connection with a putty screen bearing 65, and the outer side of the putty screen bearing 65 is fixedly connected with a putty screen 64.
In this embodiment, the steam engine unit 3 includes a steam blower 31, the left and right sides above the steam blower 31 are respectively and fixedly connected with an air inlet pipe 32 and an air outlet pipe 33, and the air inlet pipe 32 and the air outlet pipe 33 work simultaneously, the air inlet amount is the same as the air outlet amount, the air inlet 32 of the steam blower 31 can fill hot steam into the material storage barrel 51, and the air outlet pipe 33 can suck moist air after the raw material is dried by heat.
In this embodiment, the drum unit 5 includes a storage drum 51, the storage drum 51 is fixedly connected with a feeding hole 52 above one side of the feeding driving unit 6, and is fixedly connected with a discharging hole 53 below one side of the drum driving unit 4, the feeding hole (52) is disposed on one side of the feeding driving unit 6, and the discharging hole (53) is disposed below the other side, when the storage drum 51. When the rotation is stopped, the feed inlet (52) and the discharge outlet (53) return to the feeding position.
In this embodiment, a storage cylinder sealing cover 63 is fixedly mounted on the inner side of the second fixing frame 61, the storage cylinder sealing cover 63 does not rotate when the rotating shaft 66 and the storage cylinder 51 rotate, the air inlet pipe 32 and the air outlet pipe 33 penetrate and are fixedly connected to the lower side of the storage cylinder sealing cover 63, and the storage cylinder sealing cover 63 and the inner wall of the storage cylinder 51 are attached to each other to block leakage of the raw material and do not hinder the inlet and outlet of steam.
In this embodiment, the first drum outer bearing 43 and the second drum outer bearing 67 are both rotatably connected to the material storage drum 51, and when the drum motor 42 drives the material storage drum 51 to rotate, the first drum outer bearing 43 and the second drum outer bearing 67 do not rotate, and when the material storage drum 51 rotates, the driving of the motor is not affected, and the operation of the feeding driving unit is not affected.
In this embodiment, the surface of the plugging net 64 is provided with a plurality of through holes, the through holes are smaller than the raw material, the circumference of the plugging net 64 is the same as the inner wall of the storage cylinder 51, and when the storage cylinder 51 rotates, the plugging net 64 cannot rotate, due to the through holes formed in the plugging net 64, the steam inlet and outlet are not affected, the raw material leakage can be further prevented, and the raw material in the storage cylinder 51 can be pushed to the discharge hole 53 along with the rotation of the rotating shaft 66.
When the drying device is used, firstly, raw materials to be dried are poured into the storage barrel 51 from the feeding hole 52, the steam fan 31 is started, the rotating motor 42 is started at the same time, the rotary drum motor 42 drives the storage barrel 51 to rotate at a constant speed through the first rotary drum outer bearing 43 and the second rotary drum outer bearing 67, the air inlet pipe 32 fills steam with heat into the storage barrel 51, the heat of the steam and the raw materials driven by the rotation of the storage barrel are fully contacted with water in the dried raw materials, the water flows in the storage barrel 51 along with the steam, and the air outlet pipe 33 can suck the air with the water out of the storage barrel 51 again to achieve the drying effect;
after the raw material is dried, the rotary drum motor 42 is turned off, the storage drum 51 returns to the initial position, the blanking motor 62 is started to drive the rotating shaft 66 to rotate, so that the blocking net 66 is pushed by the blocking net bearing 65 to move towards the rotary drum driving unit 4, the dried raw material in the storage drum 51 is pushed forwards until the dried raw material all falls into the discharge port, and then the blanking motor 62 is turned reversely to return the blocking net 66 to the original position.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.

Claims (6)

1. The utility model provides a little biological fermentation lees fodder low temperature steam drying equipment, includes preceding base (1) and back base (2), its characterized in that: a rotary drum driving unit (4) and a blanking driving unit (6) are respectively and fixedly arranged above the front base (1) and the rear base (2), a steam engine unit (3) is fixedly arranged on one side of the rear base (2), and a rotary drum unit (5) is movably arranged between the rotary drum driving unit (4) and the blanking driving unit (6);
the rotary drum driving unit (4) comprises a first fixing frame (41), one side of the first fixing frame (41) is fixedly connected with a rotary drum motor (42), and a first rotary drum outer bearing (43) is fixedly connected between the first fixing frame (41) and the rotary drum unit (5);
unloading drive unit (6) include second mount (61), one side fixedly connected with unloading motor (62) of second mount (61), unloading motor (62) rotate and are connected with axis of rotation (66), fixedly connected with second rotary drum outer bearing (67) between second mount (61) and rotary drum unit (5), the outside threaded connection of axis of rotation (66) has putty net bearing (65), the outside fixedly connected with putty net (64) of putty net bearing (65).
2. The low-temperature steam drying equipment for the microbial fermentation of the vinasse feed, according to claim 1, is characterized in that: steam engine unit (3) are including steam fan (31), both sides are fixedly connected with air-supply line (32) and play tuber pipe (33) respectively about the top of steam fan (31), and air-supply line (32) and play tuber pipe (33) simultaneous workings, and the intake is the same with the air output.
3. The low-temperature steam drying equipment for the microbial fermentation of the vinasse feed, according to claim 1, is characterized in that: the rotary drum unit (5) comprises a storage drum (51), the storage drum (51) is close to a feeding hole (52) fixedly connected to the upper side of one side of the blanking driving unit (6) and a discharging hole (53) fixedly connected to the lower side of one side of the rotary drum driving unit (4).
4. The low-temperature steam drying equipment for the microbial fermentation of the vinasse feed, according to claim 2, is characterized in that: the inboard fixed mounting of second mount (61) has storage cylinder closing cap (63), storage cylinder closing cap (63) do not change when axis of rotation (66) and storage cylinder (51) rotate, just air-supply line (32) and play tuber pipe (33) run through fixed connection in the downside of storage cylinder closing cap (63).
5. The low-temperature steam drying equipment for the microbial fermentation of the vinasse feed, according to claim 1, is characterized in that: the first rotary drum outer bearing (43) and the second rotary drum outer bearing (67) are rotatably connected with the material storage drum (51), and when the rotary drum motor (42) drives the material storage drum (51) to rotate, the first rotary drum outer bearing (43) and the second rotary drum outer bearing (67) cannot rotate.
6. The low-temperature steam drying equipment for the microbial fermentation of the vinasse feed, according to claim 1, is characterized in that: the surface of the blocking net (64) is provided with a plurality of through holes, the through holes are smaller than the size of the raw materials, the perimeter of the blocking net (64) is the same as the inner wall of the storage barrel (51), and when the storage barrel (51) rotates, the blocking net (64) cannot rotate.
