本实用新型公开了一种节能花洒，该花洒包括花洒本体、供电器、用电器、滑动件、弹性件、霍尔元件和磁性件，其中花洒本体上设置有滑动腔，滑动件可以在滑动腔中滑动，磁性件固接在滑动件上，弹性件用来驱动滑动件复位，当水流进入滑动腔中时，滑动件会被水压驱动在滑动腔中滑动并使磁性件靠近霍尔元件，从而打开供电器与用电器之间的电路的连通，当停止进水时，滑动件会被弹性件驱动复位并使磁性件远离霍尔元件，从而关闭供电器与用电器之间的电路的连通。通过上述的结构，可以通过水压驱动滑动件滑动来切换霍尔元件的开关状态，从而减少用电器在花洒未使用时候对供电器的损耗，提高供电器的使用寿命。
The utility model discloses an energy-saving shower head. The shower head comprises a shower head body, a power supply, an electrical appliance, a sliding piece, an elastic piece, a Hall element and a magnetic piece. The shower head body is provided with a sliding cavity, and the sliding piece It can slide in the sliding cavity, the magnetic piece is fixed on the sliding piece, and the elastic piece is used to drive the sliding piece to reset. When the water flows into the sliding cavity, the sliding piece will be driven by water pressure to slide in the sliding cavity and make the magnetic piece close to The Hall element is used to open the circuit connection between the power supply and the electrical appliance. When the water is stopped, the slider will be driven to reset by the elastic member and keep the magnetic element away from the Hall element, thereby closing the connection between the power supply and the electrical appliance. connection of the circuit. Through the above structure, the on/off state of the Hall element can be switched by sliding the sliding element driven by water pressure, thereby reducing the loss of the power supply by the electrical appliance when the shower head is not in use, and improving the service life of the power supply.
Description
Technical Field
The utility model relates to a gondola water faucet technical field, concretely relates to energy-conserving gondola water faucet.
Background
Some current gondola water faucet can set up the solenoid valve among them and be used for controlling the break-make in water route, and this kind of solenoid valve adopts battery powered generally, realizes control through control circuit board. Because the battery power is limited, and the solenoid valve is connected with the battery in real time, the battery can be lost even when the solenoid valve is not used, and the service life of the battery is reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome the above-mentioned defect or the problem that exist among the background art, provide an energy-conserving gondola water faucet, it can control the power supply for using electrical apparatus power supply when using the gondola water faucet, cut off the power supply ware and with the circuit connection of electrical apparatus when not using the gondola water faucet to reduce the loss of solenoid valve to battery power, prolong the life of battery.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
the first technical scheme is as follows: an energy-saving shower head comprises a shower head body and an electric appliance arranged on the shower head body, wherein the shower head body is provided with a first water channel and a sliding cavity communicated with the first water channel; further comprising: the power supply is arranged on the shower head body and is electrically connected with the electrical appliance; the Hall element is arranged close to the sliding cavity and used for controlling the on-off of a circuit of the power supply connected to the electrical appliance; the sliding piece is arranged in the sliding cavity in a sliding mode and driven by water pressure to slide in the sliding cavity to be close to the Hall element when water enters the first water passing channel; the two ends of the elastic piece respectively act on the sliding piece and the shower head body, and the elastic piece drives the sliding piece to reset when the first water passing channel closes water inlet so as to be far away from the Hall element; and the magnetic part is fixedly connected with the sliding part and is close to or far away from the Hall element along with the sliding part so as to switch the on-off state of the Hall element.
The second technical scheme based on the first technical scheme is as follows: the sliding piece is provided with a water baffle; the outer edge of the water baffle abuts against the wall of the sliding cavity parallel to the sliding direction of the sliding part so as to prevent water flow from passing through.
A third technical solution based on the second technical solution: the shower head further comprises a circuit board fixedly connected to the shower head body; the power supply and the electrical appliance are electrically connected with the circuit board; the Hall element is connected with the circuit board and controls the power supply to be connected with the circuit of the electrical appliance to be switched on and off by controlling the switching state of the Hall element.
A fourth technical solution based on the third technical solution: one end of the sliding part extends out of the sliding cavity; the magnetic part is fixedly connected with the end part of the sliding part extending out of the sliding cavity.
A fifth technical solution based on the fourth technical solution: the electric appliance is an electromagnetic valve and is used for controlling the on-off of a water path in the shower head; the power supply is a battery.
A sixth technical solution based on the fifth technical solution: the device also comprises a controller; the circuit board is provided with a processor; the controller is in communication connection with the processor to send a control instruction to the processor; the processor is electrically connected with the electromagnetic valve so as to control the electromagnetic valve to be opened and closed according to the control instruction.
A seventh technical solution based on the sixth technical solution: the controller is a remote controller; the controller is in communication connection with the processor in a wireless communication mode.
An eighth technical means based on the seventh technical means: still including arranging in play water installation among the gondola water faucet body, it includes: the water outlet device body is provided with a water passing cavity, and a water inlet channel, a first water outlet channel, a second water outlet channel and a third water outlet channel which are respectively communicated with the water passing cavity; the water sealing piece is arranged in the water passing cavity in a sliding mode and is suitable for being driven by water pressure to close the third water outlet channel when the first water outlet channel and/or the second water outlet channel are/is opened and driven by the water pressure to open the third water outlet channel when the first water outlet channel and the second water outlet channel are/is closed; the electromagnetic valves are arranged on the water outlet device body and are respectively used for controlling the on-off of the first water outlet channel and the second water outlet channel.
A ninth technical solution based on the eighth technical solution: the water passing cavity is provided with a water passing hole communicated with the third water outlet channel; the water sealing piece is provided with a pressure bearing block and a plugging block; the pressure bearing block is positioned between the water inlet channel and the first and second water outlet channels, and the blocking block is positioned between the water inlet channel and the third water outlet channel and is configured to abut against or be far away from the water through hole so as to close or open the third water outlet channel; the bearing block orientation the bearing surface area of inlet channel is greater than the blocking piece orientation the bearing surface area of inlet channel, just the bearing block is towards inhalant canal and orientation the area difference of the bearing surface of the both sides of first outlet channel, second outlet channel is less than the blocking piece orientation inhalant canal's bearing surface area.
A tenth technical solution based on the ninth technical solution: the shower head body comprises a shower head upper cover, a ball head assembly and a water outlet panel; the upper shower cover is fixedly connected with the water outlet panel and matched with the water outlet panel to form an installation cavity for accommodating the water outlet device; the ball head assembly is fixedly connected to the shower head upper cover, is externally connected with water inlet and is communicated with the water inlet channel; and the water outlet panel is provided with a first water outlet part, a second water outlet part and a third water outlet part which are used for forming different water outlet patterns and are respectively communicated with the first water outlet channel, the second water outlet channel and the third water outlet channel.
From the above description of the present invention, compared with the prior art, the present invention has the following advantages:
the first technical scheme provides a gondola water faucet, it is provided with the power supply ware and uses electrical apparatus, and carry out the on-off control of circuit through hall element, the slider can receive rivers and elastic component drive and make a round trip to slide along sliding chamber, the magnetic part can remove and be close to or keep away from hall element along with the slider, thereby switch over hall element's on-off state, and then control power supply ware and the circuit break-make with electrical apparatus, when first water course of crossing is intake, control power supply ware is for using electrical apparatus power supply, when first water course of crossing is closed and is intake, control power supply ware and with electrical apparatus disconnection, thereby reduce with electrical apparatus the loss to the power supply ware when the gondola water faucet does not use, thereby improve the life of power supply ware.
The second technical scheme has injectd and is equipped with the breakwater on the slider, the pressure of rivers can be accepted completely to the breakwater, when first water passing way was intake, water pressure effect was in one side of bearing plate, thereby promote the slider and remove, when first water passing way closed the water intake, hydraulic effort is less than the effort of elastic component, thereby promote the slider through the elastic component and reset, the breakwater prevents rivers and leads to the breakwater to play the effect of bearing the water pressure through can preventing that rivers from forming the static pressure in the both sides of breakwater.
The third technical scheme is that the circuit board is additionally arranged and used for realizing the circuit communication between the power supply device and the electrical appliance and installing the Hall element, and the Hall element can control the circuit on the circuit board so as to control the on-off of the circuit between the power supply device and the electrical appliance.
The fourth technical proposal defines that the sliding part is provided with an end part extending out of the sliding cavity, and the magnetic part is fixedly connected to the end part, so that the magnetic part can move back and forth along with the sliding of the sliding part to be close to or far from the Hall element.
The fifth technical scheme has injectd that electrical apparatus is the solenoid valve, and it can control the break-make in the water route in the gondola water faucet, and the power supply ware is injectd to the battery, and it can be for the solenoid valve power supply.
The sixth technical scheme is that a controller and a processor are additionally arranged, the controller can send an operation instruction to the processor, and the processor directly controls the opening and closing of the electromagnetic valve according to the operation instruction.
The seventh technical scheme limits the controller to issue the control instruction to the processor in a wireless communication mode, so that the controller is convenient for users to use.
The eighth technical scheme is that the water outlet device is additionally arranged, wherein the water sealing piece can slide in the water passing cavity, and when the electromagnetic valve respectively controls one or two of the first water outlet channel and the second water outlet channel to be opened, the water sealing piece can slide relative to the water outlet device body under the action of water pressure and close the third water outlet channel; when first water outlet channel and second water outlet channel were all closed, the water blocking spare was reverse slip under the water pressure effect to open the third water outlet channel, even the solenoid valve was whole can't work like this, still can go out water through the third water outlet channel, avoided appearing the unable circumstances of going out water.
The ninth technical scheme limits that a water passing hole is formed in the water passing cavity, the water sealing piece is provided with a pressure bearing block and a blocking block, the pressure bearing block is used for driving the water sealing piece to integrally slide under the action of water pressure under the condition that the first water outlet channel and/or the second water outlet channel are/is opened, and the blocking block is abutted against the water passing hole, so that the third water outlet channel is closed; similarly, under the condition that first exhalant canal and second exhalant canal were closed, because the pressure that the shutoff piece received is bigger, water pressure orders about the shutoff piece and makes the shutoff piece keep away from the water hole after sliding to open the third and cross the water course.
The tenth technical scheme has injectd the constitution of gondola water faucet body, and wherein the cooperation of gondola water faucet upper cover and play water panel has formed the installation cavity that is used for installing water installation.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, and it is obvious that the drawings in the following description are some embodiments of the present invention, and it is obvious for those skilled in the art to obtain other drawings without creative efforts.

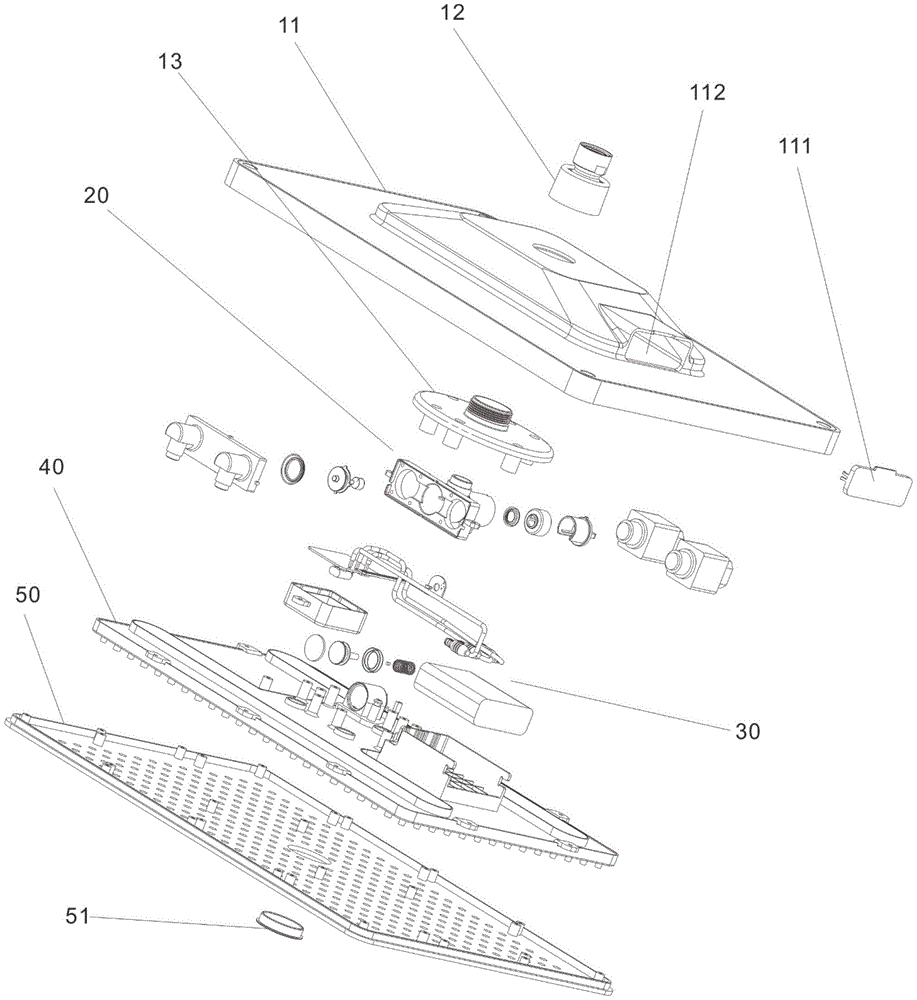

Fig. 1 is an exploded view of an embodiment of an energy-saving shower head provided by the present invention;
FIG. 2 is an exploded view of the structure of the water discharge device of FIG. 1;
FIG. 3 is an exploded view of the power module and the water outlet panel of FIG. 1;
FIG. 4 is a schematic view of the assembled state of the water outlet device in FIG. 2;
FIG. 5 is a schematic first cross-sectional view of the water outlet device of FIG. 4;
FIG. 6 is a second cross-sectional view of the water outlet device of FIG. 4;
fig. 7 is an assembled state diagram of the energy saving shower head in fig. 1 and a partial structure enlarged view of a power supply assembly.
Description of the main reference numerals:
11. covering the shower head; 111. a gap cover plate; 112. a notch; 12. a ball head assembly; 13. an inner frame; 20. a water outlet device; 21. a valve body; 211. a water inlet channel; 212. a water passing cavity; 2121. a limiting wall; 213. a third water outlet channel; 214. water passing holes; 22. a valve cover; 221. a first water outlet; 222. a second water outlet; 223. a first water outlet channel; 224. a second water outlet channel; 23. a water sealing member; 231. a pressure-bearing block; 232. a plugging block; 233. a bump; 234. a second seal ring; 24. fixing a sleeve; 25. a rear cover; 251. a third water outlet; 26. a first seal ring; 27. a first solenoid valve; 28. a second solenoid valve; 30. a power supply component; 31. a slider; 311. a water baffle; 312. a third seal ring; 32. a magnetic member; 33. an elastic member; 34. a Hall element; 341. a circuit board; 342. a circuit box; 35. a battery; 40. a water outlet panel; 41. a sliding cavity; 411. a sliding cavity cover plate; 42. a battery compartment; 43. a first water outlet panel interface; 44. a second water outlet panel interface; 45. a third water outlet panel interface; 46. receiving a water column; 50. a water outlet surface cover; 51. and (6) a decorative cover.
Detailed Description
The technical solution in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. It is obvious that the described embodiments are preferred embodiments of the invention and should not be considered as excluding other embodiments. Based on the embodiment of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative work belong to the protection scope of the present invention.
In the claims, the specification and the drawings, unless otherwise expressly limited, the terms "first," "second," or "third," etc. are used for distinguishing between different elements and not for describing a particular sequence.
In the claims, the specification and the drawings, unless otherwise expressly limited, all directional or positional relationships, such as those using the terms "center," "lateral," "longitudinal," "horizontal," "vertical," "top," "bottom," "inner," "outer," "upper," "lower," "front," "rear," "left," "right," "clockwise," "counterclockwise," and the like, are based on the directional or positional relationships illustrated in the drawings and are for the purpose of convenience in describing the invention and simplifying the description, but do not indicate or imply that the device or element so referred to must have a particular orientation or be constructed and operated in a particular orientation, and therefore are not to be construed as limiting the scope of the invention.
In the claims, the description and the drawings of the present application, unless otherwise expressly limited, the term "fixedly connected" or "fixedly connected" is used, which is to be understood broadly, that is, any connection mode without displacement relation or relative rotation relation between the two, that is, including non-detachably fixed connection, integrated connection and fixed connection through other devices or elements.
In the claims, the specification and the drawings, the terms "including", "comprising" and variations thereof, if used, are intended to be inclusive and not limiting.
Referring to fig. 1, fig. 1 shows an exploded view of an embodiment of an energy-saving shower head according to the present invention, which mainly includes a shower head cover 11, a gap cover 111, a ball head assembly 12, an inner frame 13, a water outlet device 20, a power supply assembly 30, a water outlet panel 40, and a water outlet cover 50.
Wherein, gondola water faucet upper cover 11 is a lid, and its middle position is equipped with a through-hole, is provided with a breach 112 in its one side, and this breach 112 can cover breach 112 with breach cover plate 111 joint cooperation, makes breach cover plate 111 cover breach 112.
The ball joint assembly 12 comprises a water receiving pipe and a ball joint, the water receiving pipe penetrates through a through hole in the upper cover 11 of the shower, the ball joint is axially installed in the water receiving pipe in a limiting mode and is used for being connected with an external water inlet pipeline, and the ball joint can swing or rotate in a certain range relative to the water receiving pipe.
The surface of the inner frame 13 facing the shower head cover 11 is provided with a threaded joint which can be screwed with a water receiving pipe passing through the shower head cover 11 and can guide water flow into the water outlet device 20. The surface of the inner frame 13 facing away from the upper cover 11 is provided with a plurality of screw connection columns which can be fixed with the water outlet panel 40 in a screw connection manner.
Referring to fig. 2, 4, 5, and 6, the water outlet device 20 mainly includes a water outlet device body, a water sealing member 23, a second sealing ring 234, a first sealing ring 26, a first solenoid valve 27, and a second solenoid valve 28.
The water outlet device body comprises a valve body 21, a valve cover 22, a fixing sleeve 24 and a rear cover 25.
Referring to fig. 2, 4 and 5, the valve body 21 is a main part of the water outlet device body, and is surrounded by the housing to form a circular tubular chamber, and the two ends of the chamber are opened to form a water passing cavity 212. A third water outlet 251 for water outlet is formed on the shell at a position close to the first end opening of the water passing cavity 212; a water inlet channel 211 for water inlet is arranged on the shell at the middle position of the water passing cavity 212; at a position close to the opening of the second end of the water passing cavity 212, the shell extends to two sides along the radial direction of the water passing cavity 212 to form two wing plates, and the two wing plates are respectively provided with an electromagnetic valve installation notch for installing and fixing an electromagnetic valve; meanwhile, two water passing grooves are arranged on the two wing plates, and both the two water passing grooves are communicated with the second end opening of the water passing cavity 212.
A water through hole 214 extending along the axial direction of the water through cavity 212 is provided inside the water through cavity 212, and the water through hole 214 is located between the water inlet channel 211 and the third water outlet 251 in the axial direction of the water through cavity 212 and has a smaller diameter than the inner diameter of the rest of the water through cavity 212. The first sealing ring 26 is installed on the end surface of the water passing hole 214 facing the third water outlet 251 and is fitted to the wall of the water passing cavity 212, and the first sealing ring 26 is a V-shaped sealing ring, and the opening direction of the first sealing ring faces the position of the water inlet channel 211.
Meanwhile, a flange is arranged in the water passing cavity 212, the flange protrudes from the inner wall of the water passing cavity 212 towards the water passing cavity 212, the flange may be a single block-shaped structure or an annular structure formed along the circumferential direction, and the flange has a wall surface perpendicular to the axial direction of the water passing cavity 212 and away from the position of the water inlet channel 211, and the wall surface forms a limiting wall 2121.
The valve cover 22 is fixedly connected with the valve body 21 into a whole in a screwing, clamping or welding mode and the like, and covers two wing plates on the valve body 21 to form a chamber for water passing. Referring to fig. 5, the valve cover 22 and the valve body 21 cooperate to form a first water outlet channel 223 and a second water outlet channel 224 corresponding to the two wing plates, the two water outlet channels are both communicated with the water passing cavity 212 through the water passing groove, and correspond to the two water outlet channels, the valve cover 22 is provided with a first water outlet 221 and a second water outlet 222, the first water outlet channel 223 is communicated with the first water outlet 221, and the second water outlet channel 224 is communicated with the second water outlet 222.
The fixing sleeve 24 is inserted into the water passing cavity 212 from the first end of the water passing cavity 212 and is tightly fixed by elastic deformation, and at the same time, abuts against the first sealing ring 26, so that the first sealing ring 26 can be fixed in the water passing cavity 212.
The rear cover 25 is inserted into the water passing cavity 212 from the first end of the water passing cavity 212 and abuts against the fixing sleeve 24, and is fixed by friction fit with the cavity wall of the water passing cavity 212, and can rotate relative to the valve body 21. When the rear cover 25 is mounted to the valve body 21, it cooperates with a portion between the water through hole 214 and the first end of the valve body 21 to form a third water outlet passage 213, and the third water outlet passage 213 communicates with the third water outlet 251. Meanwhile, a water passing notch is formed in the side wall of the rear cover 25 extending into the water passing cavity 212, the water passing notch can be rotated to a position corresponding to the third water outlet 251 by the rear cover 25, and the third water outlet 251 is opened; when the water gap is then rotated by the cover 25 to the position where the third water outlets 251 are staggered, the third water outlets 251 are closed.
The first electromagnetic valve 27 and the second electromagnetic valve 28 are used as electrical appliances in the present embodiment, and are respectively installed in two electromagnetic valve installation notches on the valve body 21, and a piston on the electromagnetic valve can block the communication between the water passing groove on the wing plate and the first water outlet 221 and the second water outlet 222, so that the opening and closing of the first water outlet passage 223 and the second water outlet passage 224 can be controlled.
The main body of the water sealing member 23 is a rod-shaped member, a pressure bearing block 231 and a blocking block 232 are respectively arranged at two ends of the rod-shaped member in a protruding manner along the radial direction, and the diameter of the pressure bearing block 231 is larger than that of the blocking block 232. A sealing ring groove is circumferentially arranged on the outer edge of the bearing block 231, the sealing ring groove is used for installing a second sealing ring 234, the second sealing ring 234 is a V-shaped sealing ring, so that a one-way sealing ring is formed, and the opening of the one-way sealing ring deviates from the position of the water inlet channel 211. A plurality of projections 233 are further circumferentially arranged on the outer edge of the bearing block 231, and the projections 233 extend in the radial direction of the rod-shaped main body of the water sealing member 23.
The water seal 23 is installed in the water passing cavity 212 and the block piece 232 passes through the water passing hole 214. The outer diameter of the blocking block 232 is approximately matched with the inner diameter of the water through hole 214, when the blocking block 232 is just located in the range of the water through hole 214, the outer edge wall surface of the blocking block 232 can be matched with the first sealing ring 26 to block the water through hole 214, and the communication between the water through cavity 212 and the third water outlet channel 213 is cut off. The convex block 233 on the bearing block 231 just abuts against the cavity wall of the water passing cavity 212 parallel to the first direction, so that the water sealing piece 23 is limited by the cavity wall of the water passing cavity 212 in the radial direction, and the moving direction of the water sealing piece 23 is limited. Meanwhile, the second sealing ring 234 sleeved on the bearing block 231 abuts against the wall of the water passing cavity 212 parallel to the first direction, and the second sealing ring 234 is away from the water inlet channel 211 due to the opening thereof, so that only water is allowed to flow from the water inlet channel 211 to the first water outlet channel 223 and the second water outlet channel 224, and water is prevented from flowing from the first water outlet channel 223 and the second water outlet channel 224 to the water inlet channel 211.
In addition, the outer diameter of the pressure-bearing block 231 is larger than the inner diameter of the water passing cavity 212 at the position of the limiting wall 2121, so that when the water sealing member 23 moves to the position of the limiting wall 2121, the pressure-bearing block 231 abuts against the limiting wall 2121, thereby preventing the water sealing member 23 from moving further, and the pressure-bearing block 231 is always located between the water inlet passage 211 and the first and second water outlet passages 223, 224. Meanwhile, since the pressure-bearing area of the pressure-bearing block 231 toward the water inlet passage 211 is greater than the pressure-bearing area of the blocking block 232 toward the water inlet passage 211, when one of the first water outlet passage 223 or the second water outlet passage 224 is opened to form water, and the third water outlet passage 213 also forms water, the water blocking member 23 moves toward the direction of the first water outlet passage 223 and the second water outlet passage 224, thereby blocking the water passing hole 214 through the blocking block 232. In addition, owing to be provided with second sealing washer 234, when first exhalant canal 223 and second exhalant canal 224 all closed, the atress that one side that pressure-bearing piece 231 deviates from inhalant canal 211 can be greater than its one side towards inhalant canal 211, in addition the power that blocking piece 232 itself received, the rivers can promote water sealing member 23 towards the position of third delivery port 251, until pressure-bearing piece 231 supports spacing wall 2121, thereby make blocking piece 232 leave the position of water hole 214, reopen the intercommunication of third exhalant canal 213 and water cavity 212. It should be noted that in other embodiments, the difference between the pressure receiving areas on the two sides of the pressure receiving block 231 is smaller than the pressure receiving area of the blocking block 232 on the side facing the water inlet channel 211, so that the water sealing member 23 can open the water through hole 214 when the first water outlet channel 223 and the second water outlet channel 224 are closed. For example, even if the pressure-bearing area of the pressure-bearing block 231 on the side facing the water inlet passage 211 is larger than the pressure-bearing area of the pressure-bearing block 231 on the side facing away from the water inlet passage 211, as long as the area difference between the two is smaller than the pressure-bearing area of the blocking block 232 on the side facing the water inlet passage 211, when the first water outlet passage 223 and the second water outlet passage 224 are closed, the force exerted by the water flow on the blocking block 232 is larger than the force exerted by the water flow on the pressure-bearing block 231, and the water blocking member 23 opens the water through hole 214.
Referring to fig. 3 and 7, the power supply module 30 is mainly composed of a slider 31, a third seal ring 312, a magnetic member 32, an elastic member 33, a hall element 34, a circuit board 341, a circuit case 342, and a battery 35.
The circuit box 342 is used for installing the circuit board 341, a processor and a wireless communication module are arranged on the circuit board 341, meanwhile, the circuit board 341 is electrically connected with the first electromagnetic valve 27, the second electromagnetic valve 28, the battery 35 and the hall element 34, and the hall element 34 can switch the on-off state of the hall element to control the on-off of the circuit of the battery 35, the first electromagnetic valve 27 and the second electromagnetic valve 28 in the circuit board 341. The battery 35 forms a power supply in the power supply assembly 30, which may supply power to the first solenoid valve 27, the second solenoid valve 28, and the circuit board 341.
The main body of the slider 31 is a rod-shaped member, one end of which is provided with a water baffle 311 protruding in the radial direction, and the outer edge of the water baffle 311 is provided with a seal ring groove along the circumferential direction, in which the third seal ring 312 is sleeved. The third seal ring 312 is a V-shaped seal ring. A magnetic member 32 is fixedly connected to the other end of the slider 31 opposite to the water guard 311, and the magnetic member 32 can control the on-off state of the hall element 34 by approaching or departing from the hall element 34.
The elastic member 33 is fitted over the shaft of the slider 31, and one end thereof abuts against a side wall surface of the water deflector 311.
The water outlet panel 40 is provided with a cylindrical cavity which forms a sliding cavity 41, one end of the sliding cavity 41 is blocked by a sliding cavity cover plate 411, the bottom wall of the other end is provided with a through hole penetrating through the bottom wall, and a water inlet hole is arranged at the side wall position of the sliding cavity cover plate 411, and the water inlet hole is communicated with a water inlet path formed by the ball head assembly 12. The sliding piece 31 is installed in the sliding cavity 41, and the outer edge of the water baffle 311 on the sliding piece abuts against the cavity wall of the sliding cavity 41, so that the sliding piece 31 can slide along the extending direction of the sliding cavity 41; meanwhile, the third sealing ring 312 is also abutted to the wall of the sliding cavity 41, and the opening direction of the third sealing ring 312 faces to the position of the water inlet hole, so as to prevent water from flowing through the water baffle 311 from the water inlet hole of the sliding cavity 41 to the other side of the water baffle 311. The stem of the slider 31 passes through a through hole in the bottom wall of the slide chamber 41 and protrudes outside the slide chamber 41, and the magnetic member 32 fixed thereto is also located outside the slide chamber 41. The other end of the elastic member 33 abuts against the bottom wall of the slide chamber 41. When the ball head assembly 12 is filled with water, water flows into the sliding cavity 41 through the water inlet hole, and pushes the sliding piece 31 to slide, so that the magnetic piece 32 is close to the Hall element 34, and the switching state of the Hall element 34 is switched; when the ball head assembly 12 stops feeding water, under the action of the elastic member 33, the sliding member 31 is reset, and the magnetic member 32 is moved away from the hall element 34, so that the hall element 34 returns to the initial state. Through the reciprocating sliding of the sliding member 31, the hall element 34 starts the circuit board 341 when the shower head enters water, and closes the circuit board 341 when the shower head closes the water inlet, thereby reducing the loss of the battery 35.
It should be noted that the side of the sliding chamber cover 411 facing the sliding member 31 is provided with a protrusion which can abut against the water deflector 311 when the sliding member 31 is reset by the elastic member 33, thereby preventing the water deflector 311 from blocking or crossing the water inlet hole.
A water receiving column 46 is arranged at a position close to the sliding cavity 41, the water receiving column 46 can be matched with the inner frame 13 to form a first water passing channel communicated with the water channel of the ball head assembly 12, and one end of the water receiving column 46 is communicated with a water inlet hole on the sliding cavity 41, so that water flow can enter the sliding cavity 41 from the ball head assembly 12.
The water outlet panel 40 is further provided with a battery compartment 42, and the battery compartment 42 can be used for placing the battery 35, so that the battery 35 is not easy to displace. Meanwhile, a plurality of screw posts are further arranged on the water outlet panel 40, and can be used for fixing the circuit box 342 and the inner frame 13 in a screw manner.
The water outlet panel 40 is further provided with a first water outlet panel interface 43, a second water outlet panel interface 44 and a third water outlet panel interface 45, which are respectively communicated with the first water outlet 221, the second water outlet 222 and the third water outlet 251 in the water outlet device 20. Meanwhile, the water outlet panel 40 is provided with a first water outlet portion, a second water outlet portion and a third water outlet portion, which are respectively communicated with the first water outlet panel interface 43, the second water outlet panel interface 44 and the third water outlet panel interface 45, so that different water outlet patterns can be formed.
In addition, the shower head further comprises a controller, the controller is a remote controller in this embodiment, the controller can establish communication with the processor through the wireless communication module on the circuit board 341 and send an operation signal to the processor, and the processor can control the first electromagnetic valve 27 or the second electromagnetic valve 28 to work according to the corresponding operation signal after receiving the operation signal, so as to switch the water outlet mode of the shower head. The wireless communication module can adopt wireless communication modes such as WiFi, zigbee, Bluetooth and infrared communication to transmit signals. The structure of the part belongs to the content that can be modified by those skilled in the art according to the actual needs, and is not described herein again.
Of course, in other embodiments, the communication between the controller and the processor may be a wired communication, for example, the controller is configured to be fixed on a wall surface and connected to the circuit board 341 through a wire, so that the operation on the controller can form a signal and transmit the signal to the processor.
The water outlet cover 50 and the decoration cover 51 are fixed on the water outlet panel 40 for improving the aesthetic degree of the shower head.
The water outlet panel 40 is fixedly connected with the shower head upper cover 11 to form a shower head body, a mounting cavity is formed in the space between the water outlet panel and the shower head body, and the inner frame 13, the water outlet device 20 and the power supply assembly 30 are all fixed in the mounting cavity. Moreover, the battery 35 can be exposed from the notch 112 on the shower head upper cover 11, and the battery 35 can be conveniently replaced by opening the notch cover plate 111.
In use, the water valve outside the shower head is opened to allow water to flow through the ball head assembly 12 into the shower head, the magnetic member 32 on the sliding member 31 is close to the hall element 34, the circuit board 341 starts to operate, and the first solenoid valve 27 and the second solenoid valve 28 can be controlled by the controller. When the first electromagnetic valve 27 and the second electromagnetic valve 28 close the water outlet of the first water outlet channel 223 and the second water outlet channel 224, respectively, the water sealing member 23 opens the water through hole 214, and the water flows out from the third water outlet channel 213 and passes through the third water outlet portion to form water outlet; when the first electromagnetic valve 27 opens the first water outlet passage 223, the water sealing member 23 closes the water through hole 214, and water flows out from the first water outlet passage 223 and passes through the first water outlet portion to form outlet water; when the second solenoid valve 28 opens the second water outlet channel 224, the water sealing member 23 closes the water through hole 214, and the water flows out from the second water outlet channel 224 and passes through the second water outlet portion to form water outlet.
The description of the above specification and examples is intended to illustrate the scope of the invention, but should not be construed as limiting the scope of the invention. Modifications, equivalents and other improvements which may be made to the embodiments of the invention or to some of the technical features thereof by a person of ordinary skill in the art through logical analysis, reasoning or limited experimentation in light of the above teachings of the invention or the above embodiments are intended to be included within the scope of the invention.
Claims (10)
1. An energy-saving shower head comprises a shower head body and an electric appliance arranged on the shower head body, and is characterized in that the shower head body is provided with a first water channel and a sliding cavity communicated with the first water channel;
further comprising:
the power supply is arranged on the shower head body and is electrically connected with the electrical appliance;
the Hall element is arranged close to the sliding cavity and used for controlling the on-off of a circuit of the power supply connected to the electrical appliance;
the sliding piece is arranged in the sliding cavity in a sliding mode and driven by water pressure to slide in the sliding cavity to be close to the Hall element when water enters the first water passing channel;
the two ends of the elastic piece respectively act on the sliding piece and the shower head body, and the elastic piece drives the sliding piece to reset when the first water passing channel closes water inlet so as to be far away from the Hall element;
and the magnetic part is fixedly connected with the sliding part and is close to or far away from the Hall element along with the sliding part so as to switch the on-off state of the Hall element.
2. The energy saving shower head as claimed in claim 1, wherein the sliding member is provided with a water guard; the outer edge of the water baffle abuts against the wall of the sliding cavity parallel to the sliding direction of the sliding part so as to prevent water flow from passing through.
3. The energy saving shower head as claimed in claim 2, further comprising a circuit board fixedly connected to the shower head body; the power supply and the electrical appliance are electrically connected with the circuit board; the Hall element is connected with the circuit board and controls the power supply to be connected with the circuit of the electrical appliance to be switched on and off by controlling the switching state of the Hall element.
4. The energy saving shower head as claimed in claim 3, wherein the sliding member has one end extending out of the sliding chamber; the magnetic part is fixedly connected with the end part of the sliding part extending out of the sliding cavity.
5. The energy-saving shower head as claimed in claim 4, wherein the electrical appliance is a solenoid valve for controlling the on/off of a water path in the shower head; the power supply is a battery.
6. The energy saving shower head of claim 5, further comprising a controller; the circuit board is provided with a processor; the controller is in communication connection with the processor to send a control instruction to the processor; the processor is electrically connected with the electromagnetic valve so as to control the electromagnetic valve to be opened and closed according to the control instruction.
7. The energy saving shower head as claimed in claim 6, wherein the controller is in communication connection with the processor in a wireless communication manner.
8. The energy saving shower head of claim 7, further comprising a water outlet device disposed in the shower head body, comprising:
the water outlet device body is provided with a water passing cavity, and a water inlet channel, a first water outlet channel, a second water outlet channel and a third water outlet channel which are respectively communicated with the water passing cavity;
the water sealing piece is arranged in the water passing cavity in a sliding mode and is suitable for being driven by water pressure to close the third water outlet channel when the first water outlet channel and/or the second water outlet channel are/is opened and driven by the water pressure to open the third water outlet channel when the first water outlet channel and the second water outlet channel are/is closed;
the electromagnetic valves are arranged on the water outlet device body and are respectively used for controlling the on-off of the first water outlet channel and the second water outlet channel.
9. The energy-saving shower head as claimed in claim 8, wherein the water passing cavity is provided with a water passing hole communicated with the third water outlet channel; the water sealing piece is provided with a pressure bearing block and a plugging block; the pressure bearing block is positioned between the water inlet channel and the first and second water outlet channels, and the blocking block is positioned between the water inlet channel and the third water outlet channel and is configured to abut against or be far away from the water through hole so as to close or open the third water outlet channel; the bearing block orientation the bearing surface area of inlet channel is greater than the blocking piece orientation the bearing surface area of inlet channel, just the bearing block is towards inhalant canal and orientation the area difference of the bearing surface of the both sides of first outlet channel, second outlet channel is less than the blocking piece orientation inhalant canal's bearing surface area.
10. The energy saving shower head of claim 9, wherein the shower head body comprises a shower head cover, a ball head assembly and a water outlet panel; the upper shower cover is fixedly connected with the water outlet panel and matched with the water outlet panel to form an installation cavity for accommodating the water outlet device; the ball head assembly is fixedly connected to the shower head upper cover, is externally connected with water inlet and is communicated with the water inlet channel; and the water outlet panel is provided with a first water outlet part, a second water outlet part and a third water outlet part which are used for forming different water outlet patterns and are respectively communicated with the first water outlet channel, the second water outlet channel and the third water outlet channel.
