CN214885410U

CN214885410U - Scaffold connecting device for building construction

Info

Publication number: CN214885410U
Application number: CN202120255703.4U
Authority: CN
Inventors: 段相飞; 顾学林
Original assignee: Individual
Current assignee: Individual
Priority date: 2021-01-29
Filing date: 2021-01-29
Publication date: 2021-11-26
Anticipated expiration: 2031-01-29

Abstract

The utility model discloses a scaffold connection device for building construction, which relates to the technical field of indoor building construction. The utility model comprises an installation plate, an installation block and a support rod. The front end surface of the installation plate is provided with a plurality of slots, and one surface of the installation block is fixedly connected with a pressure frame. The size of the pressure frame is the same as that of the slot. The slot on the board is plugged into the mounting plate. The utility model is provided with a mounting plate, a mounting block, a pressing frame, a slot positioning strip and a positioning groove, the pressing frame and the slot enable the mounting plate and the mounting block to be quickly inserted and spliced, and the mounting plate and the mounting plate can pass through the splicing block. Docking with the splicing groove, widening or heightening the lap range, saves a lot of time for construction workers to install scaffolding, speeds up the progress of the project, and has a very important impact on the construction industry.

Description

Scaffold connecting device for building construction

Technical Field

The utility model belongs to the technical field of the interior construction, especially, relate to a scaffold puts up connecting device for construction.

Background

When being under construction in the indoor to building, because the construction height is not high, when installing traditional scaffold and being under construction indoor, the scaffold molding is too big, surely installs inconveniently, and the price/performance ratio is very low, then, provides one kind and can install the scaffold connecting device of back grafting scaffold on indoor wall.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a scaffold puts up connecting device for construction solves the too troublesome problem of current indoor scaffold frame installation.

In order to solve the technical problem, the utility model discloses a realize through following technical scheme:

the utility model relates to a scaffold connecting device for building construction, which comprises a mounting plate, a mounting block and a support rod, wherein the front end surface of the mounting plate is provided with a plurality of slots, a surface of the mounting block is fixedly connected with a pressing frame, the size of the pressing frame is the same as that of the slot, and the mounting block is connected with the mounting plate through the pressing frame and the slot on the mounting plate in an inserting way;

the mounting block is relative about, both ends face, relative about both ends face and preceding terminal surface all opened the spread groove, spread groove size and bracing piece size are collocated, the bracing piece cooperatees with the spread groove grafting, the inside constant head tank that has opened of spread groove, the bracing piece is relative about, both ends face and relative about the equal fixedly connected with location strip of both ends face, the location strip is the same with bracing piece length, location strip and fixed position groove are collocated, and the mounting panel is fixed on the wall, and the slot that the mounting block inserted on the mounting panel through the pressure frame is connected with the mounting panel, connects the back that finishes, inserts the bracing piece in the spread groove of mounting block, uses location strip and constant head tank auxiliary stay pole to peg graft with the mounting block, can accomplish indoor scaffold's installation.

Furthermore, the mounting plate left end face is fixedly provided with a splicing block, when the size of the mounting plate is not enough, the mounting plate can be assembled to increase the width and the height of the scaffold, and the splicing block is used for being matched with the next mounting plate in an inserting mode.

Furthermore, the right end face of the mounting plate is provided with a splicing groove, the position of the splicing groove corresponds to the position of the splicing block, and the position of the splicing groove corresponds to the position of the splicing block, so that the mounting plates can be conveniently spliced.

Furthermore, a nut groove is formed in the front end face of the mounting plate, a fixing screw hole penetrates through the nut groove, a fixing screw can be installed in the fixing screw hole to fix the mounting plate and the wall surface together, and a nut is installed in the nut groove to strengthen connection between the fixing screw and the wall surface and prevent thread slipping.

Further, press the inside first indent that opens of frame, press the first spring of frame internal surface fixedly connected with, fixed mounting has first limit baffle in the first indent, the first limiting plate of first spring one end fixedly connected with, first limiting plate and first limit baffle extrusion fit, first limiting plate up end fixedly connected with bayonet lock will install the pressure frame of piece and insert the slot, and the bayonet lock is impressed first indent, and after pressing the frame and inserting the slot completely, the bayonet lock is pushed into the second indent under the effect of first spring, can lock the connection of installation piece and mounting panel.

Furthermore, the upper end surface and the lower end surface of the mounting plate are both provided with second press grooves, the positions of the second press grooves correspond to the slots, a second limit baffle is fixedly connected inside the second press grooves, a fixed plate is also fixedly connected inside the second press grooves, the fixed plate is close to one side of the slots, a second spring is fixedly mounted on one side surface of the fixed plate, one end of the second spring is fixedly connected with a second limit plate, the upper end surface of the second limit plate is fixedly connected with a press block, the second limit plate is in extrusion fit with the second limit baffle, the lower end surface of the second limit plate is fixedly connected with a fixed column, one end of the fixed column is fixedly connected with a third limit plate, the third limit plate is in extrusion fit with the fixed plate, when the scaffold needs to be disassembled, the press block is pressed, the second limit plate is pressed downwards, the fixed column drives the third limit plate to be pressed downwards, so that the bayonet lock is retracted into the first press grooves, the locking of the bayonet lock can be released, the mounting block is pulled out, and the supporting rod is detached.

The utility model discloses following beneficial effect has:

the utility model discloses a set up mounting panel, installation piece, pressure frame, slot location strip and constant head tank, pressure frame and slot make mounting panel and installation piece can be fast to inserting the concatenation, can dock through splice and splice groove between mounting panel and the mounting panel, widen or increase the overlap joint scope, save a large amount of time of installing the scaffold frame for the construction workman for the progress of engineering has very important influence to the building trade.

Of course, it is not necessary for any particular product to achieve all of the above-described advantages at the same time.

Drawings

In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings used in the description of the embodiments will be briefly introduced below, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and it is obvious for those skilled in the art that other drawings can be obtained according to these drawings without creative efforts.

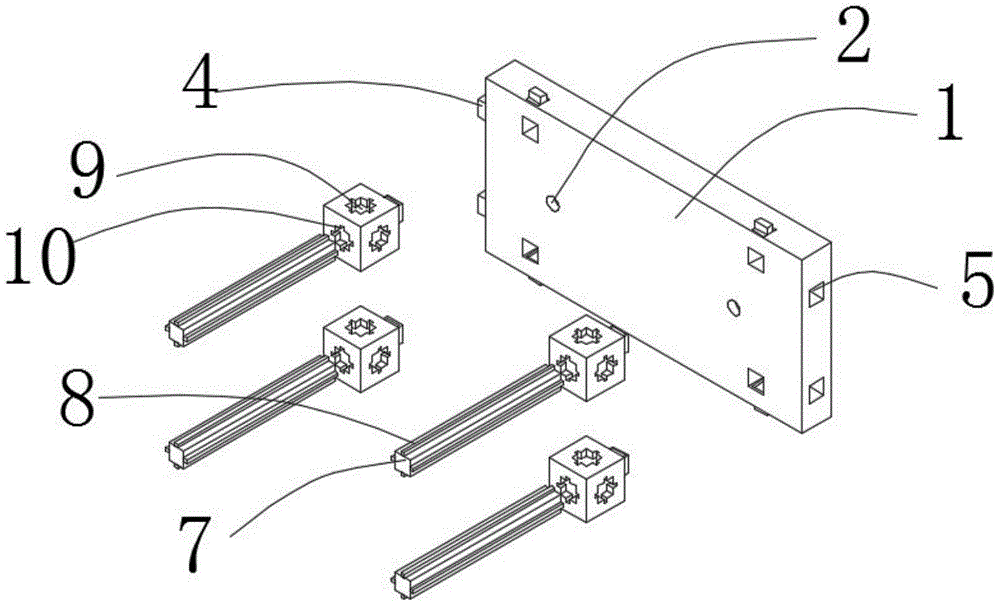

FIG. 1 is a schematic isometric front perspective view of a scaffolding connector for use in building construction;

FIG. 2 is a perspective isometric rear view of a scaffolding connector assembly for use in building construction;

FIG. 3 is a schematic top view of a scaffolding connector for use in building construction;

FIG. 4 is a schematic cross-sectional view taken along line A-A of FIG. 3;

FIG. 5 is a schematic diagram of a portion of the structure A in FIG. 4;

fig. 6 is a partially enlarged view of the structure B in fig. 4.

In the drawings, the components represented by the respective reference numerals are listed below: 1. mounting a plate; 2. a nut groove; 3. fixing screw holes; 4. splicing blocks; 5. splicing grooves; 6. mounting blocks; 7. a support bar; 8. a positioning bar; 9. connecting grooves; 10. positioning a groove; 11. pressing the frame; 12. a first spring; 13. a first indent; 14. a bayonet lock; 15. a first limit plate; 16. a first limit baffle; 17. a slot; 18. briquetting; 19. a second limit baffle; 20. a second limiting plate; 21. a second press groove; 22. a second spring; 23. a fixing plate; 24. a third limiting plate; 25. and (5) fixing the column.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

In the description of the present invention, it is to be understood that the terms "upper", "middle", "outer", "inner", and the like, indicate positional or positional relationships, are merely for convenience in describing the present invention and simplifying the description, and do not indicate or imply that the referenced components or elements must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Referring to fig. 1-6, the utility model relates to a scaffold connecting device for building construction, which comprises a mounting plate 1, a mounting block 6 and a support rod 7, wherein the front end surface of the mounting plate 1 is provided with a plurality of slots 17, one surface of the mounting block 6 is fixedly connected with a pressing frame 11, the size of the pressing frame 11 is the same as that of the slots 17, and the mounting block 6 is connected with the slots 17 on the mounting plate 1 through the pressing frame 11 in an inserting way;

two terminal surfaces about installation piece 6 is relative, both ends face and preceding terminal surface all opened spread groove 9 about relatively, spread groove 9 size and bracing piece 7 size collocation, bracing piece 7 pegs graft with spread groove 9 and cooperates, spread groove 9 is inside to be opened there is constant head tank 10, bracing piece 7 is relative about both ends face and the equal fixedly connected with location strip 8 of both ends face about relatively, location strip 8 is the same with bracing piece 7 length, location strip 8 is collocated with constant head tank 10, mounting panel 1 is fixed on the wall, installation piece 6 inserts slot 17 on the mounting panel 1 through pressing frame 11 and is connected with mounting panel 1, the back of finishing connecting, insert the bracing piece 7 in the spread groove 9 of installation piece 6 with bracing piece 7, use location strip 8 and constant head tank 10 auxiliary stay bar 7 to peg graft with installation piece 6, can accomplish indoor scaffold's installation.

Preferably, 1 left end face fixed mounting of mounting panel has splice 4, and when the mounting panel 1 size was not enough, can assemble 1 width and the height that increase the scaffold frame of mounting panel, splice 4 is used for pegging graft the cooperation with next mounting panel 1.

Preferably, the right end face of the mounting plate 1 is provided with a splicing groove 5, the position of the splicing groove 5 corresponds to the position of the splicing block 4, and the mounting plates 1 can be conveniently spliced.

Preferably, the front end surface of the mounting plate 1 is provided with a nut groove 2, a fixing screw hole 3 penetrates through the nut groove 2, a fixing screw can be mounted in the fixing screw hole 3 to fix the mounting plate 1 and the wall surface together, and a nut is mounted in the nut groove 2 to strengthen the connection between the fixing screw and the wall surface and prevent thread slipping.

Preferably, the inside first indent 13 that has opened of pressure frame 11, the first spring 12 of 11 internal surface fixedly connected with of pressure frame, fixed mounting has first limit baffle 16 in the first indent 13, the first limiting plate 15 of 12 one end fixedly connected with of first spring, first limiting plate 15 and the extrusion fit of first limit baffle 16, first limiting plate 15 up end fixedly connected with bayonet lock 14, the pressure frame 11 with installation piece 6 inserts slot 17, bayonet lock 14 is impressed first indent 13, after pressing frame 11 and inserting slot 17 completely, bayonet lock 14 is pushed into in the second indent 21 under the effect of first spring 12, can lock the connection of installation piece 6 and mounting panel 1.

Preferably, the upper and lower end surfaces of the mounting plate 1 are both provided with second indent 21, the position of the second indent 21 corresponds to the slot 17, the inside of the second indent 21 is fixedly connected with a second limit baffle 19, the inside of the second indent 21 is also fixedly connected with a fixing plate 23, the fixing plate 23 is close to one side of the slot 17, one side surface of the fixing plate 23 is fixedly provided with a second spring 22, one end of the second spring 22 is fixedly connected with a second limit plate 20, the upper end surface of the second limit plate 20 is fixedly connected with a pressing block 18, the second limit plate 20 is in press fit with the second limit baffle 19, the lower end surface of the second limit plate 20 is fixedly connected with a fixing column 25, one end of the fixing column 25 is fixedly connected with a third limit plate 24, the third limit plate 24 is in press fit with the fixing plate 23, when the scaffold needs to be disassembled, the pressing block 18 is pressed down by the second limit plate 20, the fixing column 25 drives the third limit plate 24 to be pressed down, so that the third bayonet lock 14 is retracted into the first indent 13, the locking of the bayonet 14 can be released, the mounting block 6 can be pulled out, and the support rod 7 can be detached.

As shown in fig. 1 to 6, the present embodiment is a method for using a scaffold connecting device for building construction: the mounting plate 1 is fixed on the wall surface through the fixing screw hole 3, the mounting block 6 is inserted into the slot 17 on the mounting plate 1 through the pressing frame 11 to be connected with the mounting plate 1, after the connection is finished, the supporting rod 7 is inserted into the connecting slot 9 of the mounting block 6, the positioning strip 8 and the positioning groove 10 are used for assisting the supporting rod 7 to be inserted into the mounting block 6, and then the mounting of the indoor scaffold can be completed; if the length or the width is not enough, a plurality of mounting plates 1 are used, and the splicing blocks 4 and the splicing grooves 5 are used for splicing, so that the construction range can be increased or widened; if the scaffold needs to be dismantled, the pressing block 18 is pressed down, the second limiting plate 20 is pressed down, the fixing column 25 drives the third limiting plate 24 to be pressed down, the bayonet 14 can be unlocked after the bayonet 14 is retracted into the first pressing groove 13, the mounting block 6 is pulled out, the supporting rod 7 is detached, and the scaffold can be dismantled.

In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not intended to be exhaustive or to limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. A scaffold connection device for building construction, comprising a mounting plate (1), a mounting block (6) and a support rod (7), characterized in that: the front end face of the mounting plate (1) is provided with several slots (17), a pressing frame (11) is fixedly connected to one surface of the mounting block (6), the size of the pressing frame (11) is the same as that of the slot (17), and the mounting block (6) passes through the pressing frame (17). 11) Plug and connect with the slot (17) on the mounting plate (1) and the mounting plate (1);

The mounting block (6) is provided with connecting grooves (9) opposite to the upper and lower end faces, opposite left and right end faces and the front end face. The size of the connecting groove (9) is matched with the size of the support rod (7). The support rod (7) It is inserted and matched with the connecting groove (9), the connecting groove (9) is provided with a positioning groove (10), and the supporting rod (7) is fixedly connected to the upper and lower end faces and the opposite left and right end faces. A strip (8), the positioning strip (8) and the support rod (7) have the same length, and the positioning strip (8) is matched with the positioning groove (10).

2 . The scaffold connection device for building construction according to claim 1 , wherein a splicing block ( 4 ) is fixedly installed on the left end face of the mounting plate ( 1 ). 3 .

3. A kind of scaffold connection device for building construction according to claim 1, characterized in that, the right end face of the mounting plate (1) is provided with a splicing groove (5), and the position of the splicing groove (5) is the same as that of the splicing groove (5). The position of the splicing block (4) is corresponding.

4. A scaffold connection device for building construction according to claim 1, characterized in that a nut groove (2) is formed on the front end surface of the mounting plate (1), and the nut groove (2) penetrates through the inside of the nut groove (2). A fixing screw hole (3) is provided.

5. A scaffolding connection device for building construction according to claim 1, characterized in that, a first pressing groove (13) is opened inside the pressing frame (11), and a first pressing groove (13) is opened inside the pressing frame (11). A first spring (12) is fixedly connected to the surface, a first limit baffle plate (16) is fixedly installed in the first pressure groove (13), and one end of the first spring (12) is fixedly connected with a first limit A plate (15), the first limit plate (15) is press-fitted with the first limit baffle plate (16), and the upper end surface of the first limit plate (15) is fixedly connected with a bayonet (14).

6. A scaffold connection device for building construction according to claim 1, characterized in that, the upper and lower end surfaces of the mounting plate (1) are provided with second pressure grooves (21), and the second pressure grooves (21). The position of the groove (21) corresponds to the slot (17), a second limiting baffle plate (19) is fixedly connected inside the second pressure groove (21), and a second pressure groove (21) is also fixedly connected inside the second pressure groove (21). A fixing plate (23), the fixing plate (23) is close to the side of the slot (17), a second spring (22) is fixedly installed on one side of the fixing plate (23), and one end of the second spring (22) A second limit plate (20) is fixedly connected, the upper end surface of the second limit plate (20) is fixedly connected with a pressing block (18), and the second limit plate (20) is connected to the second limit baffle (19) Press fit, a fixing column (25) is fixedly connected to the lower end surface of the second limiting plate (20), and a third limiting plate (24) is fixedly connected to one end of the fixing column (25). The third limiting plate (24) is press-fitted with the fixing plate (23).
